In detail: ariston cde 129 do-it-yourself repair from a real master for the site my.housecope.com.

The machine has a dry valve malfunction. When you turn on any program, the water inlet valve (drying) is turned on. Further inspection showed that the valve turns on as soon as the UBL closes, and works constantly. I changed the module, flashed it with different firmware, there are no changes. I can't find the root of the problem.
Let me know if anyone has had this problem.

Comrades who have such a device. Watch how it behaves, how the dryer works. Well, the car needs to be repaired.

And what is the connection between the bay and drying when you turn on any program?

There are three valves. Maybe the wires are tangled. Wait for drying and look at which valve the voltage is supplied. It was like the valve itself poisoned.

And what kind of UBL is there, not with a mikrik? look at the pump too. In general, everything is described indistinctly.

UBL is ordinary - three-wire. I repeat about the problem, the valve, the one that is intended for drying (and only of three) turns on after the UBL closes, regardless of the program. Different firmwares do not help, I installed different modules (new ones). I tracked from which leg of the processor the signal is given, everything is normal there, the valve opening signal is given only when the “drying” program is turned on, and then not at a constant, but at some time intervals. I suspect that there is some kind of flaw or marriage on the board. The triac UBL and drying are located nearby, I think that from the triac UBL somehow breaks through the triac drying and it opens. By the way, the module number is 254298, you can look, maybe someone has one. I also noticed that between the outputs (gate) of UBL and drying there is some resistance of the order of 1 kOhm, maybe there is a snag.

Video (click to play).

Message roman001 » 08 Mar 2018 21:15

Hello.
The story is like this. Washing machine Ariston CDE 129 (serial number: 602138162 * 80325700905) fails.

Starts the washing mode: the drum spins, takes powder from the tray with water, pours water. Washes for about 10 minutes. Without completing the wash, it starts to constantly drain the water (you can hear how the drain motor works), but does not spin the drum. The two lower buttons and the machine power indicator are blinking (blinking quickly). Then the machine turns off the drain pump after four minutes and continues to blink (as described above).

Called the master. The master took away the module and soldered something there. They said that there was a short circuit and soldered a new track. The master said that if this starts again, then this is a tacho sensor. And you need to change the motor, because on this electric motor it does not change separately.

After setting the board, the machine worked as expected.
But the next day, the same song again.

I read on the Internet that if you look at the error code ( ), then the error is F-03. And it's a temperature sensor.
The question is what to do?
Is it correct that this is an F-03 error and this is a temperature sensor?
Could it be a tacho sensor?

I hope for your help.
With respect, Roman.

Nowadays, household appliances, especially washing machines, are becoming more and more popular. They have become an almost integral part of modern life. Manufacturers, in turn, improve their machines more and more. However, sometimes repairs are still required for the Ariston CDE 129 washing machine.

Water does not enter the machine. Did you turn on the water tap? Sometimes the problem lies in the breakdown of the valve. A rare cause is a malfunction of the control unit. In such a situation, it is worth calling the Ariston CDE 129 washing machine repairman;
The water does not heat up. The most common reason is the breakdown of the heating element (heater). It is better to replace it in a service center;
The washer drains water instantly.Often the reason lies in self-draining, namely in the wrong connection to the sewer. If this problem is fixed and the water still does not drain, then the CDE 129 washing machine needs professional repair;
The machine is knocking. Here are the main reasons: the bearings are out of order (in this case, it is better to fix it in the workshop), improper installation of the machine, an object getting inside the tank, uneven distribution of things;
The washer does not turn on. Check if it is connected to the network? If so, then the problem lies in the control unit. The Ariston CDE 129 washing machine needs specialist repair.

This question comes up quite often. Do-it-yourself repair of the Ariston CDE 129 washing machine is possible only if you have knowledge in this area, you can completely disassemble the machine, you understand the structural diagrams of various parts of the machine. If you do not have the necessary knowledge, entrust the repair to a professional.

Repair of the Ariston CDE 129 washing machine is in great demand. Quite a few companies are ready to provide it to you. If the washer is under warranty, then it is quite possible to fix it for free. Of course, we recommend reading the technical data sheet.

Finally, I would like to write that a good attitude towards a home assistant will save you in the future the money and time spent on repairing Ariston CDE 129 washing machines.

Models of Hotpoint and Margarita washing machines from the Italian manufacturer Ariston are rightfully considered one of the most reliable, ergonomic and high-quality among numerous competitors. However, even with them, sometimes unforeseen failures occur, which can be completely eliminated with your own hands.

Before you start repairing the machine, you should first figure out what most often malfunctions lead to the failure of the unit and determine the code of possible malfunctions.

The stability of the Ariston machines, first of all, depends on their correct operation. If there are certain problems, then you can try to fix them on your own, without resorting to the help of a specialist. But for this you need to figure out what most often can cause malfunctions.

Perhaps one of the most common causes of problems in the operation of the machine is blockages that prevent the passage of water during the process of draining it, which, in turn, leads to the inability of the washer to reconfigure the rinse mode. Characteristic signs of this problem are idling, loud noise and the impossibility of passing water through the hose (or very poor water permeability). As for places of blockage, then they can be concentrated:

in the drain hose itself, and in most cases blockages occur if it is installed incorrectly;
often blockages form in the drain filter itself;
blockages may occur in the pipe, which is located between the drain filter and the tank;
and also in the pump, although this is an extremely rare practice.

In order to correct the situation and eliminate the malfunction, it is enough to clean the machine from blockages in accessible places (pump, hose, drain pump or pipe).

The second problem that can be encountered during the operation of Ariston machines is lack of water heating during the erasing process. Often, in such a situation, the washing machine can be shocked due to dysfunction of the insulation of the heating element.

The main reason, which is a provocateur of such a malfunction - extremely hard water, resulting in the formation of scale. Repair consists in replacing a damaged electric heater (heater). To do this, unscrew the back panel of the machine, since it is behind it that the fastener of the broken electric heater is located. First, disconnect all contacts and unscrew the fixing screw, then carefully pull out the broken heater and replace the part with a new one. Everything, the malfunction is fixed, and the machine should heat the water, as before.

The most difficult problem is the breakdown or partial wear of the bearing or seal at Ariston. Fortunately, in practice, it is extremely rare.

To understand that machine malfunctions are result of bearing failurejust pay attention to the following signs:

during the operation of the unit, all moving elements of the washing machine begin to make characteristic sounds during the spin cycle;
in this case, the shaft begins to come into contact with the sleeve;
vibrations are possible.

It must be said right away that this problem should be removed promptly, because otherwise you can just break the machine. The only difficulty is that the repair will require almost complete disassembly of the machine. Therefore, if there is no confidence in your actions, it is best to entrust this process to a professional.

In this case, most likely there is a malfunction associated with socket or power cord. To check the operation of the outlet, just try turning on another electrical appliance. If everything is in order with the outlet, then you need to check the wire itself. To do this, it must be disconnected from the outlet and try to “ring” with a special tester.

In the event that the electrical wire is normal, then most likely the problem is hidden directly in the power supply of the machine. This is a rather complex problem, so only an experienced professional can solve it.

It is interesting! How to open the washing machine yourself if it is blocked

Another problem that can cause the machine to stop working is no drum rotation. There are several reasons that can cause such a situation: engine breakdown; problems with electrical wiring; collection in the operation of the control panel or clogging of the filter. However, the most common cause is wear or severe stretching of the belt. In this case, it is required to replace it - there should not be any special problems with self-replacement.

If the reason is different, then it is best to call a professional at home to identify the cause of the breakdown of the machine.

An equally common problem that users of Ariston Hotpoint or Margarita typewriters may encounter is a malfunction that occurs directly in the control unit. The main reason for this problem is a malfunction of our power grids, which is extremely problematic to deal with on our own.

In this case, the problem is easier to prevent than to fix. Therefore, before you start operating the washing machine, in particular, Ariston, it is best to put special protective equipment, which help protect the washer from power surges and other similar failures. This approach will be much more efficient and economical than replacing the entire control unit.

Operational problems may also arise during loose or broken mechanical fastenerswith which the machine is equipped. Most often, this is expressed in weakening the fixation of the hatch of the machine. The problem has the following symptoms: strong noise during the operation of the washer and characteristic vibrations. To get rid of this, it is enough to tighten or completely replace the fasteners with new ones.

It should be noted that such models of Ariston washing machines as Margarita 2000, Hotpoint, Avsl 109 and others have unique self-diagnosis function. The bottom line is that the system independently detects a malfunction and shows on the display or by flashing indicators, its specific code. Having an idea of what code number the unit shows, you can independently identify the problem and fix it.

It is interesting! Reasons why the washing machine does not draw water

Having an idea of what most often failures can occur in Ariston typewriters, you can try independently repair the unit. However, it should be started only if there is confidence in their actions. If there is no experience in such things, it is best to entrust the repair of the washer to a specialist.

Washing machine Hotpoint Ariston Italian manufacturer-reliable and high quality. But some parts of the washing machine sometimes become unusable.

You can, of course, send it to a service center for repair, but in order to save money and with skillful hands and a smart head, you can repair an electromechanical household appliance yourself.

Do-it-yourself Ariston washing machine repair is easy to do. Follow our washing machine restoration instructions, and your assistant will serve you for many years.

In the electromechanical device Ariston, the main reason leading to incorrect operation of the machine is blockages.
In addition, the heating element becomes unusable due to the appearance of limescale on the heating element due to hard water.
The pump is also faulty due to its long operation.
Sometimes the filling valve fails due to damage to the rubber gasket.
In rare cases, it is necessary to change bearings and seals.
Electronics almost never break, but we still touch on the issue of replacing the control unit a little.

It is easy to remove the blockage with your own hands. You need to check the drain filter, which is located at the bottom right under the panel.

By cleaning the filter, you will eliminate the cause of the washing machine malfunction. Less often, there is a blockage of the drain pipe, because it is thick.

The pump may be clogged, but rarely, because there is an additional filter in front of it.

The drain hose only becomes clogged if you installed it incorrectly.

Check the drain, it may also be clogged. Disassemble the unit, pull out the pipe, loosen the clamps, rinse it. Pull out the pump by unscrewing the fasteners and disconnecting the sensors.

Signs of a pump failure:

Drain pump hums but water won't drain.
The machine may stop while the system is running.
Water flows out slowly.

Ariston washing machine pump repair should be done as follows:

If the filling valve is broken in Ariston, then water constantly flows into the washer, even when it is not working, it is disconnected from the network.

To check the fill valve, you need to unscrew the fasteners and remove the top cover. The valve is located where the drain hose connects to the housing of the electromechanical unit.

Check gaskets first. If they have not lost their performance, measure the resistance of the valve. Put the probes on the contacts of the filling valve and check the resistance if it is optimal (from 30 to 50 ohms).

If it is less or more than it should be, it means that the water intake valve is not working. To replace it, you need to unscrew the old valve from the body and screw in a new one. Be sure to connect the sensors.

If the heating element is faulty, then it must be replaced. Its breakdown is signaled by the fact that the water does not heat up or washing according to all programs takes place in cold water. Sometimes the machine gives an error and stops.

To replace the heating element, the rear wall must be removed. Under the tank there are two contacts with a fastener in the middle. This is the ten. Measure the resistance of the heating element with a multimeter.

If the resistance is within the normal range, then you do not need to change the heating element - it is serviceable. To remove the heating element, you need to unscrew the screw in the middle and pull it towards you with rocking movements.

The water may not heat up due to the fragile connection of the wires to the heating element, which arises from the strong vibration of the washer. Water heating may be absent even if the temperature sensor malfunctions.

Take a tester or multimeter and check the resistance of the sensor cold and hot. If the resistance is the same, then it is broken and needs to be replaced. The resistance must be different.

The high-quality and durable material from which the drum of household appliances is made also becomes unusable, because solid foreign objects get into it, which can damage the assembly, forming cracks on it.

The plastic rib inside the drum can be deformed. To replace the drum, you need to remove it.

To remove the drum yourself, you need the following set of tools:

a set of screwdrivers, especially a Phillips screwdriver and a slotted nozzle;
screwdriver;
pliers;
hammer;
hexagons of different sizes.

Using a Phillips screwdriver, the bolts are removed from the rear, front and top walls, and then the panels themselves are removed.

Remove the powder container. Remove the module with a slotted screwdriver. The control unit does not have to be unscrewed to the end, the main thing is that it does not interfere with removing the drum.

Remove the cuff of the hatch, pull out the lower bar by unscrewing the screws. From the loading tank, you need to dismantle the electronics, shock absorbers and other parts.

Remove the drum from the device and disassemble it. Remove the screws holding the two sides of the drum. Pry off the seals with a screwdriver and remove them.

In the drum, the bearing can break and wear out. It needs to be replaced. You only need to buy a bearing of the appropriate brand in a specialized store or order it on the official website of the Ariston washing machine, or purchase it at an equipment repair shop.

Use a metal rod and a hammer to knock out the bearings. If they are faulty, replace them. If the drum is deformed, then change it to a new one.

Reassemble. If the malfunction is in the plastic rib, then there is no need to disassemble the tank. The washer door is removed. A metal rod is taken, the diameter of which is smaller than the holes in the plastic rib of the drum.

The rod is inserted into one of the holes on the rib, the latch is opened with it, the plastic part is removed. A new plastic rib is put in its place. Move the plastic rib along the groove until the latch engages the hole and closes.

The LED indicators that the control panel is equipped with receive a signal from a faulty unit. An error code is displayed on the display, indicating a breakdown of some element.

In the Ariston Margarita 2000 washing machine, in the event of a malfunction, the power button starts flashing and the handle of the command device constantly rotates. The nature of the flashing is different depending on the fault. The codes can be found in the owner's manual.

The control unit may fail due to mechanical damage, water ingress on it. Do-it-yourself repair of the control module can be done on your own only when a small part has failed or you need to replace the board completely.

In other cases, please contact the service. Professionals will help you repair, resolder complex electronic circuits.

You need to unscrew the screws on the board or remove the plates with a key, depending on its brand. Remove the control unit, replacing with a new one. Screw the fasteners carefully so as not to damage any part.

The price of the repair depends on its complexity. If the device does not drain the water, then the cost of restoration work ranges from 1200 to 3000 rubles.

Repair of the control module costs more than 3500 rubles. The rattle and knock of the machine can be fixed at a service center in Moscow for a price of 3,000 to 5,000 rubles.

Today we shared with you the knowledge of how to repair the Ariston washing machine with our own hands.

We hope that everything will work out for you and self-repair will cost you inexpensively, you will not have to pay for disassembly and assembly of washing equipment, for restoration work with the help of specialists.

Gentlemen, how much will it cost to order a control board for Ariston CDE 129?
Can be used in good condition.Rare washer? Nobody faced?The price of the control board is 1800 rubles. What is wrong with the board tried to repair.cat wrote:
The price of the control board is 1800 rubles.cat wrote:
What is wrong with the board tried to repair.The machine simply does not turn on with the main power button.I tried to look for similar problems from other users on the forums and found out that the firmware “flies” in some magical way, the controller starts cyclically reading program fragments, polling buttons, and all this in an endless loop. At some one address in the firmware, an instruction to move to another address appears, etc. to infinity. This is in general terms. At the same time, the board is usually alive, it does not have only software.You can remove the “live” firmware from a similar machine or download it, but for some reason I have not met the owners of such a machine among the users of our forum, but there is nowhere to download it yet. Plus, you need a programmer. The operation algorithm of the machine contains fuzzy control elements (fuzzy, fuzzy logic), so you need firmware for this particular model.cot, are there any other options for finding the firmware?In the event of unsatisfactory washing results or malfunctions, beforecontact an Authorized Service Center (see page 12), read this section. In most cases youyou can solve the problems yourself.The wash cycle does not start.Washing machine does not fillwater (The display showsWashing machine continuouslyThe washing machine does notStrong vibration when spinning.Water leaks from washing machineIn the event of a malfunction onthe display shows an error code,Possible Causes / Solutions:• The plug is not plugged into the outlet or is not plugged in properly, making contact.• There is no electricity in the house._ The lids or hatch are not properly closed(display shows “door”)• The Start/Reset button has not been pressed.• A delay program start has been programmed (about using• The inlet hose is not connected to the faucet.• Insufficient water pressure.• The Start/Reset button has not been pressed.• Drain hose located below 65 or above 100 cm from the floor• The end of the drain hose is immersed in water (see page 3).• The wall drain does not have a drain pipe.If the drain hose is built into the sewer, keep in mind that on the upper floorsa "siphon effect" can be created - the machine simultaneously drains andpours water. To prevent this effect, a specialcial valve (anti-siphon).• The selected program does not drain the water - for someprograms, you must turn on the drain manually (see p. 6).• The optional Easy ironing function is activated: to complete theprogram, press the Start/Reset button• The drain hose is kinked (see page 3) or clogged.• When installing the washing machine, the drum was unlocked incorrectly.• The washing machine is not level properly (see page 3).• There is not enough clearance between the machine and the wall/furniture (see page 3).• The inlet hose is loose (the nut at the end of the hose is loosethe gasket is pulled and incorrectly installed (see page 3).• The detergent dispenser is clogged with detergent residues.(For distributor cleaning, see page 10).• Drain hose loose (see page 3).• Turn off the machine and unplug the power plug, wait until1 minute and turn on the machine again. If the problem persists,contact Technical Service.• You are using a detergent that is not suitable for automaticfront loading washing machines.• Detergent overdose.If the machine still does not work properly after checking,contact an Authorized Service Center for assistance. (see p. 12)If you decide to repair the Ariston washing machine with your own hands, you definitely need to know how to disassemble it.We will provide you with step-by-step instructions, as well as tell you what tools you will need. There is nothing complicated in this repair, the main thing is the sequence of work and free space.We do not give a 100% guarantee that you will fix your washing machine. We give recommendations for disassembling the machine.Therefore, if you are determined to replace a failed part or find the cause of a breakdown, start preparing.

Screwdrivers of different configurations: slotted (flat), cross, hex.

Torx wrench set.

Open-end wrenches 8 mm and 10 mm.

Hammer and chisel.

Pliers.

Wire cutters.

Hacksaw and blade for metal.

To disassemble the Ariston washing machine, you need to properly prepare:

Remove the plug from the socket, de-energizing the CMA.

Close the water shut-off valve.

Unscrew the inlet hose nut from the machine body. Since the back cover needs to be removed, it is better to remove the hose altogether.

Preparing the washer also consists in draining the remaining water. Therefore, prepare a container for collection in advance. When unscrewing, water may come out of the inlet hose.

Going to the front, find the drain filter. It is located at the bottom of the hull, behind the hatch. Open the sunroof by opening the latches. Unscrew the filter and drain the water. At the same time, clean the part of debris.

Move the machine away from the wall so that you can easily move around and remove parts.

This completes the preparation. It is possible to provide in advance a container for collecting bolts and self-tapping screws, of which there will be a lot.On the one hand, disassembling the Ariston washing machine is quite simple, since there is no need to remove the front panel. On the other hand, the manufacturer has provided details and fasteners that are difficult to remove for a novice master.We will deal with all issues in order.First of all, the top panel is removed, which is fastened with two screws.To remove the top cover of the Ariston washing machine, they must be unscrewed from the back wall with a Phillips or Hex screwdriver. Then push the lid in the opposite direction from you, lift it up and set it aside.Proceed to the back panel. To remove it, unscrew the bolts around the perimeter, remove the panel to the side. You have gained access to the motor and drum pulley.It remains to remove the control panel. Sequence of work:

Pull out the detergent drawer. While pressing the latch in the center, pull the tray towards you and remove it from the case.

Unscrew the screws that are behind the tray and on the opposite side of the panel.

Use a flathead screwdriver to pry out the plastic tabs. Take a picture of the location of the wires on the panel or mark them with a marker.

The wiring can be disconnected and the panel removed to the side. Or you can hang it on a utility hook if you have one.

You will also need to remove the clamp from the cuff of the hatch so that you can get the tank. Having moved the seal, pry the clamp with a screwdriver and remove. Insert the cuff into the tank.So, we are done with the panels. We move on.Go back to the back wall of the CM. It is necessary to remove the drive belt by removing it from the pulley. To do this, pull it towards you, scroll the pulley.

Pay attention to the Hotpoint Ariston washing machine motor. It is located at the bottom, under the tank.

To remove the motor from the housing, disconnect the wiring leading to it.

Remove the bolts that hold the motor. In machines of this brand, the part is usually held by four bolts.

It is not necessary to remove the heater from the mounting socket. In this case, the sealing rubber of the element cannot be restored. Therefore, it is enough to disconnect the terminals and wires leading to the heating element.Time to remove the drain pump. If the engine could be reached through the rear hole, then the pump could not be removed in this way. You will have to turn the washer on the left side.Note! If it is inconvenient for you to remove the motor through the service hatch at the back, you can also do this through the bottom.

Unscrew the screws securing the bottom cover, if your model has one.

Unscrew the screws that are located in the area of the drain filter on the front panel.

Push the filter, it should fall out with the pump.

Unclip the metal clamp on the drain pipe with pliers.

Disconnect the hose from the pump.

Remove the bolts holding the filter and pump.

Fine! The pump is now in your hands.We proceed to further disassembly of the Ariston washing machine.Go to the upper opening of the Ariston CMA, inspect all the elements of the machine. What else prevents you from pulling out the tank? That's right, a noise filter and a pressure switch.

Unplug all wire connectors leading to the filter and pressure switch. Remove the pressure hose from the latter.

Unscrew the screws that fix the parts on the case. Get them out of the car.

Also disconnect the pressure switch hose from the tank body, otherwise it may break during dismantling. Often, manufacturers attach wiring to the tank using plastic clips. Snip them with wire cutters and move the wiring aside.Before you completely disassemble the Ariston washing machine, you need to remove the counterweights. In other brands of cars, there are no difficulties with their removal. But Ariston manufacturers equipped the counterweights with special mounts. To remove them, you will need a special key, as shown in the photo:Attention! Do not try to break the fasteners with pliers and other tools. So you damage the fasteners, which cannot be restored.If you managed to remove the counterweight - great! Start unscrewing the racks. Racks are mounted on plastic rods. You can pull them out only by pressing the latches that hold them in place. For this:

Arm yourself with a head, put it on the opposite side of the stem.

use pliers to pull the stem towards you, pulling it out of the socket. Remove the other stem in the same way.

Now the tank is held only on hanging hooks. To pull the drum out of the Ariston washing machine, lift it up, removing it from the hooks.Another difficulty. If you need to get the drum out of the tank, you will have to cut it, because in these models it is non-separable.Before cutting, you need to take care of the further assembly of the tank. To do this, make holes around the perimeter, into which you then screw the bolts. Also prepare glue or sealant.

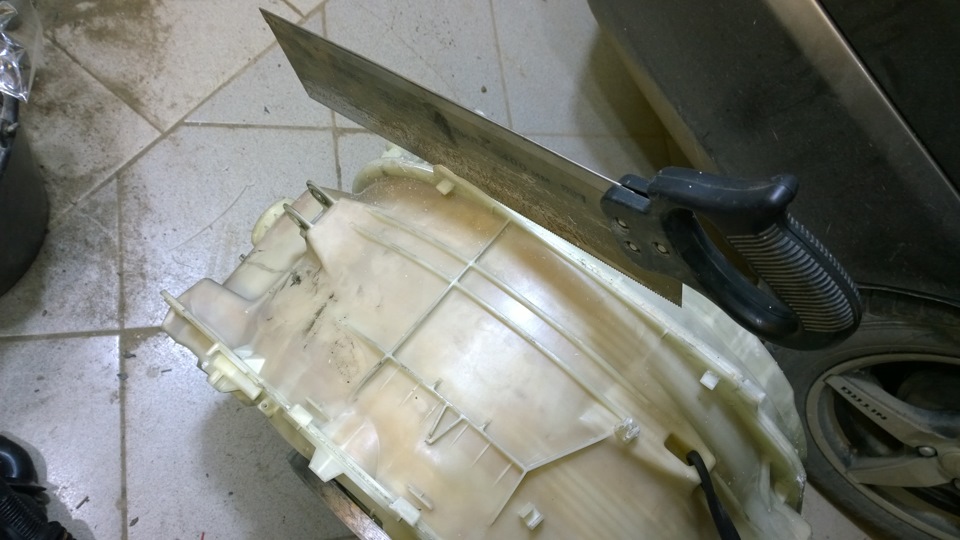

Take a hacksaw or a metal blade (whichever is more convenient for you). They are thinner, which will allow you to make a neat cut.

Install the tank on edge. Start cutting from the side that is comfortable for you.

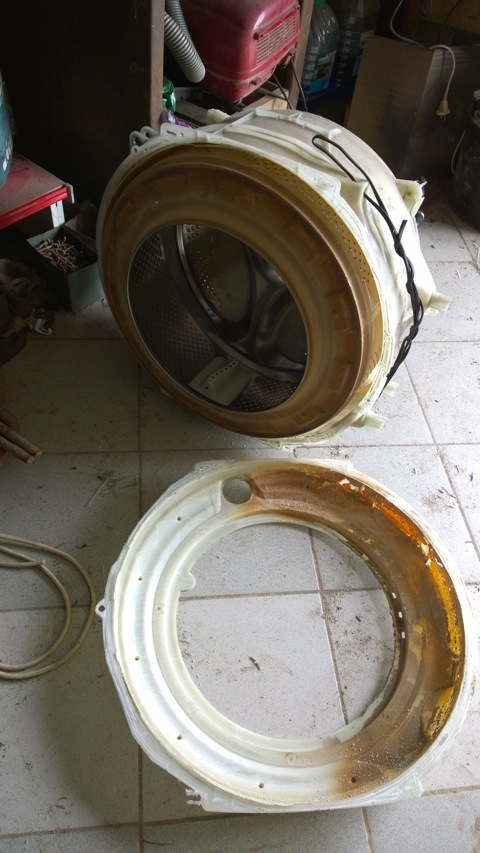

After sawing the tank around the perimeter, remove the upper part.

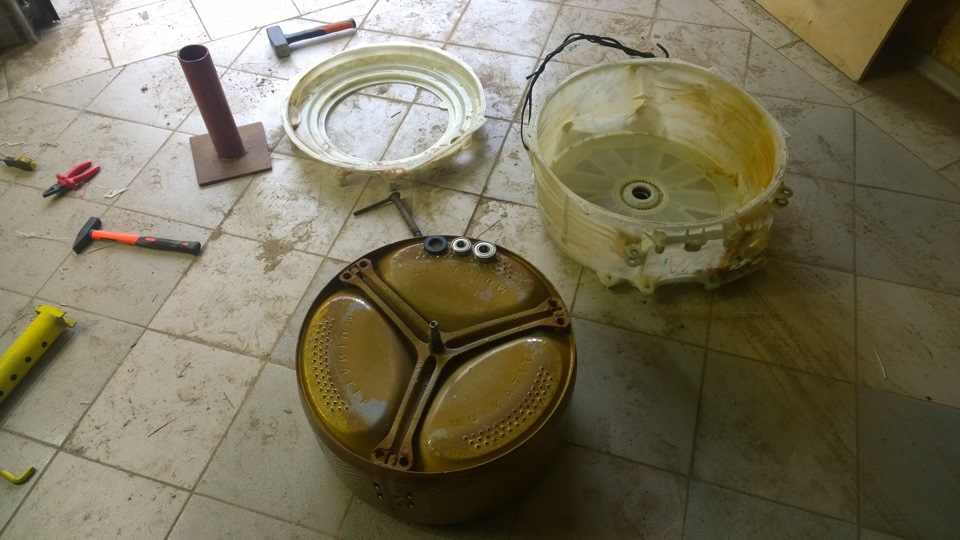

Flip the bottom half over. Tap the stem lightly with a hammer to knock out the drum.

If necessary, you can replace the bearings.

To reassemble the tank parts, put the drum back in place. Cover the edges of the halves with glue or sealant. Which tool is better to choose for sealing, we wrote in one of the articles.

It remains to fasten the two parts and tighten the screws. The assembly of the machine is carried out in the reverse order.

For those who are just going to disassemble the Ariston washing machine, we suggest watching a video on the topic:

The Hotpoint Ariston washing machine has stopped working - it needs to be repaired. But in order to start repairs, you must first figure out how to disassemble the “home assistant” so as not to harm her even more. Do-it-yourself disassembly of an Ariston brand washing machine, or rather, the nature of such an analysis will depend on the breakdown that has occurred. In some cases, you can get by with only partial disassembly, but sometimes you have to dismantle everything down to the screw. For information on how to disassemble a Hotpoint Ariston brand washing machine, read the article.

Let's start our story with a standard warning. Remember that only a certified master of a specialized service center can be guaranteed to repair an Ariston washing machine. Self-repair can exacerbate the problem.

However, if you are determined to repair the Ariston washing machine with your own hands, it would be nice to study the instructions for disassembling it. So you can avoid unnecessary mistakes, save time and money. Where to begin?

It is necessary to disconnect the washing machine from the mains, from the tee tap, thanks to which cold water enters the machine and from the sewer.

Note! The waste water drain hose of the Ariston washing machine can be connected to both the sink siphon outlet and the sewer pipe outlet.In both cases, turning it off is easy.

Next, without disconnecting the inlet and drain hoses, we twist them somehow so that water does not pour out of them on the floor, and we fix the ends on the body.
Using someone's help, we drag the washing machine to where it will be convenient to disassemble it. It will be necessary to lay something under the car so as not to flood the floor with water.
We take out the powder receiver from the machine and put it aside.
We unscrew the drain filter and drain the waste water remaining in the tank. At this stage, that's all.

Now we need to prepare a simple tool. You will need a hammer, pliers, a knob and heads for 7, 8, 12, 14 mm, an open-end wrench for 8 and 10 mm, a special key for removing the counterweights of the Ariston washing machine, screwdrivers - Phillips, flat, hex, grease for washing machines, a wooden block , car puller, awl, multi-colored markers, hacksaw. Having collected all the tools, we return to work on disassembling the Ariston washing machine.

Well, we succeeded in disassembling the body of the Hotpoint Ariston brand washing machine, now we have access to parts that can be removed quite easily, so let's do it.

First, arm yourself with multi-colored markers and mark the wires going to the main modules so that you don’t confuse anything later and start working.

Remove the drive belt. To do this, we take with one hand a large metal wheel, which is called a drum pulley and twist it, and with the other hand we take the belt and remove it.

Let's take the motor. The fasteners of the motor can be unscrewed through the opening of the service hatch, for this, in addition to the wrench, you will need an 8 mm head. Having unscrewed 4 screws, we pull off the engine from the seat. Remove the heating element. We unscrew the nut that stands between the contacts of the heating element, then press on the nut until the heating element partially falls into the tank. We pry the heating element with a flat screwdriver and begin to gently pull it towards ourselves until it comes out. By the way, the heating element is also removed from the Zanussi washing machine.

Now it's time for the drain pump. We unscrew the screws with our own hands, which are located at the bottom of the front wall of the Ariston machine in the area of \u200b\u200bthe garbage filter. The car lies on our left side, which means that after unscrewing the screws, the garbage filter, together with the pump, should fall out of the seat. Next, remove the clamps from the drain pipe and drain hose with pliers and disconnect these elements from the pump and the garbage filter. Now it remains only to unscrew the screws connecting the pump and the garbage filter and separate these elements.

The clamps on the pipes and hoses of the Ariston washing machine are similar to clamps, they must be removed carefully so as not to damage them. If this happens, then you can put the usual clamps.

We return to the space under the top cover of the Ariston washing machine. There you can quite easily remove the FPS - noise filter. We remove the wires from it and pull out the part from the seat. As a result, we removed everything that is simply removed from the Ariston washer, only problematic elements remained, which are better not to be touched if they do not need to be repaired. But if you need to shoot them with your own hands and we have nowhere to go, well, we will shoot.

Disassembling a Hotpoint Ariston brand washing machine is generally not difficult, but these machines have two elements that can actually create a problem for a novice master. What are these elements? This is a tank complete with a drum and counterweights. The tank and drum of the Ariston washing machine are nominally not disassembled, as the manufacturer of these machines intended, but you can disassemble them and then assemble them with proper skill. But what's the problem with counterweights?

It would seem, what kind of problem can create such a simple part as a counterweight, because it's just a weighting agent screwed to the car body? It wasn't here. The upper counterweight of the Hotpoint Ariston washing machine is screwed on with special spring-loaded screws, which do not even look like screws, rather, they are special fasteners.These mounts must be unscrewed with a special key; without it, you cannot remove the counterweights with ordinary household appliances.

Here's a snag for you. I want to remove the tank, but this cannot be done until you pull off the upper counterweight, but how can I remove it without a key? In this case, we see no other option than to go to the workshop and ask them for the key for a while, or pay money to the master who will dismantle it. In no case do not unscrew the counterweight with pliers and other devices - you will break the fasteners, and then problems will definitely arise.

If you got the key, and you managed to remove the upper counterweight, then you can proceed to dismantle the tank. To do this, unscrew the racks, call a friend for help and together, pulling the tank off the springs, pull it out through the upper part of the machine body. Next, we will need to saw the tank, remove its halves and put it aside, and then pull the bearings and seals off the drum shaft. You can read about how to do this in the article Dismantling the Atlant washing machine, by the way, the tank of these machines is arranged almost the same as that of Hotpoint Ariston brand washers.

So, the Ariston washing machine is completely disassembled. Now it can be repaired, or it can be used for spare parts for a new car - whatever you like. We, of course, hope that you dismantle for the sake of repair and everything will work out for you. We sincerely wish you good luck!

Video (click to play).

Rate this article:

Grade 3.2 voters: 85
