In detail: ariston tx100 ex do-it-yourself repair from a real master for the site my.housecope.com.

no water inlet (valve resistance is approximately the same
3kOhm), the light is on, when set to drain - the pump is running, when set to spin - the pump is running and the drum does not turn.

valek31, and where in general "dug"? What has been "dug up"? Have you read the rules?

valek31, try using the signature analyzer to go through the ports of the processor

That's why I'm asking that I don't know where to dig, what to look for. I removed the control board of the collector motor - I did not see anything worthy of attention on it. I did not look at the brushes, but I turned on the motor from the theristor regulator - the motor turns. Teng - ringing, there is no leakage on megohms on the case. Although in my opinion in this case it was all in vain. I would like to be prompted on what to look for in such cases.

I would like to know if faulty engine counters can give such a defect (the motor was not removed because they asked for a set of heads for the weekend, but here, as an evil, an urgent client)

I mean the old one, which is given by the link

Eh valek31, valek31, and how not to swear at you ("masters") after this.
UBL does not work for you, but you are already trying to finish off the motor control module and the motor itself.

regiss, why poke a finger like that, if valek31 does not know how any SMA begins to work - let him pick the module with the engine. It took me 2-3 weeks ago to repair such a machine with the same malfunction 20 minutes with a smoke break

So after all, someone with their tips and produces such "masters".

constan, probably at regiss, I was in a very good mood. Is it he? Doesn't look like himself

Video (click to play).

the fact is, gentlemen, that the UBL was examined first of all, the examination showed that it had been disconnected for a long time, and the contacts were short-circuited (sorry, I forgot to say).

although of course thanks, I used to think that if the UBL did not work, then nothing would work at all.

It was this delusion that prompted me to all the other senseless checks that seemed ridiculous to you (probably for many, if you don't already know where to dig, then you consistently check everything). but not everything is as meaningless as it might seem at first glance, on the control board of the collector motor, both relays had dry soldering, the contacts on the motor along the tacho circuit were strongly oxidized. I understand of course that the respected SHAITAN would hardly bother himself with such checks with these symptoms, all the more he would remove the engine to view the condition of the brushes. But many clients ask, in addition to the repair, to diagnose the car and we take money from them for this (as it will not be funny to some), and for my delusion, excuse me, I confess that I did not know and did not check this circuit in more detail, since I saw that the sunroof was disabled (and because before that she worked for them)

Multifunctional Italian units from this company are considered very popular due to their ergonomics and reliability, but they can also fail. Refusals in the Ariston SMA are rare occurrences, since the manufacturer guarantees the reliability of his goods. But there are several typical cases involving the replacement of failed elements. In such situations, it is quite possible to repair Ariston washing machines on your own. The intervention of experienced specialists is required only in particularly difficult cases.

The vast majority of Ariston machine failures are caused by their operation. This is the opinion of the service masters providing repair services. Sometimes problems are caused by outright violations of the rules of operation, but one should not discount the environment in which the machine is operated.

A well-known brand has found its niche in the market.But, like other models, the washer is prone to minor breakdowns, which most often occur due to careless handling of the machine. The point is that each element has a certain working resource. For example, brushes of an electric motor can serve for about twelve years without replacement. During this period, they wear out and need to be replaced. The drive belt loses its performance somewhat earlier, which also changes, for which you will have to disassemble the washing machine.

For some failures, Ariston washing machines can be repaired on their own, without the intervention of service center specialists. Some of the simpler and more common failures include the following problems:

the washing machine does not turn on;
waste water is not drained;
water for washing is not heated;
the drum has stopped rotating;
during the operation of the machine, a crunch and rattle are heard.

For more serious questions, it is recommended to call the wizard.

The above failures can arise for certain reasons, which can be eliminated by hand.

If you have a similar problem, do not rush to call the master. The main symptom of this problem is the idle operation of the pump, the absence of water drainage. As a rule, this problem occurs after washing, the machine does not drain the water to switch to rinsing, or it does it too slowly. A blockage can form at certain points:

in the drain pipe located between the filter and the tank. It rarely happens because the pipe is thick enough;
in the water drain filter. This is where the blockage occurs most often;

in the pump. For a machine of this brand, blockage in this place is rare, because another filter is mounted in front of the pump;
in the drain hose. A rare occurrence that can be caused by improper hose installation.

When removing the blockage, you first need to inspect and clean the most accessible places of the washer. First of all, the drain filter, located in the lower part on the right, behind the narrow panel, is unscrewed. Before you start to unscrew the filter, you must put a rag on to collect the spilled water. After cleaning the filter from debris, you can put it back.

The second step is to check the drain hose. It is unscrewed and cleaned with a cable. After that, the hose is installed in its place.

If the problem persists, you will have to disassemble the machine to clean the pump and pipes. To remove the pipes, a couple of clamps are released, and when dismantling the pump, the electrical wiring is disconnected and the fastening screws are unscrewed.

Failure of the pump and water intake valve.

By all indications, a broken valve for filling in water is difficult to confuse with other malfunctions of the washing machine. When this element ceases to block the flow of water, it penetrates into the tank by gravity, even when the machine is de-energized from the electrical network.

If you hear the characteristic murmur of flowing and draining water when the unit is off, you can be absolutely sure that the problem lies in the valve.

To check this element, you must remove the top panel, which requires unscrewing a couple of bolts. The valve is located at the point of connection of the hose intended for water intake with the CMA body. First you need to check the gaskets, then measure the resistance of the device using a multimeter. To do this, the probes are set to the contacts of the inlet valve, and a check is performed. The instrument should display a value of 30 - 50 ohms.

The failed element must be replaced with an analogue, it can no longer be repaired. The replacement process is carried out quite quickly. You just need to unscrew the old element, and install a new one in its place, connecting all the sensors.

The problem arises with a failed pump, since such a part is quite expensive. A failed pump will give itself out during the wash process, when the unit must drain the waste water, but this does not happen. At the same time, no sounds are heard from the pump, or it hums with no load, and the murmur of flowing water is not audible.

It should be noted here that such signs are considered approximate and may well confirm that there are problems of a different nature. For example - electronics failed. And yet, first of all, you need to check the pump.

In Ariston, it is located below, it is possible to get to it through the bottom of the car. Checking and changing the pump must be entrusted to the master, but some craftsmen do this work on their own.

Failure of the water heating element.

The heating element is considered an important part that is responsible for maintaining the temperature of the water in the tank, respectively, and for the quality of the washing process. If it breaks down, washing may not start at all, an error code will be displayed on the screen, or washing will start in cold water. Both phenomena should be the reason that you inspect the heating element, check it for operability and, if necessary, replace it.

The check is easy enough. Turn the washing machine, find a service hatch on the bottom of the back panel, secured with clamps and self-tapping screws. Having unscrewed and wrung out the fasteners, remove the cover. There are two contacts under the tank, fixed in the middle. The screw must be unscrewed, then the heating element is carefully pulled towards itself. At this moment, it can be gently rocked in different directions.

It is recommended to check its resistance using a multimeter before removing the heating element.

If, nevertheless, the heating element burns out, it is changed to a similar one. Installation is carried out in reverse order.

Failure of bearings.

It is no longer a secret that the failure of oil seals or bearings is a rather rare phenomenon in Ariston. But sometimes this happens, and appropriate measures must be taken immediately. Such a breakdown is recognized quite easily - in the bearing after its destruction, all rubbing elements emit unpleasant sounds, the shaft rubs against the bushing, forming a working out. If you do not take the appropriate measures and continue using the washing machine, a play will appear in the drum, which will damage the tank.

So that the machine does not break down completely, after hearing such sounds, you should immediately call the master, or make an attempt to replace the bearings on your own. The main difficulty lies in the fact that you will have to disassemble the washing machine. The bearings must be removed so as not to damage the bushing; install new elements in the vacant space. And here you will need the proper skill, otherwise the repair will not bring positive results.

The washing machine does not turn on.

This problem can arise from a faulty outlet or power wiring. The first option is easy to check - just turn on another electrical appliance. If it works, then disconnect the wire supplying the machine and check it with a tester. If the wire is in good condition, it is necessary to look for the problem in the control unit. This is already a more serious problem, requiring the intervention of an experienced specialist.The first thing to look at is the condition of the drive belt. During the operation of the machine, it is subject to strong wear and tear. To such problems, you can add a gap or an increase, which is also not very pleasant. In each of these cases, it is necessary to replace the drive belt. Such repairs do not cause any particular difficulties; it is quite possible to carry out it on our own. Image - Ariston tx100 ex DIY repair

It should be noted that the belt is not considered the only cause of this failure. There may be several more troubles associated with a failure of an electric motor, a breakdown in the control unit, malfunctions of electrical wires, and blockages in the filter. Each of them can cause the drum to stop rotating. Only an experienced master can determine it.

Breakage of fasteners.

It may happen that the door in the machine stops closing or is tightly fixed. The problem should be looked for in its distortion, which does not allow the hook to enter the hole intended for it.To eliminate this problem, you just need to tighten the door hinges. If the retaining tab is worn out or the handle is loose, it is best to simply replace these elements.

Repair of the control module, or its replacement.

In order to remove this element, you must sequentially perform several activities:

it is necessary to de-energize the washing machine by unplugging the plug from the socket;
remove the top panel of the machine;
by pressing on the special latch located in the center, remove the box for detergents (dispenser);
now the front panel is unscrewed, the clamps are unclasped, the board is turned off;
the selector is removed, a new board is mounted on it;
it remains to assemble in the reverse order and check the machine for operability.

Remember that there is nothing complicated here. But checking and cleaning oxidized contacts is much more difficult.

The manufacturers of the Ariston washing machine showed concern for the future owners of their product, providing it not only with modern functionality and beautiful design, but also with a convenient system for self-diagnosing faults. Fault codes light up on the machine's display. For some models, a failure may be manifested by a blinking indicator on the panel.Without a doubt, the Ariston washing machine has a complex structure, but most often, having information about errors and breakdowns, it is possible without any problems to find their cause and carry out repairs on our own, without using the help of qualified specialists. It is only recommended not to neglect technical advice, to observe every last detail, to comply with safety requirements. Image - Ariston tx100 ex DIY repair

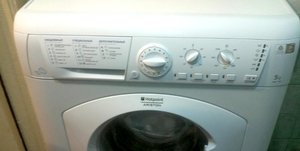

Washing machine Hotpoint Ariston of the Italian manufacturer is reliable and of high quality. But some parts of the washing machine sometimes become unusable.

You can, of course, send it to a service center for repair, but in order to save money and with skillful hands and a smart head, you can independently repair an electromechanical household appliance.

Do-it-yourself repair of the Ariston washing machine is easy to do. Follow our instructions for restoring the washing machine, and your assistant will serve you for many years.

In the Ariston electromechanical device, the main reason for the incorrect operation of the machine is blockages.
In addition, the heating element becomes unusable due to the appearance of limescale on the heating element due to hard water.
The pump can also be faulty due to its long operation.
Sometimes the filler valve fails due to damage to the rubber gasket.
In rare cases, bearings and seals have to be changed.
Electronics almost never breaks down, but we will still touch on the issue of replacing the control unit a little.

It is easy to remove the blockage with your own hands. You need to check the drain filter, which is located on the lower right under the panel.

After cleaning the filter, you will eliminate the cause of the malfunction of the washing machine. Less commonly, the drain pipe is clogged because it is thick.

There may be a blockage in the pump, but rarely, because there is an additional filter in front of it.

The drain hose will only become clogged if you have not installed it correctly.

Check the drain, there may be a blockage in it too. Disassemble the unit, pull out the branch pipe by loosening the clamps, flush it. Pull out the pump by unscrewing the fasteners and disconnecting the sensors.

Signs of a pump breakdown:

The drain pump hums, but the water does not drain.
The machine may stop when the system is running.
Water flows out slowly.

Repair of the pump of the Ariston washing machine must be done as follows:

If the filler valve is broken in Ariston, then water constantly flows into the washer, even when it is not working, it is disconnected from the network.

To check the filler valve, you need to unscrew the fasteners and remove the top cover. The valve is located where the drain hose connects to the body of the electromechanical unit.

Check the gaskets first. If they have not lost their performance, measure the resistance of the valve.Put the probes on the contacts of the filler valve and check the resistance, whether it is optimal (from 30 to 50 ohms).

If it is less or more than the set value, it means that the water intake valve is not working. To replace it, you need to unscrew the old valve from the body and screw in a new one. Be sure to connect the sensors.

If the heating element is faulty, then it is imperative to replace it. Its breakdown is indicated by the fact that the water does not heat up or washing in all programs takes place in cold water. Sometimes the machine gives an error and stops.

To replace the heating element, the rear wall must be removed. There are two contacts under the tank with a fastener in the middle. This is ten. Measure the resistance of the heating element with a multimeter.

If the resistance is within the normal range, then there is no need to change the heating element - it is serviceable. To remove the heating element, you need to unscrew the screw in the middle and pull it towards you with swinging movements.

The water may not heat up also due to the fragile connection of the wires to the heating element, which arises from the strong vibration of the washing machine. Water heating may also be absent if the temperature sensor is faulty.

Take a tester or multimeter and check the resistance of the sensor when cold and hot. If the resistance is the same, then it is broken, requires replacement. The resistance should be different.

The high-quality and durable material from which the drum of household appliances is made also becomes unusable, because solid foreign objects get into it, which can damage the unit, forming cracks on it.

The plastic rib inside the drum can deform. Remove the drum to replace it.

To remove the drum yourself, you need the following set of tools:

a set of screwdrivers, especially a Phillips screwdriver and a slotted nozzle are needed;
screwdriver;
pliers;
hammer;
hexagons of different sizes.

Use a Phillips screwdriver to remove the bolts from the back, front, and top walls, and then remove the panels themselves.

Dismantle the powder container. Use a slotted screwdriver to remove the module. It is not necessary to unscrew the control unit to the end, the main thing is that it does not interfere with the removal of the drum.

Remove the hatch cuff, pull out the lower bar by unscrewing the screws. It is necessary to dismantle electronics, shock absorbers and other parts from the loading tank.

Remove the drum from the device and disassemble it. Remove the screws holding the two sides of the drum. Pry the oil seals with a screwdriver and remove them.

The bearing in the drum can break and wear. It needs to be replaced. You only need to buy a bearing of the corresponding brand in a specialized store or order it on the official website of the Ariston washing machine, possibly purchase it in an equipment repair workshop.

Use a metal rod and a hammer to knock out the bearings. If they are defective, replace them. If the drum is deformed, replace it with a new one.

Reassemble. If the malfunction is in the plastic rib, then you do not need to disassemble the tank. The washer door is removed. A metal rod is taken, the diameter of which is smaller than the holes in the plastic rib of the drum.

The rod is inserted into one of the holes on the rib, the latch is opened with it, the plastic part is removed. A new plastic rib is put in its place. Slide along the groove with the plastic rib until the latch enters the hole and closes.

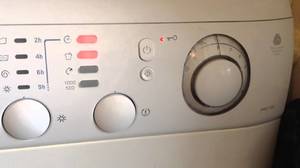

The LED indicators on the control panel receive a signal from the faulty unit. An error code is reflected on the display, indicating a breakdown of some element.In the Ariston Margarita 2000 washing machine, in case of a malfunction, the power button starts blinking and the handle of the command device is constantly turning. The flashing pattern is different depending on the fault. The codes can be found in the instructions for the machine. Image - Ariston tx100 ex DIY repair

The control unit may fail due to mechanical damage, water ingress on it. Do-it-yourself repair of the control module can be done on your own only when a small part has failed or you need to replace the board completely.

In other cases, contact the service. Professionals will help you repair, rewire complex electronic circuits.

It is necessary to unscrew the screws on the board or remove the plates with a wrench, depending on its brand. Remove the control unit by replacing it with a new one. Screw in the fasteners carefully so as not to damage any part.

The price of the repair depends on its complexity. If the device does not drain the water, then the cost of restoration work ranges from 1200 to 3000 rubles.

Repair of the control module costs more than 3,500 rubles. The rattle and clatter of a typewriter can be corrected at a service center in Moscow for a price of 3,000 to 5,000 rubles.

Today we have shared with you our knowledge on how to repair the Ariston washing machine with our own hands.

We hope that you will succeed and self-repair will cost you inexpensively, you will not have to pay for disassembling and assembling washing equipment, for restoration work with the help of specialists.

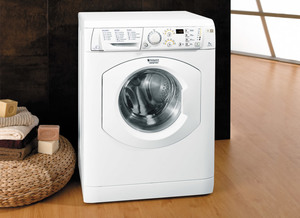

Models of Hotpoint and Margarita washing machines from the Italian manufacturer Ariston are rightfully considered one of the most reliable, ergonomic and high-quality among numerous competitors. However, even with them, unforeseen failures sometimes occur, which can be easily eliminated with your own hands.

Before you start repairing the machine, you first need to figure out which malfunctions most often lead to a malfunction of the unit and determine the code of possible malfunctions.

The stability of the Ariston machines, first of all, depends on correct operation... If certain problems have arisen, then you can try to fix them on your own, without resorting to the help of a specialist. But for this you need to figure out what can most often cause malfunctions.

Perhaps one of the most common reasons causing problems in the operation of the machine is blockages that impede the passage of water during the process of draining it, which, in turn, leads to the inability of the washing machine to readjust to the rinsing mode. Typical signs of this problem are idle operation, loud noise and the inability to pass water through the hose (or very poor water permeability). As for the places of blockage, then they can be concentrated:

in the drain hose itself, and in most cases blockages occur if it is incorrectly installed;
often blockages form in the drain filter itself;
blockages may occur in the branch pipe, which is located between the drain filter and the tank;
and also in a pump, although this is an extremely rare practice.

In order to correct the situation and eliminate the malfunction, it is enough to clean the machine from blockages in accessible places (pump, hose, drain pump or branch pipe).

The second problem that can be encountered in the operation of Ariston machines is lack of water heating during erasing... Often, in such a situation, the washer can be shocked due to dysfunction of the insulation of the heating element.

The main reason that is the provocateur of such a malfunction is extremely hard water, as a result of which scale forms. The repair consists in replacing the damaged electric heater (heating element). To do this, unscrew the rear panel of the machine, since it is behind it that the fastener of the broken electric heater is located. First, you should disconnect all contacts and unscrew the fastening screw, then carefully pull out the broken heating element and replace the part with a new one. That's it, the malfunction has been eliminated, and the machine should heat the water as before.

The most difficult problem is the breakage or partial wear of the bearing or oil seal at Ariston. Fortunately, in practice, it is extremely rare.

To understand that machine malfunctions are bearing failure result, it is enough to pay attention to the following signs:

during the operation of the unit, all moving elements of the washer begin to emit characteristic sounds during spinning;
in this case, the shaft begins to come into contact with the sleeve;
vibrations are possible.

It must be said right away that this problem should be eliminated promptly, since otherwise you can simply break the machine. The only difficulty is that the repair will require almost complete disassembly of the car. Therefore, if you are not confident in your actions, it is best to entrust this process to a professional.

In this case, most likely, there is a malfunction associated with socket or power cable... To check the operation of the outlet, it is enough to try turning on another electrical appliance. If everything is in order with the outlet, then you need to check the wire itself. To do this, you must disconnect it from the outlet and try to "ring" with a special tester.

In the event that the electrical wire is normal, then, most likely, the problem is hidden directly in the power supply unit of the machine. This is a rather complex problem, so only an experienced professional can solve it.

It is interesting! How to open the washing machine yourself if it is locked

Another problem that can cause the machine to stop working is no drum rotation... There are several reasons that can cause such a situation: engine breakdown; wiring problems; collection in operation of the control panel or filter clogging. However, the most common cause is belt wear or excessive stretching. In this case, you need to replace it - there should not be any special problems with self-replacement.

If the reason is different, then it is best to call a professional to your home to identify the cause of the breakdown of the machine.

An equally common problem that users of Ariston Hotpoint or Margarita machines may encounter is a malfunction that occurs directly in the control unit... The main reason for this problem is the malfunction of our power grids, which is extremely problematic to deal with on our own.

In this case, the problem is easier to prevent than to fix. Therefore, before starting to operate a washing machine, in particular, Ariston, it is best to put special protective equipment, which help to protect the washing machine from power surges and other similar failures. This approach will be much more efficient and economical than replacing an entire control unit.

Operational problems can also arise during loose or broken mechanical fastenerswith which the machine is equipped. Most often, this is expressed in the weakening of the machine's hatch fixation. The problem has the following symptoms: loud noise during the operation of the washing machine and characteristic vibrations. To get rid of this, it is enough to tighten or completely replace the fasteners with new ones.

It should be noted that such models of Ariston washing machines as Margarita 2000, Hotpoint, Avsl 109 and others have unique self-diagnosis function... The bottom line is that the system independently detects a malfunction and shows on the display or by flashing indicators, its specific code. Having an idea of which code number the unit shows, you can independently identify the problem and fix it.

It is interesting! Reasons that the washing machine does not draw water

Having an idea of what most often failures can occur in Ariston typewriters, you can try repair the unit yourself... However, you should start it only if you are confident in your actions. If there is no experience in such things, it is best to entrust the repair of the washing machine to a specialist.

Warning!
If you are not familiar with electronics, do not attempt to repair!
You could suffer a fatal electrical shock! Instead, contact your nearest service center!

Please, do not make a copy of the downloaded manual and do not offer to sell it,
just use personally to repair defective appliance! Good luck to the repair!

There is no preview for this item!

Video (click to play).

Possible causes:

this is not a pdf file.

The practice of recent years has shown that you can repair the Ariston washing machine with your own hands.

Each master who is engaged in the repair of complex household appliances undergoes a special training course.

This course examines the functional and schematic diagram of the Hotpoint Ariston washing machine.

Nowadays, this machine is very popular with consumers. This is due to the multifunctionality of the washing machine and ease of use.

Practically in every large city and even in rural areas there are service centers for the maintenance and repair of these units.

Hotpoint Ariston washing machines appeared on the home appliance market many years ago. Today, analysts have nearly eighty models that successfully fulfill their functions.

Each new model carries an additional feature that makes the washing process easier or better.

Among the advantages of the models of this brand, the following should be noted:

high quality washing;

noiselessness;

operational safety;

ergonomic design.

With ease of operation and high reliability, repairing Ariston machines requires a consistent and accurate approach.When the Hotpoint Ariston washing machine installed in the bathroom performs its functions properly, very often no maintenance actions are performed.And only when there are some malfunctions, attention is paid to the state of the machine. In order to determine the nature of the breakdown, you need to imagine the general scheme of the unit's operation.If you draw a simplified diagram of a washing machine, then it will consist of the following components and assemblies:

tubular electric heating element - heating element;

Electrical engine;

drain pump - pump;

water inlet valve;

bearings and oil seals;

sensors and timers.

This is an incomplete list of devices that make up the Hotpoint Ariston washing machine.However, it gives an idea of how the machine works and what connections exist between individual devices and mechanisms.Initially, any model is designed in such a way as to economically use water and electricity. Particular attention is paid to the consumption rates of detergents.All these resources are combined in such proportions to provide a gentle wash cycle. Different fabrics are washed in different ways.Washing modes are set using special sensors and regulating devices.Self-repair of the washing machine must begin with an assessment of the malfunction that has occurred.When the machine works normally in all modes, but the quality of the wash decreases, and the spinning is practically not performed, you need to inspect the drain hose.The used water enters the hose through the outlet filter. The video shows the procedure for removing and cleaning the filter. This is a standard operation.
