Aveo t250 DIY repair

In detail: Aveo t250 DIY repair from a real master for the site my.housecope.com.

In order to reduce road noise in the Aveo cabin as well as to improve the sound ..

Today we will again talk about useful modifications to the Chevrolet Aveo, namely the installation of air ducts for ..

While searching for various useful modifications to the Chevrolet Aveo, I came across interesting information about how to ...

Replacing antifreeze is one of the important maintenance activities of Aveo, sorry, any car, ensuring durability and ..

If you had experience connecting additional electrical equipment in the Chevrolet Aveo, then you understand that without the presence of ..

In the Chevrolet Aveo, the boot floor is made of a single sheet of fiberboard, which covers a niche with a spare ..

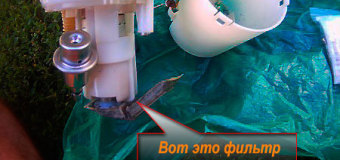

The fuel system of injection vehicles uses two fuel filters: coarse filter (the same mesh filter ..

Battery for Aveo Chevrolet Aveo is equipped with a 55 Ah battery as standard. When replacing the battery ..

Judging by the reviews of domestic motorists, it will not be superfluous to install it in the front on passenger cars.

If you want to bring a bit of high-tech aesthetics to the car's interior, then it's time to pay attention to ..

Pontiac G3 - North American version of the Chevrolet Aveo (exterior differences only in the radiator grille and emblem; ..

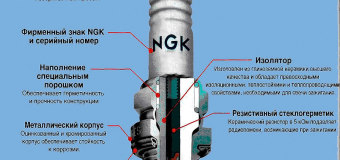

The manufacturer completes Chevrolet Aveo engines with NGK or CHAMPION spark plugs with a heat rating of 6 ..

If you are a novice car enthusiast and this is your first winter on wheels, read the article to the end ...

Fog lights are one of the most important options in a modern car. Driving in poor visibility conditions (rain, snow.

Video (click to play).

In the dark, the standard pale yellow lighting of the Aveo's interior is not enough for a comfortable stay in the car.

A video recorder as an audio system is available in almost every car. He's like a lifesaver, should come in handy in ..

Did you know that seat heating was included in the list of useful inventions in the automotive industry and was shared ..

Chevrolet Aveo T250 / ZAZ Vida operation, maintenance and repair manual (130 pages only) with gasoline engines: SOHC S-TEC 1.2 l (1150 cc) 72 hp / 53 kW, DOHC S-TEC II 1.2 l ( 1206 cc) 84 hp / 62 kW and LDT DOHC E-TEC II 1.4 l (1399 cc) 94-100 hp / 69-74 kW; Technical characteristics, color photographs, malfunctions and ways to eliminate them, color schemes of electrical equipment, device, diagnostics, design features. Illustrated guide subcompact small passenger car of the small B-class Chevrolet Aveo with bodies of five- and three-door hatchback (from 2008) and front-wheel drive sedan models after restyling of the first generation of release from 2005 to 2011

RECOMMENDATION
Check the condition of the guide tube O-ring. If it is damaged or badly crushed, replace it.
11. Using a 10 mm socket wrench, unscrew the three bolts securing the lower timing belt cover.
12. Remove the lower timing belt cover.
13. Check that the marks on the crankshaft gear and the cylinder block, corresponding to the TDC position of the pistons of the 1st and 4th cylinders, coincide.
14. Using pliers with narrow jaws, disconnect the tension spring from the fastening screw.
15. Using a 12 mm wrench, unscrew the tension roller mounting bolt.
16. Remove the tension roller with the spring.
17. Remove the timing belt.
18. We check the absence of backlash and jamming during the rotation of the cooling system pump and the tension roller. In the presence of the indicated faults, we replace the damaged parts (see p. 163, "The pump of the engine cooling system 1,2 SOHC - replacement").
When replacing the timing belt, also replace the tensioner roller and its spring.
19. Install the timing belt.The direction of rotation may be indicated on the timing belt.
20. Install the tension roller, while the tension roller pin must enter a special hole in the cylinder block.COMMENT
Do not tighten the idler roller mounting bolt.
21. We put the spring of the tension roller on the mounting screw.
22. Temporarily wrap the crankshaft pulley mounting bolt and turn the engine crankshaft two turns for it.
23. Check the coincidence of the timing marks (see above). If they do not match, the belt must be rearranged.
24. Finally, tighten the tension roller bolt to the prescribed torque (see page 47, "Reference Data"). We unscrew the bolt securing the crankshaft pulley.
25. The installation of the remaining parts is carried out in the reverse
sequences
COMMENT
When installing the crankshaft pulley, make sure that the notch on the crankshaft pulley aligns with the lug on the crankshaft gear.Video instructions for repairing Chevrolet Aveo Image - Aveo t250 DIY repair

In order for the trunk lighting in Aveo to become more comfortable and bright, you need to install LED backlighting. We mentioned earlier about the advantages of LEDs over traditional car bulbs.

The Korean-made Chevrolet Aveo T-250 has an on-board computer (BC), which is hidden under the dashboard and is inactive. In order to activate the built-in BC and use the options available in.

After winter, the Chevrolet Aveo suspension makes various knocks and squeaks. Worn stabilizer bushings are one of the reasons for the appearance of such knocks when driving through road irregularities. It is advisable to change the bushings.

Is there 50 thousand km on the speedometer of your Chevrolet Aveo? It's time to check the condition of the front suspension bushings for rubber delamination, swelling, cracks or backlash. If the listed signs are necessary.

Have you noticed that a noise, accompanied by a grinding noise, can drown out the sound of the engine from under the hood? One of the reasons for its appearance may be the bearing of the generator. In the presence of a minimum of conditions (garage) and.

If you decide to put LEDs in the Aveo taillights, then you should first weigh the pros and cons. LEDs are becoming popular because of their technical characteristics: They have a longer period.

The front pillar stabilizers, according to operating experience, serve about 40 thousand km. Signs of failure of the stabilizer is the appearance of a resounding knock coming from the front suspension. Article in the topic: “Replacement.

Chevrolet Aveo / Aveo suspension repair

Chevrolet Aveo starter repair. Bushings and brushes replacement.

We go to the salon, recline the back of the rear sofa, on the right side (if you stand with your back to the front of the car) we take out the clips (indicated by the arrows):

We bend the panel, we see that the strut cover is installed incorrectly (on the other hand, the same situation), we take it out, skip the corrugation further (with our hand we push it down under the panel, towards the threshold, at least 20-25 cm). The pink arrow shows where the end of the corrugation should appear, the blue arrow shows where to push it further (we put the plug in place correctly):

Remove the rear sill. In the area of \ u200b \ u200bthe rear door opening sensor, insert a screwdriver between the rubber band and the panel and slightly bend the panel until it clicks (there is just a clip):

Through the resulting gap, you can already see the corrugation, which can be picked up, which is convenient, and pulled down to the threshold. Now you can close the panel and straighten the elastic. Pull the corrugation forward under the B-pillar (you don't need to remove it). The arrow shows the direction of the feed:

Next, we pull it out already in the front sill (after removing the sill itself), remove the panel on the left side of the driver's legroom, bring the corrugation to the required length, fix it with ties. Using the probe (it was already in the corrugation), we pull out the yellow wire we need:

We will connect + 12V in the same way as the station wagon circuit to the 50th pin of the C202 connector (the socket works when the ignition is on), which is located under the socket near the driver's left foot (excerpt from the diagram in the lower left corner of the photo).The red lines show the orientation of the contacts relative to the circuit, green - the required 50th contact, blue - our yellow wire and the place of its connection to the standard yellow (which goes to the 50th contact):

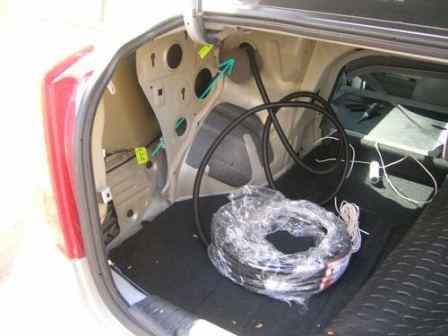

In the trunk, we fix the end of the corrugation, we fix the black wire next to it (blue arrows show the output wires). Draw the black wire to the standard "ground" G401 (indicated by green arrows):

Remove the trunk panel (2 clips and then simply remove upward). We crimp the black wire with a terminal and screw it under the bolt:

On the reverse side of the removed "felt boot" near the seat of the hook in a small area, cut off the standard seal (marked with a frame):

Using a clerical knife, cut a hole for the socket:

On the reverse side we glue ("felt boots" can be a little anointed with superglue) 2 layers of a seal (like "Splen"):

Fitting has shown that the body in the hook area will slightly interfere with the second layer:

Cut off the excess on the second layer:

We insert the seat under the outlet:

We put the “felt boot” in place, pull out our wires, crimp them with suitable “mother” terminals and tightly insulate them with heat shrinkage:

We fill the wires, insert the socket:

Everything! It is convenient to have an outlet in the trunk!

Withdrawal
Remove the generator assembly.

Preparatory work
Before directly removing the generator, the following work must be performed:
- disconnect the negative terminal of the battery;
- Disconnect the intake air temperature (IAT) sensor connector;
- remove the clamps and the intake air supply pipe (see Fig.T250 3.086),
- remove the battery connector nut from the generator (see Fig. T250 3.087);
- unscrew the screw securing the generator bracket (see Fig. T250 3.088);
- remove the auxiliary drive belt;
- unscrew the nut and remove the generator mounting bolt.

Disassemble in the order shown in the figure (see Fig. T250 3.090).

Assembly
Assembly is carried out in the reverse order of disassembly.

Installation
Installation is carried out in the reverse order of removal.

Video and advice on repair "do-it-yourself car repair Chevrolet Aveo T250" - click. How to repair a car with your own hands at home. We will help ourselves to repair and repair the car ourselves. We know how to restore a car with minimal investment. I attach a video instruction.
