Electric ignition block DIY repair

In detail: do-it-yourself electric ignition unit repair from a real master for the site my.housecope.com.

I know for sure that if the electric ignition unit stops working, then it is not necessary to buy a new one right away, you can repair it yourself, but I don’t know how.

We will divide the task into several small ones, based on this, we will carry out diagnostics and find out if we are suitable for repairs or not. Electric ignition consists of a power cord, a high-voltage converter, a start button, a sparkling contraption (I will call it conditionally a spark spark) and a wire (from the button to the converter and from it to the spark spark). Accordingly, what we can repair ourselves:

1 Make sure that all the wires are in good working order, they have not fallen off, are not overbite, the supply voltage is supplied, the mass has not oxidized; in general, we will ring the circuit. - Anyone who has a battery and a light bulb for a flashlight or a tester for advanced people can do this. If these words already inspire you with caution, you better not worry, go to the master, because if this material was not learned at school, then I will not help you with my advice either.

2 High-voltage converter - I don’t know how it works, I can assume that there is a step-up transformer there - it is not repaired at home - here I would go to the master.

3 Sparks, if they crumbled, then a direct road to the store, if they are intact, then they cannot be idle.

Conclusion: If you have mastered the school physics course "Electricity", you can start diagnostics and repair of electric ignition, if not, contact a specialist.

Malfunction and repair of internal combustion engine camshafts.

The most common failures of this part are cam breakages, camshaft bending, wear on its bearing journals, and an increase in bearing clearances. All these malfunctions are usually indicated by a knock from the valve train, as well as a decrease in oil pressure.

Video (click to play).

The bearing clearance can be returned to normal by restoring or regrinding the bearing journals to the near oversize. In this case, the depth of the oil grooves should be increased to prevent oil starvation of the engine parts. After the completion of the neck, it is necessary to polish with GOI paste.

If the shaft cams are slightly worn out, they can be restored by sanding them. In this case, it is necessary to switch from coarse-grained paper to fine-grained paper. If in some places the cams have crumbled, then it is recommended to eliminate the sharp edges of the metal with the same sandpaper. However, this will only help in case of small chipping (up to 3 mm in length). Otherwise, you will have to purchase a new assembly. In case of vertical wear of the cams, complex grinding on a copy grinding machine is required. In the case of significant vertical development, the cams are repaired by fusion. Then they should be sanded. Note that the permissible cam development is 0.5 mm. At large values, a decrease in the power characteristics of the power unit is observed. Therefore, in such cases, the shaft is replaced with a new one.

Worn camshaft journals are also repaired by welding. Although there are other recovery methods - chrome plating and chrome plating. But in any case, the restored parts must be sanded.

As mentioned above, the shaft can also be bent. Its permissible value is no more than 0.1 mm. Otherwise, the part will need to be repaired.

You should also measure the clearance between the shaft journals and the holes in the bearings on the head of the block. Measurements are made with a calibrated wire. Moreover, its maximum value can be 0.2 mm.

Modern gas stoves or gas hobs are equipped with electric ignition. Having studied the principle of work, there will be a chance repair the electric ignition with your own hands... The electric ignition of gas stoves and hobs is turned on at the moment of turning the gas supply knob to the selected burner or by briefly pressing the electric ignition button. You hear a click generated by the discharge of the electrode on the ground of the cooking zone. At this moment you can see a spark, a kind of lightning, but in miniature. And people with a heightened sense of smell can smell ozone.

Discharge after discharge follows at intervals of one second, until the gas supply knob is released. If you have an electric ignition button, the number of electric ignition discharges is equal to the number of times the electric ignition button is pressed. Accordingly, the frequency of discharges in manual mode is equal to the frequency of pressing the button. The discharge causes ignition (ignition) of the gas supplied to the selected burner. But since the scheme for generating a spark works from the mains (electricity), ignition has acquired the name of electric ignition. In the case when sparking occurs in an automatic mode, such an electric ignition is also called electronic.

THERE ARE TWO ELECTRIC IGNITION OPTIONS:

By pressing and releasing the electric ignition button, a single sparking occurs (at the moment the button is released).
By pressing the gas supply knob on the burner, continuous sparking occurs at a frequency of one second.

TWO ELECTRIC IGNITION OPTIONS ARE BASED ON TWO WIRING OPTIONS:

1. The first option (fig. 3) is based on a manual charge-discharge mode of a storage capacitor. It works like this:

(r1- 3.9k, c1- 2.2MkfX600V, d1- 1N4007) The circuit is connected as follows: The mains voltage is applied to the diode d1 (Figure 3.1). By pressing the electric ignition button, you apply the mains voltage to the capacitor c1 (Figure 3.2). The capacitor is charging. At the moment the button is released, the contact of the capacitor c1 (Figure 3.2) is connected to the transformer t1 through the contact (Figure 3.3). The reverse process takes place - the discharge of the capacitor through the primary winding of the high-voltage transformer t1. On the secondary winding of the transformer (Fig. 3.t1-1) and (Fig. 3.t1-2), an output voltage of about 10 kilovolts is formed. A spark is forming. By pressing and releasing the button, the process is repeated. The terminals of the transformer (fig3.t1-1) and (fig3.t1-2) on (fig1 and fig2) are marked with number 1. The conclusion (fig3.1) corresponds to numbers 5 and 2 (fig2). Conclusion (Figure 3.2) corresponds to numbers 7 and 3 (Figure 2). Conclusion (Figure 3.3) corresponds to numbers 6 and 4 (Figure 2).

2. The second option (Fig. 4) is based on the electronic control of the charge-discharge mode of the storage capacitor. It works like this:

(r1- 300 ohm, c1- 2.2 MkfX600V, d1- 1N4007, d2- 1N4007, d3- 1N4007, r2-1.5 kΩ, r3-30 kΩ, s1- ku202n,)

When you press the electric ignition button, the charge - discharge occurs in automatic mode. The automatic mode depends on the circuit design of the electric ignition.

The circuit works as follows: with a positive half-wave of the mains voltage, capacitor C1 is charged through D2 and D3, with a negative half-wave through D1, the cathode S1 is connected to the "minus" half-wave, and through the resistor R3 a control current is supplied to the control electrode of the thyristor. The thyristor opens, the capacitor C1 is discharged to the high-voltage transformer, which induces an ignition spark. An output voltage of about 10 kilovolts is generated on the secondary winding of the transformer. When holding the throttle knob in the pressed position, the process is repeated at a frequency of 50 Hz, or roughly - one spark per second.

Electric ignition is more common with four and six-channel (Fig. 1 and Fig. 2) under number 1, the taps for connecting the electrodes are indicated on which you observe sparking. In other words, we have four ignition electrodes or six electrodes.The number of electrodes depends on the number of secondary windings of the step-up transformer. If there are two windings, then we have four outputs for four electrodes. If there are three windings of the step-up transformer, we have six outputs for six electrodes.

Electric ignition, which allows you to connect six electrodes, is usually used in gas stoves of a single design with an oven. And as a result, two of the six available electrodes are in the oven and are used to ignite gas in the oven. The appearance of electric ignition devices can be seen in (Fig. 1 and Fig. 2). They have some difference, but the circuit design and the principle of operation remain unchanged.

Below is a list of common malfunctions of electric ignition of gas stoves, and methods for their elimination. This information was accumulated over the years of practice, and acquired structural forms. The information will be useful to both novice craftsmen and those who are used to repairing everything with their own hands. Below is a list of six points characterizing the malfunction of the electric ignition of gas stoves. Knowing the contents of the items will make it easier to learn the secrets of the repair. Each item contains a detailed description of the logical troubleshooting paths of the item name. Knowledge will help fulfill DIY repair of electric ignition of gas stoves... Make repairs yourself.

Almost all gas stoves provide gas ignition system... when the button is pressed, a spark gap is triggered near the comfort zone, a spark breaks through and the gas ignites. Of course, this is very convenient (after all, once it was necessary to carry out this entire procedure with the help of matches), only here there is one drawback - the spark generated by this device is single.

Using electronics, you can slightly modify this system and turn it into a multi-spark.

This scheme of electric ignition of gas for a household gas stove almost similar to the one shown above, but contains a little more detail - here, instead of a triac, a thyristor is used.
The circuit works as follows: with a negative half-wave of the mains voltage (terminal L) through the diodes VD2 and VD4, the capacitor C1 is charged, and with a positive half-wave through the diode VD1, the thyristor VS1 opens and discharges the capacitor C1 to the high-voltage transformer, which forms an ignition spark. The VD3 diode serves to ensure the flow of current through the control electrode of the thyristor at a positive half-wave. The process is repeated at a frequency of 50 Hz and a powerful sheaf of sparks is formed on the ignition electrodes, instantly igniting the gas.

The circuit works as follows: with a positive half-wave of the mains voltage (terminal L) through the diodes VD2 and VD3, the capacitor C1 is charged, and with a negative half-wave through the diode VD1, the cathode of the thyristor VS1 is connected to the "minus" half-wave, and through the resistor R3, the control electrode of the thyristor is supplied control current. The thyristor opens and discharges the capacitor C1 to the high-voltage transformer, which forms an ignition spark. The process is repeated at a frequency of 50 Hz and a powerful sheaf of sparks is formed on the ignition electrodes, instantly igniting the gas.

valera
Off site
Regular
Posts: 219

Before playing with sparks, you should know that high voltage is life-threatening, and besides, each spark is a source of the entire range of radiation, including radioactive ones.
Most modern gas devices use an electronic device that ignites the gas, here are a few of these from stoves

I became interested in these devices in order to make a home-made lighter on their basis or according to such a scheme, due to the lack of normal electric lighters for stoves on sale.
It turned out that this is not such a complicated device as it seems at first glance. It is enough to apply 220V to the terminals signed with the letters “L” and “N” and high-voltage pulses will appear on the terminals of the coils, about 10 kV from each coil.In order not to damage the device, it is necessary to put jumpers between the terminals of the coils so that the total clearance between the terminals of each coil is no more than 10 mm. Like on a picture.

It is from such a device that you can make a separate lighter powered by the network. It should not be built into the stove, since the completion and modernization of gas appliances is not a rewarding and very dangerous business.

Here is an approximate electric ignition diagram.

I assembled it on a VT138 triac R1 = 100R 2w, R2 = 22k 0.25w, R3 = 1k 0.125w, C = 3mf, on a ring ferrite (8 primary coils 50 secondary coils). She gave out sparks with a frequency of about 50Hz, which could not penetrate 1mm of air. You need to wind the transformer on a rod core and on a special frame or buy a ready-made device. And so, with a decrease in the turns of the primary, the force of the spark weakened, and then, with two turns, the triac burned out.
————
I found the switching circuit of the Tor220-227 microcircuit, it is very similar to the ignition circuit

here the field-effect transistor works for the primary, but for some reason it is connected in series. When using a microcircuit, pulses of 300V are supplied to the primary, if you wind two secondary windings, one for feedback, the other boost, the output of which can be connected to a multiplier, the output of which is to spark.

It seems there should be a more reliable and simpler scheme of a lighter. Who knows, tell me.

On many models of gas stoves, designers install automatic ignition, which is switched on with the supply of gas or from a separate button. This function is very convenient: you do not need to be in contact with an open flame in order to ignite the burner. If you suddenly find that the autoignition on the gas stove does not work, do not rush to call the service: it is quite possible to repair this malfunction with your own hands.

Read also: DIY Volkswagen Polo repair

phase current. When the electric ignition is turned on, the phase intermittent current in the form of a spark will break through, according to the law of physics, onto the body of the gas burner.

The second scheme in Fig. 2, in its essence, in comparison with the first scheme, does not change anything. In the circuit with the primary winding of the transformer, a VS1 triac with anode control is included. In the open state, the current is passed in both directions, the anode control is also carried out using current pulses.

Diagnostics of household appliances, namely electric ignition, is carried out in a passive way without connecting to an external source. To check a resistor, for example, having a resistance of - 510 Om, the “multimeter” device is set to the position of resistance measurement, - in the range from 200 Om to 2 k Om, that is, the digital value - 510 must be included in the set measurement range.

It should be remembered that in addition to its resistance, each resistor in the circuits in Fig. 1, Fig. 2 is designed for its rated power.

When replacing a capacitor, not only its capacity is taken into account, but also the permissible voltage value set on it. For example, a capacitor has its own capacity of 4 microfarads, the permissible nominal voltage value for a capacitor is 400 V, therefore, two values must be taken into account:

The thyristor is checked for its conductivity, the device is set to the position of resistance measurement, while the resistance value is checked between:

control electrode and anode;
anode and cathode;
cathode and anode
anode and control electrode.

The primary and secondary windings of the transformer are checked for resistance, while the device is set to the position of the smallest resistance measurement.

In gas stoves (without electric ignition), as you know, it is convenient to use piezo ignition.

The piezo ignition of a gas stove consists of two components:

drive element;
piezoelectric generator.

The piezo igniter works on the same principle as an ordinary piezo lighter.

That's all for now. Follow the rubric.

Good afternoon.
Hob BOSCH. Sparked electric ignition on one burner - works without interruption. Turned off the electricity, cleaned it, turned it on - the second burner sparkled - I looked at it before that. can I fix it on my own?

Hello Igor. You need to check in the electric ignition circuit - a button switch, that is, the contacts of the switch, as I believe, are constantly in the closed position. The switch contacts are exposed to:
heating to the effect of current strength;
oxidation;
burning.
If the switch is made in a stamped version, then, of course, it cannot be repaired and, accordingly, you need to choose the same switch.

On one of the burners, the discharge does not seem to pass completely, that is, you can feel it, but one burner does not light up, if you change the contacts on the block, then everything is fine, is there any point in cleaning the block itself or is it easier to buy a new one?

Hello Dmitry. The wire from the spark plug is inserted into the "socket" of the electric ignition unit. That is, here is the usual connection (socket-socket). The contacts must be well cleaned with a cotton swab moistened with any alcohol (for an electric ignition unit).Also, you need to inspect and, if necessary, clean the candles and their contact connections.
Victor.

The Whirlpool gas hob, when connected to the network, the spark hits all the burners at the same time and does not stop until you disconnect from the network, please tell me what could be the reason

Hello. I believe that this breakdown lies in a malfunction of the electric ignition switch.

Hello! I have an Electrolux hob and the same problem, I disassembled it, I checked it like everything was clean, washed it with alcohol and anti-fat to the buttons, dried it, it didn’t help. Tell me how to check the bf95046-n00 electric ignition unit itself for operability, everything is filled with plastic, only contacts come out! It costs 1500 re at the service, before giving that kind of money for it, I want to make sure that he really grunted! Thank you.

Hello. Try to strip: contact connections of wires with electric ignition, contact connections of wires with spark plugs, contact connections of wires with buttons of electric ignition. Also, you need to check the buttons themselves. The electric ignition button is checked with an indicator screwdriver, that is, you need to check the button contacts for switching on. When the electric ignition is turned on, a spark breaks through from the candle to the burner, respectively, you need to check the tips of the candles (if there is oxidation, the tips must be cleaned). Check the electrical outlet to which the ignition is connected, check the electrical cord with a plug, each wire with candles. In general, you need to check everything carefully. Maybe the cause of the malfunction lies not in the electric ignition itself, but in the malfunction of the button and so on. It may be necessary to solder the wires from the candles.
If you have any questions for me, please let me know.

Hello Victor! So the situation is like this. When the electric ignition elements are assembled and connected to the network, the spark breaks through all the candles and clicks constantly. When you turn off the block of electric ignition buttons, there are 4 of them sitting in parallel on 2 wires, a spark does not occur. I draw a conclusion: the unit itself is working normally, and the spark switch block is short. When dialing, its tester shows a short circuit. I disassembled and rinsed all the buttons with alcohol, cleaned the contacts, it still whips away ... I put it on the battery to dry, I'm waiting ...

Hello Sergey. Now you need to clarify the cause of the short circuit. It may be necessary to use a dielectric material - small pieces of pvc cambric of the appropriate diameter (that is, pieces of cambric are put on the terminals of the contacts to prevent a short circuit). Buttons probably should not be washed with alcohol, condensation may form, followed by oxidation of the contacts. Nevertheless, not everything is so bad - you yourself performed the diagnostics and found out that the electric ignition is in good condition.

In general, I will report! The electric ignition unit turned out to be intact. It was all about one or two (did not specify) of the 4 ignition buttons. Determined by the method of elimination. I took turns filming and calling for a short circuit. As a result, I washed and dried both removed buttons and connected them to a new place on the wires. The shorty was gone, everything worked! In the service, they asked for 1500 rubles for the ignition unit. for 4 buttons assembled 1400 r. Master's challenge 500 р. Well, probably the installation of 500 rubles, for less they strain into scrap. As a result, he stayed with the money and with a working ignition. Thank you very much to Victor for your attention and help. Good luck everyone

I am pleased Sergei that you have succeeded.

Hello Victor. The situation is as follows. When installing a new stove Hephaestus 5100-03, we checked the electric ignition, everything worked. A few days later we decided to use the oven and it turned out that the electric ignition (no spark) of the oven and grill did not work. In this case, there is a spark on all burners and the gas is ignited normally.

Hello Sergey.I need to clarify whether the gas stove (Hephaestus 5100-03) has an electronic oven timer or not? If with an electronic timer, does the display show the time (current time and cooking time)?

Hello Victor. The timer is electronic, but it does not automatically turn off the oven. Only beeps the signal.

Hello Sergey. I think that you yourself should not do anything (for repairs). The gas stove is new and the organization that deals with warranty repairs is obliged to fix this malfunction free of charge.
If the electronic timer of the oven is working properly, then the cause of the malfunction should be looked for in the contact connections of the wires:
with electronic timer module,
with spark plugs (oven and grill).

Good day!
The problem is as follows: There is an electrolux hob with electric ignition. One fine day, a spark began to beat non-stop on the burners. Turning off the power and ringing the buttons, I concluded that there was a short circuit on one of the buttons. I disassembled it, fixed the short circuit, fixed the buttons, everything seems to work. But after connecting, there was a "BOOM!" and knocked out the machines. The left contact on the electric ignition unit with the inscription "on the buttons" has melted. Perhaps due to the fact that I confused zero and phase.
I concluded that it was necessary to replace the electric ignition unit (when connecting the standard electric ignition unit and closing the contacts "to buttons" with a screwdriver, nothing happens). But such blocks are not available anywhere. There are only universal blocks (white). 220 comes on them already from the buttons, and not like on the standard one.
The question is - how can I put on a universal block? Can I simply embed an existing block of buttons with a thin section of wires into a circuit, for example, in a phase?
I attach a picture for an example.

Hello. The electric ignition unit must correspond to the model of the Electrolux gas stove. Such information should be indicated in the manual for the gas stove. Solve your question simply - call a specialist to connect the electric ignition.

Hello, I removed the top cover from the gas hob, it was necessary to get the spring from the handle, it failed when I washed the stove. Put the lid back on. electric ignition stopped working, tell me how to fix it yourself

Hello. You need to contact a specialist (for repairing gas stoves), since this missing part (spring) can subsequently create a gas leak.

When you turn on the burner from a spark, it burns, but if you remove your hand, it goes out right there.

Hello. This means that this breakdown refers to a malfunction of the mechanism - the gas switch. To eliminate the malfunction, you need to call a gas stove repair specialist.

Hello. Stove Hephaestus 5100-02 ooo9. A spark has disappeared in the lower burner candle of the oven (there is a spark on all other burners). He took off the hob, changed the places of the marks of the upper and lower burners of the oven in the electric ignition block, on the lower burner a spark appeared on the upper burner. Is this situation a breakdown of the electric ignition unit? If yes, can it be repaired.

Hello. I assume that this reason is a malfunction of the electric ignition. I recommend that you send the electric ignition for repair.

Victor, good afternoon! I have a NARDI stove, 2 burners stopped lighting. There are clicks, but they do not light up. no spark. Please tell me who should I contact to fix this malfunction? And do you need to call a specialist or perhaps eliminate it on your own?

Hello, Tatyana. To inspect and eliminate a malfunction of a gas stove with electric ignition, the participation of a specialist is necessary, that is, it is necessary to contact the organization that makes the appropriate repairs. Carrying out repairs on your own is risky, since the stove is gas.

When you press the knob, the electric ignition goes to all the burners at the same time, but one burner does not light up since there is no spark on it, if you substitute a screwdriver, a very weak spark jumps, tell me how you can fix it.

Hello. It is necessary to check the contact connection of the wire with the spark plug and with the electric ignition itself.

Hello. There, in my opinion, is soldering to the electrode ...

Cheap printed circuit boards that make up the electronic stuffing of household equipment cost $ 10. The consumer avoids repairing budget gas stoves with electric ignition with their own hands. A price exceeding $ 30 unwittingly provokes the thought of saving money. You visit the forum of radio amateurs: you see ... Ready-made electrical circuits of ignition devices. Wind step-up transformers, look for capacitors, solder, smoke equipment at your own peril and risk.

In contrast to most household appliances, repairing gas stoves with electric ignition forces you to master the technique of replacing resistors. A frequent, ongoing process. Newcomers challenging the appropriateness of the event cause general indignation among members of the forum. They call the dilettante offensive phrases, condescendingly explain, inside the high-voltage unit:

High voltage transformer.
Capacitor.
Diode.
Resistor.

The electrical circuit is specially filled with compound, the burdock will not get inside. You pick it up, saving your hard-earned $ 30. The self-taught ignore the manufacturer's thoughts about protecting products against unauthorized access.

The gas stove electric ignition unit optionally contains control elements - thyristors, triacs. It takes a long time to explain the exact principle of operation of the components of the electric ignition. It is worth noting: the behavior of semiconductor products resembles a key (a tap - plumbers are more accustomed to think). Semiconductor electronic elements are used to drive a power line through a voltage of 5-12 volts.

The analogy of a water valve is complete. A person makes a symbolic effort, opening the tap, releases the incredible power of the pump. The scanty voltage of the control electrode reaches the operating point, the thyristor opens, starting the electric ignition circuit. There are two positions: open, closed. Pure digital microelectronics. Any processor is formed by semiconductor keys - miniature, indistinguishable by the human eye. The PC is considered a logical evolutionary continuation of electronic circuits.

The high-voltage transformer increases the voltage (units of kilovolts) of the output winding, the slot of the burner arresters illuminates the electric arc. Gas is supplied by the handle of the same name, starting the electric ignition circuit. There are other models of devices. Thanks to the spark, the gas ignites:

pressing the button, the cook charges the capacitor with rectified voltage;
the capacity begins to accumulate electrons;
the voltage level of the control thyristor rises when it reaches the threshold value, the capacitor discharges, warming up the primary winding of the transformer;
the output of the electric ignition circuit generates a voltage that causes the arrester to operate;
the spark ignites the gas.

The principle of operation of electric ignition is based on charging a capacitor through a rectifying diode to a certain level. The specific implementations of the schema vary. Be ashamed to study an electrical engineering textbook: repairing the electric ignition of a gas stove with your own hands is easier than a steamed turnip. Know a couple of rules, be able to solder.

The mentioned resistor of the electric ignition circuit is more often with a nominal value of 3.9 kOhm. The dissipation power is 0.5, less often 1 W. The size of the capacity has long been known (according to the opinion of members of the forum) - a couple of fractions above 2 microfarads (the numbers go in jumps according to the rows given by GOST, it will not be possible to find exactly 2 microfarads, except from the E24 series) with an operating voltage of 250 volts. The radio amateur will not notice the difficulties. There were times when TVS were manually rewound!

The average person wants to know the sequence of actions.First, it is necessary to disconnect the electric ignition of the gas stove from the voltage source. The second step is to remove the electronic, high-voltage blocks. The design comes with separate printed circuit boards, a single substrate. There are other options.

Begin inspection by evaluating the quality of the tracks, soldered joints. The conductor layer, which looks like a silver stripe, is covered with a layer of varnish. Made to protect the electric ignition circuit from external factors, primarily moisture. The varnish reliably covers the conductive layer. Do you have nail polish at home? It will do one hundred percent.

Carbon deposits are cleaned with a zero skin, degreased with alcohol, varnished on top. The peeled, torn tracks of the electric ignition circuit are repaired.

Example. The conductive layer is torn. Both edges are slightly cleaned with emery, tinned, connected with solder. A varnish is applied on top of the cooled solder, alcohol is applied as needed. For wiping the PCB, of course.

Burnt resistor is black. The denomination is indicated above. It is not forbidden to put an element more powerful. Eyewitnesses unanimously say: the further process of exploitation is going excellently. Let's give the plate circuit a 9 kΩ resistor. It is better to take the dissipation power equal to greater than the analogous parameter of the original element. 1 watt will do.

The breakdown of the capacitor is visible from afar. Some (electrolytic) ones swell, the swollen keg cannot be missed by an attentive master. Regarding the denominations, it is recommended to ask the members of the forum. Modern marking of resistors with multi-colored rings is more complicated than the existing alphanumeric inscription. Tolerance was expressed as a percentage.

Repairing the electric ignition of a gas stove can be a simple matter. If the transformer windings are burnt out, you will have to buy a new one. Do you want to check the localization of the fault? For each output we find a pair that rings. The resistance (use a multimeter) is hundreds of ohms. There were "legs" hanging in the air: rather, there was a problem with the installation of the transformer. Rewinding a lesson is not easy. The vastness of the network will provide you with valuable information. A core of the form of the letter Ш is used. There are dozen primary turns, the secondary winding will have to be taken seriously.

After examining the circuit boards of the gas stove, pay close attention to the state of the button. Control panel element that initiates the process of ionization of the spark gap. The contacts of the electric ignition button are powered by the voltage of the centralized network of 230 V. Brass contacts with a short circuit of the circuit are easily melted by the welding arc. It is recommended to clean the pads, check the performance of the switch with a multimeter (ringing).

A product that can withstand the operating voltage is suitable. Electric ignition will not work any worse. At times, installation is accompanied by technical difficulties. The button does not fit the installation dimensions of the case. Modify with a file.

The main thing is to solder the jumper correctly, the necessary spare parts are often sold separately.

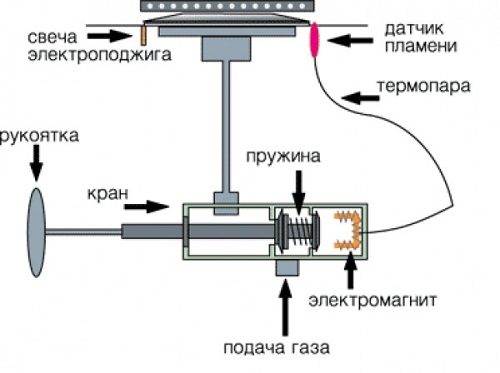

Each burner is equipped with a candle, a combustion control device (thermocouple). Electric ignition of a gas stove schematically differs little from an ordinary car. Do you want to check if the gas stove spark plug is working? Turn off the gas. Remove the reflectors, the baffles of each burner (round things that form tongues of fire), look ... When the ignition is pressed, the products give a good spark. Has 1 candle broken? The cause of the breakdown of the electric ignition of the gas stove has been found.

The combustion control circuit is composed of a thermocouple (temperature sensor of an arbitrary type). It happens that the electric ignition works 100%, the gas refuses to burn. The point is rather in this node. The command closes the blue fuel supply path. A properly beating spark of a gas stove is powerless to set fire to air devoid of a combustible mixture.

The electric ignition unit is equipped with 4 or 6 outputs, the literature ignores the reason for the need for the specified number of contacts. We assume 1 pair is used by the oven, grill. Modern trends oblige the manufacturer to produce two-in-one models.A gas stove with an electric ignition of the oven is convenient: you will find models where the opportunity is not realized, and those where you will have to modify the circuit with a copper core. Will need help from her husband.

We will be ashamed to call the electrical circuits for igniting a gas stove complex. Hams make it easier. The getinax board is etched out, the necessary elements are soldered. The original composition of the electric ignition of a gas stove provides a ready-made transformer, the button discussed above.

An experienced engineer can usually improve this by the manufacturer. The Internet gives an interesting scheme for the electric ignition of a gas stove, formed by a triac, striking a simple one.

The electric ignition Zanussi gas stove will make you forget the look of a matchbox. This is what company officials say. The business class segment is represented by products from Gorenje (Slovenia). Despite the abundance of brands, an almost complete list belongs to the Electrolux concern (headquartered in Stockholm). The mentioned Zanussi belongs to the category.

When buying, check the availability of the oven electric ignition option. The function is not implemented everywhere. Sometimes something may need to be finalized. The average price of gas stoves hovers around $ 400, with Bosch, Ariston and Gorenje out of this range. What attracts the buyer so much.
