In detail: do-it-yourself lounger for car repair from a real master for the site my.housecope.com.
I have long wanted to acquire trolley for car repair, but somehow there was no time, at first I wanted to buy, and then I looked in the internet I found one that the Italian company wanted, but in the end I decided do it yourself according to their drawings.
I went to the store and bought 6 swivel wheels, some hardware and one meter of leatherette. All other parts were found in the garage. The frame was made of a square metal profile 20 by 20, iron strips and a corner of the 25th.

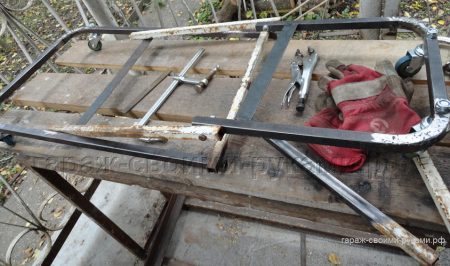

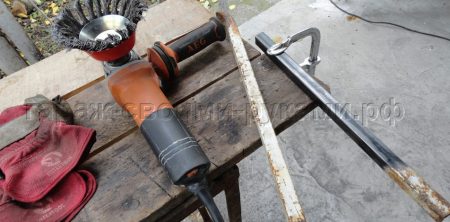

I cleaned pipes and stuff from rust and old paint. Since I don't have a pipe bender, I had to bend with the help of welding and a grinder

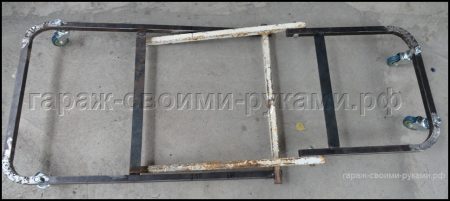

The dimensions of the base of the lounger were selected approximately for myself. This is how I prepared the frame.

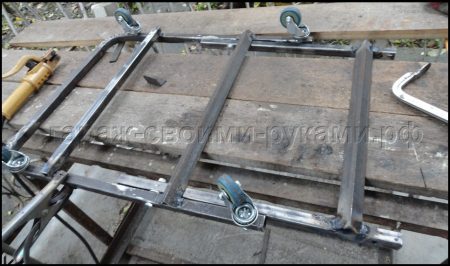

Frame fitting

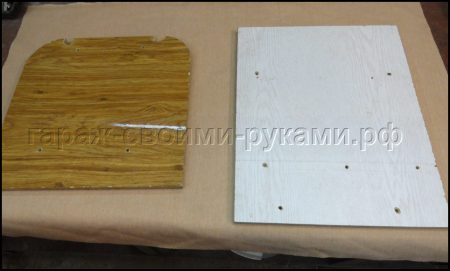

The frame is almost hung, the wheels are screwed on. Then I took the chipboard panels from the old kitchen to make the base from them.
The next step was painting, first of course I took everything apart again, then painted it. Then he began to hammer the base with leatherette. I put soft insulation under it a lot, so that the balo could lie at least a little softer.
Ready for upholstery

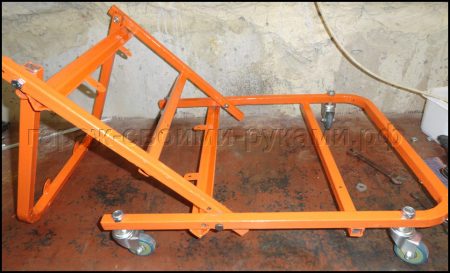

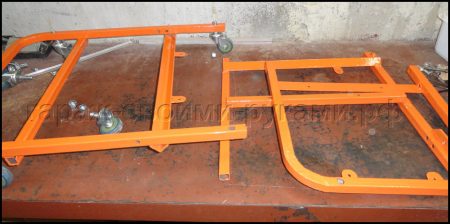

Frame painted

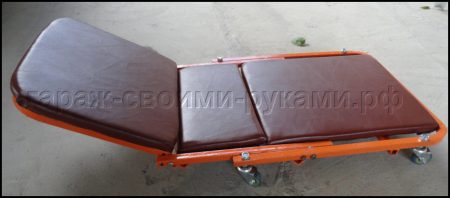

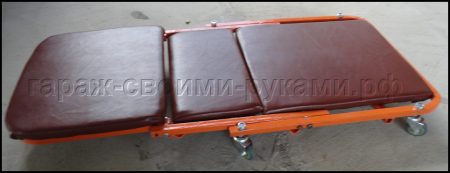

Everything works fine, fitting. Well, the final version of my sunbed - a transformer ... ..

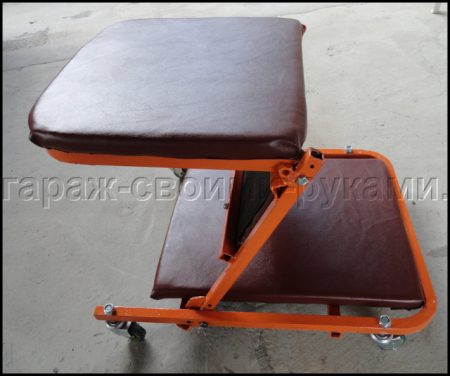

If you need a seat, or rather a chair. I would be glad if it is useful to someone. All good.
Hello everyone. The idea to make a rolling lounger for car repair crept into my head a long time ago. Since I do not have a viewing hole in the garage, I decided to make a sunbed for car repairs. Prices for sun loungers in the store are very high, it is better to do it yourself.
The main, if not the most important, are the wheels. Wheels can be bought in any construction market.
wheels for rolling lounger
rolling lounger wheel
In total, we will need 6 pieces. Next, you need a metal profile 20x20 mm, wall thickness 1.5 mm. In total, you need 4.5 meters of a square pipe. Cut like this:
square tube for lounger 20x20
2 segments of 1 meter 4 segments of 0.5 meters
The remaining profile was cut by fitting, relying on the height of the wheel, and, of course, drilled the holes.
 |
Video (click to play). |
movable repair lounger
After assembly, I cleaned up a little and covered everything with enamel for rust and primed the profile.
sliding lounger for car service
movable sunbed for car repair
trolley bed for car repair
It is still cold here, and therefore instead of days, as written in the instructions, it dried for a week.
Then I cut out 10 mm from plywood. sunbed, varnished (varnish-amber like):
sliding loungers for car repair shops
Marked the holes, drilled and screwed on.
movable sunbed + for car repair + do it yourself
do-it-yourself roll-up lounger for car repair
I tried to ride on my floor, but, as you can see, it is not very even, but it rolls quite easily, only a little harsh. It was decided to make it softer. He took the insulation, one can say what came to hand, and nailed it straight to the board with a stapler, only then I remembered that I have other material, but it’s fine with this, it turns out, it keeps warm, my back is not cold. Here's what happened =)
Sun loungers and repair seats irreplaceable when servicing a car in a garage, workshop or service station. They significantly simplify access to units and parts, allow the master to take a comfortable position and work for a long time without getting tired.
Sun beds are used when it is necessary to inspect and repair a car while under it, but there is no way to drive it into a pit or lift it on a car lift. Then the machine is jacked up and placed on supports.The repair lounger used by the master consists of a metal frame with a length of about the height of a person. The base is usually made of plastic, in some models it is covered with a soft material with oil-petrol-resistant casing. On one side of the roll-up bed there is a head-back, which can be adjusted for the most comfortable head position. Wheels (from 4 to 6 pieces) are fixed on the frame, so it is easy to roll under the car on a sunbed. There are products with a folding structure that can be transformed into a repair seat. This is a great option for garage use.
The seat is useful when straightening car body parts, when dismantling parts, when you need to unscrew a lot of fasteners and other work in which it is inconvenient to work while standing. The durable seat structure provides stability, while the soft padding adds comfort during extended periods of work. Also, the design of the repair seat can be provided with a drawer for tools and fasteners, as well as wheels for quick movement, for example, from a car service area to a workbench. The most convenient models are with a microlift, which allows you to change the height of the seat position, depending on the height of the user.
Regardless of whether you are changing the oil in your car or are an experienced mechanic who works in a car workshop, the presence of a rolling bed is, in any case, a must. Of course, many can observe the picture when a neighbor's guy takes out a piece of cardboard and crawls under his vehicle to change the oil. But it is quite inconvenient, uncomfortable and just plain dirty.
Buying a car lounger will not ruin your family budget, but it will bring you much more comfort when working with your vehicle. Some manufacturers offer models that cost US $ 20-40, and these options are a great solution for checking the brake cable or car engine. And if you spend a lot of time under cars every day, pay attention to more constructive, expensive models, because in this case, lying under the bottom is not a minute's fun, but daily work that fully affects your health and well-being.
There are a huge number of simple flat beds on the market today, as well as models with adjustable headrests, armrests, models that fold two into one, contoured beds that offer various functions for greater user comfort.
The most important factor when choosing a lounger is comfort. You need to choose a strong (reinforced) backboard so that your back muscles are always in good condition and properly supported. When tempted by the price, don't consider cheap plastic loungers or plywood models. A padded lounger will keep your back and shoulders healthy longer. It is worth paying attention to the seal and lining in the neck and head area, because in some models offered on the market this filling is not enough.
Some models offer LED backlighting as an option, which will be an excellent solution to the problem of working in poorly lit areas.
If you often have to change the position of the body between sitting and lying positions, an excellent solution is the option - "two in one".
Wheels are another important characteristic. Try to choose loungers with polyurethane ball-bearing wheels, avoiding steel wheels. You need a lounger with wheels that can easily ride on hard, rough floors, wires, and scattered tools. The garage lounger should be low-profile and made of lightweight material that is easy to clean and should have no problem with solvent and machine oil.
In addition, you must make sure that the model of the sunbed you have chosen has the correct power ratings, that is, it is designed for a certain weight. Most garage loungers must be able to support a weight of 80 to 140 kg, that is, they must not break when the body is heavy. But, nevertheless, it is better to check in advance. Typically, this information can be found on the product data sheet or on the packaging.
Before buying a lounger, make sure that it is quite comfortable for you to sit and lie on it, check everything in practice. In this case, you may find that this or that lounger model is too high for you, or that your body fits comfortably in specific contours.
The standard height of the loungers from the floor to the frame is from 70 to 130 mm. But keep in mind, the low-profile design gives you more access to the underside of the vehicle. The usual length of the loungers is from 915 mm to 1.3 m, the width is from 400 to 660 mm. Length is measured from head to bottom of your body and width is measured from shoulder to shoulder.
Measuring these points in your specific example will give you an idea of which length and width lounger is suitable for working under your car.
Regardless of whether you are changing the oil in your car or are an experienced mechanic who works in a car workshop, the presence of a rolling bed is, in any case, a must. Of course, many can observe the picture when a neighbor's guy takes out a piece of cardboard and crawls under his vehicle to change the oil. But it is quite inconvenient, uncomfortable and just plain dirty.
Buying a car lounger will not ruin your family budget, but it will bring you much more comfort when working with your vehicle. Some manufacturers offer models that cost US $ 20-40, and these options are a great solution for checking the brake cable or car engine. And if you spend a lot of time under cars every day, pay attention to more constructive, expensive models, because in this case, lying under the bottom is not a minute's fun, but daily work that fully affects your health and well-being.
On the market today there are a huge number of both simple flat loungers and models with adjustable headrests, armrests, models that fold two into one, contoured loungers that offer various functions for greater user comfort.
The most important factor when choosing a sun lounger is comfort. You need to choose a strong (reinforced) backboard so that your back muscles are always in good condition and properly supported. When tempted by the price, don't consider cheap plastic loungers or plywood models. A padded lounger will keep your back and shoulders healthy longer. It is worth paying attention to the seal and lining in the neck and head area, because in some models offered on the market this filling is not enough.
Some models offer LED backlighting as an option, which will be an excellent solution to the problem of working in poorly lit areas.
If you often have to change the position of the body between sitting and lying positions, an excellent solution is the option - "two in one".
Wheels are another important characteristic. Try to choose loungers with polyurethane ball-bearing wheels, avoiding steel wheels. You need a lounger with wheels that can easily ride on hard, rough floors, wires, and scattered tools. A garage lounger should be low-profile construction and made of lightweight material that is easy to clean and should have no problem with solvent and machine oil.
In addition, you must make sure that the model of the sunbed you have chosen has the correct power ratings, that is, it is designed for a certain weight.Most garage loungers must be able to support a weight of 80 to 140 kg, that is, they must not break when the body is heavy. But, nevertheless, it is better to check in advance. Typically, this information can be found on the product data sheet or on the packaging.
Before buying a lounger, make sure that it is quite comfortable for you to sit and lie on it, check everything in practice. In this case, you may find that this or that lounger model is too high for you, or that your body fits comfortably in specific contours.
The standard height of the loungers from the floor to the frame is from 70 to 130 mm. But keep in mind, the low-profile design gives you more access to the underside of the vehicle. The usual length of the loungers is from 915 mm to 1.3 m, the width is from 400 to 660 mm. Length is measured from head to bottom of your body and width is measured from shoulder to shoulder.
Measuring these points in your specific example will give you an idea of which length and width lounger is suitable for working under your car.
Timely and high-quality technical maintenance of fire fighting equipment is the most important element of its operation and must ensure: constant readiness of equipment for use; the safety of its use; elimination of the causes of premature wear, aging, destruction, malfunctions and breakdowns of components and mechanisms; reliable operation of equipment during the established overhaul resources and their service life before repair and write-off; minimum consumption of fuel, lubricants and other operating materials.
Car maintenance should be carried out according to the so-called scheduled preventive system. The peculiarity of this system lies in the fact that all cars undergo scheduled maintenance without fail. The main purpose of maintenance is to prevent failures and malfunctions, prevent premature wear of parts, timely repair damage that impedes the normal operation of the car. Thus, maintenance is a preventive measure.
As you know, repair is a set of specific operations to restore the working condition of vehicles and equipment to ensure their trouble-free operation. It can be performed on demand or after a certain mileage. Repairs associated with disassembly or replacement of units and assemblies are carried out according to the results of preliminary diagnostics.
To perform a number of maintenance work, special equipment and accessories are required to make the work more efficient.
One of these devices, included in the list of equipment for specialized enterprises and service stations for fire trucks, are movable sun loungers. With them, work on the repair of a fire engine becomes, if not easier, then at least more convenient.
Usually a repair lounger is made of a metal frame. Its length is about human height. The base is made of durable plastic, some models are covered with soft material. Additionally, oil-petrol-resistant casing is made to exclude fire in contact with gasoline and oil. In most cases, the rolling bed has six wheels, although there are models with four wheels. The chassis rotates in a circular manner, which gives more freedom of movement. Loungers are made with a comfortable headboard, which has adjustments to adjust the optimal comfortable head position, but models are also used that have a folding structure that transforms into a seat - this option is used for working in the garage. There are also repair seats that are used when straightening car body parts, when dismantling parts, when you have to unscrew a lot of fasteners, since it is extremely inconvenient to do this while standing. Wheels allow you to quickly move around the site without getting up from the seat.
The variety of designs offered on the market for sun loungers is very wide, the main ones are shown in Figures 1 - 3.
Figure 1. Lounger with recesses under the arms
Figure 2. Lounger with a back on six wheels
Figure 3. Rolling bed transformer on 4 wheels, folding
On the lounger, the specialist can diagnose and repair the car, located directly under the bottom of the car. The car mechanic's rolling bed is used when it is impossible to drive the car into a pit or lift it on a lift. The loungers are designed to provide comfort to all parts of the body during long-term work. On top of the roll-up bed is a soft headrest that can be adjusted for a more comfortable head position. The frame is equipped with wheels (from 4 to 6 pieces), which makes it easy for the master to work on the sunbed under the car.
Nevertheless, the disadvantage of existing devices of sun loungers used for repair and maintenance of fire fighting equipment is that the loungers are not adjustable in height, which significantly reduces the list of repair operations that can be performed without using a viewing hole or a car lift.
The authors have developed the design of a sliding bed with adjustable lifting height (Fig. 4), and also performed the necessary calculations.
Figure 4. Construction of a sliding bed with adjustable lifting height
The lounger is a welded structure mounted on rollers that allow the locksmith to move under the car. The structural elements are square pipe 40x3 GOST 8639-68 and channel 5U GOST 8240-97. The upper and lower platforms of the power structure of the lounger are also connected by square pipes, but of a smaller section of 30x2. The lifting height adjustment mechanism is shown in fig. 5.
Figure 5. Mechanism for adjusting the height of the lounger
The lifting of the upper platform of the lounger can be adjusted on both sides by means of a screw-nut transfer. Rotation of the screw handle allows the rollers to move, installed in the inner cavities of the channels of the upper platform, thus providing an adjustment of the lifting height. The designed device can provide both horizontal lifting of the lounger and the lifting of one of its sides. This method of adjustment will provide better ergonomics and will facilitate better access to vehicle components and parts.
And what about the legs?
I had a Torin big red, with a lifting backrest, like this goods_id = 2745.
The bearings on which the wheels rotate relative to the lounger fell apart very quickly. Well, not the bearings of the wheels themselves, but which are between the wheel and the sunbed.
And literally after 10 uses. However, he served for another year, but skated badly - the wheels were at an angle. And then fell off altogether, threw it out.
Maybe I weigh a lot, 95kg, I don't know.
And it is so convenient, of course, especially the fact that the back is raised - the neck does not become numb. Usually, you do not twist the nuts over your head, because dirt pours into your eyes, but above your chest / above your belly, and you have to keep your head suspended in order to see something.
I make a trolley and a stool from scrap materials.
Do not forget to visit the sponsor, comrades! Translation sponsor: Autospot Channel Autospot TV.
Do-it-yourself rolling cart In this video, I make a rolling cart for repairs with my own hands.
cool, cheap and cheerful, accessory.
AND WHY A PIT IS LOOKING IF IT IS POSSIBLE AND A LITTLE BLOOD);););) JUDGE YOU, BUT I CHOSE SUCH SOLUTION, SEEING EVERY YEAR.
Homemade rolling bed for repairs under the car.
Need a way to roll under your car? It's easy and cheap! Subscribe to my channel: Second Channel: If you work on (or.
IT IS TALKED ABOUT THE REMOVABLE REGION INSTALLED INSIDE THE GARAGE 500x4600x400 MM, WHICH CAN BE MANUFACTURED BY EVERYONE.
The trolley is used without a jack, which greatly reduces the time of loading onto the tow truck, even in the presence of 4 carts.
Trolley on 4 wheels for moving the car.
Homemade products from the engine from the washing machine:
one.How to connect a motor from an old washing machine with or without a capacitor
2. Homemade emery from the washing machine engine
3. Homemade generator from the engine from the washing machine
4. Connecting and adjusting the speed of the collector motor from the automatic washing machine
5. Potter's wheel from the washing machine
6. Lathe from washing machine automatic machine
7. Wood splitter with a washing machine motor
8. Homemade concrete mixer
A couple of homemade products in the garage: a mobile sunbed and a folding toolbox with your own hands
1. Homemade mobile sunbed
Hi, friend. In the past I had a hole in my garage and had no problem accessing the bottom of the car. I have no pit in this garage. This is certainly not a tragedy and there is a way out. I was not going to buy a sunbed in the store and decided to make it myself from what was in the garage I bought only wheels. In general, I cut out a lounger from a piece of fiberboard and covered it with insulation. I took rubber swivel wheels. It remains to buy a deputy leather and fit it over the insulation, tk. the insulation is very delicate. The bottom line is mobile, soft and economical. I hope someone will be interested.
2. Homemade folding tool box I saw a folding toolbox at work, I thought it would be nice to have one. I found out the price, one and a half thousand, it seemed a little expensive) I decided to make the same, but not iron, but from plywood). I don't think it will be convenient with the tool, but I need it for fishing tackle, so it will go)). There is also another folding box number 2. Now I decided to collect another, larger one. the manufacturing process has remained the same, but it has changed. new sections were added, each of them became lower but wider, so it turned out to be more convenient. the top covers can be opened simply with each hand, if not, then they will open automatically when the entire drawer is unfolded)) material plywood, top covers advertising plastic How to inexpensively make a sun lounger for a summer residence with your own hands: materials, dimensional drawings, stages of work, photos and How to inexpensively make a sun lounger for a summer residence with your own hands: materials, dimensional drawings, stages of work, photos and IT'S IMPORTANT TO KNOW! Bad breath due to PARASITES! For them to come out, you need. Read more–> It is very pleasant to relax in the fresh air after a hard day's work. In order for the rest to be as comfortable as possible, special sun loungers - sun loungers can be placed on the site. They should be comfortable and fit well with the overall design of your garden. Currently, many retail chains and online stores offer a huge assortment of country sun loungers. but it's much nicer to make them yourself. In this article, we will provide a detailed guide to building wood and fabric sun loungers. Let's talk about how to protect them from moisture and pests. Of course, these are not all types of sun loungers, there are also sun loungers in the form of a swing. models of wicker branches and even chaise lounges for cats and dogs. The choice depends only on your preferences. Next, we will focus on the process of making a wooden and frame lounger. And in this article, you will learn how to make a brazier from a gas cylinder. Recommendation! When choosing boards and slabs, you should pay attention to conifers (spruce, fir or pine). They are resistant to the negative effects of precipitation and have an excellent aroma. The chaise longue is ready, all boards should be sanded and covered with linseed oil or a special coating to protect against moisture. And in this article you can read the instructions for building a children's house. We advise! For a frame lounger, materials such as tarp, camouflage or denim are best. They are strong enough and resistant to wear and tear. As you can see, the folding sun lounger is also quite easy to assemble yourself. Statistics show that more than 70% of people are in one way or another infected with parasites, in order to remove them you need to drink in the morning ... The cost will depend on the size and materials of manufacture: For information on how to inexpensively make a wooden deck chair with your own hands, see this: Hello to all. In the past I had a hole in my garage and had no problem accessing the bottom of the car. I have no pit in this garage. This is certainly not a tragedy and there is a way out. I was not going to buy a sunbed in the store and decided to make it myself from what was in the garage I bought only wheels. In general, I sawed out a lounger from a piece of fiberboard and covered it with insulation. I took rubber swivel wheels. It remains to buy a deputy leather and fit it over the insulation. the insulation is very delicate. The bottom line is mobile, soft and economical. I hope someone will be interested. Now it is much more pleasant to "climb" under the car) Specialized sunbed for car service allows to significantly facilitate the work of a mechanic who is forced to stay under the car for a long time. Using the lounger, you can inspect the bottom and perform repair operations in cases where there is no inspection hole or it is not possible to use a jack. Modern repair loungers are very functional and have an improved ergonomic design, which allows them to be recommended for the mandatory technical equipment of any car service, service station, as well as for equipping garages. TD SOROKIN ® offers maneuverable repair loungers of various degrees of comfort. You can buy from us: The advantage of plastic models is their extremely low weight - only from 3 to 4 kilograms. Despite the rigidity of the plastic sun loungers for car service, its design provides special recesses for the hands, which provides the mechanic with a comfortable position during repair operations under the car. The plastic is highly durable and can be easily cleaned from dirt. Soft loungers are distinguished by an increased level of comfort, allow you to take a comfortable body position for the mechanic and are easy to hygienic processing. All models are equipped with swivel castors (4 or 6 pcs.), Which makes them mobile and very maneuverable.
Perhaps you will be interested in information on the manufacture of barbecues and smokehouses. Read how to make a hot smoked smokehouse here.
Currently, there are no problems with buying ready-made sun loungers. You can find them in various furniture stores and online stores. There are both budget options and original design models of outdoor loungers.
