To begin with, you should know that most cars of this brand are equipped with an emergency display system. If the machine is persistently trying to "tell" something to you with signals on the control panel, you should not ignore it (even if it continues to work). Take the instructions and see what the problem might be. You will not have to resort to more complex repairs later.

What are the most common problems with LG machines? Many faults are common to all washing machines. More often than other brands can fail - filler valves, drain pump, heating element. And the “Achilles heel” of LG's direct drive is the oil seals and bearings. Now - in more detail. First the problem, then the solutions.

There is no water in the mains.
The inlet hose is pinched or clogged.
The hose leakage valve (if equipped) has operated.
Filler mesh is clogged.
The water inlet valve does not work.
The pressure switch is not working properly.

Check for water in the plumbing system. If you turned it off, just wait for the resumption of its supply.
Inspect the condition of the hose. Eliminate pinching if necessary.
If the inlet hose has a safety valve, check its indicator. After the protection is triggered, the hose is changed to a new one (usually LG are equipped with conventional hoses, but options with a valve are sold separately).
The bay filter is removed with pliers. It is necessary to remove rust particles from it.
The filling valve can be checked by removing the top cover of the washing machine. When the valve is properly energized, it should open. Otherwise, it will need to be replaced.
The pressure switch is also located under the top cover and is attached to the housing. The tube suitable for it is checked for contamination. Further, the integrity of the wires and contact connections. The defective sensor must be replaced.

Video (click to play).

blockage in the sewage system;
the drain hose is clogged or kinked;
dirt on the drain filter;
the drain pump is faulty or blocked;
again, the notorious pressure switch.

What can be done to fix the problem.

- Disconnect the drain hose from the sewerage system and check if water will come out of it? I went - then the problem is in the blockage of the pipe.
- If water does not come out of the hose, check it for blockages or pinching.
- We clean the drain filter. It is located at the bottom of the front of the washing machine under the lid and screwed into the body. Before removing the filter, you need to prepare a container to collect the flowing water. If there is a drainage tube near the filter, you need to use it to drain the water. No - we put the pallet under the car and unscrew the filter. Next, everything is thoroughly cleaned and set in place. More often than not, this is enough. If it doesn't help, let's move on.
- We check the drain pump. LG machines have more drain pump problems than other brands. This is due to the not very successful design of the drain path. What in turn provokes frequent blockages in the system. This prevents the pump from working properly. LG washing machines do not have a bottom. Therefore, the drain pump can be easily accessed by placing the machine on its side. We check the pump with a multimeter. Do not forget - when dismantled, water will flow from the pump. We disconnect the pipes and wires, unscrew the fasteners, take out the pump. A serviceable, but blocked, pump will have to be disassembled and cleaned of foreign objects. We replace the non-working one with a new one.

- In principle, in modern LG machines, a thermal sensor (thermistor) is installed directly in the heating element.Therefore, we will check both the thermistor and the heating element at the same time. Remove the rear wall of the car (by unscrewing a few screws). We find at the bottom of the tank, a heating element inserted into it. We check the heating element circuit with a multimeter. For a thermistor, the test consists of measuring the resistance at room temperature and in a hot state - there should be a decent difference. Thermistors rarely fail. Therefore, it is most likely that the problem is in the heating element. It will be necessary to disconnect the wires from it and carefully pull it out of the tank. Then a new heater is installed and connected. We check the operation of the machine.

- To check the relay, you need to check the state of the contacts on the control unit of the washing machine. To remove the control panel, you need to remove the top cover. Next, pull out the powder receptacle. Two screws are visible under it, which must be unscrewed. The panel is held by latches. From above we find them under the bar and squeeze them out. Carefully (without undue effort) pull the bottom of the panel up.

All of the above malfunctions can be caused by a breakdown of the electronic control module. In this case, you will need to completely replace it. Changing the control unit yourself is not at all difficult. The main thing is to remember or photograph the location of the contact blocks.

What to do? At the first squeaks and a suspicion of wear on the oil seal, it is better not to delay the solution to the problem. And do not wait until the bearing collapses. One way or another, you will have to disassemble the LG washing machine almost completely. Removable top cover, back and front wall. LG has an engine on the back of the tank instead of a pulley. First, the rotor bolt is unscrewed and the casing is removed. Then the stator mounts are twisted. And he's also filmed. As a result, you need to disconnect all pipes and wires that can connect the tank to the body. At the end, the shock absorbers are removed. The tank is removed from the springs and pulled out through the open facade. The screws securing the tank are loosened. Further, the process of knocking out the drum and replacing the oil seal and bearings is standard for all machines.

As stated at the beginning, all parts for LG washing machines are readily available. And DIY repairs are totally realistic. And in comparison with the prices of services, the benefits for the home budget are very noticeable. Download dle 10.6 movies for free

Message elkri »19 Feb 2013 11:43

Message cs71ru Feb 19, 2013 20:15

Message beeline »19 Feb 2013 22:10

"Litol-24
produced in accordance with GOST 21150-87 and is an anti-friction multipurpose waterproof grease intended for use in friction units of wheeled and tracked vehicles, industrial equipment and ship mechanisms for various purposes. Litol-24 grease is produced by thickening a mixture of mineral oils with lithium soaps of technical 12-hydroxystearic acid with the addition of additives.
Application area of the grease:
Rolling and sliding bearings of all types, hinges, gear and other transmissions, friction surfaces of wheeled and tracked vehicles, industrial machinery, electrical machines, etc.
Main performance characteristics:
Litol-24 grease is distinguished by high colloidal, chemical and mechanical stability;
The grease is water resistant even in boiling water;
Litol-24 grease does not harden when heated;
The grease is efficient at temperatures from -40 to + 120oС, for a short time at temperatures of + 130oС. "

And when he washed his hands of this lithol, but still did not wash it off at once with warm water with fairies and soap, and then only the next day they seemed to be completely washed.

Do-it-yourself training portal about repairing washing machines, repairing dishwashers, repairing boilers and refrigerators

The washing machine LG WD 10180S has been received for repair. This LG machine gives error dE.The dE error on the LG washing machine means a door lock malfunction, or indicates that the load door is not closed.

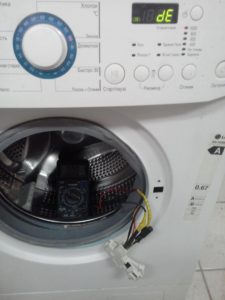

We check the car, for this we turn on and run any program. We see that the loading door is tightly closed, but not blocked, and after a while the dE error pops up on the display. In LG machines, the dE error is short for “door error”.

We will check the serviceability of the sunroof locking device (UBL), as well as whether it receives power from the control board.

We turn off the machine from the network. Open the door and remove the hatch rubber clamp, hook it up with a flat screwdriver.

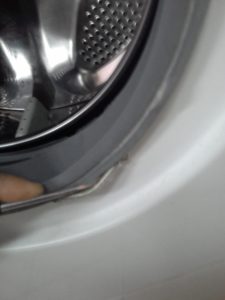

We fill the rubber inside the drum, unscrew the lock from the machine body. UBL is attached with two screws.

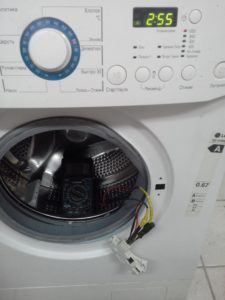

We take out the lock, take a multimeter and measure the power supply to the UBL. To do this, we insert the probes into the blocking connector and measure the alternating power supply, it should be like in the 220 V network, but we measure it with the washing mode turned on. Therefore, first we insert the probes, and then we turn on the machine to the network and start any mode, we look.

We see on the display of the multimeter that there is no power, and the fault code appears on the panel again.

We turn off the machine from the network. We conclude that the problem lies in a malfunction in the control board (electronic controller), so we will remove it.

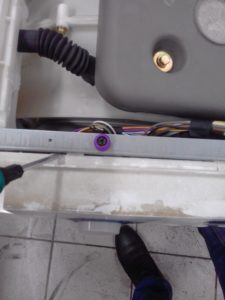

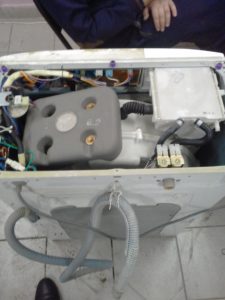

First you need to remove the top cover. It is fixed with two screws, unscrew them, remove the cover.

Now you need to remove the control panel.

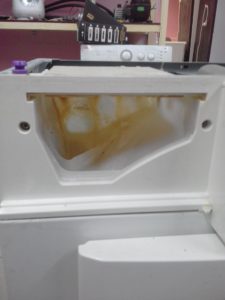

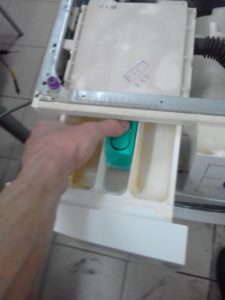

We remove the powder tray from our LG machine.

We see two screws, unscrew, then use a flat screwdriver to snap off the panel from the machine body.

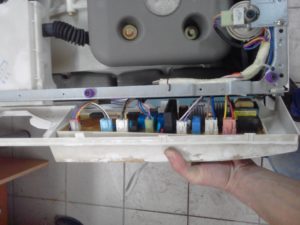

What's so great about LG control board? The fact that all the connectors on it are unique and of different colors, so when we put it back together, we will definitely not mix it up.

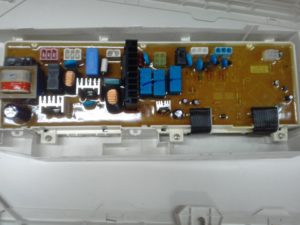

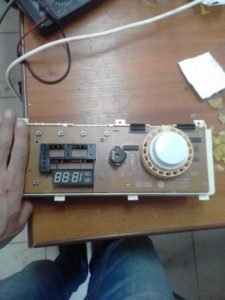

The electronic controller is screwed to the panel, unscrew it and take it out.

Let's move on to repairing the controller.

For LG washing machines, the control board consists of two parts. One has buttons and a button driver, and the second, which is also the main one, is the power part. Various relays and control microcircuits are installed on the power half. This part of the module is filled with silicone sealant, so in order to get to the desired element, there are two options: either gradually scrape out the sealant and remove the power section of the module from the plastic box, or remove the control part from the plastic box and make a window from under it using a soldering iron in the right place ... The second option is much simpler, but the question arises: where to look for a malfunction and where to melt the window?

This defect is quite standard and from my own experience I will say that the problem is most likely in the power relay, it is either completely out of order, which rarely happens, or its legs are burnt out. The photo below shows a black relay.

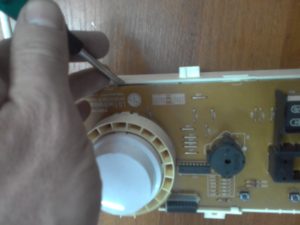

So, using a flat screwdriver, remove the control half of the module.

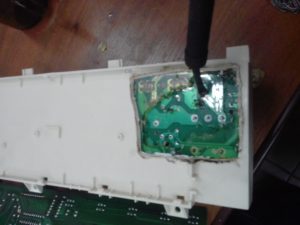

Now, using a soldering iron, we melt the window under the elements we need, then carefully remove the sealant with a screwdriver.

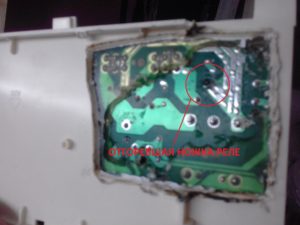

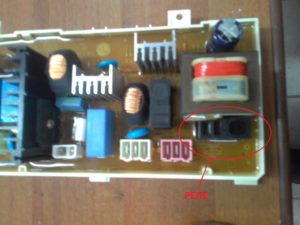

In the photo we see a malfunction: the relay leg is burnt out.

We take a soldering iron and solder the burnt-out legs, we also solder the adjacent relays.

Solder back a piece of plastic with a soldering iron.

We assemble the device in reverse order, install all the units in place and check its performance in the washing mode.

This malfunction is not complicated, and it can be easily eliminated by a person who knows how to handle a little with a screwdriver and a soldering iron. But if you are still not confident in your abilities, then it is better to turn to professionals.

In order to do it yourself repairing an LG washing machine, you need to familiarize yourself with its design features.

Modern household appliances are easy to use and highly reliable.

At the same time, regular loads lead to wear and tear of various components and assemblies.

Today on the market, you can easily choose a washing machine that is suitable in terms of cost and performance.

Before going to the store, it is advisable to read the reviews of people who already use this or that unit.

The next point to pay attention to is the maintainability of the machine.

Washing machine LJI is a complex electromechanical device.

Its functional diagram includes the following components and assemblies:

water filling system;
heating system;
laundry washing system;
water drain scheme;
linen spinning system;
drying system.

In each new model, the developers improve some system or several components.

Read also: DIY fumitox repair

In order to exclude premature repairs, when installing and connecting the washing machine, you must strictly follow the rules set out in the operating instructions.

When loading clothes for washing, you should adhere to the recommendations for the volume and texture of fabrics.

The LG washing machine is not subject to special operating conditions. It is designed for normal household use.

The quality of the water and the tap is quite suitable for use without prior preparation. The video shows a washing machine installed in a regular bathroom in a standard high-rise building.

For the convenience of users, the designers have developed an indication system about the state of the main units of the unit.

Long-term practice shows that if all units are in full working order, the machine may not work. The main reasons that arise during the washing process are well studied and can be easily eliminated.

Often, when you turn on the washing machine, there is a rattling and knocking in the drum. In addition to this, vibration may occur.

It is possible that small foreign objects such as a ballpoint pen or coins have simply fallen into the drum. You need to stop the washing machine and inspect the drum.

A similar effect occurs when the laundry is unevenly loaded into the drum. Or there is too much of it.

Repair in such a situation is not required, it is enough to evenly distribute the laundry in the drum cavity. The vibration may be caused by an unstable position of the feet. They need to be adjusted.

If the procedures done do not help, then you will have to fix the problem with your own hands.

The design of the washing machine is designed so that all overflows of water from one reservoir to another are made through sealed channels.

If water starts to flow to the floor, it means that in some place the connection of the hoses is loose. This happened at the junction of the hose with the tap, or the hose with the input to the washing machine.

In this case, you just need to tighten the couplings at the connecting points. Water leaks even when the drain pipes become clogged.

In general, they must be periodically cleaned and not brought to such a state where the leak turns into a problem. If cleaning does not work on your own, you need to call a plumber.

In the event that water does not drain from the washing machine, it is necessary to carry out preventive repairs to the drain system.

The first thing to check when this trouble occurs is the condition of the incoming water filter. It is possible that it is clogged.

The second reason that leads to this effect is a clogged drain hose. Sometimes he finds himself in a stifled state. The third reason is that the drain pump filter is clogged.

Carrying out work to eliminate the malfunction that has arisen, you need to act consistently.The video shows the cleaning procedures that must be performed carefully so as not to violate the integrity of the hoses.When performing repairs or preventive maintenance of a washing machine with your own hands, you need to know about those nodes that fail faster and more often.Among them are the following:

oil seals and bearings;

heating elements;

rubber transition hoses.

When another malfunction appears, you must act in accordance with the operating instructions. Focus on the signals that appear on the indicator.For convenience, you need to have in an accessible place a table with the decoding of these signals.Many years of experience show that following these recommendations, in most cases it is possible to establish the regular operation of the LG washing machine.If the knock when turning on the machine cannot be eliminated, then you need to call the master or do the repair yourself. The video shows the sequence in which the drum is repaired.Knocking or vibration during washing occurs because the bearings have worn out.Therefore, the main task during repair is to replace a worn out bearing with a working one.

Along with the bearing, the oil seal is always changing, which ensures the tightness of the drum. The most important operation in this case is to remove the bearing and install a new one.

And also replace the oil seal, which protects the bearing from moisture.

When the washing process is delayed due to the slow heating of the water, you need to inspect the tubular electric heater. More often this element is called shortly - heating element.

Scale forms on it over time. In order to slow down the process of scale formation, various chemical preparations are used from among washing and special powders.

Practice shows that they help, but scale still forms, albeit at a slow pace.

The video shows how the heating element is removed and cleaned from scale.

Descaling can only be done mechanically using a metal brush. If, after repair, traces of rust are visible on the surface of the heater, it must be replaced with a new one.

Almost every housewife who does laundry has come across a situation where water flows out of the washing machine for no apparent reason.

In this case, the repair is reduced to finding the place of the leak and eliminating the cause. Very often, with regular washing, the tightness of the clamps at the fixing points is weakened.If water flows exactly in this place, it is necessary to loosen the clamp, move it a little and fasten it again. It also happens that a crack forms in the hose.In this case, there is only one way out - the hose must be replaced. Sometimes water leaks due to a broken door seal. The rubber gasket must be replaced or corrected.Repairing a washing machine is always accompanied by nervous tension, hassle and excitement. Especially when it is done by hand.In order to avoid unnecessary troubles, it is necessary to regularly perform preventive maintenance of the washing machine.The video shows how the pump that pumps out water from the tank is cleaned. This pump must be cleaned after every wash.

The Korean company LG makes great direct drive washing machines. This technology really significantly increases the service life of the engine and moving elements. However, these machines are also characterized by specific malfunctions, noted by the specialists of the service centers as the most common. If you are the owner of an LG washing machine, then in 80% of cases you will have to deal with the malfunctions discussed in this article.

Experts from the world's leading service centers note the relatively high reliability of LG washing machines. The most "tenacious" unit of this machine is considered to be the engine, which breaks down only in one case out of 500 calls to service centers, and then in half of the cases, the cause of the module malfunction is a factory defect. Moving elements are also considered to be quite reliable, except for bearings, they are repaired more often.

What units of the LG washing machine break down most often? Let's list them:

a heating element;
pressure switch;
bearings;
wires and terminals;
drain pump;
filling valve.

Malfunctions of these most important units of the washing machine manifest themselves in different ways. It is necessary to carefully analyze the "symptoms" in order to more or less accurately diagnose the problem of the module even before disassembling the "home assistant". In particular.

Note! When diagnosing faults in the washing machine with your own hands, be sure to listen and take a closer look at its work at the stages of washing, rinsing, spinning and draining. In addition, read the user manual, any deviations from the norm should alert you.

To get to the heating element of the washing machine, you need to unscrew several fasteners that hold the back wall of the LG washing machine by yourself, and then dismantle this wall. Next, you need to pay attention to the lower part of the tank (near the very bottom). Two paired contacts with a screw in the middle should stick out from there, to which several wires go - this is the ten. We check the contacts with a multimeter, if its display shows a value less than 20 Ohm - the ten is faulty.

Removing the ten is easy. We unscrew the screw we mentioned with our own hands, pry on the sealing gum with a screwdriver and pull out the heating element from the bowels of the tank. We visually check the status of the module. Burnt teng rarely does not have any visually noticeable damage (usually these are burnt spots). In most cases, the heating element breaks down due to a layer of scale that settles on it. Also, a breakdown can be provoked by a voltage drop or water that gets on the contacts. The video guide will help you to correctly remove the ten.

Repair of this module of the LG washing machine is not possible, only replacement. It is necessary to purchase an original spare part from the manufacturer and install it in the tank of the washing machine, not forgetting to install the sealing rubber. In the process of installing the heating element, you need to be most careful about the sealing rubber of the heating element. To make it sit better in place, you need to lubricate it with a small amount of machine oil.

Important! If the sealing rubber of the heating element sits loosely in the bore hole, water from the tank will seep onto the contacts of the heating element and it will most likely burn out again in the near future. Be careful.

Washing machine electrical repair LG boils down to checking all the wires and terminals coming from the control module to all of its units. It's not just about checking all the wiring with a multimeter - it goes without saying. It is also necessary to carry out a visual check: torn clamps, fragments of wires without insulation, traces of burning and melting of contacts. All wiring problems that can be detected during the check must be resolved by replacing damaged conductors and terminals - this is the repair of the electrician.

It is not difficult to diagnose faults in the filler valve of an LG washing machine on your own, and it will not be difficult to repair this module with your own hands if you act methodically, according to a pre-planned plan. Dismantling and replacing the filler valve with your own hands is carried out in the following order.

Unroll the washing machine.
The inlet hose, which is connected to the water supply at one end, is screwed to the inlet valve with the other end. We turn off the cold water supply by turning off the tap.
We unscrew the inlet hose.
We take out, check and clean the filter of the inlet valve, it may be clogged with dirt and the water does not pass.
If everything is in order with the filter, remove the top cover of the washing machine, unscrew the two screws holding the valve, disconnect it from the pipes.
Next, we need to check the rubber bands of the valve, in 90% of cases the problem is their wear and the inability to retain water in the future. If so, change the rubber bands.
If it's not about the rubber bands, then most likely the problem is in the control electrics of the valve. In this case, the entire valve must be replaced.

To the drain pump of the washing machine LG can be reached without even disassembling it. You just need to tilt the machine on its side, after that it will be possible to get close to the unit through the bottom. We check the drain pump sensor with a multimeter, if everything is in order, then the problem is in the unit itself. Next, we proceed in order.

Unscrew the lower part of the front panel of the machine.
We unscrew the fasteners securing the drain pump.
We substitute the basin, since water will flow from the unit during removal.
Disconnect the plugs and remove the wires with the sensor.
Disconnect the pipes, drain the water and remove the unit to the side.

Note! Before placing the clipper on its side, remove the powder cuvette as directed by the user manual, as water remaining in the cuvette may spill onto the control box and damage the electronics.

Once the drain pump has been removed, it is best to have it checked and repaired by a specialist. Only he can finally say whether the pump has really come to an end, if so, then you need to buy and install a new one. Assembly is carried out upside-down. The easiest way is to change the pressure switch (water level sensor) of the washing machine. If you manage to disassemble it correctly, then it will not be difficult to replace it yourself.

Bearing failures are a matter of time or a factory defect. The user can influence this process only by the intensity of the use of the home assistant. Bearing malfunctions must be repaired immediately, because if this is not done, the loose pulley can damage the tank and then repairs will be very expensive. In this case, the user manual will not help; you either need to contact a specialist or study specialized information.

Thanks to direct drive technology, which is implemented on most models of washing machines from the company LG, bearings, motor, pulley and other parts wear out much more slowly and last longer. Nevertheless, there are still cases of bearing failure, and this poses a problem for “self-repair lovers”. Not everyone knows how to properly remove the bearing from the drum, however, to start doing this, you need to remove and disassemble the washing machine tank.

Bearing repairs must be done very carefully, using a special hammer with a bronze bump and a thin metal rod. It is necessary to pull out the bearing by striking its opposite edges. First, we place the rod on one edge of the bearing and strike it lightly with a hammer, then transfer the rod to the other edge and again strike it lightly. The procedure must be repeated until the old bearing pops out, then a new bearing can be put in its place.

In conclusion, we note that malfunctions of any module of the LG washing machine, you can try to fix it. Of course, even if you study the relevant technical information and expert advice, successful repairs are not guaranteed, but it is definitely worth trying, especially since in most cases you have to deal with typical breakdowns. If something doesn't work, you can read the washing machine repair manual.

Employees of all kinds of workshops and service centers persistently accustom us to the thought: attempts to repair a modern washing machine on our own can only lead to the final damage of the unit.

But workshop services sometimes cost several times more than the actual cost of new parts.

And there are also very simple cases when the machine simply needs to be cleaned, for example. Such work will be quite within the power of the owner. Let's take a look at how to repair an LG washing machine with your own hands, and how to diagnose faults, for example.

In fact, a washing machine is a tub in which a rotating drum is installed. The latter forces the laundry to actively move in water saturated with detergent. The machine is filled with water due to the pressure in the water supply to which it is connected. For the best effect, the water is heated (the temperature depends on the type of fabric).

Dirty water is pumped into the sewer, if the machine is connected to it, or into the bathtub.

Knowing how the machine works will help you better understand the causes of faults. Apart from the tank and the drum, this is what is included in its composition:

Control module. The "brain" of the system, coordinating the work of all electronic devices.
Bearing unit with an oil seal, in which the drum shaft is installed.
Mesh filters: one at the inlet to the machine, the other in front of the pump.

Electronic and electrical devices include:

electric motor (rotates the drum);
TEN (heats the water);
filling valve (this is an electric tap that the machine opens to fill the tank with water);
pump (pumps out waste water);
temperature sensor;
a level sensor, also called a pressure switch or pressure switch (with which the machine controls the water level).

From below, the tank is mounted on shock absorbers, and from above it is suspended on springs. The motor can drive the drum shaft into rotation either directly or by means of a belt drive.

A little home appliance repair skills can always come in handy, especially if you own a washing machine. Do-it-yourself Ariston washing machine repair - common difficulties and their elimination.

We will analyze the main problems of Samsung washing machines and how to fix them here.

As you can see, the washing machine consists of a fairly large number of different components, and the breakdown of any of them will inevitably affect the operation of the device as a whole. Here's what can happen:

It is easy to see that a typewriter has to combine two things that a sane person usually tends to keep away from each other: water and electricity. As long as the water is where it should be, there is nothing to fear. But if she finds at least an insignificant possibility of leakage, the risk of unauthorized closure of contacts immediately arises.

As you know, the work at the washing machine is rather dirty.

Collecting in some places in the form of muddy deposits, the dirt can completely block the path of water.

In addition to dirt, all kinds of small debris, which we carefully store in our pockets, often get into the machine, which makes the likelihood of blockage increasing dramatically.

Chemists have come up with many different materials, but none of them are completely eternal. Therefore, the moving parts - the bearings, the belt, and sometimes the pump impeller - have a limited resource and must be replaced from time to time.

The same can be said for the seals. Their wear and tear leads to the fact that water instead of sewage begins to pour onto the floor.

Electronic devices, like humans, can sometimes go crazy. Especially if the voltage in the mains from time to time makes dizzying surges, as it happens with us. Of course, it is impossible to repair an electronic unit without special skills and equipment, but even an amateur can easily replace a burnt-out thermal sensor or heating element.
