The airfryer is called a jet-powered oven. One such device can replace several at once. Therefore, there is simply a huge number of dishes that can be prepared according to various recipes. It is enough to put the necessary products into the device and set the appropriate program. It remains only to wait a little until the beep sounds.
For example, a 1 kg grilled chicken can be cooked in just forty minutes. Moreover, the entire process can be observed through transparent elements.
But sometimes there are problems with the performance of this device: it does not heat up, does not turn on, the fan does not work. To make the correct repair, you will need to determine the cause of the failure.
If we consider the airfryer constructively, then this is a relatively simple technical device, in which, in fact, only three components can break: a heating element, a thermal fuse and a control unit.
In this case, the problem can be considered the smallest. It will not be difficult to eliminate the cause.
It is worth repairing the airfryer, if this element breaks down, a lot. After all, it cannot be repaired, but it costs decently. However, sometimes it is possible to restore the device. But only specialists can do this, and even then not always.
Broken heating element
This is also a fixable issue. One has only to buy a new one. However, here it is necessary to clarify. The fact is that previously a steel heating element was used in this capacity. He is able to serve reliably for ten years. However, such an element has disadvantages: it is not environmentally friendly, high energy consumption, and slow heating. As a result, it was replaced by carbon and halogen elements.
Video (click to play).
Such devices not only save energy, but also reheat food more quickly. They provide lighting from the inside of the airfryer. As a result, the cooking process is clearly visible.
Moreover, halogen radiation can kill bacteria. Also, a halogen heating element is cheaper. As a result, it is most often used in popular models of airfryer.
However, there is a problem - the fragility of such heating elements. The service life is about two years. Although the savings on electricity bills for such a period may be enough to buy several items.
There is one more drawback. The supply of such components of the airfryer to the regions is not well established. As a result, the breakdown of such an element may be associated with the need to search for spare parts.
But let's return to the consideration of breakdowns and the possibilities for their elimination.
In this case, disassemble the device and check the fuse. If a power surge occurred in the network, this element could fail, thereby preventing further power supply of the airfryer. If visual inspection confirms the assumption, the fuse will have to be replaced with a new one. The location of this element can be determined using the diagram attached to the instructions.
It should be noted that it is worth disassembling the airfryer only in extreme cases. Indeed, sometimes it happens that we forget to plug the device into the outlet, but we think that it is broken. The problem doesn't exist though. Therefore, you should first try all possible options before proceeding with the "surgical intervention".
And the device should be disassembled, strictly observing safety precautions.
If it turns out that the fan in the device does not work, you should disassemble the airfryer, get to this element and visually assess whether there is any damage, whether all wires are connected properly. If the wiring breaks, it must be soldered using a soldering iron and solder. Otherwise, the fan may need to be replaced. To do this, you need to purchase a similar in size and characteristics.
The problem is either with the circuit or with the heating element. Everything should be visually assessed after disassembly. If there is an open circuit, it must be reconnected. If the element has carbon deposits, its size has changed, it will have to be replaced. Sometimes it is possible to restore the device, but it is most often within the power of specialists.
How to carry out repairs, everyone decides for himself. After all, for this you must have at least elementary knowledge, experience in handling technology. If there is no such baggage, then you should still contact the workshop. This will be more reliable, and the likelihood of restoring the performance of the airfryer at the same time increases significantly.
I bought an airfryer, but it turned out that the fan did not work, I called the operator and said to bring it, I think that it can be brought back here to the workshop and how much the repair will cost, I live in Novogorsk
An airfryer is considered a hybrid of an iron, a quartz heater, and a wind blower. Working together, they will allow you to get mouth-watering delicacies that would be problematic to prepare using other methods. We believe that the inhabitants of America adopted the technology of smoking bison from the Indians, then the methods of frying were introduced into everyday life. The grill resembles a skewer hanging over a fire. In fairness, let's say infrared radiation makes a small contribution to cooking, the chicken turns out to be browned, tanned. Do-it-yourself airfryer repair is much easier than, say, an iron. The screws are not hidden by elaborate decorative elements, buttons, knobs. A repairable device looks more attractive on the Russian market than a beautiful, but disposable one.
Thanksgiving is celebrated in memory of those who survived the hungry winter of the coast of colonized America. The settlers were helped by the local Indian Tiskvontum, who was subsequently poisoned, according to historians, by his warlike brothers.
The grill of the airfryer plays the role of both an infrared emitter and a heating coil blown by a fan. The device has an infrared (halogen) lamp that acts as the primary heat source. The cover is removable (start with it when you need to repair the airfryer), the ring element is located at the bottom of the perimeter. Separated from the working compartment by a giant glass bowl by a steel grate with free-form holes. If you take the repair of the Hotter airfryer, you will also have to face the mechanism for lifting the lid on the hinges.
They said that the airfryer device resembles an iron for one simple reason. The regulator is made according to the scheme based on a bimetallic plate. Of course, there are many designs, it is powerless to list everything, simple devices are arranged like this:
Self-repair of airfryer requires knowledge of the internal structure. There is a switch at the input of the electrical circuit, pressed down by a handle. The fan motor is powered by a timer. A relay is connected in parallel to the branch (regulated by the corresponding knob), a quartz incandescent lamp. For convenience, a couple of indicators:
Timer operation. The lamp is on while the cocked mechanism ticks.
Quartz work. The lamp lights up synchronously with the heating element.
Newbies are wondering why indicators are needed. They will come in handy when repairing the airfryer with your own hands becomes inevitable!
The quartz indicator is on, there is no heating, cook five hundred replace the spirals.
While the timer indicator is on, the program is running. Even if the spring mechanism stops. In the resting position, on the contrary, neither the indicator should light up, nor the quartz lamp should warm up.
Note the self-cleaning mode on the temperature controller.Today, a popular word, the airfryer could not do without the option, of course.
In fact, nothing complicated. A bucket of detergent (dishwashing) water is poured into the bowl so that the foam does not reach the fan. The timer runs for 40 minutes. After the specified time has elapsed, the quartz lamp grill and fan blades will become much cleaner.
Why the airfryer is designed like this is a big question. Judge for yourself:
There is a quartz lamp inside, separated from the working compartment by a grating. The steel is specially equipped with thick slabs so that half of the radiation is left by the grating. Where does the rest go? Heats the table, floor, cooks, ceiling!
This is not rational. It is known that the efficiency of a halogen lamp is 98%, if the light heats the room, it is not good for cooking. The airfryer bowl is made of glass, stops ultraviolet radiation, not infrared. It is definitely useful for a cook. Infrared radiation is used for treatment, prevention, removal of post-syndromes in diseases of the nasopharynx. Feel the warmth of the airfryer lamp by raising your hand. Not convective heating! When the lamp turns off, the hand stops feeling warm. The only big drawback of the Airfryer.
The appliance does not work in automatic mode when cooking other dishes. Some will argue: the multicooker is not omnipotent. However, the main recipes are automated. You will have to try over the side ones. In an airfryer, we consider the dominant advantage to be the advantage of producing roast without oil. You cannot automatically prepare the main dish. The cook must track the actions of the airfryer, turn the meat on the wire rack at the right time. In the recipe book, the moment is missed, the chicken will not cook on one side. The roast is baked on top, but it receives little heat from the bottom.
From what has been said, it is clear what can break:
The quartz lamp burns out.
The engine fails.
The relay breaks.
The timer refuses.
The main types of malfunctions. The airfryer is cleaned regularly.
You should start with a quartz lamp grate. Then the lower blades and the partition are removed. Having removed the upper "squirrel cage", we get access to the wall of the engine compartment. Behind it is the filling of the device. The quartz lamp is attached to the partition with brackets. The cable connectors are removable, it is better to dismantle, do not touch the metal fasteners. Unless, of course, you need to replace the quartz lamp.
The airfryer is not an iron, but the screws can be hidden under the decorative elements. Primarily handles. In many models, screws are hidden under the grill of the quartz lamp. The steel blades are held in place by a central nut. Do not grasp when disassembling. On the back of the blades there is a grip nut, or disassembly is not done on this side. In the course of the master, some of the readers will ignore the words, - in case of a successful experience, write off in the comments.
We hope that now the readers of the VashTechnik portal can repair the Hotter airfryer, repair the Ves airfryer, which are similarly arranged. Cook barbecue, chicken. It turns out great, it fits into the mouth even better: om-nom-nom.
The airfryer is intended for cooking food by heat treatment. The products are heated by a stream of hot air. Constructively, the airfryer can be divided into three components: a heater, a fan and a control unit. Do-it-yourself troubleshooting and repair of the airfryer at home can also be divided into several stages according to the number of nodes:
the device does not turn on or the operating modes are incorrectly set;
the air does not heat up or does not heat enough;
there is no airflow, the fan hums strongly.

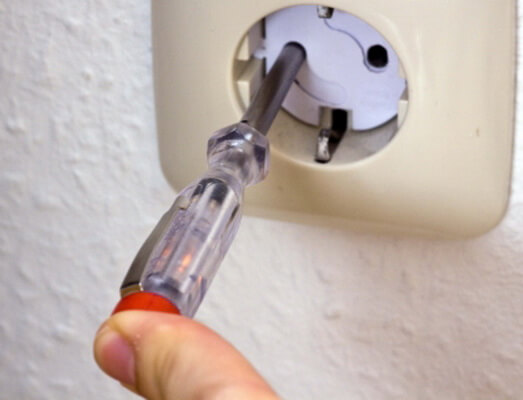

If the device does not turn on, the indication on the control unit does not light up, then the search for the cause must be started with external inspection of the device... The problem may be a defective power cord, electrical plug, or damaged case.
If the integrity of the insulation of the cord is broken, it must be replaced. The power cable may not be damaged externally, but it may still be defective. You will need a multimeter to check. The cord is disconnected from the device and checked for contact between the ends of the cable with a multimeter in resistance measurement mode. The serviceability of the fuse is also checked, the blown one changes.

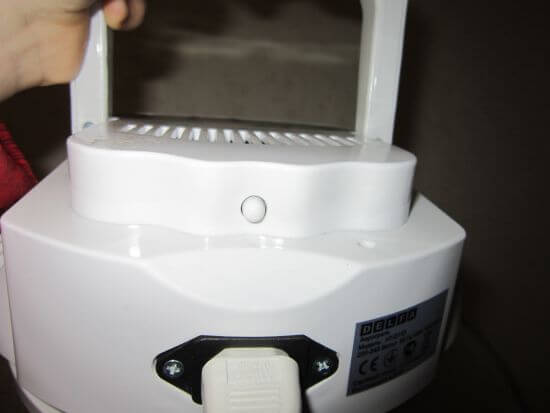

Many models of airfryer are equipped with limit microswitch on the lid, which does not allow the heating to be turned on when the working bowl is not closed. If you press the switch with your finger, you can hear a distinct click. The lack of sound indicates a breakdown of the contacts. The limit switch can only be replaced after disassembling the cover body. The cover is at the same time a body that contains all the working elements.
A lighted indicator indicates that the device is receiving power, and the previous step can be skipped. If the device still does not work, it is most likely out of order. control circuit... Unfortunately, its repair requires specific knowledge; it is impossible to consult an unprepared person in absentia. However, the problem may lie in the breakage of the connecting wires between the parts of the device. To inspect the wires, you will need to disassemble the case.
You need to start disassembling the unit by unscrewing the screws securing the mesh from the bottom of the case.
Shown are photographs of disassembly using the example of a Hotter brand airfryer.
The heating element and fan blades are visible under the mesh.
The screws and nut highlighted in the photo allow you to disconnect the part of the device on which the heater is fixed. The contacts of the heating element are highlighted below.
Checking the heating elementif it doesn't get hot. We disconnect the terminals with wires from the heating element, now it is possible to check its serviceability. The check is carried out with a multimeter in the same way as the cable was checked. A faulty heater will indicate an open circuit, the heating element will have to be replaced. Along the way, with disassembly, they inspect the connecting wires for damage, the cause of the problem may lie in this.
In more expensive models, heating is done with a quartz lamp. Its malfunction can be determined by the glow: there is no radiation or the lamp periodically goes out - the lamp needs to be replaced.
Typical malfunctions of the airfryer blowing system:
there is no airflow;
the fan hums when turned on;
a rumble or grinding noise is heard during operation;
the air flow is too weak.
To check the fan, you need to continue to disassemble the device. We unscrew the screws securing the lower part of the fan and the electric motor.
We inspect the electric motor.
One of the possible reasons why the engine and, accordingly, the fan rotates slowly or does not rotate at all, may be the ingress of fat on its shaft. Once solidified, the fat interferes with the normal operation of the engine. This can be seen in the picture. Therefore, a hum is heard: the engine cannot cope with the load and its winding begins to hum.
The accumulation of fat is removed with a rag, and the residues are washed off with gasoline, alcohol or other liquid that dissolves the oil. It is not enough to simply remove the fat from the shaft. Need to produce shaft lubrication... This requires Tsiatim-type machine oil.
In the absence of specialized oil, you can use petroleum jelly, but when heated, it becomes liquid, drains from the shaft, and soon the operation will have to be repeated.
Rumbling, grinding, and other unpleasant noises during operation can be caused by bearing failure on the motor shaft. The bearing is located on the back of the motor.
Most often it is also a matter of thickened grease... By unscrewing the two mounting screws, one gains access to the bearing itself. As before, we put new grease inside it. We return the cover to its place and make several turns of the shaft with our hands to evenly distribute the oil.
All suggested operations make sense when the motor winding is intact.... Therefore, during disassembly, we carefully examine the connecting wires for integrity. We call the conclusions of the motor winding with a multimeter. A break in the winding is usually not possible to eliminate; replacement of the electric motor will be required.
A limit switch on the cover was previously mentioned. To get to it, you will have to disassemble the entire case. But you can check its serviceability in another way. To do this, you need to determine which wires go to it from the printed circuit board. It is not difficult at all: two conductors go in his direction. We disconnect them from the circuit board and connect a multimeter to them. When you press the limit switch, the resistance on the tester display should change from infinity to zero. Otherwise, the limit switch is defective and needs to be replaced.
Possible malfunctions of a fairly cheap model from Hotter have been discussed above. Similar manipulations can revive similar Airfryer from Supra. Expensive air grills have a more complex device, they are controlled electronic circuits, therefore, it is better to repair them in service centers, although you can try to fix some of the above faults yourself.
