Any vehicle periodically requires the replacement of various consumables. To do this, you can contact the service center or do all the work yourself. It is not difficult to carry out the procedure on your own. All you need to know is the location of the components during the final assembly.
Undoubtedly, such work has many nuances. And they need to be taken into account immediately before parsing. For instance:
The fuel filter is one of the most important filter elements in the fuel system.It is designed to trap debris, rust and dirt particles in the fuel. In most cases, it is equipped with special cartridges with paper filters. Fuel filters are now installed on almost all modern car engines.

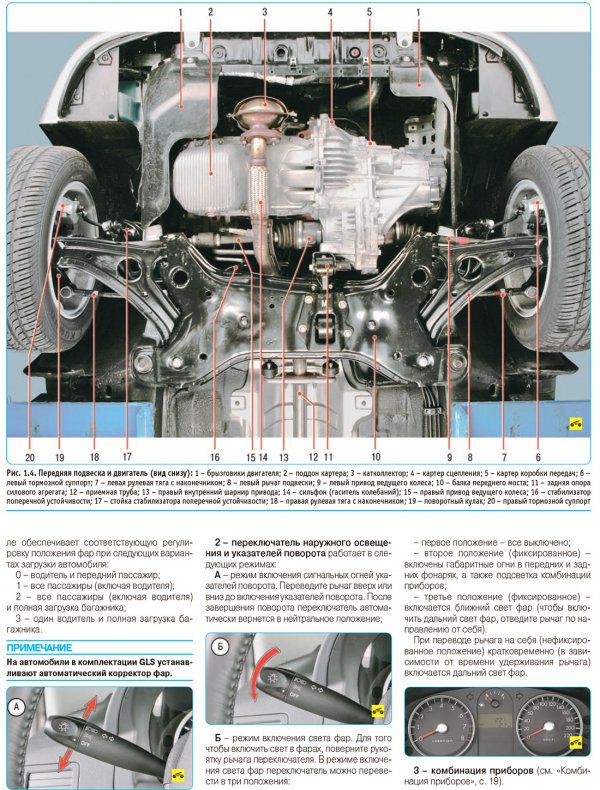

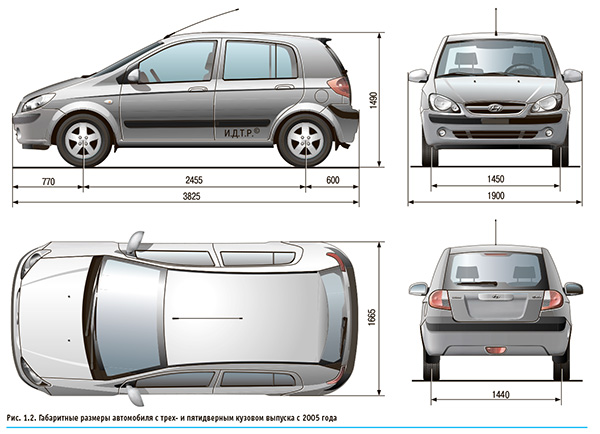

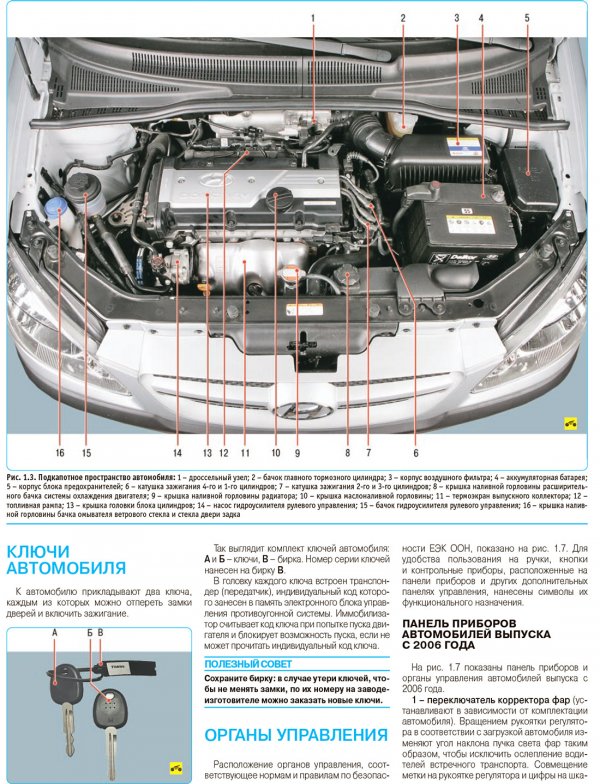

Because cars like the Hyundai Getz are especially sensitive to fuel quality. Poorly filtered fuel can contain several types of impurities and contaminants. For example, it can be paint particles that have fallen into the fuel tank during refueling, or rust that has arisen in a steel tank from excess moisture. If such substances often enter the fuel system, then it will not be possible to do without serious breakdowns. First of all, the fuel pump and injectors will break.
In addition, when using fuel filters, engine power increases. After all, as you know, the less dirt in the combustible, the better the combustion process itself.
The Hyundai Getz fuel filter must be replaced at regular intervals. In most cases, it is better to simply replace the old filter with a new one. But some masters know how they can be cleaned and installed back. However, this should only be done in extreme cases. If the filter is not changed on time, this will lead to clogging, which means that the air flow will not get in and the motor will work much worse.
First, relieve the pressure in the fuel line so as not to splatter the passenger compartment with gasoline:
The dismantling process is completed. Now you can start disassembling the part itself:
Now you can remove the old Hyundai Getz fuel filter and install a new one in the sequence in which the mechanism was disassembled.
VIDEO Replacing the Hyundai Getz fuel filter is an extremely important moment in car service, since this particular unit plays a rather important role in the operation of the car's power unit. It is thanks to the fuel-cleaning element that all kinds of particles of dirt, dust, sand, condensate, etc. do not enter the engine. This debris can enter the fuel tank during refueling, and can also be found in low-quality fuel. To prevent this from happening, it is necessary to replace the fuel cleaner in time, according to the instructions that come with the car. This is the only way to ensure stable operation of the motor and extend its life.
Hyundai Getz car manufacturers recommend replacing the filter and mesh every 50,000 miles. But this term is relative. For example, on diesel power units, this period is shorter. Similarly, the replacement period is affected by the conditions in which the car is operated and the quality of the fuel that is poured into it. If the fuel is heavily contaminated, then, of course, the filter barrier will become unusable much earlier.
A sign that it's time to replace the fuel filter may be jerking the car at high speeds, which later begin to be felt when driving slowly.
When choosing a filter, it is very important to decide on its type, since they are very different for gasoline and diesel engines, and they are also produced by different companies.
The replacement process is simple - it is only important to follow the recommendations given in this article and follow everything in the same sequence.
Pulling the hatch, open it.
Disconnect the hoses and wires connected to the unit. It is advisable to wrap them with something so that third-party objects or debris do not get into them.
Wipe the space around the block with a rag and brush.
Next you need to unscrew the bolts.
We take out the block and transfer it to a convenient and clean place for further work.
We remove the cover from above, it should give in freely without effort (it is traditionally fixed with two latches).
We are dismantling two filters.
We collect everything in the reverse order.
After tightening the nuts, you need to wait about fifteen minutes.
Next, start the engine.
This completes the filter replacement procedure.
In principle, there is nothing complicated, but this will save you time and several thousand rubles. If you have more questions, watch the video.
This video describes and shows in detail the process of replacing a fuel cleaner on a Hyundai Getz.
My name is Yuri, the problem is probably in the fuel pump, or in the FTO cleaning. The car stalls, Tell me how much the pump and FTO will cost .. Getz 2008 1.4l .... Thank you ..

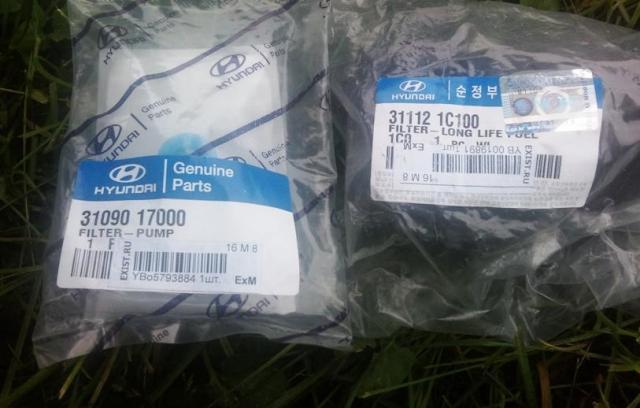

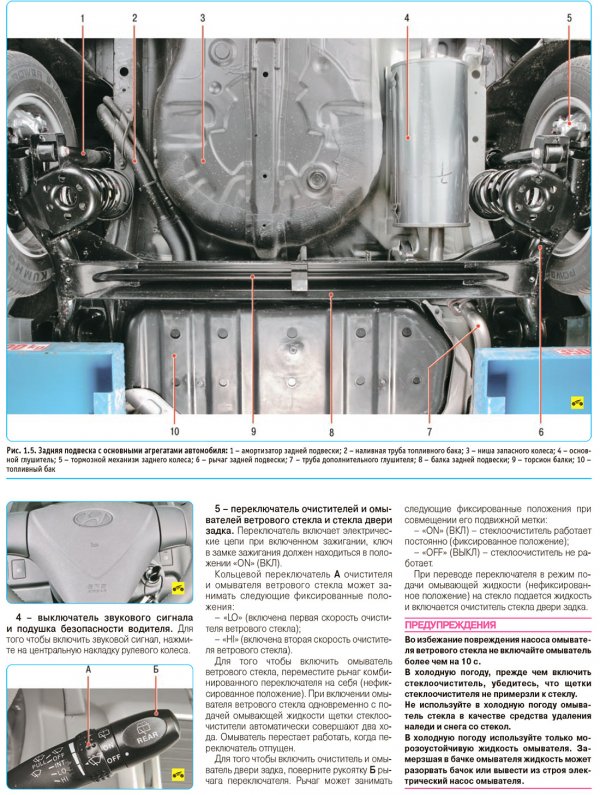

Hello everyone. We will replace the fuel filter with a Hyundai Getz 1.6 gasoline. I advise you to change the filter, as well as the coarse mesh.
Coarse mesh article: 31090-17000
Fuel filter part number: 31112-1C100

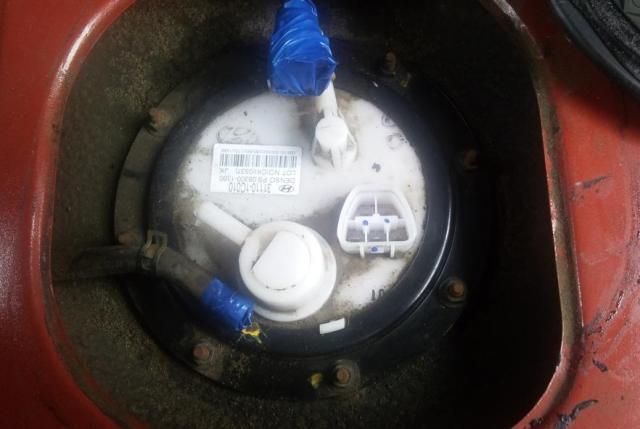

1. We start by folding the rear seats. We recline the backrest and lift the bottom cushion by the handle and remove it.
2. We remove the four plastic clips that secure the casing that closes access to the fuel pump. After removing the clips, remove the trim.
3. Remove the rubber boot of the fuel pump. If the filter has never been changed, it is held on by adhesive rubber.
4. Disconnect the fuel pump power plug.
5. Raise the fuel tube locking bracket upwards and squeeze the tube clamps on both sides and remove.
Be careful, when removing the tube, gasoline may splash, especially if you just arrived and immediately began to disassemble.
6. Remove the gasoline return fuel pipe. We compress the clamp with pliers and tighten the tube.
7. We unscrew all the bolts of the fuel pump with a head of eight.
As you take it out, do not damage the fuel float, and also wait until the fuel drains from the coarse filter.
9. Remove the top of the fuel pump.
Open the latches to the sides and pull up.
10. Disconnect the two electrical connectors from the top of the pump.

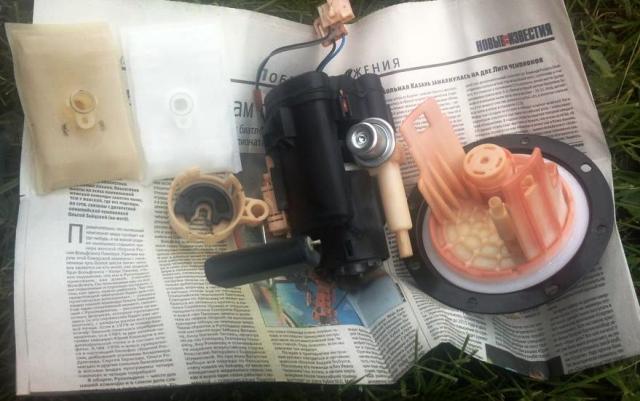

11. Remove the coarse filter.
Using a flathead screwdriver, pry out the latches in a circle.
12. Turn the pressure regulator to the left.
We pick up the tube and remove the regulator itself.
Turn to the left to release the regulator mount.
13. Remove the fuel filter plug.
14. Remove the fuel float.
Click on the plug and move it up.
15. Remove the negative contact.
We insert a screwdriver, move the contact up and it will come out.
16. Snap off the connector of the fuel pump itself.

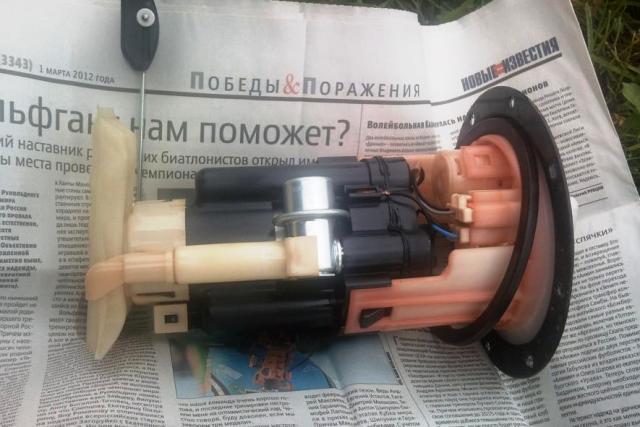

17.Disconnect the fuel filter and pump.

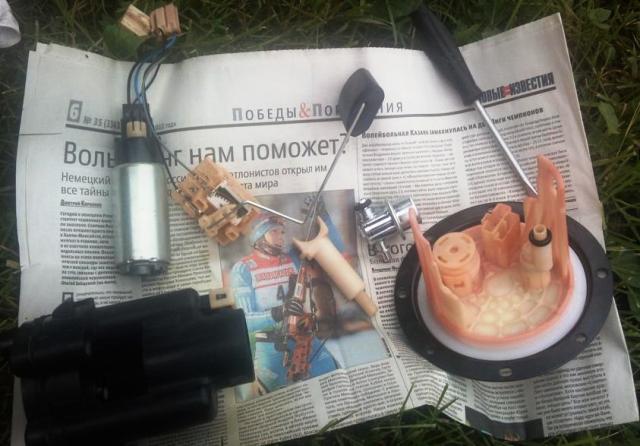

18. We take a new filter and insert the sealing gum of the fuel pump into it.
We remove the rubber from the old pump.
19. We insert the pump itself into the filter and press it with force so that it sits in place.
20. Insert the pressure regulator and put on the tube. After putting on the tube, turn it all to the right to fix it.
21. Install the filter plug.
Before installing the plug, install the O-ring.
In general, all o-rings need to be rearranged from the old filter, if you buy the original, they come new.
22. We connect the connector of the fuel pump itself.
23. Connect the negative terminal.
24. Install a new coarse mesh filter. Attach and fasten. See that all latches are fully closed.
25. Install the fuel float.
We put on the landing rails and snap.
26. We connect two electrical connectors to the top of the fuel pump and snap the top to the fuel pump.
Be careful not to damage the fuel float.
27. We put the fuel pump in the tank.
28. We wrap all the mounting bolts.
29. We connect the fuel pipe and the gasoline return pipe.
30. Connect the pump power plug and close the lid.
31. We put and fix the skin, as well as install the seat.
Repair of the Hyundai Getz fuel pump must be done in case of problems with the operation of the engine, if during the diagnostics at our service stations it was confirmed that the problem is in the fuel pump. If the car cannot start in any way, and if it does start, it works intermittently, the car twitches, the engine makes noise, the power and acceleration dynamics of the car have decreased. If your car is equipped with electronic on-board control, then problems with the fuel supply will be reflected there. Since most models are equipped with an electric submersible fuel pump, problems can still arise if the vehicle's electrical system is faulty.
The average life of a Hyundai Getz fuel pump is 100 thousand km. But it strongly depends on the quality of the fuel poured into the tank, the serviceability of the fuel filter and the timeliness of refueling.
Service station on Citizen – 603-55-05, from 10 to 20, no days off. Service station in Kupchino – 245-33-15, from 10 to 20, no days off. STO on Courage , 748-30-20, from 10 am to 8 pm, closed
WhatApp / Viber: 8-911-766-42-33
The fuel pump is one of the key components in the fuel system, it is responsible for supplying gasoline from the tank to the engine. It consists of an electric motor and a hydraulic supercharger in one housing. In the hydraulic supercharger, there may be problems with the check valve and valve to relieve excess pressure, wear of the rollers and gears, the shaft coupling connecting the electric motor to the hydraulic supercharger, they will need to be replaced. There may be cracks in the elements of the supercharger, the lamellas of the electric motor collector may be worn out or burn out, etc. Only the masters of our services can qualified to determine the type of breakdown and repair.
It is important to monitor the condition of the Hyundai Getz fuel pump and, if necessary, repair it. Clean the fuel receiver grid in time, change filters. Try not to drive with a half-empty tank, keep spare canisters of gasoline on long trips, monitor the fuel level. Otherwise, the engine may stop at the most inopportune moment on the road.
To transport your vehicle, our service stations offer a tow truck service.
There wording is wrong. That's right, He's DEFINITELY WORSE, without a doubt, and no "I hope it can be better."
thanks for the number. In general, I put new rings on the top of the fuel pump. Installed in the car. Akko put charged. Started to turn. The pump pumped up - earned, i.e. The car sucked the acco and didn't start, although it caught. I hooked wires from my car. And I probably twisted 5 times for 5 seconds. For 5 times trtrtrtrtr and gotz wound up. The first seconds poured smoke, bluish thorough. Basically warmed up the car.The plant cannot be recognized, not only from the first second, but at first it began to grasp the scrolling. Let's see. left at the car factory to -10. Maybe just the wife of the candles flooded. I confess, I did not even consider the issue of lighting. The bad head does not give rest to the hands. Heard, or rather did not hear the buzzing of the pump when set to ON mode, and immediately decided that the fuel pump had died. And then I googled and found that the pump does not pump gasoline at temperatures below -20. Those. only works when the crankshaft is cranked at temperatures below. In general, one thing is good - I replaced the plastic rubber bands, I hope it will grab right away - this was the main problem before - I had to twist for a long time.
PYSY immo icon works as it should
adnaka.. > And then I googled and found that the pump does not pump gasoline at temperatures below -20. Those. only works when the crankshaft is cranked at temperatures below.
With the ignition on, there is no voltage on the 3 wires leading to the fuel pump. I checked all the fuses, all the terminals, all the wires, where oxidation of the wiring occurred, but I cleaned all the connections. The computer does not see errors.
Could it be the fuel pump relay?
Jump contacts as in the photo
Is there voltage at fuses No. 19, 20, 25 and at relay No. 7 under the hood? Additional alarm installed? If so, then there may be a separate relay to open the fuel pump power circuit. You need to ring the wires going to the fuel pump.
