Dear visitors, dear friends.

In this topic, there are several reasons for electric stove malfunctions that we have to deal with in our everyday life. Familiarization with this correspondence and related directly to the repair - will allow you to make your own decision and, to some extent, save your family budget. Consultations are provided to you free of charge and the reason for such a publication is the ease of searching for the questions you are interested in, as well as, as a general mailing of answers.

Hello Victor. Hansa electric oven. I faced such a problem: when I set any temperature to the oven, the signal light turns on and then does not turn off, although it should turn off when the set temperature is set. And when I put the food on for baking, it turns out that it is all on fire. The case and the knobs for adjusting the programs get hot, so it is impossible to touch, and then the clock goes out on the display, as if it were in a de-energized state. Then, when it cools down, the clock appears on the screen again, but in the 12:00 mode. What is wrong with her and how to help.

Hello Victoria. From your question, I understood that the oven in the Hansa control cabinet is controlled by an electronic digital timer. I think you need to check the "timer control board". The signal light does not turn off due to the fact that the heating elements of the electric roasting cabinet are always on. That is, depending on the nature of the malfunction (burnout of one of the elements: a capacitor, a diode, a resistor, etc.) of the timer circuit, the heating elements of the oven can work either in a constant mode, or they can not work at all (if an open circuit occurs). I believe that the electronic digital timer should be returned for repair, or replaced with a new one.
Victor.

Video (click to play).

I connected a used Siemens HN322200 infrared cooker. How should the cooking zones behave at different power settings? The worry is that at the lowest power, violent boiling occurs, which is not always necessary. The hotplate switches on and off periodically. The instructions say that in position 1 (lowest power) you can melt oil. Something I doubt it, it will burn. Q: what is the principle of power regulation? How should it look externally? Should there be a change in the brightness of the heater or only a change in the on-off intervals. Does the burner switch on / off occur in the switch itself or on the board using a relay? If there were a diagram, a lot would become clear. Thanks for the answer.

Hello Yuri. I did not find data on your electric stove in my sources, I am interested in the control panel. I assume that the power switches of the burners you have are steplessly adjustable. If this is the case, then a thermostat (relay) is built into the design of the burner power switch, with the help of which the burner is switched off and on in a timely manner (the principle of operation of the contact of the bimetallic plate, depending on the degree of heating). Of course, the heating temperature of the heating element (hotplate) will depend on the duration of the cycle (switching the hotplate on and off). In general, the power switch for the burner must be removed from the control panel, repaired or replaced with a new one. When removing the power switch, all the contact connections of the wires must be written on a piece of paper (mark for yourself) so that there are no problems with connecting the switch.
There will be questions for me Yuri, - write.

Hello. I have such a problem, I have an electric stove Dream 12 06 03 СБ (4 burners 220V).
When you turn on the oven, after a while, cotton occurs. At the same time, the machine turns off on the stove and a smoke goes over the comfort switches.
PS all comforts work.
What could be?

Hello Andrei. The hob of your electric stove consists of two burners with a diameter of 14.5 cm and two burners with a diameter of 18 cm, the power switches are positional (if I am not mistaken). In case of this malfunction, it is necessary to inspect and check the contact connections of the wires:
with a switch for a frying electric cabinet (oven);
with the contacts of the heating elements of the frying electrical cabinet.
Also, you must:
check the heating elements of the oven for resistance;
check the contact group (contacts) in the switch of the cooking cabinet.
It is difficult to give an exact definition of a malfunction, since it will require a visual inspection and diagnostics of electrical connections. The machine turns off for the only reason, this is an excess of the rated current due to an excessively low resistance in a certain area in the electric stove circuit. Replacement may be needed:
oven switch;
Heating element of the oven
or replacement of individual wires (with burnt ends) that have lost their insulating properties and resistance.

Hello, tell me please why did the electric stove start to shock? After all, this has not happened before.

Hello Maria. For your electric stove, you will need to inspect all contact wire connections:
with heating elements of the oven,
with burners,
with power switches
and so on. From my practice, there was a similar malfunction, when the foil (heat-insulating material of the oven) came into contact with the contact of the heating element of the oven, and the foil came into contact with the body of the electric stove.

Hello Victor. In the Beko electric stove, the oven stopped working, turned on the oven to full 280 and turned on the airflow, it worked for 15 minutes and went out, the display went out in the oven and stopped heating, and the stove on top is working! What could be with her?

Hello Laura. In your electric stove, you need to check the electronic control module, that is, you need the participation of a specialist to inspect and diagnose the elements of the control module circuit.
Victor.

On this for now, all friends. Familiarize yourself with the malfunctions of household electrical appliances and gain experience in carrying out repairs. Follow the rubric.

Modern ovens break down quite rarely, but problems in their work are not excluded. The difficulty is that the structure and all its elements do not provide for outside interference. Repairing ovens at home is usually done by replacing components and is carried out in most cases by an experienced craftsman. However, in some cases, breakdowns can be repaired by yourself.

If you decide to try to repair the oven with your own hands, then it is worth knowing the situations when this should not be done. There is definitely no need to open the case if:

the electric oven is under warranty;
the oven information panel shows that the problem is a complex component breakage;
you know nothing about electrical engineering.

During the warranty period, all repairs are made is free... Except in the following cases:

There are traces of attempts to open the structure - worn out or damaged heads of bolts, self-tapping screws, removed seals.
Insects or rodents have entered the oven, causing a short circuit or mechanical damage to components and wires.
The connection was made incorrectly, without following the manufacturer's recommendations.
Damage to electronic components occurred due to a change in voltage parameters, as a result of which it went beyond the critical limits specified by the manufacturer.

In all cases where the warranty is canceled, repairs will have to be paid in full... The same situation occurs when the warranty service expires.

Before grabbing the multimeter, putting on gloves, and pulling out the screwdriver set, it makes sense to check the power supply to the oven. It is worth looking for answers to the following questions:

Is food served?
Is the power cable OK?
Is there good contact between socket and plug?
Are there traces of carbon deposits, melting on the plug and socket?
Is the fuse for the plug or oven broken?
Is the power wire in perfect condition, is there any fractures, scuffs or melting on it?

Checking the fuse in the plug

If the above problems do not exist, and the oven still does not start, it is worth checking the device for standard faults.

Consider typical malfunctions, methods for diagnosing them and the necessary repair of electric ovens at home. As mentioned above, most of the troubleshooting work involves replacing assemblies and parts.

If the electronic control unit of the oven suddenly fails, then be prepared to pay a tidy sum for repairs. In most cases, you do not need to do anything to identify this problem. Modern oven models are equipped with self-test system: The electronics will send a signal by itself by displaying an error code.

Do-it-yourself repair of the control module is possible only if you have experience and knowledge in electronic technology.

Parts are replaceable and can be ordered from the manufacturer's catalog. For users who prefer to get a baked chicken out of the oven, rather than electronic boards, it is better to call a qualified technician.

If this is not possible, or the qualifications of the service personnel do not inspire confidence, you can order a control unit wholly... This can be done on the manufacturer's official website or in a specialized online store. It is usually not difficult to install a board in place of a burned-out one.

Most modern models equipped with mechanical regulators do not provide for disassembly and cleaning. Primary repair consists in removing contamination from the outside, removing contact leads and cleaning the terminal plates on the regulator or timer. If this does not help or does not help fully, the part should be replaced.

Some older models allow cleaning of mechanical regulators, after which the latter work perfectly, without any complaints. It is necessary to carry out maintenance using non-aggressive solvents, for example, white spirit or a weak solution of ammonia. It is necessary to clean off oxides from contact groups with a very fine sandpaper; to eliminate traces of corrosion, special primers are used.

Oven mode switch

This is a part that is often changed, including when the gas ovens are being repaired. No interference in the design of the device is provided. The entire element is replaced.

Air blower and grill fans no longer create a good air flow over time. If the engine is running, the impeller should be cleaned. Dust constantly accumulates on it, while grease and oil are on the blowing fans.After a certain period of operation, it is imperative to disassemble the oven and lubricate the engine, if this is provided for by its design.In the event of a blower failure, rewinding or other repairs are simply unprofitable - the entire unit is replaced. Do the same with the grill motor. It is placed in a non-separable housing together with a gearbox.The heating elements of the oven are constantly working in critical mode. Determining whether the heating element is working is quite simple. To do this, turn on the oven to the appropriate heating mode and check the temperature by touching your hand in a kitchen mitten. The method works, however, for a more accurate result, it is better apply a pyrometer... The device will clearly show the uniformity of heating over the area, indicate the maximum temperature in a given mode.This will make it possible to diagnose the "burnt" heating element not only completely, but also partially.Heaters are replaced after disassembling the case; it is not difficult to buy the corresponding part. The specific marking can be found after removing the heating element or according to the reference data of your electric oven model.The last three elements that change without hesitation or hesitation are the backlight, thermal fuses, and a touchscreen film panel. All of these parts cannot be cleaned or repaired.The oven electronics will inform about the operation of the thermal fuse in emergency mode, and problems in the operation of the film touch panel are diagnosed by the lack of reaction, the need to exert excess pressure, and accidental operations. The backlight lamp can be replaced independently, but to install new thermal fuses or a film sensor, it is better to contact the master.

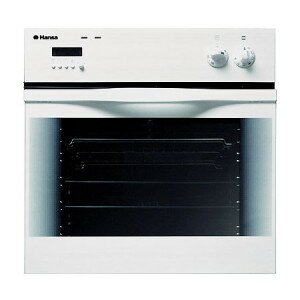

Repair of Hansa ovens / Hansa ovens

Hansa kitchen ovens have a constructive solution and modern design. They conquered the market not only in their homeland in Poland, but throughout the European continent and are more famous as built-in household appliances. Hansa has provided a range of freestanding electric oven models with automatic control functions. Additional provision of each model with stable heating of the oven handles and double glass, which creates safety when working with it. The power of the heaters is regulated by four-position switches and regulates the temperature of the space in the oven. The Hansa oven belongs to class A of energy-saving household appliances.

But the time comes, and the oven wears out and stops working. What to do if the oven does not turn on and the display shows an error? Initially, understand the error code using the instructions, and if you cannot fix it yourself, call us. Make a call to the master at home. Hansa oven repairman will find out the cause of the breakdown and fix it on the same day you have appointed.

We diagnose the Hansa oven by phone, so the cost of this service for you is

How to disassemble a HANSA electric stove

To remove the table with burners, unscrew the two screws at the back

and move the table in the direction of the arrow

The panel with switches is removed so we unscrew the two screws at the bottom

Hotplate switch Dreefs 5HE / 066

Oven switch and temperature controller

The network block is the wrong color of the wires

brown had to be used for the phase

does not matter of principle, but all the same

Krasnoyarsk repair of electric furnaces t. 8 902 918 93 34

BOE167250055 Hansa oven, Does not turn on
Hansa oven model BOE 167250055 Code 53539, the P / N timer is out of order.

Oven Hansa BOEI69360055 pn 53542 s / n: 22035354222112, Firmware
When you select any of the programs, it gives a memory card error. I took out a memory card.

Oven Hansa BOEW65311055, Tell me the analogue of the impulse
Hello. Please tell me the analogue of the "impulse" on the power module.

Oven Hansa BOEI69654, wiring diagram needed
Product code - 55119, type 10213.4ThPrDpJX I would appreciate the schematic.

Oven Hansa EHK2.834TkkDpHSal code 14378, Error 02
Good evening everyone .. Interested in the interpretation of error-02 (possibly by NTC)? To whom.

Do-it-yourself repair of the gas stove is prohibited by the legislation of the Russian Federation. True, criminal liability has not yet been provided for, if an accident occurs, troubles are foreseen. In the hero-city of Volgograd, one wise guy brought the combustion products of a water heater into the ventilation hole. 4 people were killed. The authorities classified the case under the heading of causing death by negligence. Gas service technicians have the right to replace equipment and perform service work. Actual, starting with liners, ending with the transition to another type of fuel. Here are a couple of guidelines, not a user guide, just general techniques.

Darina, Hansa, Ardo - so different and the same at the same time. The repair of gas stoves Hephaestus is like two peas in a pod like the repair of Ariston; gas stoves are made up of standard units. It is enough to consider a single device to understand the circuit. Stock up on a handbook to properly withstand gas pressure. When set correctly, the flame is even and blue in color. Orange flashes indicate an imbalance in the fuel mixture. If the settings are incorrect, the flame breaks out (especially in horn ovens).

For those who have read the reviews of the VashTechnik portal concerning gas flowing water heaters, self-repair of gas stoves will seem like child's play! You cannot do it yourself, but you can clean the device. The master will have to clean candles, combustion sensors, burners, and sometimes nozzles. There are many interesting things inside the gas stove. Those who master the correct cleaning of equipment should understand what we see inside. Under the gas stove table:

If the charge is formed by an electronic circuit, you will find a simple thyristor, diode, capacitor, fuses inside. The circuit works, fed by the charge of the capacitor, followed by a surge of energy from the spark gap of the candle. Repair of electric ignition of a gas stove applies to the listed elements. The malfunction is easy to spot. Burnt parts are black or similar.

Gas is endowed with two significant characteristics:

The calorific value is determined by the composition. The higher the methane content, the lower the parameter. The calorific value of natural gas is predetermined by the field of extraction of the natural resource.
The pressure depends on the type of gas. The liquid needs higher. The main line has a typical value of 13 mbar. This parameter ensures the correct operation of solenoid valves, injectors, burners.

If the pressure is too high, the gas does not burn out completely, soot and orange flames will appear. The system may not work correctly. I have come across instructions recommending the use of a reducer in order to obtain a 13 mbar balloon. There are probably limitations. It is not for nothing that it is recommended to put two cylinders in parallel. Please note that the main gas is actually liquid, supplied through a reducer. It is pumped from cisterns into containers from which houses are supplied. Find out the wiring diagram of the house at the place of residence. There is natural gas, distributed centrally, with lower cost, pressure, and heating value. The pressure is assumed to be 13 mbar. It is necessary to consider the aspect when installing and repairing a gas stove.

The reason to call professionals for installation and configuration is that the wizards know the parameters. Of course, the person with the certificate is also aware of the local conditions. Now imagine what happens if you unknowingly connect the equipment incorrectly! This is gas, no jokes. This is especially true for the hinterland, where neighboring houses may have different connections. It is recommended to buy a set of replacement injectors for a different gas pressure. They described the process of self-boring jets, they mentioned: the law prohibits reworking. The work is unsafe. Before buying, ask the gas service for the parameters, ask the store if the equipment is suitable.It’s not too late to do some inquiries during the next cleaning. Not the fact that everything was done correctly.

How to adjust the jets. The size of the center hole changes. Less pressure, the hole is taken more. Verticality and alignment must be maintained, otherwise the gas will be vented to the side, which will lead to an accident. It is pertinent to recall that in old Soviet gas stoves, the jets are hidden in depth. The design of the burners is unusual. Between the nozzle and the splitter is a tube with a pair of ears attached to the frame. There is one ram for every two burners. In pairs, the pipes are attached with ears inside the case. A bowl with a nozzle is placed at the lower end, a divider is inserted into the upper end. The gas stove is powered by a jet stream. Propane-butane is heavier than air.The peculiarity is that opposite the nozzle there is a tube with a radial cut. Needed to unscrew the hex nozzle without using a long socket wrench. In modern gas stoves, the jet is under the flame. A different arrangement improves traction, discourages ordinary people from climbing inside the stove. Do-it-yourself gas stove repair is a dangerous business.Electric stoves today and for summer residents look more appropriate option.Thanks to such a versatile energy as electricity, the popularity of electric stoves is growing. This site has an article on how to connect an electric stove, and this page describes common problems, methods of identifying and eliminating them.In many cases, a home craftsman or an ordinary user can make repairs to the electric stove with his own hands, without resorting to expensive specialist services.Electric cookingRegardless of the model of the electric stove and the type of burners used, the identification of the cause of the failure of the electric stove should be carried out according to the following algorithm:

Check with a voltmeter for the presence of a supply voltage (it is possible that the circuit breaker on the stove connection line has tripped, the wiring is damaged, or the outlet is faulty;

Make sure that the plug and the power supply cord are in good working order - the glow of the control lamp or electronic indication on the control panel automatically excludes this malfunction;

Disassemble and check the power outletTroubleshooting the electric stoveThe task of any repairman is localize the problem... Having gone through this algorithm step by step, you can repair the electric stove with your own hands, having a small set of tools available and having limited knowledge in electrical engineering.The most important condition on which not only the successful repair of the electric stove depends, but also the safety of the master and others, is knowledge of the basics of electrical engineering and electrical safety. You also need to be confident in your abilities - some measurements will have to be made with the voltage turned on.From the tools for disassembling the body of the electric stove, you will need screwdrivers with suitable tips, perhaps a set of keys, pliers. For work inside the case, depending on the detected malfunction, you will need a soldering iron, wire cutters, electrical tape or heat shrink tubing.Repair tool kitSometimes it is possible to identify a problem only by visual inspection (carbon deposits on the contacts, or a soldered wire). But, practice shows that in most cases it is impossible to repair an electric stove without measuring instruments. Image - DIY hans oven repair

Inspect the connections to the terminals

The most acceptable would be to use a multimeter - a multifunctional measuring device, which should be used by any master dealing with electrical engineering. In some cases, you can get by with a voltage probe and a homemade continuity from a light bulb and a battery.

If the mains voltage is normal, and the stove suddenly stops working after switching on, then it is worth checking the outlet itself - perhaps it does not correspond to the power, or the contacts are worn out, and they spontaneously bend during the heating process.

There are cases that in electric stoves with mechanical regulators and burner power switches, the control lamp burned out long ago, and the stove itself stopped working properly much later. At this stage, without starting to disassemble the case, it is possible to identify a malfunction in the switches, including various burners and switching modes their work.

The two burners of the electric stove do not work

If it is found that some of the heaters are working, albeit not at full capacity, then the malfunction of the power cord can be excluded, and you need to look for problems in the switches or in the spirals of the burners.

It is unlikely that all burners will burn out at the same time (although this is possible if all heaters were running during a power surge). Therefore, if there is no response to manipulation of the switches, the voltage may not be supplied to the controls.

Since electric stoves and hobs come in a variety of shapes, sizes and designs, there is no way to describe them all in one article, so the user must independently figure out how to disassemble the case. But the presence of thermal insulation is common to all types of electric stoves and it is necessary to work with it very carefully.

Various designs of electric stoves

If the thermal insulation layer of the electric stove is significantly damaged, its energy efficiency will decrease, as well as the readings of the temperature sensors will change, which will entail the stove's malfunctioning in the future.

It must be remembered that it is necessary to work with glass wool thermal insulation only with thick gloves, and the asbestos dust of the thermal insulation gaskets of old electric stoves is harmful to health.

Having disassembled the body of the electric stove, it is necessary to study the internal structure of the equipment, determine the type of regulators, switches and heaters. It will be very handy to have in stock plate layout... But even without a circuit, knowing the basics of electrical engineering, you can understand the heater control system and identify the problem.

Attention, the following verification methods are contrary to the user's instructions, which prohibit turning on the electric stove when the case is disassembled, so you should be very careful!

If the electric cooker does not work at all, you should check for the presence of voltage at the input of the switches or the electronic control circuit. Imported electric stoves with an electronic control unit are vulnerable to power surges, and very often problems in them are not related to damage to the heating elements.

Electronic control unit for electric stove

If the power cord is OK, and the voltage is on, and the display does not light up, then the internal fuse of the electric stove control unit may have blown. But the indication of a working display does not always guarantee its performance - perhaps there was a breakdown in the power switching relays.

The most accessible way to check the control unit is to check the voltage supply to the terminals of the burner heaters. If the voltage comes in, but the heating element does not heat up, then you need to disconnect the electric stove from the outlet, then disconnect the terminals from the heating elements and ring them.

Checking the supply of voltage to the terminals of the coil of the burner

It will be safer if you first attach special crocodile clips to the terminals of the heating elements, which are put on the measuring probes, and then apply voltage. If only part of the burners is working, then it will be more expedient to ring the heaters first, and only then look for an open circuit in the power circuit. It must be remembered that heating elements can have several coils - the heating power is regulated by the way they are connected together.

If a burnout of the filament or a breakdown on the case is detected, the damaged heating element should replace.

If the continuity of the spirals did not reveal any malfunctions in them, then the cause should be sought in the control unit. As already mentioned, heating elements can have several built-in coils, which are switched using switches or electronic relays. In both cases, a large current flows through the contact groups, from which carbon deposits form on them.Switch for operating modes of the electric stoveLet's say the heating element of an electric stove has two spirals: C1 and C2. For their switching, a three-position switch with three contacts can be used: K1, K2, K3.Connection diagram of a heating element with two coilsWhen K3 is turned on, both spirals are connected in series and will work at half their capacity. When K2 is turned on, the C1 spiral will heat up at full strength. The maximum heating will be obtained with the simultaneous closure of K1 and K2 - two spirals will be connected in parallel. All other possible options are meaningless and should be excluded by the switch design itself.To fix such a switch, you need to disassemble it and get to the contacts to clean them with sandpaper or a thin flat file. You also need to check the tension of the hold-down springs and the fit of the contacts. Cleaning the surfaces, tightening the springs, and bending the contacts will help fix the problem.

Electric hob heating thermostat

In such systems, heat generation is controlled by alternately turning on and off the electric stove heater when the temperature is lower or higher than the range set by the regulator. You can get acquainted with the operation and connection of such a regulator by watching the video below:

In case of failure of such a regulator, an identical replacement can be found. But it will be more expedient to install a modern power regulator based on a triac (it works like a dimmer for a lighting system).Since the triac power control is carried out by changing the shape of the sinusoidal voltage (cutting off part of the half-wave), almost any regulator designed for a given power and current, but taken with a reasonable margin, will do. Image - DIY hans oven repair

Triac power regulator

In some electric stoves, the triac is installed together with a heat sink on the board. If the burner is operating at full power and the heating does not adjust, then the transition in the triac is broken, and it must be replaced.

If there is no current at the output of the electronic regulator, you should check the sawtooth bias voltage at the control electrode of the triac when the electric stove is switched on. This test is carried out with an oscilloscope, which is available in special workshops and some masters with deep knowledge of radio engineering.

Sometimes the electronic control unit is OK, but reacts to incorrect readings of the thermal sensors of the heating control system. You need to find out the type of sensor, study its properties and test methods in order to exclude this option for an electric stove malfunction. It is also possible that the mechanical timer breaks down, the contacts of which are also susceptible to corrosion and oxidation.
