Do-it-yourself muffler repair Matiz

Winter drifts and pieces of ice, and before them - salt, reagents, and in general the unimportant St. Petersburg climate did their job. One morning, on the way to work, Matiz, in response to the drowned gas pedal, emitted a growing warlike roar, and a little later announced the surroundings with the clang of metal on the asphalt. A quick inspection showed that there is a problem in the muffler in the form of a resonator dangling separately, detached from the intake pipe on the difficult roads of winter 2011.

As luck would have it, this event took place in January, a month in which incomes are usually low, so it took about a week to ride in this form and look for budget solutions to this issue.
All this time muffler Matiz performed a purely decorative role, and the car itself at traffic lights sounded like a fighter taking off. Of course, all the neighbors in the house heard when I returned home, and happily woke up as soon as I started to warm up the engine.

In this article, you will learn how to make Daewoo Matiz muffler repair, and what to look for in order not to overpay extra money in this matter. As usual, I will consider two options for the development of events - contacting a car service and self-repair.

But first - an overview of the material.

Muffleeh Daewoo Matiz consists of three main sections - a receiving pipe with a corrugated insert, a front muffler with a resonator and a rear muffler, and is the same for both Matiz with 0.8 and 1.0 engines. Also, the exhaust manifold belongs to the Matiz exhaust system - now it has its own in engines with different volumes.

As an option, to the delight of nature lovers and the EURO 2 standard, the front exhaust pipe (also called the intermediate pipe) is equipped with a catalyst and an oxygen sensor, and the second catalyst is installed on the exhaust manifold. Note that in Russia the overwhelming majority of Matiz mufflers are not equipped with catalysts, and those that are available are replaced with conventional ones in view of savings when the deadline comes.

A metal compensator on the intake pipe (or, more simply, a corrugation) is needed in order to dampen engine vibrations and not transmit them to the front and main mufflers.

Main muffler with resonator and rear muffler Matiz connected by flanges with two bolts in each.
Gaskets in the form of a hollow copper ring are placed between the parts of the muffler - when tightening the nuts, it is compressed and seals the connection, and the front pipe is attached to the exhaust manifold through a metal-reinforced triangular gasket.

All elements of the muffler are attached to the Matiz body with elastic rubber earrings for special fasteners - this is necessary in order to damp the muffler vibrations and not transmit vibrations to the car body.

No special service muffler Matiz does not require when the time comes to do it - you will hear for yourself. However, regular inspection on occasion for burnouts in the metal, corrosion and replacement of torn rubber elements will not hurt.
This is actually all about materiel - look at the pictures, everything seems to be clear there.

Yes, I will mention the timing of an exciting attraction called “Change Matiz muffler”! For cool and humid regions of our country, as well as large cities with their reagents and salt on the roads (St. the muffler can serve both 100,000 and 150,000 km - the absence of corrosion affects.

Of course, the owner's love for off-road racing, jumping on curbs and snowdrifts can seriously shorten this period.

It is justified only in the case of "injury", or, more simply, in the case when the damage was caused by a collision with an obstacle. The cheapest repair option can cost from 300-500 rubles - this is in the case when it is necessary to weld a small burnout or crack in the muffler, now this can be done in almost any garage workshop, not to mention a service station or a car service specializing in muffler repair.

You can also weld the muffler on your own, of course, if your farm has a semiautomatic welding machine, an inspection pit, some kind of welding experience and straight hands (I actually did this when I got a small crack in the muffler of my Matiz, but that was long before the described events).

ATTENTION! If you think about fiddling with welding - be sure to turn off the ignition and disconnect the negative terminal of the battery!

Some car enthusiasts also talked about self-repairing mufflers using a patch, rivets and sealant, but in my opinion this is quite an amateur.

A more expensive option for repairing a muffler may be to replace one damaged element, such as the middle or rear. Welding is not needed here, but you will need to buy the actual new part of the muffler.

But if all parts of the muffler already require repair (as it most often happens due to uniform wear), this is called.

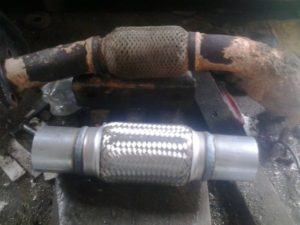

The corrugation on the intermediate pipe is transparent, like gauze, and the metal of the resonator resembles biscuits in consistency - does it crumble and crumble? The pipe connections are burnt out, the interior resembles a gas chamber, and the sound of the Matiz picking up speed scatters people and animals?

It's time to change the Matiz muffler entirely, you can't help it - get ready for certain expenses and look for spare parts, which you will allow me to say separately. In general, muffler elements (as in general, almost all spare parts) are original and non-original.

The first ones are made at the car manufacturer or by one of its partners on the basis of a contract, they are guaranteed to fit and sit like a glove, but at the same time they will bite off a serious piece of your family budget. The second ones were made by someone and somewhere according to the drawings (and usually according to the dimensions taken) of the original ones.

Often, the manufacturer of non-original spare parts is a company with a serious name and supplying its products under serious brands, but most often these are small factories that provide goods with a very wide variation in quality, but, as a rule, at a price three or four times lower than the original spare parts. Most non-original spare parts have no problems with installation, but there may be funny accidents - like on the non-original I bought rear muffler Matiz one of the fasteners for the rubber earring was simply missing - it had to be cut off from the old muffler and welded to the new one.

What parts to choose? It's up to you and only you. Allows the budget - buy the original, if you want to save money - take unoriginal ones, but treat the purchase carefully. The muffler does not affect safety, speed and movement, but be prepared for surprises similar to the one I described. However, read about the economic component of replacing mufflers on Matizs below.
In any case, I advise you to buy spare parts only yourself, you will understand the reason in the section.

There are two options - either to be serviced in a universal service (but then you will definitely have to buy the hardware yourself or wait for the guys from the car service to order from their suppliers). Another option is to come to a special service that specializes specifically in the repair of mufflers - these figures usually have mufflers for popular models or individual elements of mufflers in stock, but they receive their main income not from work, but from the sale of mufflers.

I am describing a typical situation that I checked out of sports interest in three stations in St. Petersburg, specializing in the repair of mufflers:

- Brothers, what will it cost to replace the Matiz muffler?

- HM. This. There it is. Ten thousand with work!

- And what if the most budgetary option?

- Well, here we stupidly weld a pipe about the size (this is instead of the resonator and the middle part), change the corrugation, weld the old rear muffler - six thousand!

The experimental figures varied with a complete replacement (muffler + work) from 10 to 12 thousand rubles at three stations, repairs in the “welded pipe” option - from 4 to 6 thousand, complete replacement with customer spare parts - from 1,700 to 2,200 rubles.

Needless to say, a service like this will most likely install the cheapest one. non-original muffler, and the price tag will include a branded one from General Motors? The client will not climb and see what was put there - like going and going! At the same time, they will poke you into the price list for branded spare parts and say “Eh, you can't find it cheaper, listen!” Of course, if you are not a personal friend or brother of the owner of the service;)

If you are ready to pay for such a wiring, as they say, to the velkam, but if you don’t like it when your head is fooled, buy the muffler parts yourself, it’s worth it, at least out of self-respect.

In any case, I advise you to be present during the repair, and to accept and pay for the work, only after making sure that there are no extraneous sounds, muffler knocking on the body or vibrations. The engine should run quietly, no whistling or roaring should be present. The first time in the salon will stink of burning paint. On this, it seems, about replacing the muffler in the service and that's it. Ladies and humanitarians do not need to read further.

Well, "homemade products"? Shall we twist the nuts? With drumming, we turn to the second part of our concert called.

So, the spare parts are bought, there are a couple of hours of free time and a desire to tinker with the car. For work we need the following tools and materials:
- wrench - "ratchet" with a head 14 and an extension;
- flat screwdriver
- a pair of gloves;
- 4 spare nuts for 14;
- in especially neglected cases - lubricant such as "WD-40" or another "liquid key", a small cutting machine, and as the most "heavy artillery" - a propane or acetylene torch.

1. We drive Matiz to an overpass, inspection pit or lift, and slowly listen to the radio, or reflect on the meaning of life while the muffler cools down. When the danger of burns has passed, remove the crankcase protection, if installed.

2. We inspect the fastening of the intake pipe to the exhaust manifold, clean it from dirt. We take the key, a 14-point head and an extension, and unscrew the three nuts (1) securing the intake pipe flange to the exhaust manifold flange. These connections work at high temperatures and can "stick", but it is not difficult to break them - this is where the burner will help. I do not advise using grease or a liquid wrench on these connections, it will stink very much, it is better to slightly warm the nuts with a burner right away. (ATTENTION! Observe the requirements of fire safety, safety measures and rules for working with pressure vessels! The author disclaims any responsibility for possible harm to your health or property.)
When working with the burner, do not overdo or melt the screw connections! To do this, use an oxygen-poor flame - it is yellow-red, not an oxygen-rich blue flame.
While the nuts are hot, unscrew them with a wrench without any difficulty and put them to cool on a non-combustible surface. I do not advise throwing them into water, they can deform from this and lose strength. Remove the old gasket (2) between the front exhaust pipe and the front muffler.

3. We pass to the connection of the inlet pipe with the front muffler, unscrew the two nuts with the same wrench for 14. If they are stuck, use the "liquid wrench" or again the burner. Disconnect the flanges with a screwdriver. If the entire muffler is ejected, you can simply cut it off with a cut-off machine.

5. We unscrew the two nuts securing the connection of the front and rear mufflers, or we also start up the cutting machine.

6. Remove the two rubber earrings securing the front muffler to the body and remove it.

7.Remove the earrings securing the rear muffler and remove it.

8. Install the new muffler in reverse order, remembering to install the gaskets between the muffler parts. If the old nuts are worn out, we replace them with new ones.

Actually so - nothing complicated replacement muffler Matiz does not represent. The whole operation takes from one to two hours, it is more convenient to work with a partner, but it is quite possible to cope with it alone.

Internet magazine "World of Matizov", February 2011

At first glance, this type of repair, such as replacing a muffler assembly, seems completely ingenuous.

However, even some experienced craftsmen may have a number of questions here. Therefore, we decided to tell you more about this operation.

So, in this article we will talk about how you can change the muffler to the Daewoo Matiz yourself in the garage.

• To begin with, unscrew the bolts on the connections, so that you can disconnect the intake pipe from the common muffler body.

• These bolts are often very sour that sometimes you even have to cut out the entire joint.
• But we will not do this, since the bolts were previously cleaned with a brush and treated with penetrating grease.
• After we managed to disconnect the intake pipe, using a wire, rope or whatever, we tie it to the car body (in our case, to the steering rack).

• This is done in order to exclude loosening of the pipe in the corrugation.
• Now, with the help of a fitting or a special tool, like ours, we remove the rubber cushionKi.

• And now we remove the last pillow from behind.

• After that, the muffler becomes completely free and we can easily remove it.

• We are going to install the original muffler on the Daewoo Matiz of the Phobos brand.
• When comparing it with the muffler that we removed, it turned out that an unoriginal one was previously installed on the car, moreover, it differs from the original in size and some details.
• First of all, it is clearly seen that the old can is somewhat smaller in size than in the new original one.

• This is what affected the volume of the exhaust when the engine of the Daewoo Matiz car was running before the repair.
• Therefore, we always recommend installing only original mufflers.
• The size and bank of the resonator in the new muffler is significantly different.

• Now we proceed to the assembly and installation of the muffler in the reverse order.
• We start from the back of it and hook it onto three rubber earrings.

• After that, in this way we also catch the resonator.
• At the same time, it is necessary to pay attention that the horns, which are welded to the resonator body during its installation, were not at the top, but at the bottom.

• Now the connection of these two parts, its flange on the resonator side, is treated with cement for mufflers, on which the gasket will then sit.

• After that, install the gasket and connect both parts of the muffler with two new bolts.
• In this case, do not forget to coat the threaded part of the bolts with copper grease.

• Now we release the receiving tube tied up by us at the beginning and in the same way connect it to the other end of the resonator.

• In this case, as a rule, all connections are made in such a way that the bolt heads are in front of the vehicle, in this case Daewoo Matiz, and the body remains behind.
• After finishing the installation of the muffler, take it well with both hands and shake it in the longitudinal and transverse axes.

• At the same time, he should not make any sounds and touch any parts or assemblies of the car.
• This will be an indication that you performed the replacement correctly.
• It is worth noting that for about a day or two you will smell the burnt paint. We want to say that you should not worry about this, since this is a completely normal situation: the muffler paint will simply burn during engine operation.
• So, the replacement of the muffler for the Daewoo Matiz is over.
