Nowadays, there are various proposals on the market to protect glass from damage. One of the most popular options is a protective film sticker on the glass, which protects an expensive part from damage, and many car owners prefer not to wait for the next stone in the glass with subsequent repair or replacement of this glass.
But what about the situation if the windshield of the car was nevertheless damaged, and small cracks and chips have already appeared on it? Go to a car service for an expensive repair or try to fix this problem yourself?
If you decide to repair cracks on the windshield with your own hands, we will tell you what materials and tools you need and how to do it according to all the rules.
To begin with, we will determine what minor damage can be easily and simply repaired on our own, without replacing the windshield.
So, in order to independently repair cracks on the glass, you need to prepare the following set:
Having prepared the necessary set of materials and tools, we proceed to the repair.
If you want to get a high result of windshield repair, we recommend that you take this process with the utmost seriousness and scrupulousness. Read also how to fix cracks in the bumper.
What to do if a chip appears on the windshield? Try to repair the glass as quickly as possible, because due to vibrations and temperature changes, even a small chip can turn into a large crack.You can remove a crack or chip on the windshield at a service station or using a special kit.
You can buy a special set at a price of 300 rubles. It should include: a syringe with a repair compound, an applicator for filling in chips and rings with a sticky surface for installing the applicator on the glass. Additionally required: blade and food film. Using the kit, you can repair a crack in the windshield up to 20 cm in length.
The windshield must be clean, dry and cool (not exposed to sunlight).
VIDEO
The windshield must be clean, dry and cool (not exposed to sunlight).
Procedure :

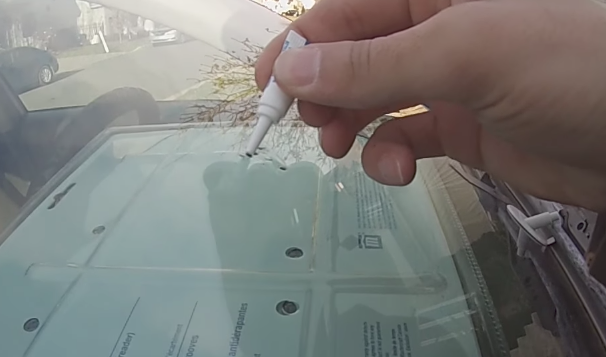

Place the syringe firmly on the edge of the crack.
Squeeze out the repair compound by moving the syringe (from the end of the crack to the beginning) slowly and smoothly along the crack. In order for the repair compound to completely fill the crack, lightly press on the glass under the crack.
Cover the crack with cling film.
Put the car in the sun for 20 minutes to polymerize the composition (on a cloudy day for 1 hour).
To stop the crack in the windshield, you will need to drill the glass, for this, seek the help of specialists. If the number of cracks on the glass is large and they cannot be repaired, then the windshield should be replaced (instructions).
If the crack is in the driver's line of sight, then such vehicle operation will not be safe. By the way, do you know which washer nozzles do their job better?
Damage to the windshield when a stone enters it or the formation of cracks with a large temperature difference is quite common. In most cases, a complete windshield replacement is avoided. But you cannot do without repairs, since over time, even a small crack can completely destroy the glass.
The cost of repairing a windshield in a car service depends on the type of damage, its size, the repair materials used, and sometimes the region.
Estimated prices for repairs using Russian materials:
Chipped-chipping repair - from 500 rubles.
Repair of a chip up to 3 mm - from 1000 rubles.
Repair of a chip with rays up to 5 mm - from 1200 rubles.
Repair of a chip with rays up to 1 cm - from 1700 rubles.
Repair of a chip with a lost fragment - from 2200 rubles.
Crack repair (filling) - from 50 rubles / cm
When using imported repair compounds, the cost can increase by 30-100%.
An example of the cost of repairing chips in one of the salons in Moscow
Before repairing, we recommend that you independently call several glass repair companies, describe the situation and clarify the prices for repairs. To search for car glass repair shops, you can use the 2gis service.
You can repair the windshield yourself. If you have a certain set of equipment and follow a strict sequence of actions, you can make repairs at home, for example, in a garage.In some cases, the cost of a set of equipment and materials may come out less than the cost of repair in a car service. In addition, you will gain experience, and you can use the equipment and materials in subsequent glass repairs.
It should be remembered that it is advisable to carry out repairs almost immediately after glass damage. Otherwise, dust and dirt trapped in microcracks will significantly affect the quality of work, and removing them completely will be quite problematic.

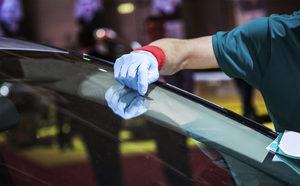

1. Cleaning and degreasing of cracks and glass surfaces ... We need to remove dirt and grease from the crack. To do this, you can use ordinary household cleaners, special auto chemicals for cleaning glass, or just use alcohol. Particular attention should be paid directly to the site of damage. During cleaning, it is necessary to thoroughly blow out the crack, for this you can use a conventional pump.
2. Drilling a chip or crack ... This must be done in order to remove small pieces of glass and remaining dust from the crack, as well as to better fill the crack with the polymer composition. Using a drill or a drill with a small diameter diamond drill, a small hole is made in the center of the chip. In the event of a crack, the drill is drilled to relieve stress on its edges. After that, using a compressor or a hand pump, it is necessary to blow out glass chips and dust. If you don't have a drill or drill at hand, you can use an ordinary sharp blade.
After drilling the crack, you must repeat the first step of the instructions for the final cleaning of the crack / chip.
3. Filling the defect with a special polymer compound. For this, an injector and a bridge are used. Instead of a needle, the injector has a suction cup. The injector can be either reusable metal or inexpensive plastic. Correct installation of the injector is essential. It should be located in the center of the chip and strictly perpendicular to the surface of the windshield. Otherwise, a tight fit of the working part of the injector to the glass will not be ensured, which will not make it possible to create the required pressure. The desired tool position is achieved using the adjusting screw.
After that, it is necessary to fill the injector with a special polymer composition. First, the composition is drawn into a syringe - dispenser, and then with its help it is fed into the injector. After that, pressure is created on the injector and the adhesive fills the damaged area. This procedure is repeated several times: pressure, vacuum, pressure, vacuum. This is done several times until the chip or crack is completely filled.
It is better to visually check the filling of cracks from the side of the car interior.
At the end of the first stage, the pressure is removed from the injector and excess polymer composition is removed.
4. Crack finishing ... A more viscous polymer is used for it, although in its chemical composition it is identical to the first.
5. Leveling and drying of the polymer composition ... For this, a special transparent film is used. It fits on the surface of the applied composition. In this case, the formation of air bubbles under the film should not be allowed. If necessary, they can be removed by light smoothing. After this, drying and leveling of the applied composition occurs. For this, a special UV lamp is used, although drying can also occur in daylight. When using ultraviolet light, the composition dries completely after 10-15 minutes. In natural light, the time for complete drying increases three times. Then the film is peeled off and the excess polymer is scraped off.
6. Final polishing of the crack ... At the final stage, the restored area of the car glass is thoroughly polished. This requires a glass polish and a soft cloth.
Before self-repair, we recommend watching the following video about repairing a cracked windshield at home:
VIDEO
The easiest option for repairing cracks and chips with your own hands is to buy a ready-made repair kit. Such kits are now sold both in stores and on the Internet.

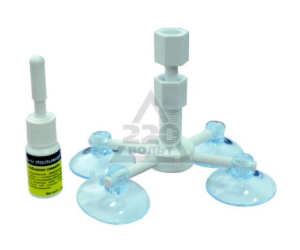

Typically, these kits include an adhesive disc, a pedestal with a suction cup, a syringe with polymer, a blade for disc disassembly.
Let's consider the most popular sets:

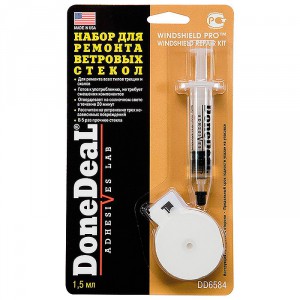

Done Deal DD6584
A set for repairing windshields Done Deal is able to eliminate chips and cracks of any type up to 20 cm in size. The cost in the store is around 600 rubles.
GlassProfi (GlassProfi)
A bottle of this polymer glue is enough to repair 2 large cracks up to 30 cm in size.
Permatex
The cost of the set is around 500 rubles.
WIEDERKRAFT WDK-65182
A set from a well-known German brand, which, unlike standard sets, includes an applicator with four extensions, as well as a set of repair plates. The cost of this set starts from 1000 rubles.

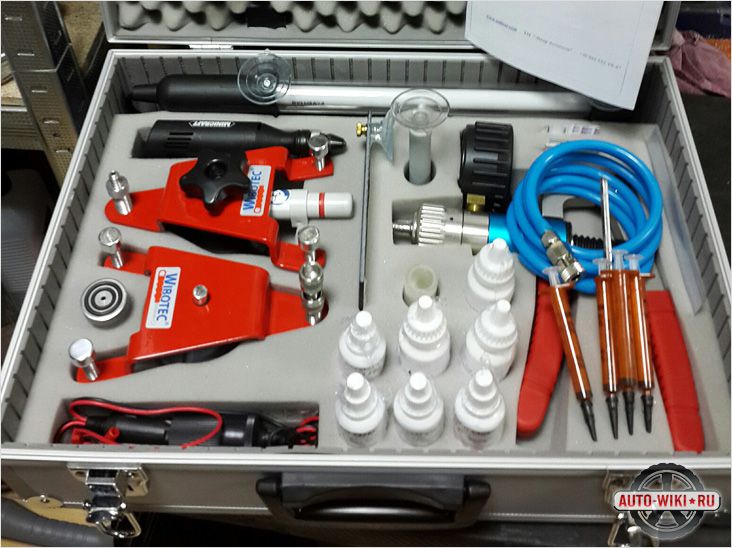

Professional equipment for glass repair costs a lot of money, their cost starts from 15,000 rubles.

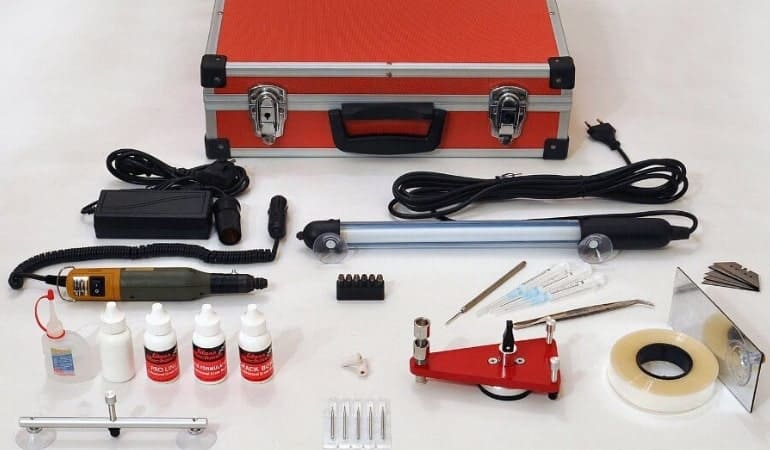

Equipment for professional car glass repair includes:
A more complete repair kit may include a hand pump, sander, power drill bits and felt buffs.
Special polymer compounds used to repair cracks and chips can also be included in kits or purchased separately.
Buying a more expensive reusable kit is well worth it. Its use will make it possible to carry out repairs at a higher level, and no one is insured against the appearance of new damage to the windshield.
Do-it-yourself windshield repair is not a very difficult job, any car enthusiast who loves to repair his car can handle it. To do this, you need to know the rules and procedure for performing work and have the necessary tools and materials.

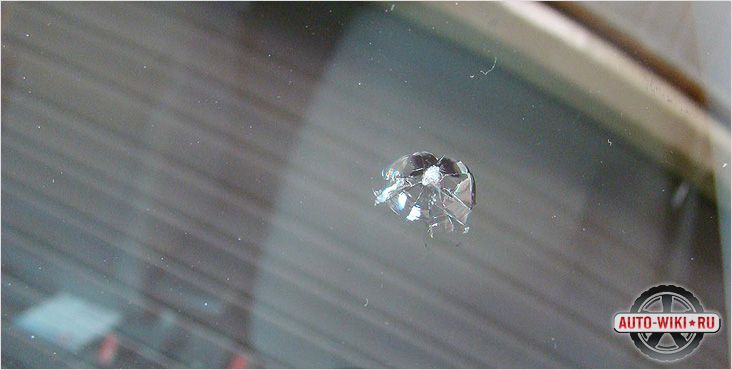

The chip needs to be repaired
Diagnose the windshield. Triplex glass is suitable for repairs. A chip or crack that appears on the windshield of your car should not panic you. The chip must be repaired, and the crack must be properly treated. Examine the crack and assess the area of damage to the glass surface.
You can repair a single small crack yourself, as well as in a branded car service. If the entire windshield is cracked, consult an experienced technician. Perhaps the cost of repairs is cheaper than replacing the entire windshield, but no one will guarantee the quality of the repair and its preservation for a long period of operation. And the new glass is new. This question is up to you.

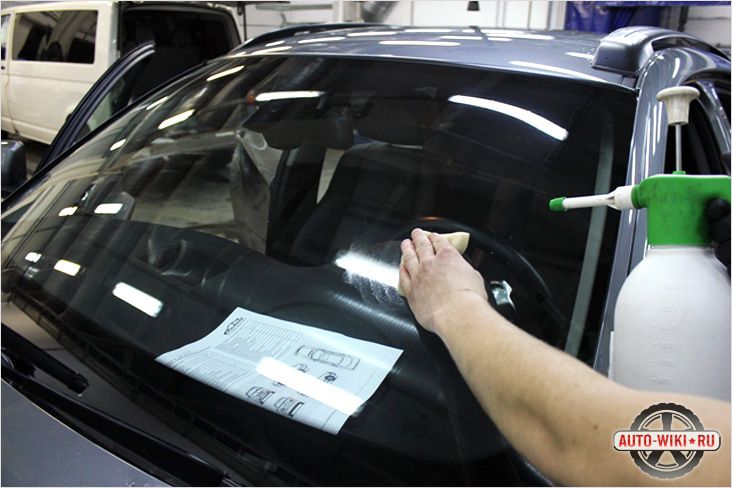

Degreasing
After assessing the detected defect, prepare the necessary tools and materials to repair the damage. You do the cleaning of chips and cracks from various contaminants regardless of the elapsed time, when the damage was formed.
Auto glass repair kit

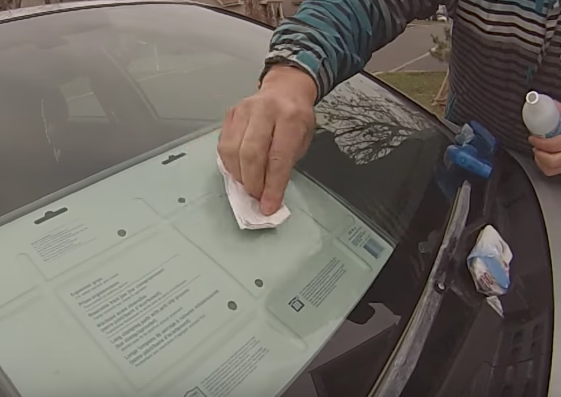

Remove dirt, micro-fragments with special compounds. Blow thoroughly, you can use a simple pump, rinse and dry the place where you will make repairs. Degrease the surface to be repaired with alcohol. Having done all the preliminary work, slowly proceed to the restoration of the windshield.
Repair composition
Optical adhesive - polymer. When choosing and buying it, consult with the seller, the transparency coefficient of the glue and the windshield being repaired must match. It is desirable that the curing time be short.
The injector and the bridge are a device with the help of which the polymer is introduced into the damaged places on the glass. These devices are made of metal and plastic.If you need them for one-time use, then get plastic ones.
A conventional pump is used to blow through the damaged glass.
Drill. She drills holes at the edges of the cracks, so the stress on the glass is relieved. It is better to use a diamond drill.
Mirror and electric torch. With their help, you check the presence of air in the polymer and specify the boundaries of glass damage.

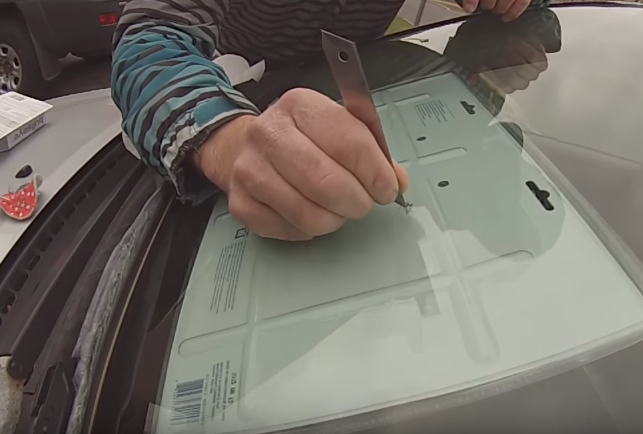

Scrayber - they clean and expand, if necessary, the damaged surface.
The UV lamp accelerates the curing of the polymer.
Napkins.

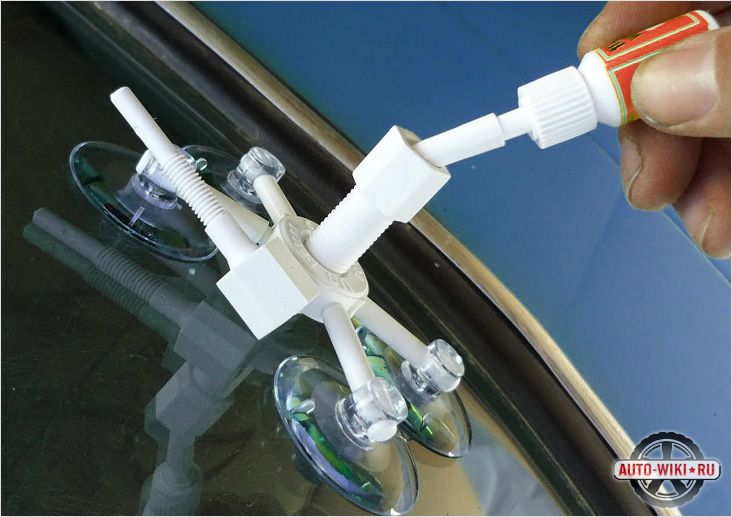

Crack neutralizer

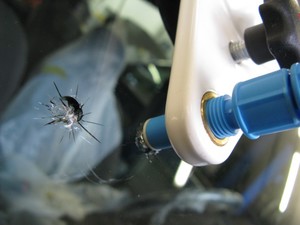

Install the injector over the repair site. How to do this, read the instructions supplied with the repair kit. Everything is written in it in an accessible and understandable language.
The process of repairing a chip on the windshield consists in the following actions. You start to inject polymer glue into the chip. Do it like this. Take a syringe and fill it with glue. Insert a syringe into the nipple of the injector. Repeat this operation two times. The polymerization process takes several hours. After the polymer has completely hardened, clean the place of repair from excess glue. Then all that remains is to polish the repair site or the entire glass surface of your car.
If you have a small crack in the glass, repair it right away. It can change and become ramified. And this is a serious defect, it is sometimes impossible to eliminate it. We'll have to think about replacing all of the glass.

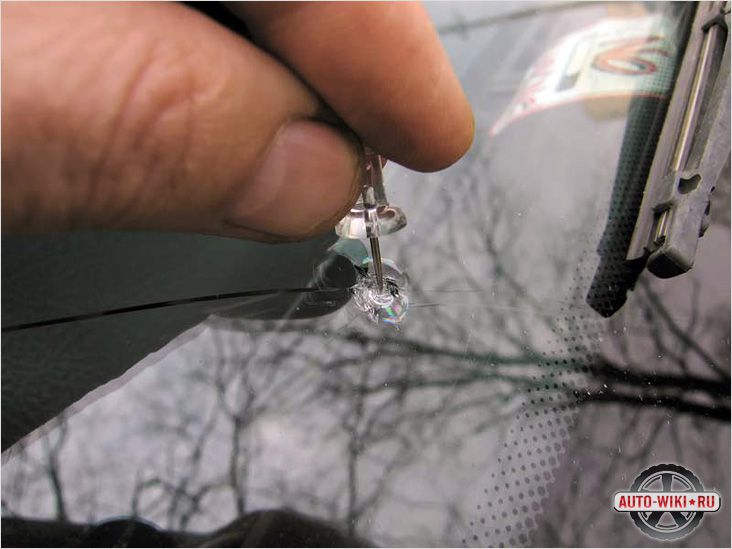

Glass repair

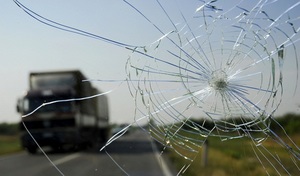

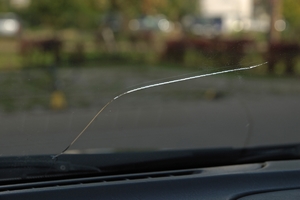

Repairing a crack in your windshield will take you longer than repairing a chip. Use the repair kit similar to the previous one. All operations for repairing cracks on the glass surface are identical to your actions when removing a chip on glass. Differences are observed in the process of preparing for future repairs.
Prepare an electric drill with a diamond drill installed in it.
Step back from the edge of the crack 1-2 mm, drill a hole. This will help relieve internal stress on the windshield, so the crack will no longer expand in unexpected directions.
After drilling the hole, clean it thoroughly, dry it well.
Place the bridge with the injector over the repair site, making sure the gander is over the crack.
Slowly feed the polymer into the crack.
When it is full of glue, remove the bridge with the injector. Turn on an ultraviolet lamp, this will speed up the curing of the polymer three times.
Grind the glass surface after the glue has dried.
Repairing the surface of your windshield will take a small amount of your free time and money. You just need to correctly follow all the instructions and advice of experienced motorists.
Another way to repair your windshield:
VIDEO
Everyone has happened to get into situations when, during normal driving, a stone flies out from under the wheels of a car driving in front of you. In this case, the windshield of a car is often damaged in the form of cracks. And then what to do if you do not have extra time and money, and this unfortunate, albeit small, crack does not give you peace of mind? You are quite capable of coping with this ailment on your own and without outside help, without resorting to the services of a car service. Here are 4 easy ways to glue a crack on your windshield with your own hands.
The first step, of course, is to prepare the cracked glass for repair. To do this, first rinse the glass with water and detergent, and then wipe it dry with a clean cloth. It is very important that there is no water and dust in the crack area, since in this case the glue will not adhere well. After the glass has dried, the surface must be degreased. We take a synthetic fabric (leaves no villi behind) and moisten it in acetone or solvent. Well, here are 4 easy ways:
1 way. Silicone glue
This is the easiest way. We apply glue directly from a tube or using a medical syringe. The cavity should be filled slowly and gradually, avoiding air bubbles.We leave the work done for a day until it dries completely. Depending on the type of silicone, the repaired area will take 12 to 24 hours to dry. For reliability, the former crack can be covered with a thin layer of clear varnish.
Method 2. Polyfoam + acetone + turpentine
What is needed here is already clear. We mix acetone and turpentine (3: 1, that is, there will be three times more acetone) in a glass jar. Next, in the resulting solution, you need to crumble the foam into small pieces (the smaller the pieces of foam are, the faster the reaction occurs). Stir, wait a bit for the foam to dissolve, and the mass becomes transparent and viscous. This glue quickly hardens, so you need to do it in small portions and use immediately after preparation. The resulting glue can be applied to the crack with a syringe or fine brush.
Method 3. Clear nail polish
If the crack in the glass is very thin, cover it with clear nail polish. Such bonding is able to prevent crack growth, and should last for about 3 or more years. Apply a thin layer of varnish on both sides and wait until it dries completely. The varnish applied from the outside of the window will not wash away the rains.
Method 4. Stationery tape
It is best, as soon as a crack has formed on the glass, to seal it with ordinary stationery tape to protect it from dirt and dust, and also to prevent its growth. It is enough to glue the damaged area on both sides. Of course, such repairs are short-lived, and soon you will have to take more serious measures.
The reason for restoration may be a small crack resulting from a stone hit, a chip formed from the fall of a branch. Buying new glass is not a cheap pleasure. Repairing cracks or chips in a car service will also require serious costs. What to do?
The right option to cut costs - restore the car windshield with your own hands. By observing the technology and our instructions, even serious damage can be made invisible.
In modern automotive industry, the installation is practiced three types of auto glass .
Triplex. Stalinite. Tinted glass. Advice! As soon as you get a chip or crack, cover the damage with tape, film or other means (whatever comes handy) to prevent internal contamination. This often helps to make the chip less noticeable.
Many motorists do not attach any importance to the defects that have appeared on the windshield, trying to save money on repairing the cracks. This underestimation is fraught with serious consequences. :
car with defective windshield inspection will not pass ;
glass can shatter from the slightest contact;windshield defects obstruct review road conditions.
Important: car windshield repairs need to be done as quickly as possible.
Do-it-yourself windshield repair on a car of any brand can be done if the damage is not critical.
Sealing the crack carried out if its length is not more than 15 cm. Cleavage diameter should not exceed 10 mm.Not recommended restore glass on your own, if the crack has reached the edge of the glass .Do-it-yourself windshield repair immediately after receiving damage ... It is possible to seal the crack on a clean material better and faster.
Important: each defect has its own recovery technology.
All the components required for DIY glass repair can be purchased at auto dealerships. The main role among the equipment is performed by injector placed on a device with suction cups.
Restoring chips on their own has a simpler technology, and requires the use of a minimum amount of tools and materials. You will need:
injector;
UV lamp;
polymer material;
solvent;
dry and wet wipes for cleaning;
blower pump;
polishing pastes.
Attention: it is necessary to carry out the restoration operation in the garage so that dust or precipitation does not fall on the treated area.
Do-it-yourself car windshield repair, in this case a chip, is done as follows:
The place of damage is cleared ... It is purged with a pump or compressor.Using an injector, such as a syringe, the pothole is filled transparent polymeric substance. After filling, the substance must be pumped out and refilled. Thus, the cleavage cavity is completely filled without air.
The chip is treated with ultraviolet light within 5-7 minutes.Excess material is trimmed , the area is polished.When solidified, the polymer becomes transparent. When dry, the damaged area cannot be distinguished from the main product.
This type of damage can quickly grow in size. Therefore, the problem of how to seal the crack with your own hands must be solved quickly. The restoration process is similar to repairing chips. In some cases, it is necessary to drill a hole at the ends of the cracks to relieve the stress generated at the edge.
For the repair, you need the following:
wipes, area detergent, solvent;
suction bridge;
syringe with a dispenser;
polymer filler;
diamond drills with a drill;
pump for pumping out air bubbles, blowing dust;
polishing paste;
blade - a knife for removing excess material.
Idea: all this can be purchased immediately in the kit for sealing cracks and chips.
The sequence for self-repair is similar to the restoration of chips:
Cleaning, preparation.
Drilling holes as required.
Filling voids with polymer.
UV light treatment.
Removing excess material.
Polishing.
Compliance with the rules for doing repairs with your own hands allows you to use auto glass for a long time. Detailed videos will help to properly remove chips and cracks from car glass.
VIDEO
VIDEO
Mechanical damage that appears on the glass of the car can be repaired only in the following cases:
the inner layer of the triplex is not damaged;
factory-made glass is used;
cracks are no more than 50 cm long and do not reach the edge of the auto glass;
notch, chipping or spall without cracks or with small outgoing cracks.
Recovery is impossible if the triplex is split into several parts, its central part is crumbled or covered with a network of cracks.
To understand the complexity of the repair to be performed, you should decide on the type of damage. They can take various forms and types:
cracks that form arcs or circles;
round chips;
cracks in the form of cobwebs;
defects from cracks and chips;
double-sided crack.
If only the outer layer of auto glass is damaged, then you can repair it yourself. If the inner and outer sides are damaged, the glass sheet will have to be dismantled.It is rather difficult to carry out such a procedure on your own.
To restore the triplex, you will need a special car set of tools, which can be purchased at the Inseif online store. The set should include:
blades for cleaning glass from polymer;
ultraviolet lamp;
injector;
injector rings and seals;
transparent plates;
scriber;
hand electric drill;
syringe;
polish;
various polymers for filling chips and cracks;
drills from carbide alloys.
The quality of the windshield repair largely depends on the preparatory work. First of all, the glass must be cleaned of dust and dirt, having previously sealed the damaged areas with tape so that moisture does not get into them.
Cleansing technology depends on the type of damage:
Cracks in the form of rays are first processed with a drill. They need to be drilled out with a tapered drill. You should get a wide, but not deep cone. Drill carefully so as not to damage the inner layer.
A skyber is used to clean rounded cracks. If it was not possible to remove the dirt with this tool, then the damaged areas are reamed with a drill.
Cracks running in different directions are cleaned with a carbide rod or reamed with a drill. So that the length of the damage does not increase, you need to drill a conical chip, retreating 1-2 mm from its end. After that, the cracks are artificially brought to a chip by gently pressing on the glass with your hands.
Damage to the laminated glass is filled with a special polymer glue, the properties of which are close to those of auto glass. Before pouring the polymer, dust and small particles should be removed from the surface with a vacuum cleaner. Then everything is thoroughly wiped with a dry napkin. Filling is done with an injector.
Procedure for the procedure:
The injector is installed over the chip and is attached to the surface using suction cups. The equipment should be installed so that it completely covers the chip.
The injector cylinder is carefully screwed into the axle. The sealing rubber located on the tip must be in contact with the triplex surface. To prevent the glue from flowing through the O-ring, the cylinder is screwed strictly parallel to the surface.
6-8 drops of the selected polymer are instilled into the injector cylinder. The density of the polymer composition directly depends on the thickness of the cracks. For small cracks, a polymer with a low density is selected.
When the chips and cracks are filled, the piston is unscrewed and set to the top position. For about a minute, air will be pumped out of microcracks and a vacuum will be created. This procedure is performed several times. There should be no air bubbles in the damage.
When all defects are filled with a polymer composition, the bridge and injector can be removed. The equipment used can be cleaned with alcohol or acetone.
Defects are filled with polymer, but you can not use the car until the glue dries well ... You can quickly dry it using an ultraviolet lamp, after dropping PL-106 polymer onto the treated place and covering it with a special film from the kit. The film is smoothed out, and a lamp is installed over the windshield for 5-6 minutes.
When the surface dries, the lamp and the film are removed, and the treated areas are cleaned of excess glue. A blade is used for this, which must be held perpendicular to the triplex. The cleaned surface is wiped with a napkin and rubbed with a special polish.

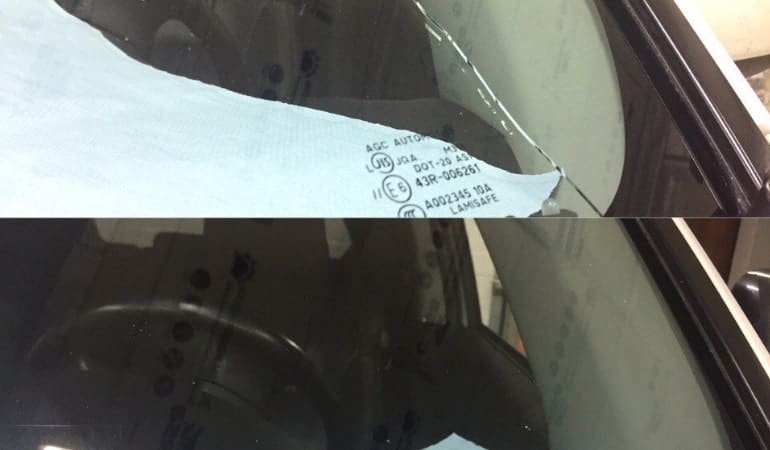

After the repair, damage should not be noticeable. You can only see them if you look closely.
If the damage is small and there is no time to glue them thoroughly, you can use the tools at hand.
A thin crack can be varnished with a colorless varnish to prevent damage from growing. The varnish is applied on both sides in a thin layer. It should dry well. Even the rains cannot wash off the varnish ... It can hold out on glass for several years.
Using these tools, you can prepare a composition that is suitable for repairing damage to the windshield. Recipe:
In a glass container, mix turpentine and acetone in a 1: 3 ratio.
Cut the styrofoam into small pieces and add them to the solution.
When the foam dissolves, it should be viscous and transparent.
The solution is mixed and chips or cracks are filled with a thin brush or syringe.
The adhesive hardens quickly, so it must be used immediately, applying to damage in small portions.
VIDEO
In any hardware store you can buy a silicone-based adhesive and apply it directly from a tube to damage. If the crack is thin, you can use a syringe. The cavities are filled with silicone slowly to avoid air entrapment. The glue can dry from 12 hours to a day. ... After that it can be covered with clear varnish.
If you have a little experience and a special kit, you can repair the glass yourself with your own hands. However, if the damage is serious or you are in doubt about your ability, contact a car service that solders the windshield. There, with the help of special equipment, they will quickly be able to solder almost any chips and cracks. After such a renovation, the triplex will look like new.
Before we deal with the types of equipment for auto glass repair, we need to decide on technologies and terms. Modern cars are named.
The windshield of a car (in everyday life it is also often called "windshield" or "windshield") is one of the most vulnerable elements of a car. Kog.
Video (click to play).
Almost any scratches can be repaired with quality glass polishing wheels. Thanks to high-quality abrasives, they grind damaged.
