In detail: do-it-yourself repair of the xerox phaser 6000 printer from a real wizard for the site my.housecope.com.
Phaser 6000/6010 Color Printer
If your prints have blank spots or smudges from one or more
colors, you need to clean the LED windows using the following instructions.
If toner gets on your skin or clothing, do not remove it with warm water or
cleaning solvents. When using warm water, the toner
sticks - then it will be difficult to remove. If toner gets on your skin or clothing,
remove it with a brush, blow it off or wash it off with cold water and soap.
Place a few sheets of paper to the right of the printer to collect toner.
Open the toner access cover.
Slide the toner cartridge latch upward (see illustration).
Do not expose the interior to strong light.
printer components. Exposure to light should generally not
exceed five minutes.
The Xerox Phaser 3140 printer is a computer peripheral equipment that has proven its usefulness in practice for many users. However, some defects, which sometimes have to be encountered, spoil the colorful life of this printing apparatus. One of these defects is a document printing stop halfway through the track and an increased “clicking” noise of the paper feed path.
The built-in automation of the printer reacts to such a malfunction in an interesting way. The status light on the top panel glows orange (indicating a paper jam) and stays on until the user turns the Xerox Phaser 3140 off and back on.
When the machine is turned on again, the alarm is cleared, printing continues, but after the first sheet of paper, a second (blank) sheet appears in the exit tunnel. At the same time, the paper feed path is completely clean, that is, there is no talk of paper jams. How to be in such a situation?
 |
Video (click to play). |
There are several options for solving the problem:
- start printing by placing only one sheet of paper in the tray at a time;
- send the printer to the workshop for repair;
- repair the device with your own hands.
Obviously, the first option for operating a faulty printer is extremely inconvenient for the user. The second option is unreasonably expensive from a financial point of view.
The third option excludes both the first and the second, but requires some knowledge in the field of mechanics. In particular, you need to know how to disassemble and reassemble the Phaser 3140 printer. But the service manual will always help in this matter.
The purpose of disassembling the apparatus, in this case, is to gain access to the working parts of the printer, which are called "solenoids". There are two of them in the printer.

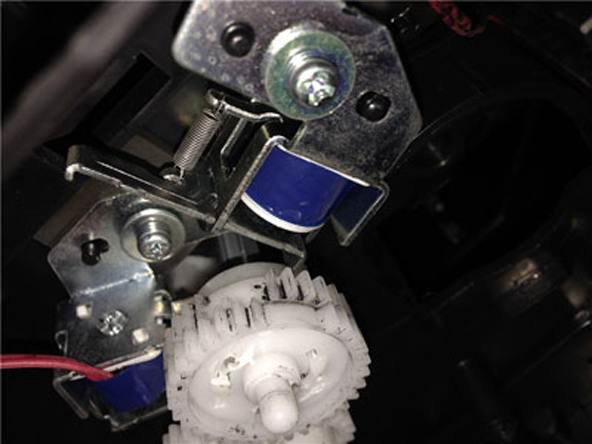

The first solenoid controls the paper feed operation, the second solenoid controls the paper pick up operation.
The printer solenoid is a miniature replica of an electric magnetic starter. When voltage is applied to the coil, a metal plate is attracted by a magnetic field
It is due to the malfunction of these two structural elements that the noted malfunction appears. In turn, the disruption of the normal operation of the solenoids is facilitated by softening pads, which the manufacturer places on the surface of the lever plate (as a shock absorber).

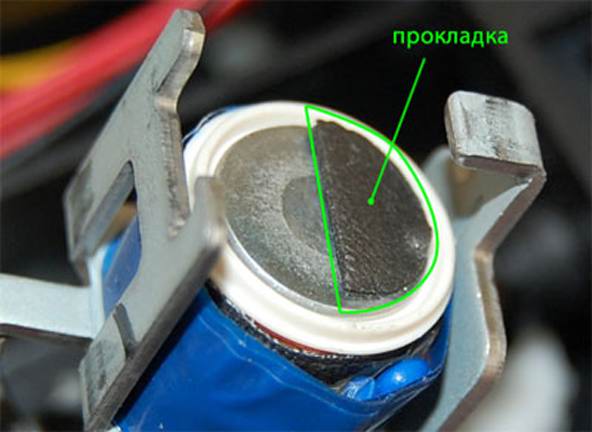

Over time, the material of the gaskets loses its elasticity and acquires the properties of a sticky material. When the solenoid is triggered, the lever plate is attracted by the magnet and touches the same gasket with its surface.
At the moment of rebound, the sticky pad does not immediately "release" the plate, as a result of which the operation cycle of the solenoid is disrupted and, as a consequence, the operation of the printer as a whole. The same "under-printing" defect appears.
Soft gaskets on the solenoids of the printer lose elasticity over time, decompose, become a sticky mass
DIY repair of solenoids is accompanied by relatively simple steps.It is necessary to remove the solenoids, remove (clean) the shock-absorbing gaskets from the surface of the solenoid plates and carefully wipe their location with ethyl alcohol.
Then reinstall the solenoids and reassemble the printer in reverse order. All that remains is to test the normal operation of the Xerox Phaser 3140 printer, which will serve users for more than one year.
In addition to the topic of repairing printers for the Xerox Phaser 3140 model, it will not be superfluous to analyze the repair of the related model Phaser 6000.
The printer of the same company, but of a different, more advanced model, is also not without problems in operation. Some of the errors are traditionally displayed on the control board.
This printing apparatus seems to be a more perfect design compared to the previous one. However, despite all its perfection, users cannot avoid printing errors.
Let's consider a traditional list of those faults that we encounter most often.

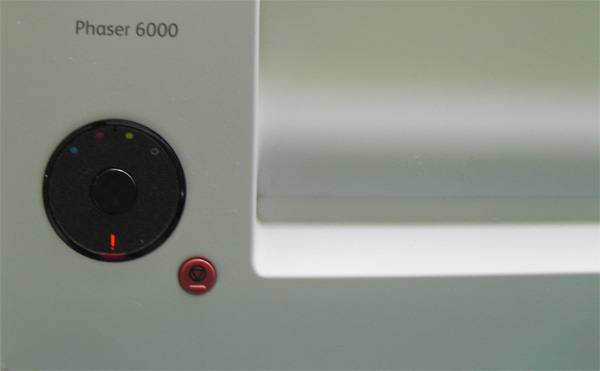

The exclamation mark problem is solved in this case easily with the help of two ordinary cotton swabs. The user needs to open the rear cover of the Xerox Phaser 6000 printer, carefully inspect the wall of the feed mechanism.

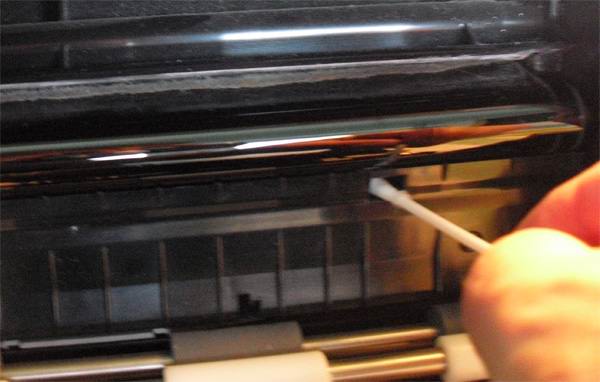

You need to find the drum window, gently insert a cotton swab and then in a circular motion without pressing, clean the inner area of the window from the toner
Search target - two rectangular holes (drum windows). Having found what you are looking for, gently deepen a cotton swab and clean the inner area of the toner with light circular motions. Everything. You can safely turn it on.
Repair of Xerox WC 6015 begins with disassembly.

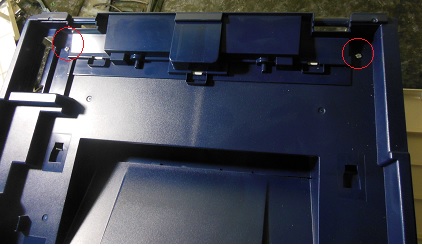

First you need to remove the scanner, for this we remove the decorative front blue cover, which is fastened with latches.
Then remove the left side cover.
Disconnect the cables and cables, unscrew the scanner elevator holders from the front, remove the scanner upwards. Then unscrew the screws from above and remove the top cover.

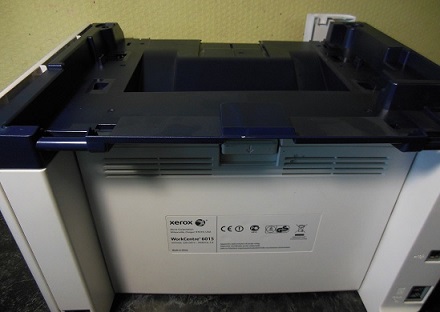

Remove the back cover of the printer.
The Xerox WC 6015 MFP came in for repair with a persistent paper jam message, and there was no paper anywhere.

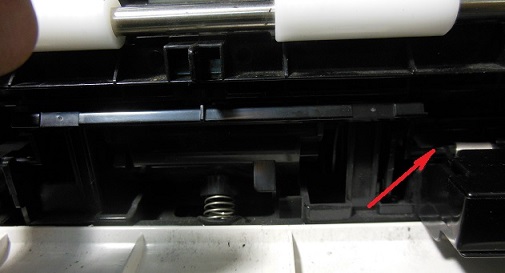

After disassembling the device, we are approaching the paper sensor. The paper feed sensor itself is located at the back, indicated by an arrow.
The broken sensor is replaceable. This completes the repair of the Xerox MFP.
The second sensor is located in the fixing unit.
In another Xerox WC 6015 MFP, there was a strong cracking sound when turning on and working. I had to disassemble the MFP even further.
Remove the right side cover with cartridges.
The strong crackling noise was caused by a clogged waste toner path in blue. After thorough cleaning of the compressed toner, which turned into a stone substance, the crackling disappeared, the waste toner began to go into the cartridge.
It should be noted that disassembling the Xerox WC 6015 is an extremely laborious endeavor. The designed MFP is extremely unsuccessful for repair, it requires a lot of concentration, accuracy and time. For complete successful disassembly and assembly of the Xerox WC 6015 apparatus, you can safely give the title of Hero of Russia.

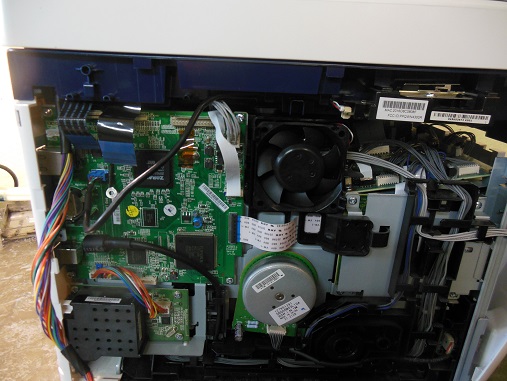

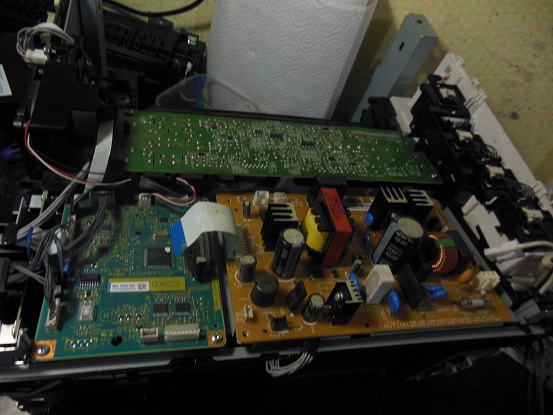

There are 3 boards located at the top of the printer.
To get to the xerography unit, you need to remove them all.
After that, you need to remove all the side boards! To unscrew the 2 screws securing the top cover from the side.

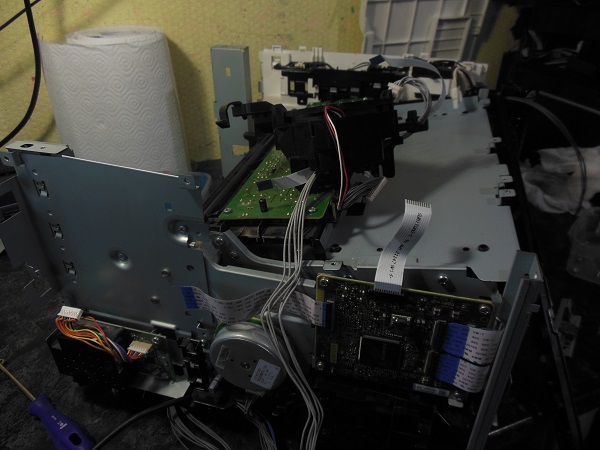

At the last stage, we remove the MCU board, behind which there are 2 screws.
If, after reassembling, some connector was incorrectly connected, of which there are countless numbers, then most likely a critical error 024-360 will appear when initializing the MFP. Diagnostics is stupid - any connector, but most likely a loop.
Re-disassemble the entire printer and check the connectors for integrity and correct connection. Especially carefully check the contact ends of the cables. Repair if damaged.
If you have a damaged cartridge contact group, you are unlikely to find a new group on sale. In general, there is a problem with spare parts for Xerox WC 6015. We have learned how to repair broken contacts. To repair the contact, you need to disassemble the MFP, remove the contact group, fix the broken contact plate. The price of restoration is 2500 rubles.
Error 092-651 with different subcodes occurs when the machine cannot perform color calibration.This calibration is performed when the printer is turned on and is performed by applying rectangular print samples of all 4 colors in turn to the transfer ribbon and reading the density of these samples with CTD sensors. If the print density of any of the colors is insufficient or does not change, then error 092-651 is issued with the corresponding subcode and the MFP is blocked. It was not possible to find a decryption of the subcodes. A feature of error 092-651 is that after this error, the printer does not pump toner from the cartridges into the xerography unit, and it seems that there is no easy way out of this situation.
The first cause of error 092-651 is dirty CTD sensors located on the back of the printer under the transfer belt. To solve this problem, we wipe the sensors with alcohol and start the MFP again.
If the problem persists, proceed to the next procedure.
The second reason is that there is not enough developer in the xerography unit to transfer the toner. This scenario occurs when you refill the cartridge with an unsuitable toner, such as Samsung universal toner. In this case, the developer leaves and the printer prints faintly. To add a developer to the xerography unit, you need to disassemble the entire MFP. Few people can do this work for less than 5,000 rubles.
The third reason is that there is not enough toner of a certain color in the xerography unit. A defective cartridge could be the cause. In our case, there was error 092-651, code 2440000. The reason was cheap Chinese cartridges, in which the outlet was sealed with sticky paper. After removing the paper, the glue remained. After installing the cartridges, the adhesive adhered firmly to the printer's rubber gum, causing the toner outlet to block.
Solution: During power-up, manually force the pumping of toner of each color until the toner appears in the xerography unit. When it appears, the printer will come to life and start pumping up toner on its own. The price of the work is 2500 rubles.
A very typical situation: you connect a Windows 7 computer to a Xerox WC 6015, the drivers are installed automatically through Windows updates. Then you try to print something and nothing happens - print jobs go nowhere, even an error does not appear.
This is due to the wrong driver for Windows 7, and, possibly, for Windows 8 and 10.
Solution: download and install the driver from the Xerox official website (weighs about 200MB). After installing the original driver, the Xerox WC 6015 printer, which had not previously printed from a computer, began to print under Windows 7 and Windows 10.
Repair of paper feed (jam) RUB 2500-3000
Crackle - repair of the xerography unit - from 3000 rubles.
Service list
Warranty for work
Cost, rub.)
Repair time interval
Departure of the master when ordering repair
Diagnostics when ordering repair
Prevention of stable work
Replacing the high voltage board
Replacing or refurbishing the main board
Replacing the low voltage board
Replacing the Print Head
Replacing the printhead ribbon cable
Elimination of software failures, errors
Solving any other printer problems:
- does not turn on
- chews, jams paper, turns paper into an accordion
- prints dirty, stains paper
- error code no. X, gives an error
- not recognized, the computer does not see it
- prints with horizontal or vertical stripes
- prints in blue, not color, in black and white (b / w)
- does not see, does not recognize the cartridge
- does not see, does not recognize paper
- freezes,
- skew of the sheet when printing,
- stopping the sheet in the middle when printing
- makes strange sounds when typing
- installation
- does not print
- does not print in black
- does not print in blue
- does not print in yellow
- does not print in red
- does not print green
- does not print in orange
- does not print cyan
- does not print purple
- does not print magenta, magenta, pink
- prints blank sheets, in white
- there is a strong smell
- bifurcates, layers, overlays an image
- prints by smearing paint
- any other problems
We repaired the HP LaserJet Pro P1102 laser printer: began to chew paper and grab several sheets at once. Moreover, which is convenient, the foreman came directly to the office. Actually, that's why they called. read full review
Free visit of the printer repair technician within 3 hours from the receipt of the order.
An engineer diagnoses the Xerox Phaser 6000 printer. He will identify the cause of the malfunction, estimate the cost and time of repair.
If you decide to repair the printer, the engineer gets to work immediately. Payment (even by bank transfer) is made after completed repairs.
If for some (any) reason you refuse to repair, you will not have to pay anything, since the exit and diagnostics in our company are absolutely free. We provide such conditions for the repair of the Xerox Phaser 6000 printer in Moscow. The Moscow region is served on a contractual and paid basis.
To the device Xerox Phaser 6000 suitable cartridges:
XEROX PHASER 6000 Mfp Repair
XEROX PHASER 6000 printer service and repair in Moscow and the region.
XEROX PHASER 6000 Printer Repair
Is your XEROX PHASER 6000 printer broken?
There is a solution!
It often happens that the printer stops working properly and starts printing poorly, or not printing at all. What to do in this case?
You need the help of a professional technician, knowledgeable in his field, who will diagnose and repair your XEROX PHASER 6000 printer.
Our technical center deals with just such breakdowns. We will make your XEROX PHASER 6000 printer working as soon as possible. Just dial and contact us!
Maintenance of the XEROX PHASER 6000 printer
The procedure for diagnostics and repair of the XEROX PHASER 6000 printer
Service for your Xerox printer includes replacement only with quality replacement parts from the manufacturer.
VlAnD Wed Sep 06, 2016 9:24 pm
The most interesting thing is that the printer visited the service center of our city and the master for a little over a year
e. my brain (I am very patient
).
This might be similar to my problem?
... I wrote: Good day, dear colleagues.
Xerox WC 6015 brought in, complaining about pale black.
We check the cartridges: blue and red were refueled with us, yellow and black - in the Savelovsky shopping center (according to the sticker). We assume that colleagues have filled the black cartridge with the wrong toner (light gray instead of black on paper, can be easily erased with a finger, i.e. not from this device at all).
We decide to empty all the toner out of the black, clean it, put an empty cartridge in the machine and print Malevichs in order to drive out the remaining toner from the black dram to the maximum (so as not to mix it with good). Of course, it would be better mixed. but here. As a result, the toner in the drama ran out and the machine issued error 092-651.
At startup, everyone is extremely smart, poking their noses at books, they don't want to listen to anything, as always. Of course, the sensors were washed, the cable was ringing, as the Murzilka recommends. The result, you guessed it, is zero. Murzilka also recommends replacing the board, but I didn't even find one on e-bey.
We turn on the spinal cord. If we assume that we did not break anything or burn anything, then it is logical that the device cannot see the black spot on the towel and falls out into an error. The drum is empty, we cleaned it ourselves.
The solution is as follows: take out the black cartridge and, having contrived, pour toner into the input hole of the drama (where the auger rotates). We remove the block with the chip from the cartridge, press it against the reader, turn it on. The device starts to rotate with the auger - and we feed it manually with toner. Until the whole thing fills up. It can fall back into an error several times - don't give up, overload it and add it again. After a while, he will crank the gear that rotates the cartridge auger. This means that everything, you can put the cartridge back. We turn on the device again - and it begins to actively fiddle with the cartridge, feeding itself with toner. Why the hell does he not do this right away - a question to the engineers of the Fuji Xerox machine, who dumped this freak (whoever tried to disassemble him to a screw - he will understand why the freak).
This small article was written to help those who are also looking for an answer to the question “why error 092-651” and cannot find an answer.The solution is for the machine to be able to put a rectangle of each color on a towel and be able to read them. If some is not read, there will be such an error. Accordingly, it is necessary to find out why the toner is not put, or if it is put - why it is not readable.
START COPY CONFERENCE
Printers, copiers, MFPs, faxes and other office equipment:
issues of repair, maintenance, refueling, selection
0. NearlyDeadHipo 28.12.13 14:43
The machine arrived with a strange problem, when printing on red, spots come out:
There is also a similar defect in blue, but it is not so obvious.
These spots clearly crawl out on a good fill, because they are not on the floor of the tones.
The cartridges are all filled with toner from the same series. Yes, and the toner seems to be checked, it is not the first day we have been refueling such devices with it.
The device is now completely disassembled. I wanted to look at the magnet, but in the end I got a lot of torment, but I still took it apart and didn't really see anything.
If anyone has dealt with a similar problem or with these devices, I ask for help.
try changing the paper to another manufacturer, will the defect not go away by accident?
The cartridges there are completely disposable, the manufacturers have tried.
If you do not take into account the dirt on the glass when copying, then balding is from a breakdown on the drum. It is advisable to change the caps on the shaft when refueling (I doubt that they are separately, but at least wrap with tape)
(0) These spots indicate that the developer is running out in the development unit. Alternatively, when refueling, add a developer from Xerox 6180 to the cartridge and over time the concentration of the developer in the development will reach the required amount. If the printer is still disassembled before, simply refill the developer in the developer.
4. NearlyDeadHipo 29.12.13 14:50
5. Eremeev Vladimir 30.12.13 14:06
“These spots mean that the developer is running out of the development block. “. Cool! And I, an idiot, thought it a sinful thing that a developer is never wasted, but only loses its magnetic properties. ))
(5) At Xerox flower beds, the developer slowly flies off to work off and by about 15 thousand copies it does not remain at all. By the way, the original black cartridges contain a small amount of the developer, which is designed to make up for the losses.
Soldier
Group: Members
Posts: 4
User #: 10047
Registration:
24-March 16
Good afternoon.
Pictures under the spoiler could not be removed.
The printer has this thing:
This is how it is inserted into the printer:
Then it closes with a block with cartridges:
Opening the back cover reveals a gear on this thing that makes contact with a gear on the printer:
When self-test, the gears begin to rotate and the whole thing shifts by 1 mm, because of this it cracks.
The question is how to fix (press) this thing?
Expert
Group: Admin
Posts: 2851
User #: 9669
Registration:
1-November 15
Soldier
Group: Members
Posts: 4
User #: 10047
Registration:
24-March 16
Expert
Group: Admin
Posts: 2851
User #: 9669
Registration:
1-November 15
Soldier
Group: Members
Posts: 4
User #: 10047
Registration:
24-March 16
I don’t even know how to answer that.
The problem is described in more than detail and with pictures.
This unit shifts the gear by 1 mm due to the rotation of the gear. The distance between them increases and due to poor adhesion, perfectly perfect gears spin and crack.
Expert
Group: Admin
Posts: 2851
User #: 9669
Registration:
1-November 15
Soldier
Group: Members
Posts: 4
User #: 10047
Registration:
24-March 16
For those who face such a problem. Solution.
He took off the side cover, turned the gearbox with his hands to reveal in which position of the auger a crackling occurs. It turned out that in the position of the fence from the black cassette.
Here is a great video on how to disassemble the transfer node:
He pulled out a black cassette. There is a lot of old toner in the gear grooves. It was compressed and caused a crackling sound. I cleaned the grooves of the gears with a needle, lubricated everything and put it back together.
Working.
Photos of gears before and after:
Expert
Group: Admin
Posts: 2851
User #: 9669
Registration:
1-November 15
Download / Print topic
Download a theme in various formats, or view a printable version of the theme.
Problems with refilling and new cartridges for the Xerox Phaser 6000, 6010 and WorkCentre 6015. How to find the region of the machine.
So, devices from different regions are supplied to the Russian market. Official delivery - these are regions 1 and 3. Unofficial "gray" delivery - region 2. Accordingly, if you have a printer of 2 regions, and you bought cartridges for 3, then they will not work, the printer will issue a corresponding message. The same picture is with refilling cartridges. In this case, it is imperative to put the chips with the corresponding region, otherwise the device will not work.
- Press and hold the central button of the control unit for 3-5 seconds.
The machine will print several pieces of paper. It is necessary to find the "Printer Settings" sheet, in the "General" section the last line will indicate the region of belonging "Region" and opposite the number - 1, 2, 3. Remember this number and report it when refueling or buying new cartridges. You can also make a mark with the region number on your device, so that in case of blocking and inability to print the settings page, you already know the number.
How do I find the region of the Xerox Phaser 6010, 6010n?
- Press the upper left "Menu" button on the control panel.
- Select the menu item "Information Pages" using the control buttons. Confirm your choice with the "OK" button.
- Then select "Printer Options" and click "OK".
The printer will print the settings page. In the last paragraph of the "General" section, there will be the "Region" information of interest to us with the corresponding numbers 1, 2, 3. Remember it, or write it down. When you next contact for refilling cartridges or buying new ones, you must inform it in order to avoid misunderstandings.
How do I know the region of the Xerox WorkCentre 6015, 6015b, 6015n, 6015ni?
- Press the "System Menu" button on the panel of the machine. It is located on the right side of the control buttons (joystick).
- Select "Information Pages" and click "OK".
- The item "System settings" will appear. Confirm the selection with the "OK" key.
The MFP prints the system settings. The last item "Region" of the "General" section will contain the information we are interested in. Write down or remember the region number. When you next contact to refill cartridges or buy new ones, let him know.
In the first part of the video, you can see how to disassemble the Xerox Phaser 3010 printer and get the development unit for further.
Instructions on how to disassemble Xerox Phaser 3250 (cleaning the fuser)
Repair of the Xerox Phaser 3140 printer malfunction audible clicks red light is on, in our video it is shown.
Detailed video instruction on how to disassemble the Xerox 3045 with cleaning the drum unit and replacing the developer to fix it.
In this video, we will disassemble the printer, make it a complete prophylaxis, and troubleshoot it during the analysis.
See how to quickly change the feed roller. By the way, the detail can be taken here:
The old printer began to print 1 sheet, but next in a chain order it captures 2 sheets, after which.
How to remove a sheet of paper from the Xerox Phaser 3117 printer with a jam. What to do if the paper is jammed or happened.
Crackling mfp, non-working scanner.
Replacing the broken contact of the cartridge from the donor.
Subscribe to us on periscope, watch live online broadcasts from our workshop and like.
The Disassembly opportunity for the device is almost impossible. The only one way to assemble and disassemble th unit makes it repair unprofitable. If you tried.
Baglandir » 09:33 – 06.09.11
Hello!
I have a Xerox Phaser 6000
1) How to refuel it?
2) What toner should I use?
3) Do I need to reflash cartridges?
The internet on these issues is empty (
Vitamin21 » 11:25 – 28.09.11
polytechn1k » 21:58 – 23.10.12
Mishel01 » 22:25 – 23.10.12
Dmitry (Podolsk) » 15:17 – 07.11.13
Mishel01 » 15:51 – 07.11.13
Dmitry (Podolsk) » 16:23 – 07.11.13
Mishel01 » 16:37 – 07.11.13
Dmitry (Podolsk) » 17:56 – 07.11.13
Mishel01 » 18:17 – 07.11.13
Dmitry (Podolsk) » 18:44 – 07.11.13
Mishel01 » 19:43 – 07.11.13
Dedd » 00:59 – 03.04.14
CrazyPOVT » 07:11 – 03.04.14
Vladimir A. » 08:26 – 03.04.14
Dedd » 11:21 – 03.04.14
Vladimir A. » 13:08 – 03.04.14
Dedd » 13:47 – 03.04.14
RobZ » 15:21 – 03.04.14
Dedd » 15:35 – 03.04.14
- Related Topics Replies Views Last Post
- Xerox DocuPrint P8ex Laser Printer - Fuse on cartridge blows, and when the fuse is stronger the red light turns on and the printer does not start.
x-expert-x on the XEROX Forum 6 7497 CrazyPOVT
17:41 – 01.03.12 - Xerox Toner Cartridge 3110 - Compatibility
in the forum XEROX 7 9718 Remonter
08:58 – 08.05.06 - Error codes for Xerox 1012, 1012 (RE)
Service center SCAN in the forum Codes and reset errors in Xerox 0 6461 Service center SCAN
14:25 – 17.02.10 - MFP DC440 ST - Refilling cartridges for Xerox DC440 and pro chip
Som in Forum XEROX 11 5499 Som
03:46 – 12.02.06 - xerox wc pe120i "overheating"
yuki on the XEROX 9 Forum 5716 MilediOlga10
15:09 – 15.01.16
Users browsing this forum: no registered users and 0 guests
An example of a test list from a Xerox Phaser 6010 printer with a defect in the removal of the developer
Removing the camera block from the xerography module
About the drum. Disassembling the xerography module block, we expected to see imaging drums of the same diameter as in the Xerox 6180/6140. But we were pleasantly surprised that the drum diameter is slightly larger. As it turned out later, the diameter of the Xerox 6010 photoconductor is the same as in the Phaser 7500 flower beds. This means that you can use compatible photoconductors from the Xerox Phaser 7500 printer for recovery. However, for this you have to shorten the length a little and kill the gears. Considering the fact that the drums do not come into contact with the paper at all (the toner is transferred to the paper from the transfer belt) and have an increased diameter, they are not threatened with wear (only if a foreign object is scratched). The Xerox 7500 drum unit is rated for 80,000 prints.
Repair of color printers Xerox Phaser 6000 in St. Petersburg
Xerox Phaser 6000 Color Printer Repair and Service produced by craftsmen with many years of experience. We use only original spare parts for repairs.
The table below shows the prices for repair work of individual parts (assemblies) Xerox Phaser 6000 color printers... Prices are indicated for work only, excluding the cost of spare parts. The exact cost of repairs is agreed with the client after diagnostics and identification of worn parts and blocks, with recommendations for their replacement.
Diagnostics of other service centers or a description of the problem by the client is not a guarantee of an accurate determination of the reasons for the breakdown of the printer or mfp, but if you clearly formulate the problem, describe as accurately as possible after what actions the device failed, prepare a scan of a document with a print defect - by these actions you will significantly reduce the time required to carry out repairs. It will also help to identify cases when repairing a printer or mfp is impractical.
Departure of the engineer to diagnose the device - from 1,200 rubles.
Descriptions of the names of repair services for Xerox Phaser 6000 color printers shown in the table above:
Diagnostics - identifying malfunctions in the operation of the device, making reports, making recommendations for the further operation of the device and replacing worn-out spare parts;
Partial disassembly maintenance - routine maintenance of the device, cleaning the rollers, cleaning the paper path from toner and dust, restoring the rollers, etc. It must be done without fail when the device gets into repair;
Complete disassembly maintenance - performance of all routine maintenance, plus cleaning and lubrication of hard-to-reach units (thermoblock, laser, gearbox, electronic boards);
Paper Pickup Repair - replacement of the pick-up and separation rollers, brake pads from the main trays, is necessary when paper feed defects appear (does not take paper, takes it, but does not stretch it to the end, in some cases a "jam" error appears);
Registration node repair - replacement of worn-out components of the registration unit, cleaning registration sensors, replacing registration flags, etc. These jobs are necessary if the machine incorrectly detects the paper size, the image is not printed from the beginning of the sheet, or vice versa, if the paper is jammed inside the machine, in some cases the error “jam ";
Imaging unit repair - work on the repair of drum cartridges, copy cartridges. Replacement of photo rolls, squeegees, charge rollers, etc. Performed if streaks appear during printing, smears along the edge of the sheet, or defects are visible on the print at a certain interval (not in all cases);
Image transfer unit repair - replacement of corotrons, transfer rollers, transfer roller bushing, etc .;
Repair of laser optics unit - cleaning the laser, replacing the laser, replacing the laser polygon, etc. It is necessary when a vertical white line appears, in some cases the device swears at the laser;
Repair of the fusing unit (stove) - replacement of thermal film, teflon roller, bushing, thermoelements and heating lamps, separation fingers, etc. Required in case of printing defects, with visible smearing, repetition of text at a certain interval, sometimes vertical stripes across the entire sheet;
Repair of the gear unit and kinematics - replacement of gears, motors, couplings, etc. It is performed when extraneous noise, crackling appears, in some cases there is no paper grab;
Exposure unit repair - scanner repair. Replacing the scanning ruler, scanner glass, etc .;
Repair of the ADF unit - repair and elimination of malfunctions of the automatic document feeder unit. Replacement of pick-up and rebound rollers, brake pads, etc .;
Duplex unit repair - performed when defects appear during duplex printing, jams, etc.;
Electronics assembly repair - repair of power boards, formatting, replacement of electronic components.
|
Video (click to play). |
Customization - adjusting the device, adjusting the contrast and brightness, calibration.
