A car is not only a means of transportation, but also a very complex mechanism. Each of the vehicles has its own strengths and weaknesses. In order to understand how reliable it is, it is necessary first of all to analyze each of the machine units.
Lada Priora is considered a fairly "hardy", stable car, but it also has its weak points. The owner of a car of this brand must be aware of them so that, if necessary, the Priora can be repaired on his own. Moreover, the troubleshooting instructions are not the most complicated ones.
One of the most common malfunctions leading to unplanned repairs and visits to auto repair shops is the failure of the timing belt support bearing or water pump device. These breakdowns are fairly easy to fix, although repairs and maintenance are not cheap. Since there are no separate support bearings on sale, you have to purchase a complete timing belt set. According to the rules of safe movement on the roads and operation of the Lada Priora car, the timing belt is replaced every 120 thousand km. However, the breakdown of the bearing itself and the pump, as a rule, leads to a break in the belt, therefore, its complete replacement may be required much earlier than the period prescribed by the operating instructions.
Rarely, but nevertheless, it is possible to repair Lada Priora, associated with the car's control system, as well as with its suspension. In the latter case, it may be necessary to replace the strut support. One of the reasons for the failure of the strut bearings may be poor sealing and, as a result, dust and dirt getting into the bearing assemblies. It is quite simple to identify this breakdown on your own - when turning the steering wheel all the way, Priora club motorists can hear clicks.
The front hubs are also the weak point of the Lada Priora car. They are easily deformed when the wheels of the car hit even shallow pits.
If the vehicle has traveled more than 100 thousand km, the ball joints may become unusable. The process of replacing them on their own does not require special skills. Problems with the heating system can arise due to a malfunction of the stove dampers or in the case when the motor or gearbox device fails.
Replacement of shock absorbers and suspension springs may be necessary much earlier than the declared guaranteed mileage of 200 thousand km in the event that the operation of the car does not meet the requirements of the domestic manufacturer. The presence of caps on the rear hubs is a prerequisite. If they are absent, dirt, dust, water will inevitably get into the unit, which will certainly lead to breakdown of the entire unit.
If an incomprehensible noise appears while driving, first of all check how secure the power steering reservoir is. During factory assembly, it may not have been screwed tight enough.
The appearance of corrosion on a car cannot be attributed to the disadvantages of this particular model, because under the influence of weather conditions, any car sooner or later begins to rust. The weakest are the attachment points for decorative overlays. To avoid the appearance of corrosion, members of the Priora club advise periodically treating the surfaces of your vehicles with special anti-corrosion additives.
So, the most unreliable elements of this model are body parts, a stove and units with support bearings. The undoubted advantage of domestic mechanical engineering is the constant availability of inexpensive spare parts. You can easily replace any part in the Lada Prior if it is worn out. The only exception, perhaps, is the cabin filter. Its replacement can cause certain difficulties due to the initially ill-conceived design.
Difficulties can also arise when replacing the rear shock absorbers of the Lada, since the bolts with high mileage are covered with rust and it is sometimes extremely difficult to remove them yourself. Although in such a situation, you can use a special rust solvent, but sometimes it is powerless.
VIDEO
Do not forget that full diagnostics of your car can be carried out only at specialized stations. Therefore, for your own safety, do not ignore the visit to the professionals in order to receive high-quality technical service.
Hello dear readers of VAZ Repair, as well as guests of our site. Today under the heading “Repair of Priora” I will tell you about how to replace the upper engine mount at home. As always, first, a few words about what we will change, for
Hello everyone. Today at VAZ Repair another photo report on the installation of PTF. This time we will install foglights on the Lada Priora at home. The work is not difficult, but it requires certain knowledge and adherence to the sequence of actions.
Hello. Today I will tell you about how to replace the motor reducer of the stove on the Prior at home. This step-by-step photo report will allow you to make such repairs yourself, that is, with your own hands.
Hello. Today at VAZ Repair another photo report on repair. In this article, you will learn how to install wishbones on the Lada Priora at home. The step-by-step installation instructions will allow you to understand how to properly perform this work in order to
Hello. Today we'll talk about how to change the bearing of the air conditioner clutch on the Priora at home. As always, the instructions will be presented in the form of a step-by-step photo report so that you can do this work yourself.
Each Priora owner knows about such a “bug” of his favorite “swallow”, when, when using the washer, the brushes make as many as 4 passes along the “forehead” instead of 2, which would be quite enough. However, as they say, our hands are not for boredom, it is fixable, provided that
Hello. In this article, you will learn how to replace a pump on a Lada Priora at home, a step-by-step photo report will help you replace the water pump on a Priora quickly and correctly.
Lada Priora is one of the most comfortable Russian cars. One of the main reasons for the popularity of this car is the original interior and a wide range of additional equipment, which provide a modern level of comfort and safety.
For the interior design of Lada Priora, the Italian studio ‘Corcerano’ was involved. The interior design is made in a modern style, the level of ergonomics also meets international standards. Modern materials have been used for interior decoration. There are several color options for the interior elements.
The new model is equipped with an original instrument panel. Attractive design, high-quality fit of parts, conveniently located controls, well-read instrument cluster - these are the features of the Lada Priora dashboard. One of the successful nodes here is the original lighting control module. It is located to the left of the steering wheel and combines switches for side lights, low beam and fog lamps, as well as rollers for controlling the headlight corrector and adjusting the brightness of the instrument lighting.
Lada Priora two-tone door upholstery with pockets for small items and fabric inserts harmoniously fit into the overall style of the interior.On the armrest of the driver's door, there are power window control buttons, a joystick for electric adjustment of outside mirrors, and a central locking button. In accordance with international standards, the power window keys are designed in such a way as to exclude accidental pressing.
Between the front seats of the Priora is an armrest with two niches for small items. This is the first time a similar interior detail has been used on LADA cars. At the end of the armrest there is a button for unlocking the trunk.
The headliner at the front has a console with a shade of individual lighting for the driver and front passenger. There is also a shelf for glasses.
When designing the new model, special attention was paid to the convenience of driving. An electric power steering is installed on each Lada Priora. The steering column is tilt adjustable.
The ignition key contains buttons for controlling the central door lock and the trunk lid lock. In addition, the decoding element of the immobilizer is built into the key head.
Lada Priora received a modern heating and ventilation system, which allows you to maintain an optimal microclimate in the cabin, provides quick defrosting and sweating of the glass. The heating and ventilation control system has been carefully designed in terms of ergonomics. All cars of the new family are equipped with athermal glass and heated rear window.
The popular Russian car Lada Priora is produced in 4 body types: sedan (VAZ-2170), station wagon (VAZ-2171), hatchback (VAZ-2172), coupe (VAZ-2173) and in several trim levels, which undoubtedly makes this car convenient for different people. Lada Priora replaced the popular and beloved Lada of the 10th family and was created for our Russian roads and our harsh climate. Safety, economy, ease of maintenance, suitability for our fuel - the designers took care of all this.
Lada Priora is equipped with 8-valve (81 hp) and 16-valve (98 hp) engines, with a declared resource of 200,000 km. The new engines have a lightweight connecting rod-piston group, which increases engine power by 10%. In a number of trim levels, tuning options are serially installed: air conditioning with climate control, light and rain sensor, parking sensors, heated front seats, power windows for all doors, power mirrors and heated mirrors.
The body of Lada Priora has been strengthened in order to increase passive safety, and the torsional rigidity of the body has also increased. The Priora is equipped with airbags: in the "Norma" configuration - the driver's pillow, in the "Lux" configuration - with the driver's and front passenger's airbags. In the “Lux” configuration it is also equipped with seat belt pretensioners, ABS system and a parking radar. According to the Lada Priora promo site, when hitting at a speed of 5 km / h, only the bumper gets damaged, without affecting the other structural elements of the body. The environmental friendliness of the car complies with Euro-3 for the Russian market and Euro-4 for the EU market.
To date, a large number of various improvements and fixes for Lada Priora shortcomings have already been implemented, and we have collected them. The main focus of the site is on topics such as repairing and tuning priors with their own hands, on the topic of styling - both interior styling and exterior styling. Here you will find a high-quality selection of photographs and photo reports, materials for revision, repair, styling and tuning, as well as many useful tips for the maintenance and operation of the car. You will find real answers to many questions that arise during operation, information on the completion and repair of various units. All materials related to modifications, repairs and tuning are presented “in pictures” for ease of perception and clarity.
Many of us have done some modifications, and we undoubtedly want our works to be appreciated by other owners of the Lada Priora car. You can send us a photo report of the work done with a detailed description, we will publish your work, and it will be appreciated!
VAZ cars belong to that small category auto that can do it yourself , and wherein car repair will not "cost you a pretty penny", but will require minimal material costs. In this section of the Priora repair manual, all specifications passenger cars cars VAZ 2170 2171 2172 (Lada Priora), In addition, procedures are provided for repairing the engine, suspension, electrical equipment, etc. In order to see the repair manuals for specific Lada Priora units, go to the appropriate category (in the right menu) and read the article on maintenance and repair.
Cars VAZ 2170 (Priora) 2004+ General technical information (characteristics) about the car Lada Priora.
A small car VAZ-2170 Lada Priora with a four-door sedan-type body (class C according to the international classification) is designed for operation at an ambient temperature of –40 to +50 ° C on public roads with a hard surface.
The Lada Priora car is equipped with a 16-valve injection engine located across the engine compartment mod. VAZ-21126-00 with a working volume of 1.6 liters. The engine is equipped with a distributed fuel injection system and an exhaust gas catalytic converter, which is structurally made in a single unit with an exhaust manifold (catcollector). The body is load-bearing, all-metal, welded construction, with hinged doors, front fenders, hood and trunk lid.
In the engine compartment, vehicle numbers are located in the following places: 1 - body identification number; 2 - identification plate; 3 - engine model and number. The vehicle identification number (VIN), engine model, manufacturer's name, year of manufacture and certification information are indicated on the identification plate (Fig. 1.5).
Overhaul of the Lada Priora engine includes the stages of disassembly, search and replacement of worn parts and subsequent assembly.
Usually, during the repair of the Priora engine, the pistons are replaced; in some cases, additional cylinder bore is required. Engine overheating is a common reason for overhaul.
The motor can overheat due to faulty cooling system, leaking gasket, thermostat malfunction, etc. In mild cases, it may be sufficient to simply replace the gasket. But sometimes overheating of the motor may require serious repairs, which you cannot cope with on your own.
What tools do you need?
In the process of disassembling and assembling the engine, you will need:
Mounting paddle
Screwdriver
A set of keys
Piston setting device
Soft hammer
Torque wrench
Sequencing
Dismantling the engine does not cause any difficulties, therefore we will omit its description and present here only the operations for the repair and subsequent assembly of the motor:
Get rid of the carbon build-up in the cylinder block. Remove carbon deposits from the oil grooves in the cylinder beds.
Insert the bearing shells, referring to the marks you made when disassembling the motor. Make sure that the stopper tendrils of the liners enter the bed poses.
Then lubricate the liners with oil.
Place the crankshaft in the cylinder block and lubricate the half rings with oil. Make sure the half rings are installed in such a way that their grooves are directed towards the cheeks of the crankshaft
Install a half-ring, made of an alloy of steel and aluminum (it is white), on the front side of the center bed.
On the other side of the bed, install a metal-ceramic half-ring (it has a yellowish color).
Rotate the installed half rings so that their ends are flush with the ends of the cylinder bed.
Install the bushings in the main bearing caps. Again, be guided by the marks made during the disassembly of the engine. Make sure the locking tabs fit into the groove and lubricate the earbuds.
Install the covers according to the cylinder numbers printed on them.
Lubricate the ends and threads of the bolts that will secure the covers with engine oil
Install the third cover bolts. Do the same with the bolts of the second, fourth, first and fifth covers (in this order).
After tightening the bolts, check the crankshaft for ease of movement. Rotate it several times.
Install and secure the oil pump as well as the rear oil seal holder
Install the connecting rod into the piston and insert the piston pin. Be sure to lubricate both pin and connecting rod with oil.
Install retaining rings on both sides of the pin. Make sure they fit in the grooves of the piston.
Then install the oil scraper ring and piston rings on the piston. To do this, it is better to use a special tool, which is called a "puller".
Make sure the rings rotate easily in the grooves.
Gently wipe the crankshaft connecting rod journals and cylinder bores.
Insert the bushing into the connecting rod, making sure that its antenna fits exactly into the groove of the connecting rod. Lubricate the piston and bushing. Install a ring compression mandrel on the piston and lower the connecting rod into the cylinder.
Press the mandrel against the block. Using the hammer handle, push the plunger in.
Then install the lower connecting rod head on the crankshaft journal.
Insert an insert into the connecting rod cover and install it, making sure that the markings on the lower connecting rod head and on the cover are on the same side.
Install the cover bolts. Install the remaining pistons in the same way.
Fasten the oil receiver
Install the lock plate and flywheel, after lubricating the mounting bolts with an anaerobic retainer.
Lightly grease the cylinder block and place the crankcase gasket on top.
Install and secure the oil sump.
Like all domestic cars, Lada Priora has its drawbacks. During the release of the model, a list of the most frequent breakdowns and weaknesses of this machine was formed. For Lada Priora, the repair of engine parts and electrical equipment is common. There are also problems with the suspension struts and the interior plastic.
In case of serious breakdowns that are beyond the scope of your competence, you need to undergo diagnostics at a service station. But if you are sure that you are able to identify a certain, not too serious damage, you can handle it on your own. Repairing Priora on your own will help you complete the operation and repair manual for the VAZ 2170.
When a driver undergoes Priora maintenance, service station workers often find malfunctions in engine systems. The most common causes of motor failure are as follows.
Timing belt problems.
Breakage of fuel pump parts.
Failure of the crankshaft position sensor.
Signs: drop in power, engine stability. The repair manual prescribes how to replace the timing belt, repair the fuel pump, replace the crankshaft position sensor. Car repairs are carried out with the ignition off.
First you need to remove the right protective shield of the motor, squeeze the retainer on which the block of the wiring harness of the engine control system is held. Then disconnect the crankshaft position sensor from this pad. The sensor is dismantled using a 10 key. Unscrew the mounting bolt.
You need to check not only the sensor itself, but also its entire circuit. We do not turn on the ignition, the crankshaft is motionless. We connect one probe of the multimeter to the terminal of the harness of the shoe, the other to ground.The voltage on the tester should be about 2.5 V. We repeat the procedure with the other pin of the harness. If the voltage is normal, you need to check the circuit for an open or short circuit: the section between the harness terminal 1 and terminal 34 of the controller, as well as the wire that connects the terminal 2 of the harness and 15 of the controller.
If the voltage and circuit are OK, the controller may be out of order. We test the sensor itself using a multimeter. Normal operation of the sensor occurs with a resistance of 550-570 ohms. And in AC mode, when the steel bar is brought to the end of the sensor, a voltage surge should occur. Then the sensor is OK. If none of the conditions are met, we replace the sensor and put it back on the oil pump cover.
VIDEO

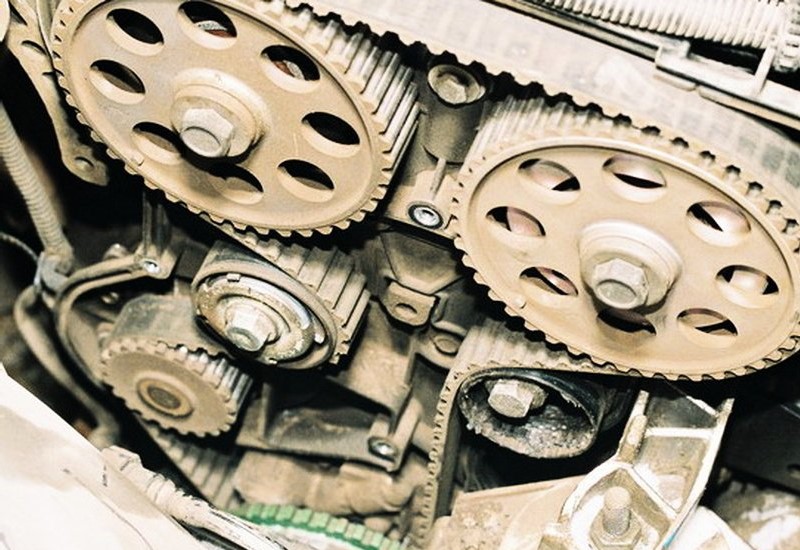

Timing belt maintenance involves replacing it after 200 thousand kilometers. A check is recommended every 45,000 km. After all, a broken belt, "licking" teeth, the presence of folds, cracks, razvlecheniya leads to a violation of the phases of the camshaft and crankshaft. Consequences: seizure of pistons, valves, connecting rods. The presence of oil on the belt is also unacceptable. If such breakdowns are detected, we replace the timing belt. Repair and maintenance of the belt is carried out according to the instruction manual. The main thing to know: before removing the belt, you need to set the shafts to the TDC (top dead center) position of the piston.
You will need a pressure gauge to check the pressure in the fuel rail, which depends on the fuel pump and filter. You need to insert it instead of the spool, which is located under the fuel rail union. With the ignition on, read the pressure gauge. The value must be between 3.6-4 bar.
We check the serviceability of the fuel pump by ear. If the pump makes unusual sounds or the pressure does not correspond to the specified, parts are replaced. The replacement process is described in the instructions for use and repair.
In terms of electrical equipment, breakdowns often occur:
electric power steering;
wipers drive;
head lighting lamps.
At the first stages of Lada Priora sales, there were problems with a new function - electric power steering. This was a test step for AvtoVAZ, and it is logical that there were some disruptions in its work. There were jerks during the rotation of the steering wheel, as well as jamming and tight movement. The wiring diagram in the owner's manual helps you trace the rudder drive circuit and troubleshoot. Sometimes the problem was solved with the help of a banal stripping of contacts and strengthening of the wiring. But often the breakdowns were much more serious, their solution was only within the power of service station workers.
Over time, the plant has developed an optimal assembly technology. And therefore, problems with the amplifier occur much less frequently. In case of deterioration of the drive, open the section "Electrical equipment" in the manual for the VAZ. We check the entire drive circuit for integrity and short circuit, and also clean the contacts.
VIDEO
On the already "middle-aged" Priors, problems with the ignition coil can be traced. Also, over time, there are malfunctions in the operation of the wiper drive, the headlamps of the head optics burn out. Repairs to these parts can be done on your own by following the instructions in the manual.
The regular battery on the Priora is not entirely successful. There are often complaints that the battery lasts a year and a half. Normal service life is up to three years. The battery on the Lada is of a non-separable type, so you only have to replace it.
Front and rear suspension Lada Priora is equipped with hydraulic shock absorbers. The hydraulic fluid of the struts often starts to leak. Other failures are also possible.
Model: Lada Priora
Years of issue: 2007, 2008, 2009, 2010, 2011, 2012
Model: Lada Priora
Years of issue: 2007, 2008, 2009, 2010, 2011, 2012
Model: Lada Priora
Years of issue: 2007, 2008, 2009, 2010, 2011, 2012
Model: Lada Priora
Years of issue: 2007, 2008, 2009, 2010, 2011, 2012
Model: Lada Priora
Years of issue: 2007, 2008, 2009, 2010, 2011, 2012
Model: Lada Priora
Years of issue: 2007, 2008, 2009, 2010, 2011, 2012
Model: Lada Priora
Years of issue: 2007, 2008, 2009, 2010, 2011, 2012
Model: Lada Priora
Years of issue: 2007, 2008, 2009, 2010, 2011, 2012
Model: Lada Priora
Years of issue: 2007, 2008, 2009, 2010, 2011, 2012
Model: Lada Priora
Years of issue: 2007, 2008, 2009, 2010, 2011, 2012
Domestic car is easy to operate and maintain, reliable and affordable. Do-it-yourself Lada Priora repair can be done even on the street. Before starting repair work, it is enough to familiarize yourself with the Lada Priora repair manual.
AvtoVAZ produces the Priora model in three bodies:
VAZ-2170 - sedan, production started in 2007;
VAZ-2172 - hatchback, production started in 2008;
VAZ-2171 - station wagon, production started in 2009.
The model appeared on the platform of the VAZ 2110 family. Manufacturers have made more than a thousand additions to Lada Priora. VAZ-2170,2171,2172 are rightfully considered a new family.
The new Lada Priora sedan.
Cars are equipped with one of two engine options: an 8-valve VAZ-21116 with a capacity of 90 liters. With. or 16-valve 98-horsepower VAZ-21126.
Lada Priora engine, diagram.
Foreign companies took part in the development of power units:
Federal Mogul equipped the engine with a significantly lightweight connecting rod and piston group;
Gates installed a timing belt and tensioner pulley with a service life of 200,000 km.
Togliatti firm "Super-Auto" produces tuning and installs a 120-horsepower gasoline engine 21128 with a volume of 1.8 liters.
Car owners of Lada Priora note unstable engine operation, loss of power. The reason for the failure is associated with malfunctions in the fuel pressure level, the operation of the gas distribution mechanism, or incorrect operation of the sensors.
Details of the chassis of the Lada Priora.
Manufacturers have upgraded the front suspension struts with barrel springs. The rear suspension is reinforced with new shock absorbers.
VAZ 2171 brake system diagram.
The Lada Priora brake system is equipped with ABS and BAS (BOSCH 8.1). Priora cars are equipped with a rear anti-roll bar.
VIDEO
In order to assess the reliability of a vehicle, one should, first of all, perform an analysis of all its components. In general, Lada Priora is considered a fairly reliable car, but there are also a number of "chronic diseases". Drivers should be aware of the obstacles that may arise during the operation of the car - such awareness will save money on visiting a car service and carry out repairs with their own hands.
The most common malfunction that forces repairs is a breakdown of the timing belt support bearing. Often, the water pump also fails. Such malfunctions are eliminated quickly enough, although such repairs cannot be called cheap. Indeed, in most cases, thrust bearings are not sold separately, but you have to purchase the entire timing belt set. According to the regulations, the timing belt must be replaced every 120 thousand kilometers. The problem is that a failure of the pump or support bearing can lead to a break in the belt - accordingly, it will need to be replaced earlier.
So, the transmission is highly reliable - this is noted by both the manufacturer and the repairmen, who practically do not encounter malfunctions of this unit.
Rarely, but still, the repair of the Lada Priora can be associated with the suspension and control system. So, it may be necessary to replace the strut support. Failure of support bearings is caused by contamination. The bearings of the front struts break down especially often. Apparently, this unit is not properly sealed and, as a result, can easily get dirty. It is not difficult to diagnose such a problem on your own - try to turn the steering wheel all the way and you will hear characteristic clicks. The front hubs can hardly be called reliable either - they can deform quickly enough when they fall into a hole.
You will also need to repair the Lada Priora with your own hands in the following cases:
failure of ball joints.As a rule, such a malfunction occurs when the mileage is more than one hundred thousand kilometers,
to prevent malfunctions of the brake system, it is necessary to regularly clean the rear drums,
as for the heating system, here the main malfunctions are associated with the stove. So, jamming of dampers or breakdown of micromotor reducers may occur,
the cabin filter consists of many parts, which leads to an increase in the laboriousness of its replacement,
with a high mileage of the car, difficulties also arise when it is necessary to replace the rear bearings,
when the mileage of the car reaches 180-200 thousand kilometers, shock absorbers and suspension springs may fail. However, this can happen earlier if the car is not operated in accordance with the requirements.
By the way, caps must be present on the rear hubs - their absence leads to the fact that dirt, water and dust get into the middle of the unit. The impact of unfavorable factors affects the performance of the device.
You may also need to replace the expansion tank. The power steering reservoir may not be properly tightened during factory assembly. After a while, it can go down and knock on the wheel guard. If there is an incomprehensible noise while driving, you should check this place first.
Separately, one should discuss such a moment as the body's resistance to corrosion. In most cases, corrosion begins to appear in the places where the decorative trims are attached - on the trunk lid and on the hood.
The main disadvantages of the Lada Priora design are the stove, body and thrust bearings. It should also be stipulated that most parts can be easily replaced in case of wear. The exception is the cabin filter with its initially ill-conceived design. Difficulties can also arise in the process of dismantling the rear shock absorbers. This is due to the fact that with a high mileage of the car, the mounting bolts of these same shock absorbers can become rusty. Of course, full diagnostics should only be performed in a car service. It should be planned and it is undesirable to ignore the onset of the technical inspection - this can aggravate existing problems and provoke the emergence of new ones.
Section 1. The device of the car Lada Priora VAZ 2170 General information about the car Passport data Car keys Governing bodies Dashboard Instrument cluster Trip computer Interior heating and ventilation Interior ventilation Cleaning glass from snow and ice Quick warm-up of the passenger compartment Ensuring a comfortable air temperature in the passenger compartment Doors Locks Window lifters Passive safety equipment on the car Lada Priora VAZ 2170 Front seat belts Rear seat belts Airbags Installing a child seat Seats Front seat adjustment Backseat Adjusting the steering wheel position Rear view mirrors Interior lighting Sun visors Hood Trunk lid Transmission control
Section 2. Recommendations for the operation of the car Lada Priora VAZ 2170 Safety instructions and recommendations Safety rules Recommendations for use Traffic safety recommendations Going on a long journey Car break-in Vehicle operation during the warranty period Preparing the car for departure Refueling the car with gasoline Jack use Car towing
Section 3. Vehicle malfunctions on the way The engine will not start General techniques for starting the engine Malfunctions in the starting system Checking the ignition system Checking the engine power supply system Fuel injection system malfunctions Lost idle speed Interruptions in engine operation Diagnostics of the engine condition by the appearance of the spark plugs The car is moving in jerks Jerk at the start of movement Jerks during acceleration Jerks with steady motion The car accelerates poorly Engine stalled while driving Oil pressure dropped Checking the lubrication system Overheating of the engine Cooling system check The battery does not charge Electrical equipment check Starting the motor from external power sources Electrical malfunctions Extraneous knocks appeared Engine knocks Knocks in the suspension and transmission Vibration and shock on the steering wheel Brake problems Wheel puncture Wheel replacement
Section 6. Transmission Clutch Design features Removing and installing clutch Replacing the clutch release bearing Replacing the clutch fork Replacing the clutch cable Transmission Design features Removal and transmission installation Disassembly of the gearbox and troubleshooting of its parts Output shaft repair Main shaft repair Synchronizer repair Differential repair Selection of the adjusting ring of the differential bearings Repair of the gear selection mechanism Replacing the gearbox oil seals Replacing the gear lever shaft bushings Gear lever repair Adjustment of the transmission control drive Front wheel drives Design features Removal and installation of front wheel drives Replacing constant velocity joints
Section 7. Chassis Front suspension Design features Removal and installation of telescopic rack Dismantling the telescopic rack Replacing the ball joint Replacing the front suspension arm Replacing the front suspension Replacing front suspension anti-roll bar parts Replacing the front suspension hub bearing
Rear suspension Design features Replacing the shock absorber and rear suspension spring Rear suspension hub bearing replacement Replacing the rear suspension beam
Section 8. Steering Design features Steering column Removal and installation of a steering wheel Removal and installation of electromechanical power steering Removal and installation of the propeller shaft of the steering Steering link Removal and installation of the outer tip of the tie rod, and replacement of the protective cover of the ball joint Removal and installation of the inner end of the tie rod Steering gear Removal and installation of the steering mechanism Checking the gap between the rail stop and the stop nut
Section 9. Braking system Design features Bleeding the hydraulic brake system Removal and installation of the vacuum brake booster Replacing the brake pedal axle bushings Brake master cylinder Removal and installation of the master brake cylinder reservoir Removal and installation of the main brake cylinder Front wheel brakes Replacing the brake pads of the front wheel brake Removing and installing the front wheel brake disc Removal and installation of the working cylinder of the front brake mechanism Rear wheel brakes Removal and installation of a rear wheel brake drum Replacing the brake pads of the rear wheel brake mechanism Replacing the rear brake slave cylinder Brake pressure regulator Removal and installation of the pressure regulator Adjusting the pressure regulator actuator Brake hoses and pipes Replacing the brake hoses of the front brakes Replacing the brake hoses of the rear brakes Replacing brake pipes Parking brake Replacing the parking brake lever pawl spring Parking brake lever repair Replacing the parking brake cable
useful tips for a motorist
An auxiliary timing belt roller often flies on the Priora. Sadly, but true: this pattern is typical for some other representatives of the domestic car industry, in particular, UAZ "Patriot".
Actually, it is not difficult to replace the bearing in a garage if this part were sold separately. But you have to buy the entire timing drive kit. Or maybe it's for the best: it will come in handy on the road.
The owners of "Lada Priora" also complain about the unreliability of the support bearing of the front shock absorber strut, which, after a relatively short run (it happens that in the third or fourth ten thousand kilometers), begins to crackle unpleasantly when the steering wheel is turned. However, bearing replacement is also not difficult and is easily carried out without the involvement of the services of car service specialists.
In general, everything related to the suspension is quite accessible for do-it-yourself maintenance and repair. The fact is all the more valuable because you can save a lot on self-care over time: such assemblies as a wheel bearing, shock absorbers and ball bearings on the Prior have proven to be those that do not live up to the age prescribed by the regulations.
What is frustrating is the little things that the designers for some reason did not pay enough attention to. So, in order to replace the cabin filter on a model not equipped with air conditioning, you will have to unscrew a dozen screws under the hood and remove more than one decorative element in the windshield area.

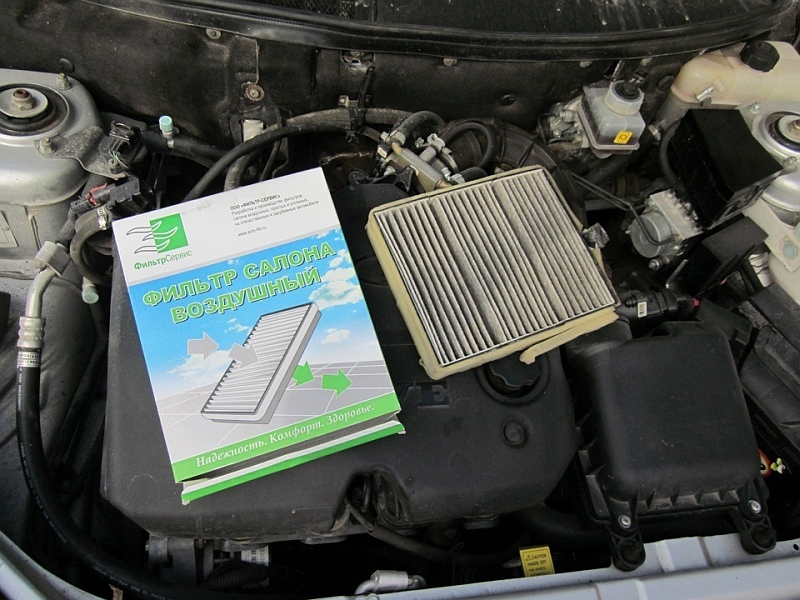

Access to the air-conditioned car filter is simplified (just unscrew one screw and open the plastic latch), but plugging the new filter into place is not easy. For this, in the right places, it should be, as it were, broken. By the way, a "salon" from "Chevrolet Torneo" is suitable for "Prioru" with air conditioning.
Another nuisance is the stove, which for some reason suddenly stops heating. Unfortunately, it is not always possible to identify a malfunction on your own. In this case, you still have to contact the service station. If only because dismantling the heating system is a rather laborious procedure.
However, in some cases, you can fix the defect yourself. For example, if the thermostat or pump is out of order. A lack of heat or a long warm-up of the passenger compartment can be caused by an excess of antifreeze in the system. Therefore, it is recommended to maintain its level in the expansion tank at the min mark. Well, and the most common problems: fuse failure, as well as "acidification" of the damper that distributes the hot air flow. All this is amenable to "treatment" in the field.
Video (click to play).
In general, "Lada Priora" is quite accessible for maintenance and minor repairs with your own hands.
