Disassembling the Xbox 360 controller may be necessary for cleaning it after being flooded with liquid or getting dust and dirt, making repairs, replacing the case with a colored one, and sometimes just for the sake of curiosity.
It should be borne in mind that inept disassembly of the Xbox 360 controller, however, like any other device, can aggravate the existing problem or completely disable it. Therefore, it is better not to risk it and contact service.
So, if you nevertheless decide to do it yourself, then you do not need any special screwdriver for the Xbox 360 joystick. universal tools, namely:
- Torx 8 screwdriver;
- Small Phillips screwdriver
- A flat screwdriver (you can also use a knife or other flat object).
Depending on the goals pursued, you may need full or partial disassembly controller Xbox 360. For example, if you want to repair the board, then it will be enough to dwell on the fourth point.
Our workshops produce Xbox 360 joystick repair ... You can safely trust the many years of experience of our specialists. Call and sign up!
In general, let's not delay, let's get down to the most interesting. We disassemble the Xbox 360 joystick in the following sequence:
On this disassembly is over, now we can carry out all the manipulations we need. In order to assemble the Xbox 360 joystick, you need to do all the above steps in reverse order.
 |
Video (click to play). |
Our workshops produce Xbox 360 joystick repair ... You can safely trust the many years of experience of our specialists. Call and sign up!
Repair of game consoles in the presence of the CLIENT. Repair PS4 _ PS3. Reball processor Recovery.
repair of the geispad x bok one.
Analog stick for gamepad (joystick controller) xbox 360 / sony playstation 2 (ps2) from aliexpress website for.
Replacing the left stick and preventing the right one. Also, soldering vibration motors. ---- Previous.
Professional repair of the PS4 game console in a short time and at reasonable prices in Moscow. ++++++++++++++++++++++++++++.
Any product from China “Aliexpress.com” ali.pub/uo612 Any product from China “Gearbest.com” goo.gl/ocEr2Q Save on ePN purchases.
He told me how to fix one of the joystick malfunctions.
Repair of the gamepad (joystick) from XBOX 360. We eliminate the backlash of the analog controller. My second channel (Video games).
If you broke the cable from the xbox 360 gamepad, then see the instructions and you can do everything yourself. You will need attention.
list = UU4UO.
If you do not have time and do not want to make repairs on your own, then come to us. Renovate.
You can replace the 3d analogue of the xbox one joystick yourself or contact us. ******* To carry out repairs.
During the game, the joystick began to periodically disconnect and reconnect, as if someone was inserting it and pulling it out.
This repair does not guarantee the full performance of your joey, but it may well save you from glitches.
A new gamepad or as it is popularly called a new generation joystick from the Xbox One S Developers are few.
Restoring Xbox 360 Part 1.
What's inside :) Joystick repair Gamepad USB 2.0 Wired Controller Black Gamepad Joypad Joypad Gamepad Regu.
In this video, I will briefly talk about the reason for the need to clean the gamepad. After directly.
playstation 3 joystick repair. Analog stick repair - Milan, Bergamo guide, guide.
Repair PlayStation 4 (PS4): stick overlays. Installing overlays on the sticks of the PS4 gamepad. The price of stick pads.
Long-awaited repair of the X-Box 360 TV box joystick!
Visit my new project - goo.gl/XqviW7 School Tankers 17 goo.gl/xJdgAn School Tankers goo.gl/4i3Nn6 Tanki Online - AgroSOSKA.
The analog itself can be bought on the Internet, it is desirable to have a semi-professional tool. You can ask questions.
assembly after repair of the joystick Xbox 360, drying and assembly.
If you broke the cable from the xbox 360 gamepad, then see the instructions and you can do everything yourself.
You will need attentiveness and accuracy.
We wish you good luck!
DONAT is your gratitude for our work.
————————————————————————
Repair of game consoles throughout Russia.
———————————————
Our contacts are in Moscow.
We work throughout Russia through mail and transport companies.
Phone 8 (903) 974 55 02 and 8 (495) 974 55 02
——————-
Our site my.housecope.com/wp-content/uploads/ext/1815
We are at INSTAGRAM -
WE ARE IN CONTACT -
We're at PSN Xboxflashru
*****
marat badredinov Tháng trước
Hello, can you tell me if you solder a 3-meter USB extension cable, will it work or not? Thank you
Kuroki Naoi 2 tháng trước
Attention !, the board is very delicate, the textolite under the wiring block is thin, you overdo it with a soldering iron and han piglets. It is better to solder the wires and not remove the block.
Do you by any chance know why, when you connect the controller to the PC, it blinks and turns off once?
- Like
- I do not like
Disassembly and Assembly of the Xbox 360 Controller
Warning!
Everything that you do, you do at your own peril and risk. But in fact, if you do like me, nothing terrible should happen.
Be careful, if something does not go or does not take off, you do not need to overdo it with force. Do not climb with wet hands.
You will need: 1. Torx 8 screwdriver (as hex only as an asterisk), 2. I'm just a flat screwdriver (A knife or something flat might work), 3. Phillips screwdriver (small, for a cross).
1. We remove the battery or batteries.
2. We unscrew 7 screws, 1 is hidden under the sticker.
3. Gently pry with a otvet (or knife) to remove the lower part.
4. Disconnect the vibrators (did not know how to call it differently).
5. We pry the board from the side of the headphone jack.
6. Here he takes off the rubber bands, and everything else (as soon as you turn over, all the buttons will get enough sleep). It should be easy. LB and RB detaches from the front plate (labeled Microsoft or Xbox).
7. The crosspiece is held by 2 self-tapping screws on the other side.
8. Sticks are simply removed, there should definitely be no problems.
9. To remove the triggers (LT and RT), press down a little, with a screwdriver or your finger (lower than in the picture. There will be a small notch.
10. Then you need to forgive between (indicated in the picture. The point is, when you bring it all the way, try to push it apart.
11. We take out the spring.
12. And it is when the button is in this position that it can be removed (nothing more), if you wipe out on the picture, pull it slightly towards you.
Collect everything in reverse order.
P.S. I read somewhere about the lubrication of sticks and even someone smeared lithol. If that lithol or selidol are used in places with a higher temperature (for example, a bicycle or motorcycle chain) and where cleanliness is not very important. If you lubricate it, you can enjoy another day, but there is no escape from the dust.
You can ask questions if you are interested in something.
Lead the left stick. The Persian does not stand still and walks slowly forward. I didn't want to wait a month for a replacement gamepad under warranty.
Made it myself. I'll tell you right away - there is no need to lubricate anything, as advised here on the forum. There, and so everything is normally lubricated.
Whoever advised, he himself does not know why such a problem.
The problem is as follows:
there is wear (complete erasure to PCB) the deposited central track of the variable resistor along which the slider moves. Slider stroke
3mm, these are the stripes that are rubbed. The repair is simple. Since it is impossible to spray at home, there are 2 options. Or order a new stick and solder it instead of the broken one or fix the broken one. We go according to the second option. On a drill with a diameter of 3.5 mm, we wind 1 turn of wire (leg) from any radio component, for example, from a capacitor, in diameter it is exactly suitable for our repair. Gently bite off the leg so that it turns out to be a butt-butt-end ring. No soldering on the ring! Then we remove the variable resistor (who is not friends with a soldering iron, even better and do not try), which has fallen into disrepair (there are 2 of them, it is not difficult to determine which one is needed), take out the inside and put our ring on the central plastic rod. Everything. Putting the whole structure in reverse order. This is how we re-established center contact and the controller works again. The repair takes approximately 2 hours.
Changed by sonlexx: 05/12/2015 - 04:35
sonlexx , You'd better burn the video. It would be much clearer.
Hello everyone. A little preface. Since the disassembly of our not very expensive gamepad is not endowed with special meaning at all, because instead of repairing it is always easier to buy a new one, then those rare reasonable reasons are very difficult to find. I will not speculate. In my case, this is a desire, having two badly working joysticks to assemble one working well.
Do not buy two new joys instead of one :))
At the moment, I have the original 2006 joystick with badly worn analog sticks and the second one with badly killed button pads on the front, which were filled with cola and began to press lousy. Well, let's start repairing!
- Xbox 360 gamepad (in my case, two are better, of course).
- Star screwdriver, size T10. (I read somewhere that people use small minus screwdrivers, I tried all sorts of things - it did not work out. I will not advise you to try - the bolts are already harmful, and if you also rip them off, then you will have to disassemble only with a brick).
Turn the joy over and unscrew 7 (!) Bolts from the back. The seventh is hidden under the sticker, near the contact springs.
Now carefully remove the back. PLEASE NOTE. contact springs, those that go to the batteries, are attached to the board from which you remove the back, i.e. shoot straight so as not to break off these same contacts.
Hold LT, RT, slowly pull the body back, watching the springs, and they will move out of their niches by themselves. In fact, everything is easy.
By the way, has anyone noticed ?? 6 years of evolution were not in vain.
Now, slowly, we disconnect the vibration plugs of the devices from the board. Yes, yes, yes, I know what you are thinking - what will happen if two identical devices are connected to one joystick, because they have “pendulums” of different sizes. I will not experiment with the 2006 board! ... bye.
Then we grab the board more comfortably and calmly take it out of the rest of the case, but the analog sticks will remain on the board.
If you are so sadistic that you want to take off the triggers (Triggers), then this is what we do.
Yes, my method is not the most optimal, but at least proven. We take something thin, a minus screwdriver of about 1.4 mm will fit perfectly. We drive the screwdriver into the recess on the other movable part to which the trigger is attached and prying the round post, slowly but surely push it out of the recess. This is very difficult to do, but don't worry, it won't break. This plastic is designed for this.
Further, it is easier, slightly push the side mounts apart, move it above the normal position, take out the spring, remove the trigger itself.
Regarding the buttons, everything is simple, here those who had experience only on Tetris will understand everything without instructions. The crosspiece is secured with two small positive bolts, we can see them if we remove a similar rubber pad. But with the levers, everything is not so simple, they are corny removed, but I will not undertake to disassemble the stick block further, tk. I do not see any ways other than to unsolder. From this it follows that I cannot solve my problem with the sticks on the original joystick. And pressing to the center does not work (which makes it not playable), because the center is worn out and does not properly cling to the frame surrounding it. Which, in turn, has an L-shaped branch. This very branch extends beyond the edges of the block and goes to a banal small button, similar to those located under the left and right bumpers. This makes it clear that the entire board is actually practically trash can. The repair is not worth the resources spent on it, if you even have a great desire to spend energy.
I hope I'm not the only one who has been interested in this question from time to time since the days of PS2.
Conclusion: it cannot be repaired.
Well, now it looks like everything that could have been taken apart. There should be no problems with the assembly.Still, be careful when inserting the back of the case to avoid breaking the spring-like contacts for the batteries.
When you put the triggers back, slide a screwdriver under the movable part and press so that the movable part rises to the top until it stops. In this position, it will be most convenient to snap the “post” back.
Finally, I want to note to the reader that there is such a reasonable one. well, almost reasonable, the reason as the fact that you just can't leave your comrade after everything you've been through together :-)))
Handsome.
The aftermath of hardcore fighting !!
Thanks for using my guide. I. have a good game.
The moment came when my gamepad (joystick) from the xbox 360 attachment began to glitch, two 3 D sticks began to react poorly to pressing. After reading the guides on the net, I found one way to restore the sticks. It is necessary to disassemble the gamepad (this is a special speech), and clean the board with alcohol with a toothbrush, from oxides, and then blow the sticks themselves into the holes with compressed air. I did so, and really the joystick worked as it should, but not for long, after a couple of hours troubles started again. I realized that I needed to change the 3D sticks. But before you change them, you need to buy somewhere, the Chinese came to the rescue with their aliexpress. There are a lot of suggestions with this stuff. I chose a seller with a large number of sales and with the maximum number of positive reviews for this particular product. The price of the kit - two 3D manipulators and two plastic sticks - 287 rubles, delivery is free.
The order went on for 20 days. Two 3D manipulators and two plastic attachments came. In order to disassemble the gamepad from the xbox 360, a special screwdriver was needed, it is called so torch N8, it has a hole. The bolts have a pin in the hat, so it is difficult to use an ordinary screwdriver, but it is possible. I did this on the advice of a gamer. He took a shylo and jerked in the head of the bolts so as to break off the ethics of the pins. After that, we managed to unscrew them with an ordinary screwdriver with an asterisk for 8. To dismantle the 3D manipulators, you need a regular soldering iron with 350-400 degrees and a desoldering pump.

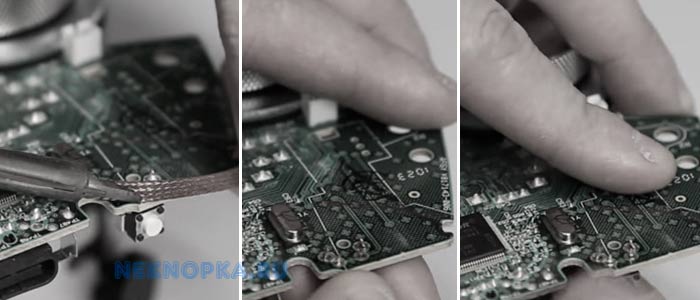

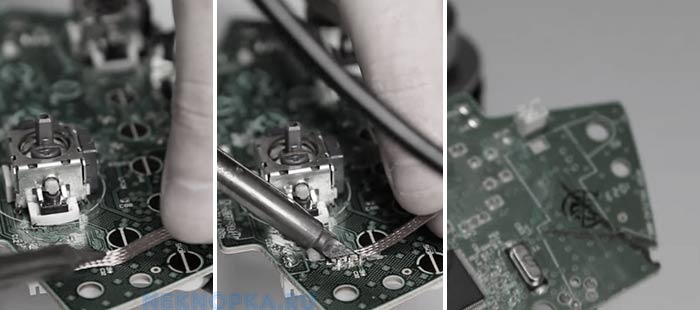

We warm up the contact on the board and immediately remove the solder with a suction. It turns out as in the picture.
One of the manipulators is located so that the contacts must be reached through dismantling the mounting of the upper trigger button. It will also have to be unsoldered, there is a mount with three contacts on the board. After dismantling all the manipulators, we proceed to the installation of new spare parts.
The new manipulators received from the Chinese are almost indistinguishable from the originals. Fits tightly into the mounting holes on the board. We take a tin wire and solder all contacts with a soldering iron. We do the same with the second manipulator.
Then I also cleaned the entire board with alcohol and all the plastic parts of the gamepad from dirt, after all, the joystick worked for 5 years before the repair. We assemble the gamepad and check its performance. The first thing that I notice the new plastic attachments are not suitable, they just stick, and it takes an effort to get them back to their original position, other people also write on the net.
We have to return to our native attachments, although they are worn, they can be used. If you really need to, you can buy special silicone caps. I saw these on aliexpress. So I'm trying a gamepad on the game world of tanks. Yes, it works, it is not buggy, but it differs from the original one. The fact is that, for example, with precise control, for example, aiming in sniper mode, when every millimeter is important, the movement on these Chinese manipulators is not very smooth. And this creates some difficulties. Therefore, it will be difficult to play on such a refurbished gamepad on some games. I drive the joystick still, maybe it will eventually become as on the original. Sweat by and large, now I would still buy a new gamepad for 3000 rubles, if I knew the outcome of the repair. If something changes during the testing of the joystick after the repair, I will definitely unsubscribe. In the meantime, good luck and success to everyone!
fucking failed! ruined the gamepad to shreds))))))))))))
2:03 There are 5 wires, I don't even know what the fifth is. where is he, why is he. help
Vitaly Kopylov is the land
X BOX 360 lace broke
I didn't even put the ferrite ring on - and that's how it works.I didn't even take the board out of the case. I bit off 4cm above the pads and got to the ends to the wire (with heat shrinkage naturally). The problematic bend was reinforced by heat shrinkage more and thicker.
but they did not show how to unclench the block (
There are plastic tabs on the block (they hold the protrusion on the metal tip of the wire) that need to be lifted with a needle or awl to pull out the wire.
Thanks for the normal review of the problem.
Not a joystick, but a gamepad. Not screws, but bolts. And it is better to use heat shrink for everything. And so, in general, good 🙂
tell it to those who lived in the days of 8-16 bit consoles, they will send you to hell.
which one? this is a total mistake. the joystick is used in a helicopter for control and, in fact, similar manipulators are sold. As for the repair, I was looking for how to normally “disassemble” this little body with a ferrite ring. surprisingly found it. Apparently many people break around him (the wire is a bitch heavy)
Thanks for the comment. How to call things is a matter of everyone who is used to it. :) Shrinking is certainly good, but what to do when it is not there !? This repair was carried out, literally, “on the knee” with the help of improvised means and an old soldering iron.
Handsome, the only one who just did NORMALLY surveyed this problem. Thanks dude !
During the game, the joystick began to periodically disconnect and reconnect, as if someone were inserting and pulling it out of the socket. The reason lay in the wire that broke at the exit.
Frost lolov 3 miesięcy temu
fucking failed! ruined the gamepad to shreds))))))))))))
Vitaly Kopylov 4 miesięcy temu
2:03 There are 5 wires, I don't even know what the fifth is. where is he, why is he. help
Vitaly Kopylov is the land
Arsen Matveev 5 miesięcy temu
X BOX 360 lace broke
Marel Arcovich 7 miesięcy temu
Vladimir Ivanov 7 miesięcy temu
I didn't even put the ferrite ring on - and that's how it works. I didn't even take the board out of the case. I bit off 4cm above the pads and got to the ends to the wire (with heat shrinkage naturally). The problematic bend was reinforced by heat shrinkage more and thicker.
Alex Kuznetsov 7 miesięcy temu
but they did not show how to unclench the block (
Alex Kuznetsov 7 miesięcy temu
serega7910 7 miesięcy temu
There are plastic tabs on the block (they hold the protrusion on the metal tip of the wire) that need to be lifted with a needle or awl to pull out the wire.
Alexander Gaidukov 11 miesięcy temu
Thanks for the normal review of the problem.
Kirtikish 11 miesięcy temu
Not a joystick, but a gamepad. Not screws, but bolts. And it is better to use heat shrink for everything. And so, in general, good 🙂
Dalian Lantel 7 miesięcy temu
tell it to those who lived in the days of 8-16 bit consoles, they will send you to hell.
which one? this is a total mistake. the joystick is used in a helicopter for control and, in fact, similar manipulators are sold. As for the repair, I was looking for how to normally “disassemble” this little body with a ferrite ring. surprisingly found it. Apparently many people break around him (the wire is a bitch heavy)
Thanks for the comment. How to call things is a matter of everyone who is used to it. :) Shrinking is certainly good, but what to do when it is not there !? This repair was carried out, literally, “on the knee” with the help of improvised means and an old soldering iron.
Handsome, the only one who just did NORMALLY surveyed this problem. Thanks dude !
During the game, the joystick began to periodically disconnect and reconnect, as if someone were inserting and pulling it out of the socket. The reason lay in the wire that broke at the exit.
fucking failed! ruined the gamepad to shreds))))))))))))
2:03 There are 5 wires, I don't even know what the fifth is. where is he, why is he. help
Vitaly Kopylov is the land
X BOX 360 lace broke
I didn't even put the ferrite ring on - and that's how it works. I didn't even take the board out of the case. I bit off 4cm above the pads and got to the ends to the wire (with heat shrinkage naturally). The problematic bend was reinforced by heat shrinkage more and thicker.
but they did not show how to unclench the block (
There are plastic tabs on the block (they hold the protrusion on the metal tip of the wire) that need to be lifted with a needle or awl to pull out the wire.
Thanks for the normal review of the problem.
Not a joystick, but a gamepad. Not screws, but bolts. And it is better to use heat shrink for everything.And so, in general, good 🙂
tell it to those who lived in the days of 8-16 bit consoles, they will send you to hell.
which one? this is a total mistake. the joystick is used in a helicopter for control and, in fact, similar manipulators are sold. As for the repair, I was looking for how to normally “disassemble” this little body with a ferrite ring. surprisingly found it. Apparently many people break around him (the wire is a bitch heavy)
Thanks for the comment. How to call things is a matter of everyone who is used to it. :) Shrinking is certainly good, but what to do when it is not there !? This repair was carried out, literally, “on the knee” with the help of improvised means and an old soldering iron.
Handsome, the only one who just did NORMALLY surveyed this problem. Thanks dude !
Most modern games are geared towards gamepad control. This is a great opportunity to immerse yourself in the world of virtual reality. But the enjoyment of the game can be interrupted by possible control problems, for example, when it does not work or a sticky button on an Xbox 360 joystick.
The most common gamepad issues you encounter include:
- Sticking: For example, after pressing the same key several times in a row, it will stick.
- Poor sensitivity: to execute a specific command, you need to press the button hard several times.
- Broken contacts, as a result of which the buttons work every other time or do not execute commands at all.
Consider possible repair options.
If the button on the joystick is stuck, it is not worth carrying it immediately for repairs, because you can solve problems quickly and easily, and with your own hands using ordinary foil and double-sided tape.
During the repair, we recommend cleaning all the internal mechanisms: the control buttons of the gamepad, even workers will cope better with their tasks after cleaning with ordinary alcohol and a cotton swab.

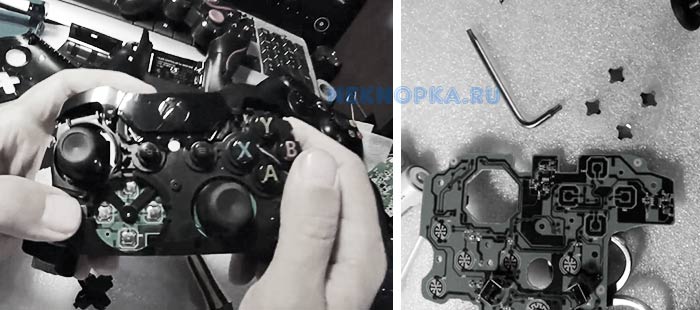

The first step is to disassemble the design of the gamepad:
- Before starting work, it is recommended to seal the buttons with tape so that they do not fall out and are not lost.
- Using a small screwdriver, unscrew all the bolts on the back of the joystick. Attention! On an Xbox 360 controller, one of the screws is hidden under a sticker.
- So that during the subsequent assembly of the structure there are no problems, fold all the bolts in one place.
- Next, take the joystick with the AXYB buttons forward and push them out.
- So, we got two parts of the joystick: we can start troubleshooting.
In most cases, sticking problems arise due to the fact that the conductive deposition of the closing contacts of the buttons is erased. This problem can be solved.

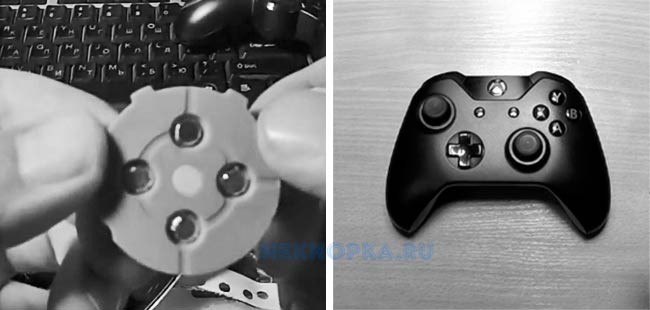

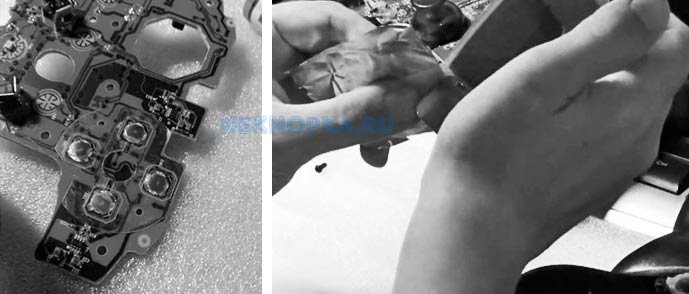

- We take the foil, glue it to double-sided tape and cut out the circles of the size we need. To make it easier to cut the foil circles for the closing elements, you can use an ordinary hole punch.
- We glue the circles to the button contacts on the foil side.
- Assembling the gamepad in reverse order.
You can repair the buttons of any gamepad model with foil, and the principle and method of repair remains the same.
If you play a lot on Xbox 360, then over time you may have problems with the RB / LB buttons. It is a mistake to blame the quality of the structure for all breakdowns. The malfunction is explained by the fact that these buttons are most often used, therefore, due to wear, they stop working.
Let's look at an illustrative example of how Repair RB / LB Button on Xbox 360 Joystick (One).
For work we need:
We buy new buttons: this can be done on Aliexpress, and you can buy any model that suits us in design, not necessarily for the Xbox 360.
Now you need to disassemble the joystick (use the instructions above).
- Remove the trigger mechanism and potentiometer. We do this using a braid and a soldering iron.
- We solder the tin, which fixes the parts with a soldering iron and copper braid, and then dismantle the inoperative button using the same method.
- We insert a new structure and solder it.Put the mechanism and potentiometer back in.
- Assembling the joystick and testing it for performance.
VIDEO INSTRUCTION
It is recommended to immediately check the connection contacts: suddenly one has moved away and there is no need to replace the buttons. As you can see, you can quickly fix all problems with the functionality of the buttons at home.
During the game, the joystick began to periodically disconnect and reconnect, as if someone were inserting and pulling it out of the socket. The reason lay in the wire that broke at the exit.
fucking failed! ruined the gamepad to shreds))))))))))))
Vitaly Kopylov Hace 4 meses
2:03 There are 5 wires, I don't even know what the fifth is. where is he, why is he. help
Vitaly Kopylov is the land
Arsen Matveev Hace 5 meses
X BOX 360 lace broke
Marel Arcovich Hace 7 meses
Vladimir Ivanov Hace 7 meses
I didn't even put the ferrite ring on - and that's how it works. I didn't even take the board out of the case. I bit off 4cm above the pads and got to the ends to the wire (with heat shrinkage naturally). The problematic bend was reinforced by heat shrinkage more and thicker.
Alex Kuznetsov Hace 7 meses
but they did not show how to unclench the block (
Alex Kuznetsov Hace 7 meses
There are plastic tabs on the block (they hold the protrusion on the metal tip of the wire) that need to be lifted with a needle or awl to pull out the wire.
Alexander Gaidukov Hace 11 meses
Thanks for the normal review of the problem.
Tigran Petrosyan Hace un año
Not a joystick, but a gamepad. Not screws, but bolts. And it is better to use heat shrink for everything. And so, in general, good 🙂
Dalian Lantel Hace 7 meses
tell it to those who lived in the days of 8-16 bit consoles, they will send you to hell.
which one? this is a total mistake. the joystick is used in a helicopter for control and, in fact, similar manipulators are sold. As for the repair, I was looking for how to normally “disassemble” this little body with a ferrite ring. surprisingly found it. Apparently many people break around him (the wire is a bitch heavy)
Thanks for the comment. How to call things is a matter of everyone who is used to it. :) Shrinking is certainly good, but what to do when it is not there !? This repair was carried out, literally, “on the knee” with the help of improvised means and an old soldering iron.
Handsome, the only one who just did NORMALLY surveyed this problem. Thanks dude !
New topics should be created only in the root partition! In the future, they will be processed by moderators.
[offline]
Topics Curator
Group: Friends w3bsit3-dns.com
Posts: 2064
Registration: 15.06.11
Apple iPhone SE
Reputation:
440
XBOX 360 Owners Club
In our topic, you can brag about your Xbox's photos, show off your game collections, ask for help, ask a question about your favorite game, find friends in Live, and, of course, show off your achievements.
During the game, the joystick began to periodically disconnect and reconnect, as if someone were inserting and pulling it out of the socket. The reason lay in the wire that broke at the exit.
fucking failed! ruined the gamepad to shreds))))))))))))
2:03 There are 5 wires, I don't even know what the fifth is. where is he, why is he. help
Vitaly Kopylov is the land
X BOX 360 lace broke
I didn't even put the ferrite ring on - and that's how it works. I didn't even take the board out of the case. I bit off 4cm above the pads and got to the ends to the wire (with heat shrinkage naturally). The problematic bend was reinforced by heat shrinkage more and thicker.
but they did not show how to unclench the block (
There are plastic tabs on the block (they hold the protrusion on the metal tip of the wire) that need to be lifted with a needle or awl to pull out the wire.
Thanks for the normal review of the problem.
Not a joystick, but a gamepad. Not screws, but bolts. And it is better to use heat shrink for everything. And so, in general, good 🙂
tell it to those who lived in the days of 8-16 bit consoles, they will send you to hell.
which one? this is a total mistake. the joystick is used in a helicopter for control and, in fact, similar manipulators are sold.As for the repair, I was looking for how to normally “disassemble” this little body with a ferrite ring. surprisingly found it. Apparently many people break around him (the wire is a bitch heavy)
Thanks for the comment. How to call things is a matter of everyone who is used to it. :) Shrinking is certainly good, but what to do when it is not there !? This repair was carried out, literally, “on the knee” with the help of improvised means and an old soldering iron.
Handsome, the only one who just did NORMALLY surveyed this problem. Thanks dude !
