In detail: do-it-yourself repair of a samsung sc4520 vacuum cleaner from a real master for the site my.housecope.com.
12/18/2015 Service Center Prosto Service on Yamasheva (tigarbo) 4536
Now we will fix the most common breakdown of Samsung vacuum cleaners.
In this case, the vacuum cleaner does not turn on. Most often, the engine fails. Now we are going to replace it.
First, take out the dust container
Unscrew the four screws at the front of the case
Next, unscrew the countersunk screw hidden under the film
Next, remove the cover of the vacuum cleaner
Vacuum cleaner without top cover
We take out the engine together with the casing
We remove the sealing gum and take out the faulty engine. A detailed examination reveals that he has burnt lamellas, one of the most common causes of malfunction of vacuum cleaner motors.

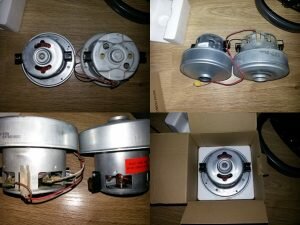

We take the previously purchased new engine and insert it into the place of the old engine and assemble in the reverse order.
If everything is assembled and connected correctly, then the vacuum cleaner will work as before.
The most common reason for the breakdown of a vacuum cleaner is the wear of its internal parts and mechanisms. In some cases, you will need to buy a new device, but most often you can try to repair it yourself at home. As a rule, the steps to repair a vacuum cleaner are few and far between. You must first disassemble the device in order to diagnose it and eliminate the malfunction that has arisen.
Most often, the following malfunctions occur in the operation of the device:
when the power button is pressed, the vacuum cleaner turns on and off immediately;
during operation, extraneous sounds are heard;
the appliance heats up, an unpleasant odor arises.
Video (click to play).
Most often fail:
bearings;
motor brushes;
engine;
electronic system.
Along with the above malfunctions, the fuse may blow. To fix the vacuum cleaner with your own hands, it is enough to replace this device with a new one.
Before proceeding with the repair, you need to prepare the following tools:
Additionally, you will need a soldering iron and rags. You will also need a tester for ringing electrical circuits.
Many parts of the vacuum cleaner are made of plastic, they are quite fragile, so you need to act carefully when disassembling and repairing.
To disassemble the vacuum cleaner, you must:
1. Unscrew the fixing screws from the device case using a Phillips screwdriver.
2. Then you can remove the cover of the vacuum cleaner.
3. Having disconnected the wires from the control board, you need to separate the device case.
4. Then remove the motor from the plastic case.
Depending on the model, the devices are equipped with motors of different power and type:
To disassemble the motor of a Samsung vacuum cleaner, you need to follow these steps:
1. Use a thin screwdriver to remove the impeller cover. The nut usually has a left-hand thread.
2. After that, unscrew the fastening nut.
3. Then it is required to remove the brushes and unscrew the tightening screws of the device case.
4. Then you need to remove the armature and remove the bearings.
A readily available tool is sufficient to remove the bearings, but sometimes a special puller is used. Before assembly, all elements are thoroughly cleaned of dust and dirt. Particular attention should be paid to the bearing surfaces and the motor manifold.
The vacuum cleaner may not work for several reasons:
blown fuse;
open circuit in the network wire;
switch malfunction.
Methods for eliminating various breakdowns are presented in the table.
You will need a tester to check this problem. With it, you can ring the wires and determine the exact location of the break.
Further, this malfunction must be eliminated with a soldering iron.
Before starting to search for a break, you need to make sure that the temperature sensor in the device has not worked and that the motor has not been forcibly de-energized. This happens when the vacuum cleaner is in operation for a long time.
In this case, no repairs are required. After the vacuum cleaner cools down, performance will be restored immediately

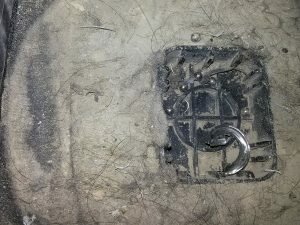

This often indicates that there is a bearing problem.
The presence of sharp sounds in the bearing assembly indicates the depletion of its resource.
These parts must be thoroughly lubricated or replaced with new ones.
In any vacuum cleaner there is a special compartment in which there is a wire up to 3 m long. If it is not tightened, then the problem is in the spring.
It is necessary to inspect the winding drum. The spring may be loose or tightened. If everything is fine with her, then you will have to take out the drum and unwind or wind a wire around it. This is how the tension force of the drum is adjusted.
The vacuum cleaner ceases to perform its main function. Dust is not sucked in
It is required to remove and inspect the filters. If they become clogged with dust, then they must be thoroughly cleaned. If cleaning does not give a result, the filters must be replaced with new ones.
Before replacing, turn on the device without filters and make sure that the suction power remains at the correct level. It should be borne in mind that some models allow you to adjust the suction power. If it is not strong enough, you will have to inspect the impeller. It can be completely clogged with small debris.
Sometimes the tightness of the hoses is broken, most often in the places where they are attached to the nozzles.
It is also worth checking the condition of the brushes and the collector. Failed brushes need to be replaced, and the collector should be cleaned with fine sandpaper
The location of the filters in the vacuum cleaner (1, 2, 3)
When diagnosing, you also need to check the operation of the pressure roller. Vacuum cleaners are not immune to violations of the motor speed control. In this case, the problem lies in the malfunctioning of the electronic control unit.
Today they brought me a vacuum cleaner to the workshop for repair, or to be more precise, in order for me to change the motor. Everything would be fine, but it was disassembled in a salofan bag. In general, the owner disassembled it, but it was not enough to collect the mind. It is clear that as a master, such surprises from clients are not even very pleasant to me, but I have to collect such constructors as well. I will say this, if you are going to repair the vacuum cleaner with your own hands, then first of all you need to know the order of disassembly and assembly, otherwise it turns out later as in the video that I posted below. From the point of view of the master, disassembling and assembling a vacuum cleaner is a fairly simple operation, but for an ordinary person, this may seem like a rather difficult task. Especially for those who want to try themselves as a master of household appliances, I suggest reading this article
First, let's see what is, in general, the whole repair of Samsung vacuum cleaners. As I wrote above, this household appliance consists of several spare parts that can be easily changed by almost anyone. Before proceeding with the disassembly and assembly of the vacuum cleaner, I want to tell you about the diagnosis of parts, that is, what determines the correct operation of the vacuum cleaner
How to assemble and disassemble a vacuum cleaner with your own hands - video
VIDEO I hope you watched this very informative video and decided for yourself whether to suffer yourself or entrust this work to someone who does it all the time. If you still feel that you can, then let's proceed to the next topic of our article, namely, because of what the vacuum cleaner does not start. It is important to understand that this malfunction is inherent not only in the Samsung vacuum cleaner, but also in other vacuum cleaners that have such a problem. First, let's list those parts that are responsible for turning on the engine.
This video shows one of the reasons why the vacuum cleaner does not turn on
VIDEO
Now let's talk about how to change the bearings of the vacuum cleaner motor. It is almost impossible to talk about it, you just can't show it on your fingers.Although the topic is quite relevant, I, as a master, would advise to change the motor, not the bearings, but given the fact that we still do not live in the wild west, but on the territory of the former Soviet Union, and many citizens of this huge region simply do not have the opportunity to buy this spare part , but the replacement of bearings is still cheaper, I decided to shed some light on this dark question. To begin with, you need to know in which cases the bearings should be changed. First of all, you need to pay attention to excessive sparking, if it sparks strongly, then the replacement is unlikely to help, although I have had cases when, after the operation, the engine worked no worse than the new one. The appearance of noise also indicates that it is time to change the bearings. Vacuum cleaner bearings should be of high quality, preferably from SKF. Well, how this is done in general, you will see below, after watching my video and do not be very upset if, after replacement, the engine sparks or makes a lot of noise - it means it did not work out, but we tried
Watch video - vacuum cleaner motor repair
VIDEO
I hope my article helped you. The most important thing is to know what to do for what and how. With this information, you can probably do everything that I did in my videos. Of course, to me, as a master, it all seems simple, maybe it’s so, but I also didn’t know how to disassemble the vacuum cleaner, and if you also take into account the fact that about such information that is given to you in this article, at that time, when I started and there was no question, now it will be much easier for you than for me once. The only thing I want to add is that be careful and follow safety precautions, otherwise it beats a lot
Not many people know how to disassemble a Samsung vacuum cleaner with their own hands. Meanwhile, this is not very difficult. The presence of a special tool and the ability to handle it is often a sufficient minimum for success.
There are not many of them. As a rule, they are quite trivial, but when they occur, disassembly of the vacuum cleaner is required. You cannot do without it when diagnosing faults. The main reasons for the breakdown of the vacuum cleaner are the following:
failure of bearings;
wear of engine brushes;
engine failure;
malfunctions in the electronic system.
Along with the above, there may be other deviations in the work, but they, as they say, lie on the surface. For example, a fuse has blown. In this case, it is enough to replace it with a new one, and the vacuum cleaner will work again.
Before proceeding with the repair, it is necessary to prepare everything for this. First of all, you need a toolkit. Nothing unusual is included in it: a set of screwdrivers, pliers, a set of heads, an awl, a small hammer - that will be enough. Additionally, you need to have WD-40 fluid, EP-2 or Litol-24 grease, a soldering iron and a clean rag. To ring out electrical circuits, you will need an ordinary tester.
For those who are engaged in disassembly for the first time, it is advisable to have a camera with them - to record the disassembly sequence.
Disassembling a vacuum cleaner is not so difficult as it might seem at first glance. First you need to unscrew the mounting bolts from the case.
After that, it will be possible to remove the cover. Having disconnected the wires from the electronic board, we carefully separate the case from the controls. On this, the main part of the disassembly work can be considered completed. Next, we carefully take out the engine and carefully remove it from the plastic case in which it is placed.
All work must be carried out without the use of brute force in order not to break fragile plastic parts.
Since most of the malfunctions of a vacuum cleaner arise from the engine, it often has to be disassembled for repair.
This process is not difficult and looks as follows. Using a thin screwdriver, carefully remove the impeller cover. As a result, access to the nut of its fastening is opened. By unscrewing this nut, you need to remove the motor brushes and loosen the body tightening screws. It remains to carefully remove the anchor, and you can start removing the bearings.As a result of the work done at the workplace, you should get something like the following picture (pictured).
A readily available tool is usually sufficient to remove bearings, but sometimes a special puller is required. After disassembly, all parts are thoroughly cleaned of dust and dirt. Particular attention is paid to the bearing seating surfaces and the engine manifold.
The impeller nut has a left-hand thread. There are exceptions, but very rare.
Sometimes it happens that the vacuum cleaner suddenly stops performing its main function. Everything seems to work, and the dust is not sucked in. In this case, first of all, you need to get and inspect the filters. If the filters are clogged with dust, they must be cleaned. If cleaning does not work, the filters must be replaced. Before replacing, you need to turn on the vacuum cleaner without filters and make sure that the suction power is at the proper level. If it is still small, you will have to inspect the impeller. It may happen that it is completely clogged with small debris.
At the same time, check the condition of the brushes and the engine manifold. Worn brushes must be replaced and the collector cleaned. The tightness of the hoses may also be affected, especially in the places where they are attached to the nozzles. You also need to pay attention to this.
Advice. The collector can be very carefully cleaned with fine sanding paper # 0 or # 00.
The next common malfunction is the vacuum cleaner does not turn on ... There are three main reasons for this:
blown fuse;
open circuit in the network wire;
malfunction in the switch.
The fuse has already been mentioned, but to check the rest of the faults, you will need an ordinary tester. With its help, you can easily ring the wires and locate the breakage point. Then a soldering iron is connected to the case and the malfunction is eliminated.
Before starting to search for wire breaks, you need to make sure that the thermal sensor in the vacuum cleaner has not worked and that the motor has not been forcibly de-energized.
This happens when the vacuum cleaner has been in operation for a long time. No repairs are required here. After cooling down, the performance of the vacuum cleaner will be restored automatically.
If during operation the vacuum cleaner vibrates or squeals are heard grinding, it means that there is a problem with the bearings. They need to be lubricated, and it is best to replace them immediately. The presence of sharp sounds in the bearing assembly indicates the development of its motor resource.
And the last trouble - the power wire is not tightened ... Repair in this case is also not very difficult. Here the problem may most likely be in the spring. You need to get to the winding drum and inspect it. It is possible to weaken the spring or vice versa, tighten it. If everything is fine here, then you will have to remove the drum and unwind the wire from it (or vice versa, rewind it). This will adjust the tension force of the drum.
During inspection, it is necessary to check the performance of the pressure roller. Vacuum cleaners of any brand are not immune from such a malfunction, when the engine speed is no longer regulated. In this case, the problem needs to be looked for in the electronic control unit ... It is simply not recommended to repair it yourself.
The process of disassembling and repairing a Samsung vacuum cleaner is not very difficult. It can be done independently with minimal knowledge of electrical engineering and the ability to handle a locksmith's tool.
VIDEO
