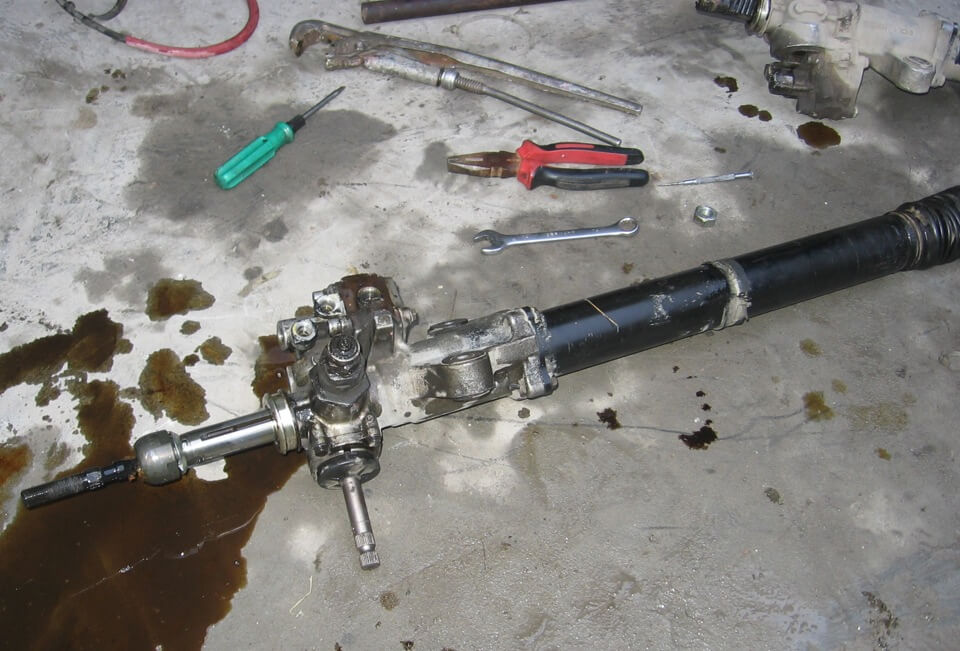

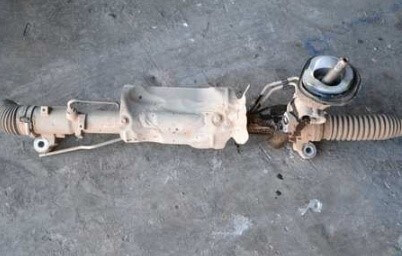

The steering rack is a device that transfers the applied force from the steering wheel to the columns and tips, which, in turn, allow the front wheels to turn synchronously. The most loaded node of the control rack is considered to be the connection among the gears and the toothed base. Most often, problems appear in this pair. It can also be simple gear wear or physical destruction. Often, the steering rack mechanism works without problems, but if used improperly or through a measured load, the steering rack can break and cause inconvenience to the driver.In such cases, repairing the steering rack Ford Focus 2 is the only option to protect yourself from troubles when operating a car.

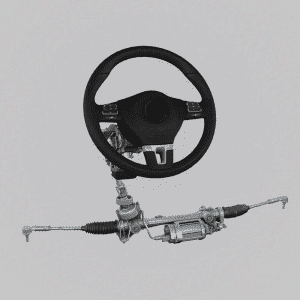

The steering rack of a car is an important part of the steering. The mechanical rail is an ordinary device. This is a gear structure mounted on the steering column, which works with a rack and is connected to the drive of the steering link trapeziums. A hydraulic rack is installed on many modern cars. Such a steering river is more convenient to control, because it is connected to the power steering and allows the driver to apply less force while driving. There is also an electric steering rack. Its distinctive feature: there is no hydraulics in the mechanism, and the efforts when controlling the steering wheel are carried out by an electric motor.
The main task of the steering rack is to ensure the synchronization and maneuverability of the wheels, therefore it needs special care. Repair of the Ford Focus 2 steering rack is required in such cases:
If, after the car is idle, there are traces of leaks, then it is necessary to make a complete diagnosis of the steering. And restoration means: replacement of oil seals, anthers and seal rings. If the steering rack is only slightly deformed or rust has developed in it, then it is necessary to grind it, which will be absolutely sufficient.
No hum or tapping should be heard during operation of the steering racks, therefore, if such signs of breakdown are found, they should be immediately eliminated. Most often, a malfunction can be detected when the car is moving, namely when entering a turn. And also there may be jolts to the steering wheel, which confirm that the steering rack is in a faulty condition. Similar difficulties may require restoring bushings that were previously worn out or replacing the gear element of the mechanism. The main reason for premature wear of steering parts is a torn boot, through which moisture and dirt enters the steering rack. As a result, they settle on the worm pair and the backlash increases.
It should be noted that during the repair of the Ford Focus 2 steering rack with your own hands, you may encounter uncomfortable overcoming of various irregularities and other factors that will cause discomfort. In the second generation of this vehicle, the steering crankcase is located under the bonnet and attached to the front suspension. In addition, it is equipped with an energy absorber, which gives greater safety to the steering position adjustment system and the mechanism in the ignition lock. And also in the steering column there are mechanisms that are responsible for additional functions of the car: a direction indicator, turning on the headlights and controlling the washer and cleaner. Without exception, all of these hardware organs are connected to a single source of steering column switches.
Thus, you can start describing and watching a video of repairing a Ford Focus 2 steering rack with your own hands.

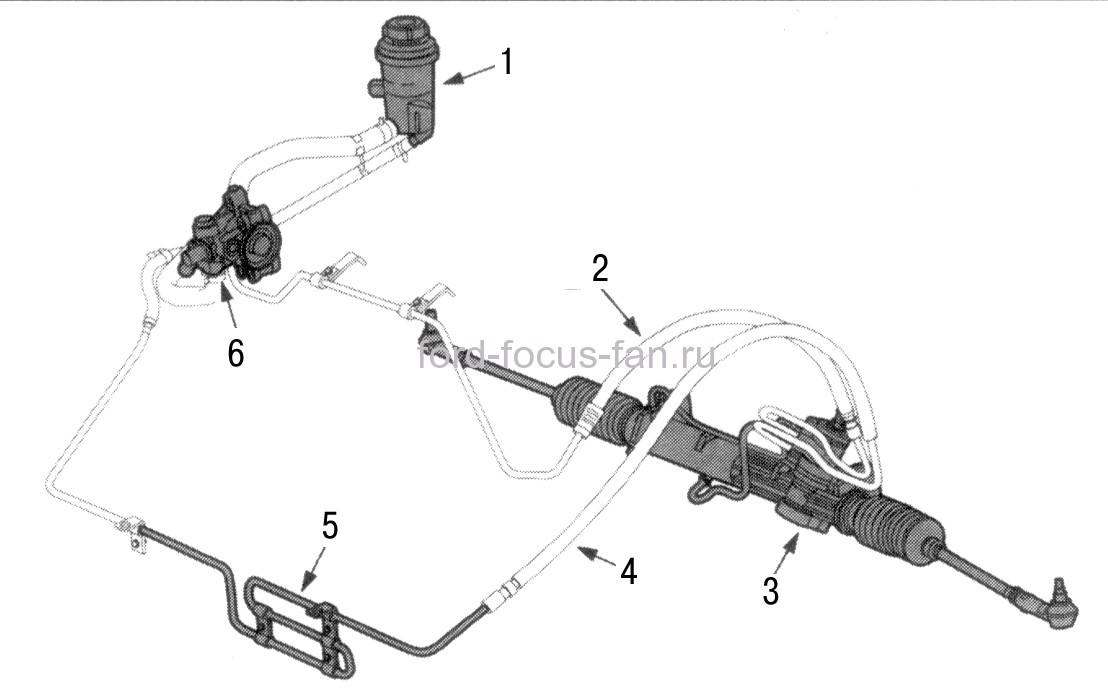

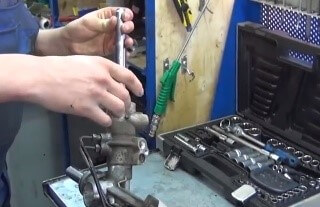

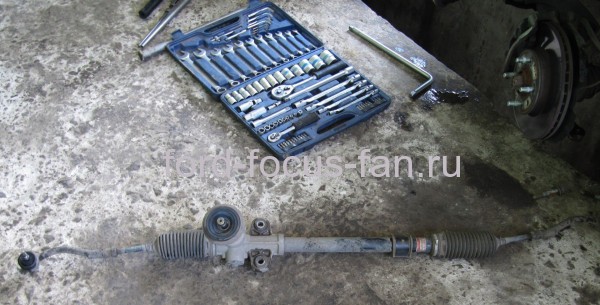

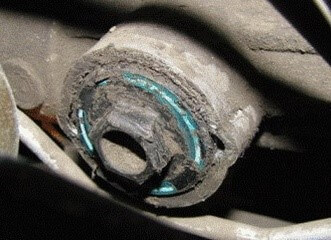

A standard set of tools is required to repair steering racks. In frequent cases, a malfunction of the mechanism is associated with wear of the bushings and rack teeth. The structure of this type does not withstand strong shocks and mechanical loads, which, in principle, is impossible on our roads. To fix the problem, you will need to go through and replace some parts. And to extend the service life of parts, you can buy reinforced mechanisms that will last much longer.
This completes the repair of the Ford Focus 2 steering rack with your own hands. Depending on the specific malfunction, all worn out parts should be repaired in time, which can lead to unforeseen situations on the road.
VIDEO
The steering rack on a Ford Focus car is a device that serves as a connection between the steering tips and the column, and also transmits the applied force. Thus, the wheels are moved and the turn is performed due to the fact that the tips touch the steering levers. They, in turn, are responsible for the movement of the wheels, and therefore determine the further direction of movement. In general, this mechanism works without problems and is reliable, but breakdowns and inconveniences can arise due to improper operation or excessive loading. In this case, repairing the steering rack is the only way out if you want to operate your Ford Focus safely and comfortably.
When there is noise or knocking.
If fluid leaks.
With poor steering sensitivity.
In the presence of backlash.

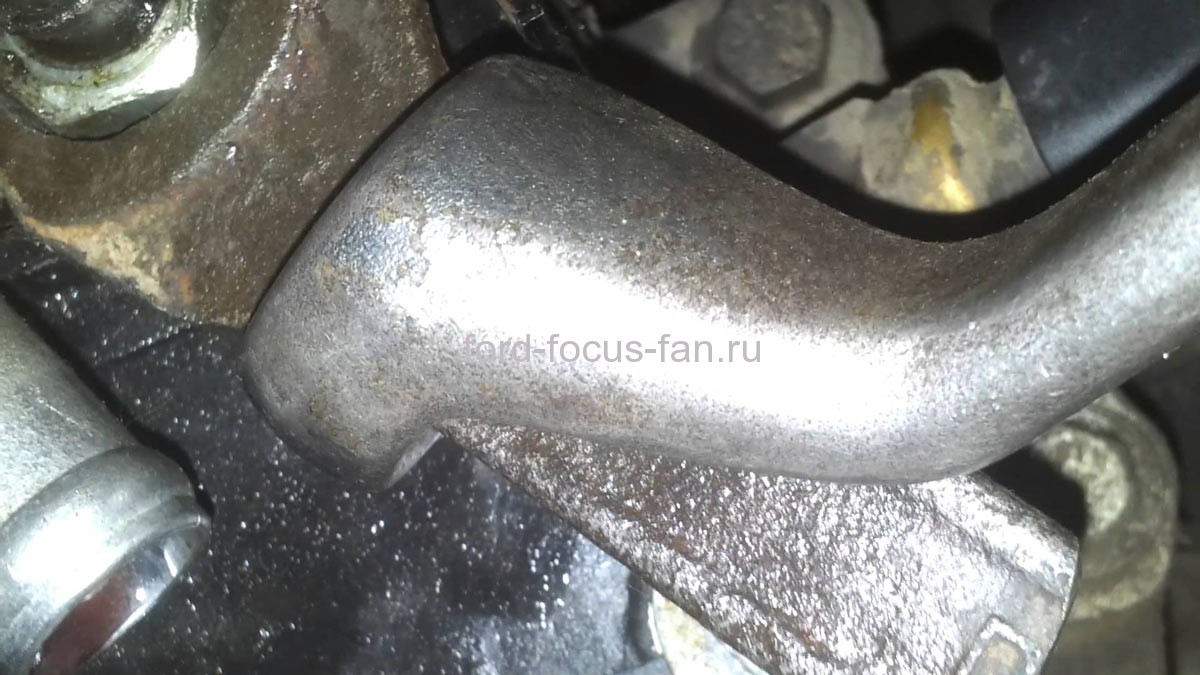

If after parking the car there is a trace of a leak, then you will need to diagnose the steering system, and repairs may involve replacing oil seals, anthers and seal rings. If the steering rack of the Ford Focus 2 is only slightly deformed or corrosion has formed on it, then it will have to be sanded, which will be quite enough.
Noise and knocking should not accompany the operation of the steering racks, and therefore if you find these malfunctions on your Ford Focus, then you should eliminate them. As a rule, they appear when the car moves in a corner. Moreover, jolts can also appear on the steering wheel. Such problems may require repairing bushings that are already worn out, or replacing the gear part of the mechanism.
It should be noted that when there is a backlash in the steering racks on the Ford Focus, you may encounter uncomfortable overcoming of various irregularities, etc.
On a second generation Ford Focus, the steering housing is located under the hood and is bolted to the front suspension. Generally speaking, the stand is quite reliable and secure. In addition, it is equipped with energy absorbers, which are used for safety, a steering position adjustment system and a mechanism in the ignition lock, which, in case of leaving, will block the wheel shaft and it will not turn.
Also on the steering column there are mechanisms responsible for the direction indicators, headlights, washer and wiper control. All these bodies are combined into one block of steering column switches.Among other things, for Ford Focus hatchback or Ford Focus station wagon cars, a rear door glass control mechanism is provided. So, now you can start describing the main features of the rail repair, as well as describing the sequence of actions.
Repair of the rail involves the following actions:
Preparatory work - it is necessary to raise the Ford Focus on the lift, loosen the wheels and disconnect the battery. You can also do with an ordinary pit, but this will significantly complicate your work, and convenience will be a huge question, since you have to put the car on the blocks.
Remove the subframe by unscrewing the mounting bolts. After that, dismantle the steering shaft mount.
We unscrew the bolts that are used to fasten the high pressure pipes.

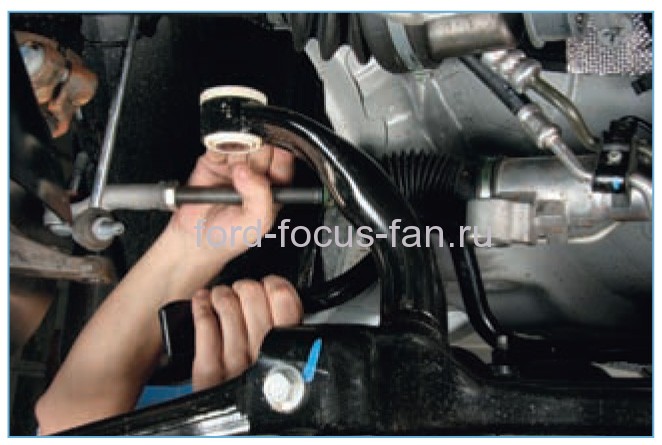

We disassemble the steering rack mounts and completely remove it.

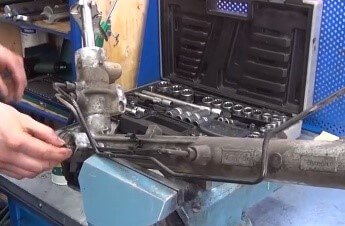

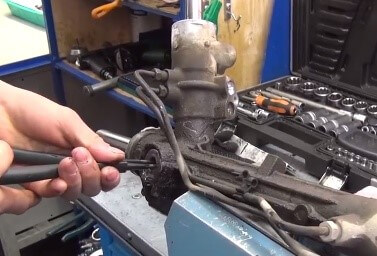

We disassemble the steering rack, clean it well from dust and dirt both outside and inside. Next, you need to wash it thoroughly.
It is advisable to replace the lateral pull-up nut, since it is inexpensive, and in case of failure, the mechanism will have to be disassembled again.
We remove the rod of the rail, which quite often rusts and begins to flow.
We disassemble the rail and, if necessary, replace parts in poor condition.
Rebuilding the stock.
We assemble the Ford Focus steering rack, and then check it using a special stand (if available). It is advisable to cover the anthers with clamps.
We put the steering wheel straight and install the rail back, and also mount the subframe.

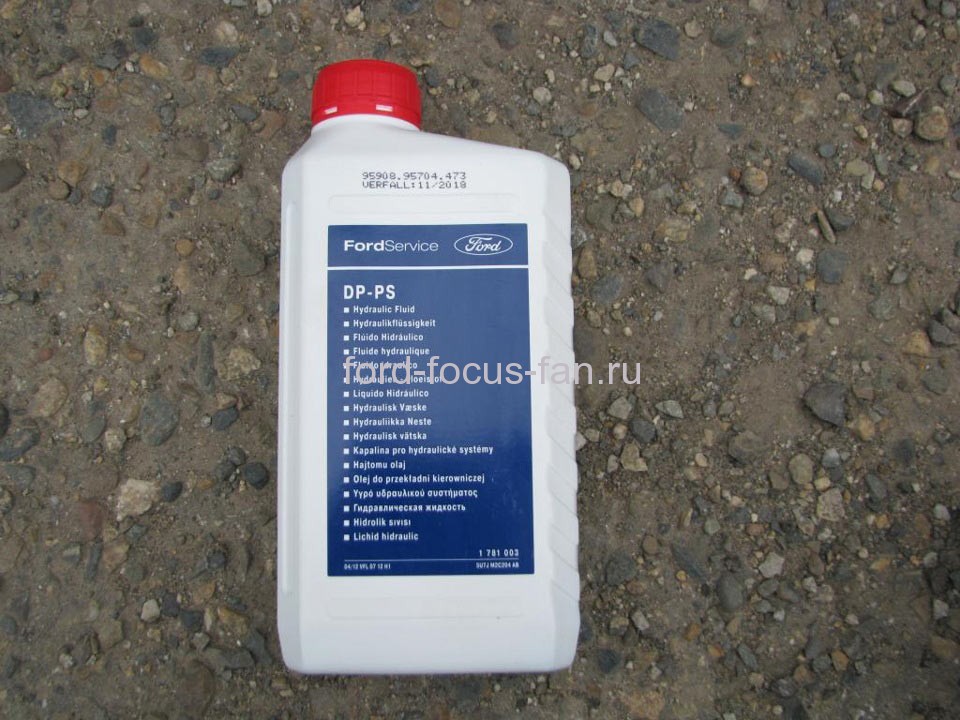

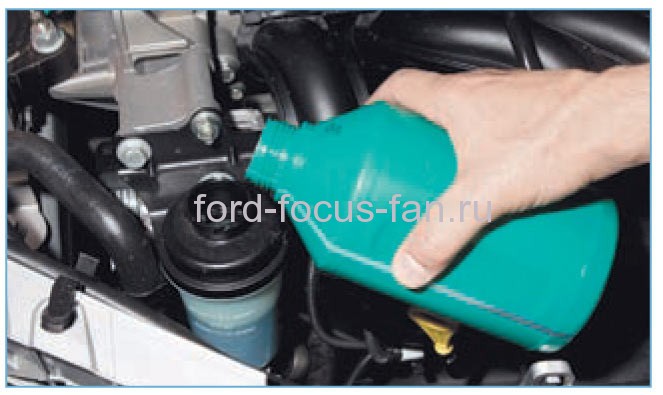

We flush the system and fill in new fluid.
That's all, the repair of the rail is over. Depending on the specific breakdown, it is necessary to replace the worn out parts, after which the steering mechanism on the Ford Focus will be restored and work without problems.
We independently tighten the rail to FF2
Typical symptoms: knocking in the area of the steering shaft on irregularities when passing right bends
Remove the left front wheel to access the plastic green plug (stopper) of the adjusting bolt - you need to pry it out with something like a long enough slotted screwdriver.
We climb under the car, taking with us a key for 17 and a flashlight (if it's dark).
Taking the key in the right hand and the flashlight in the left, we put the right one in the opening between the bottom and the stretcher and look through the same opening at the adjusting bolt, highlighting it with a flashlight on the left hand.
Twist the bolt clockwise (tighten) until light resistance appears, and then loosen it back a little. We start the engine, turn the steering wheel from edge to edge - it should not become heavier at any angle of rotation. If it has become, then it has been pulled over and it is necessary to loosen it a little.
We put the removed wheel in place. Everything is ready.
Someone puts the plug in its place (on a sealant or on glue, because its fastening is disposable), someone does not. There is little sense from it, since the bolt itself, as a rule, does not unscrew, and it is protected from dirt by a stretcher.
The steering parts on the second generation Ford Focus are highly reliable and do not often fail.
It is possible to determine that the steering rack (PP) is faulty by the following signs:
knocks appeared in the steering, they are especially noticeable when driving on an uneven road;
oil flows in the PP.
The main reason for the premature wear of parts in the steering mechanism (RM) is a torn boot, through which moisture, dirt and dust enter the PP, and all this settles on the worm pair. As a result of wear of parts in the steering, play increases, which cannot be removed by adjustment.
When defects are found in the steering rack, the car owner is faced with a choice:
replace the mechanism;
repair the PP.
Often the cost plays a decisive role here, it depends on it whether a replacement or repair is made. The new RM for the Ford Focus 2 model costs an average of 12 to 25 thousand rubles, the price depends on the manufacturer. Accordingly, original production parts are more expensive, non-original parts have a lower price. There is also an option - to purchase a remanufactured mechanism or a used one, you can look for spare parts at auto disassembly sites.
The cost of repairing a steering rack for Ford Focus 2 is about 4 thousand rubles on average in Moscow, approximately 2.5-3 thousand rubles. repair kit PP will cost. It is certainly more profitable to repair a mechanism than to change it, but it is not always possible to restore its working capacity.
Do-it-yourself steering rack repair on any car is not an easy task, it requires certain knowledge and qualifications. If the car owner does not have car mechanic talent, care and accuracy, it is not worth undertaking such repairs. In order to repair the PP on the FF-2 car, it is necessary to remove the mechanism. Parts that fail in the first place:
support plastic sleeve;
worm gear teeth (wear occurs).
To repair the mechanism, it is necessary to disassemble it and make a defect - determine which parts need to be replaced. On the rail removed from the car, disassembly is performed in the following order:
remove the clamps from the anthers, move the anthers closer to the steering tips;
dismantle the steering rods;
remove the locknut;
take out the clamp adjusting nut; After disassembly, all parts of the steering mechanism are thoroughly washed and wiped, and those parts that have defects are discarded. If the rod of the rack is worn out, or traces of corrosion are observed on it, it is necessary to process the surface of the shaft on a lathe.

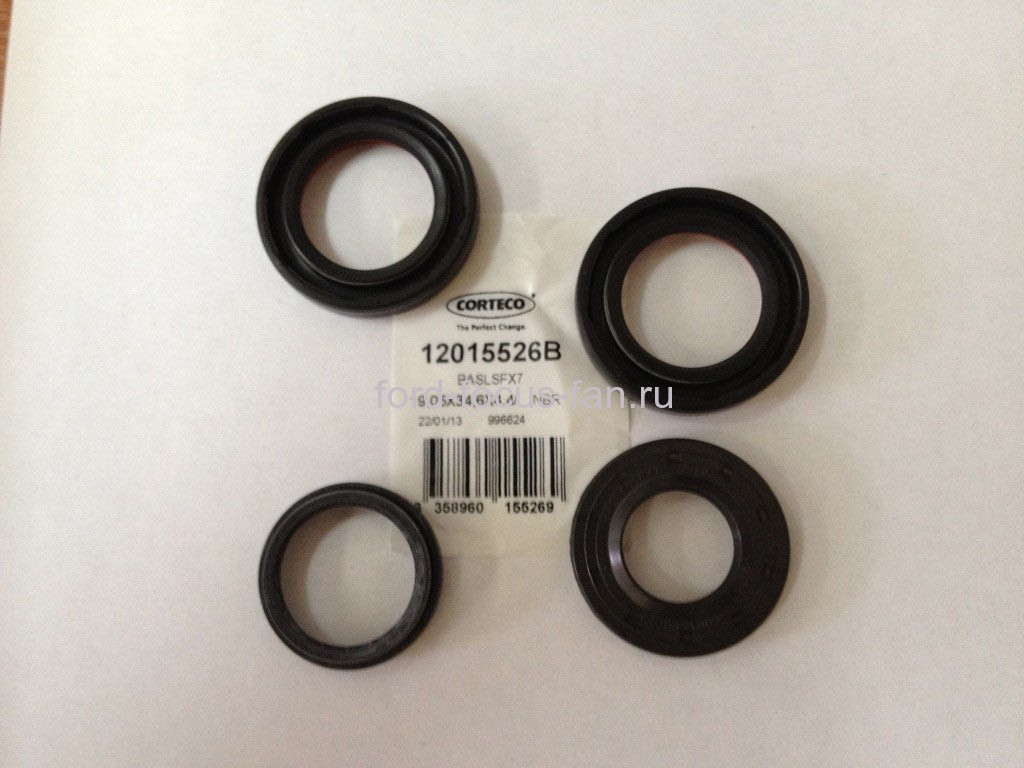

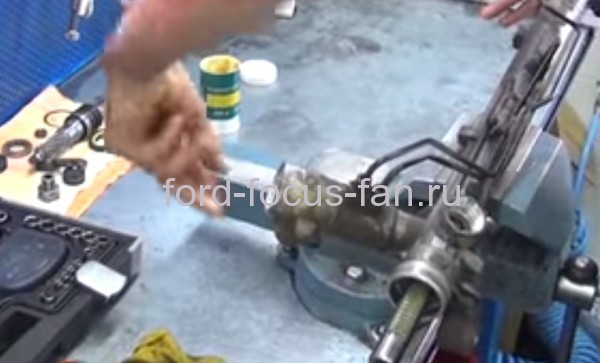

The assembly of the mechanism begins with the installation of the oil seal on the left side of the case. Then:

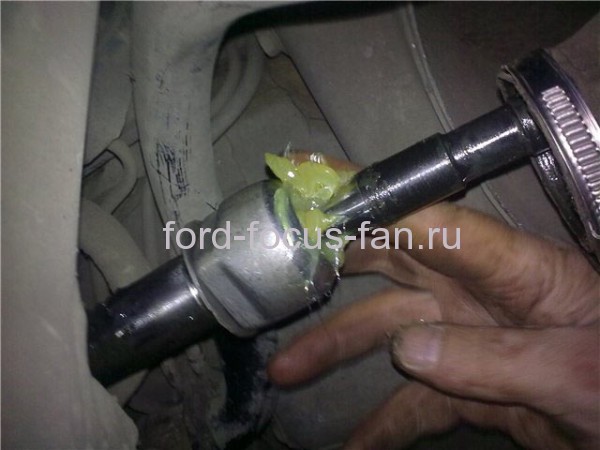

grease the rod teeth with grease, mount the shaft in the housing;
we lubricate the camshaft and install it in the housing;
install an oil seal on the distributor, set it in place, put a stopper on top;
install the clamp parts in place, adjust the rod clamp;
install steering rods, anthers. That's it, the rake is assembled.

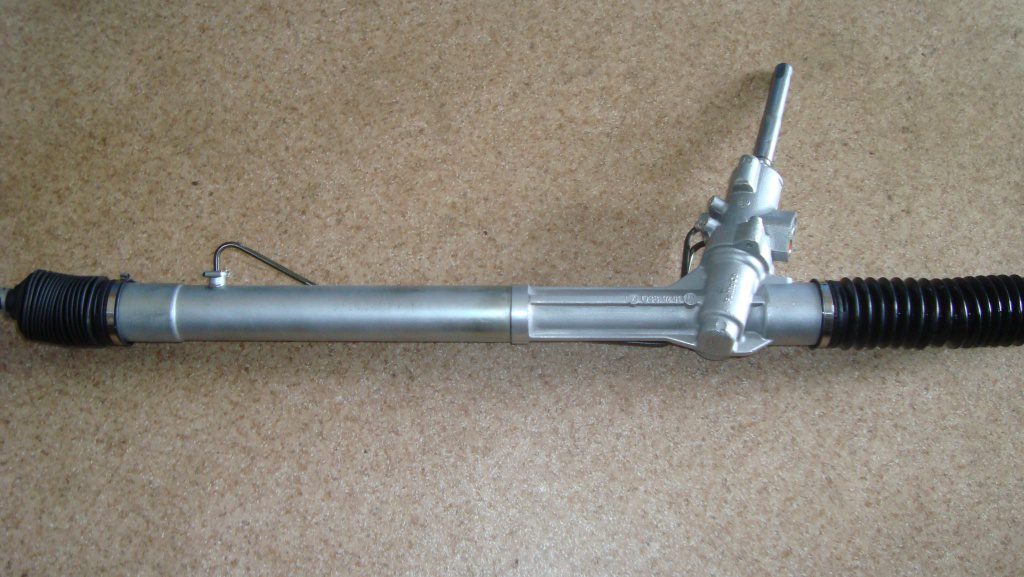

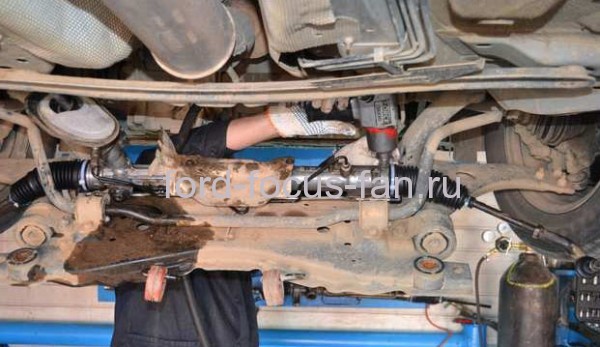

In order to repair the steering rack, it must be removed. We dismantle the PP in the following sequence:
we jack up the car from the right and left front sides alternately, remove the wheels, setting the car on supports;
in the cabin, we untwist the mount that connects the steering column to the steering shaft cardan;

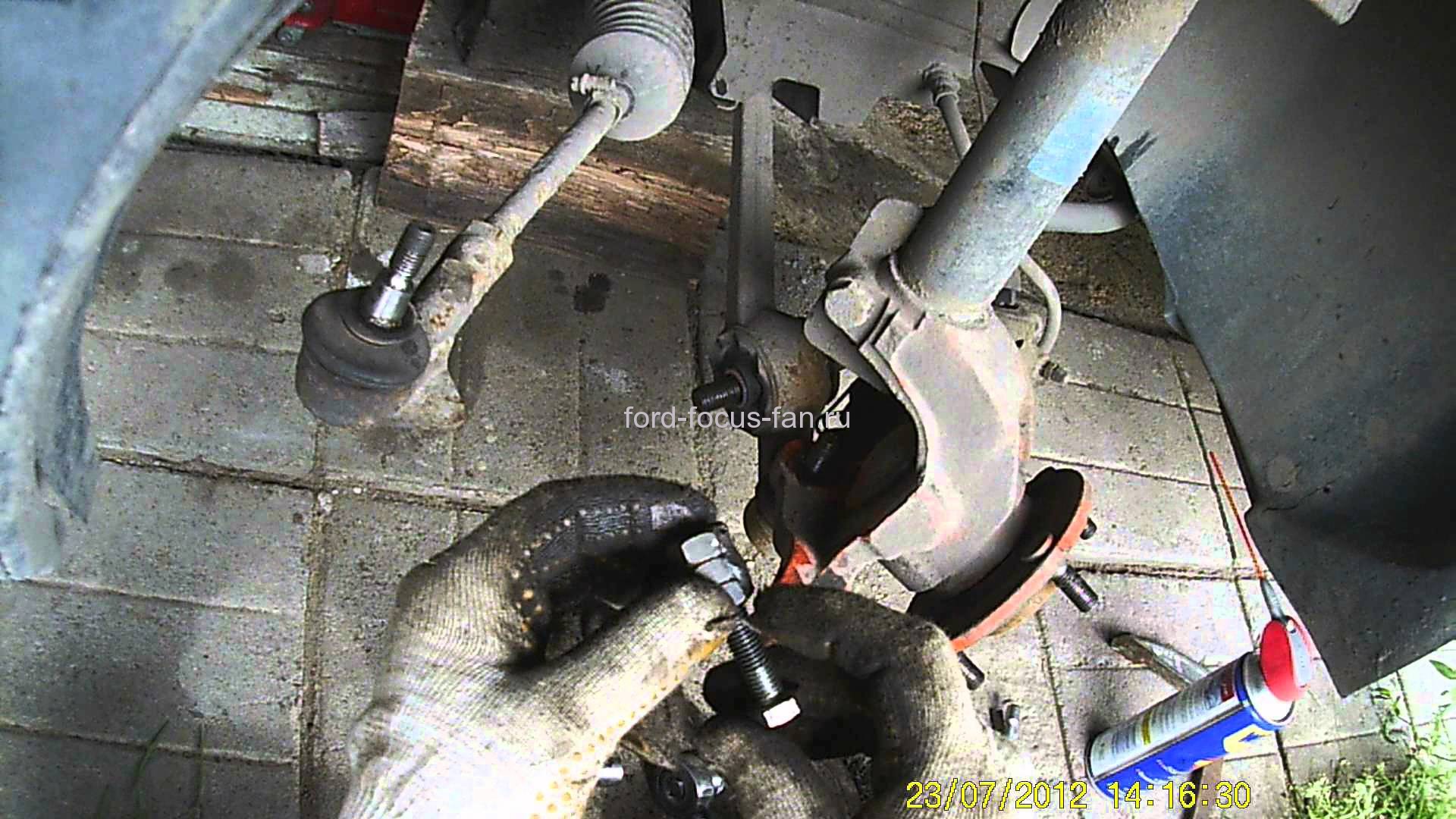

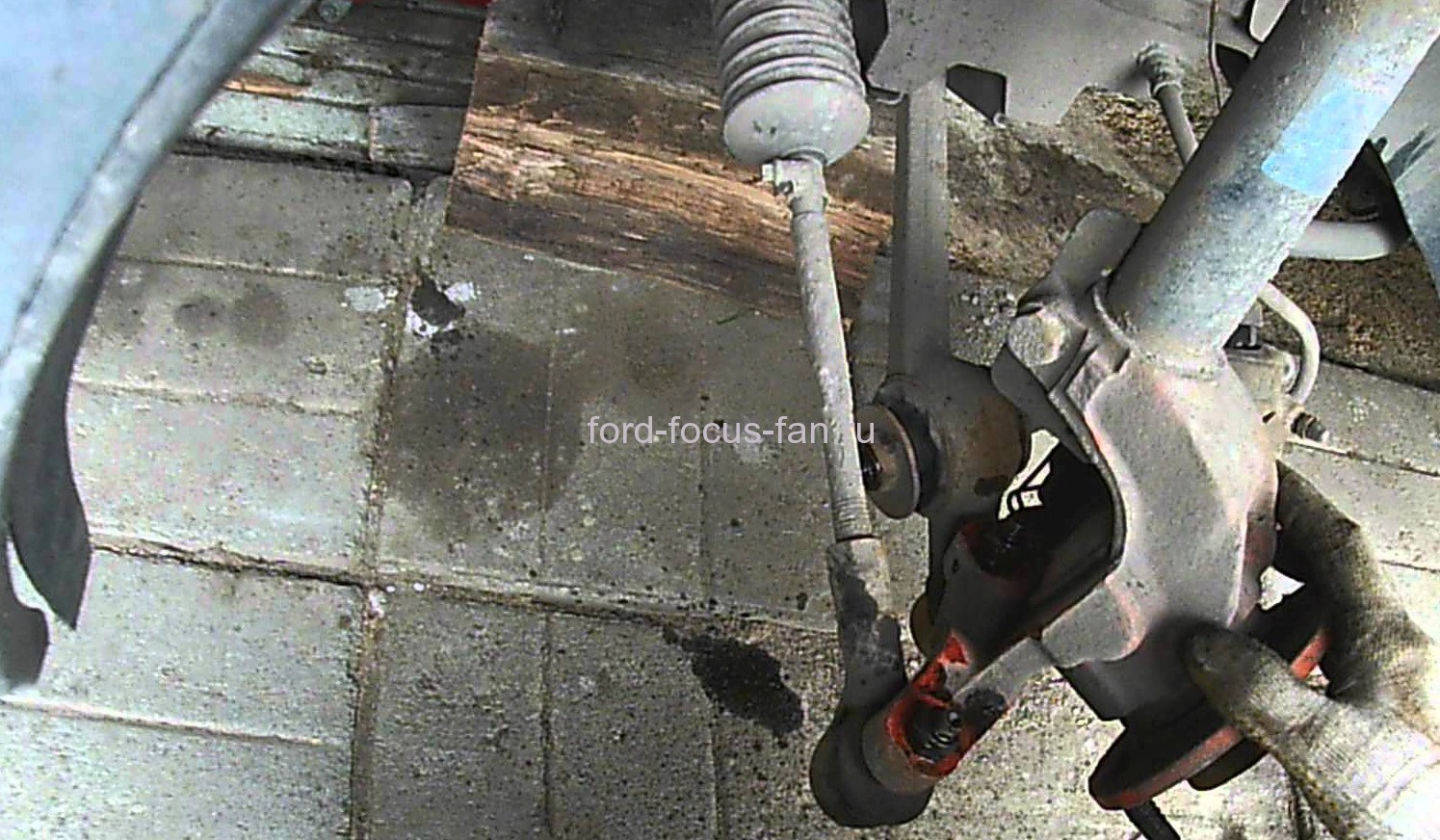

using a puller, disconnect the steering tips from the steering knuckles;
unscrew the bolts of the heat shield, dismantle the shield;
disconnect the tubes that supply oil to it from the rail;
we unscrew the two PP fasteners to the subframe, for this you need a 15 spanner key or a head with a knob
dismantle the rear gearbox support;
unscrew the subframe bolts, dismantle it together with the rail.
During the operation of the car, knocks may appear in the steering system, as a rule, knocking:
tips;
traction;
the rack itself due to the increased clearance in the connection between the rod and the camshaft.
The gap in the joint is not always formed as a result of wear of parts; in some cases, adjustment is required. The adjusting bolt is located on the left side of the housing on the PP from the inside; from the factory it is protected from turning by a plug.

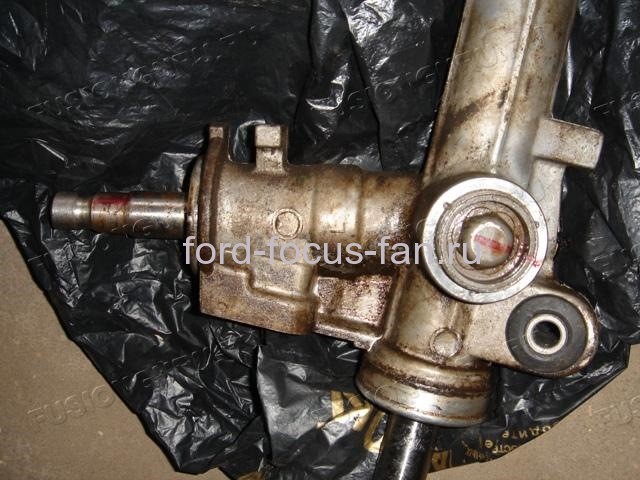

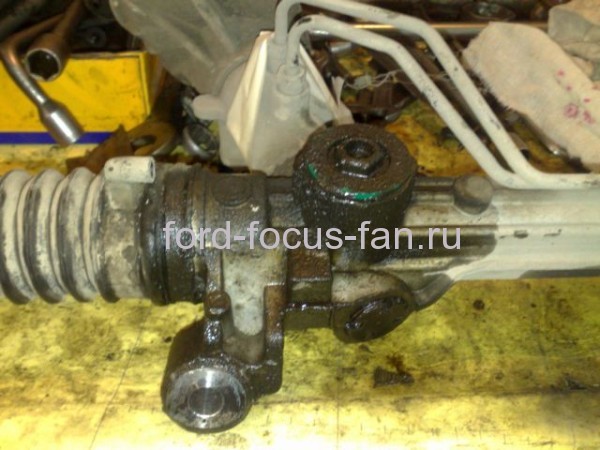

If the rail has never been tightened, the plug should be removed - it is plastic and fragile, you can pry it off with a screwdriver or crush it into pieces.The adjusting bolt has 17 mm edges and is tightened clockwise to reduce the gap. You need to tighten the rail with a short key; it will be difficult to crawl up to the nut with a long key. It is not necessary to pull the bolt all the way to the stop, it is better to turn it a little and try to ride the car, check if there is still a knock.
It is not necessary to put the stopper back, the bolt itself will not turn anyway. Time work takes 20-30 minutes, the most difficult thing here is to get to the adjusting bolt.
Before removing the mechanism, it is necessary to prepare a container for fluid; when the pipes are unscrewed, the hydraulic oil will flow;
If the rack rod is heavily rusty, most likely, repairs will not help here, a complete replacement of the mechanism is needed.
Removing the PP is convenient when the wheels are straight.
While operating the car, it is necessary to periodically monitor the condition of the rail. If the boot is dripping, it should be replaced immediately.
PP repair is a rather complicated operation, it is better to entrust such work to professionals.
VIDEO
If you managed to drive your car for more than half a hundred without hearing such characteristic sounds, consider yourself lucky and get ready to listen. The fact is that the knock on the rail on the Focus 2 is a design flaw.
Dealers know about it, although they are silent when selling. And if you contact them soon with a question, most salons will tell you that there is nothing to worry about: this is normal. There was even a special dealership-Ford term: "cosmetic knock". The problem is that it still indicates a problem with the rail. If it were just a soundtrack of movement, one could get used to it. But the appearance of such an acoustic accompaniment indicates that the time has come to pay increased attention to the filling of your car.
Knock on the steering rack Ford Focus 2 appears necessarily, however, it is not always possible to eliminate it. Our goal is to still try to ensure the normal and comfortable operation of our car, even in spite of the flaws of the engineers.
What can happen when driving on our roads:
The bushing is covered with a pair of worms. An approximate symptom will be a specific knock coming from the front suspension when you turn the steering wheel;
If the distributor rod is worn out, the rumble is accompanied by an off-design steering play, and it significantly exceeds the correct indicators;
In a pair of worms, the teeth can be damaged (or worn out). In this case, the steering wheel will get stuck when cornering. Drivers refer to this phenomenon as biting;
Seals may be damaged or corroded. An additional sign of problems with them will be fluid leakage and premature emptying of the tank;
The rail, among other things, does not have high anti-corrosion qualities. With active driving, already on the way to a run of 50,000 km, it can rust to a high degree. A symptom parallel to knocking is difficulty turning the steering wheel.
The main disappointment for the owners of Ford Focus 2 is that chamber movements are indispensable in determining the causes of the appearance of dubious sounds. There are no more vulnerable nodes in this part of the car; they are all equally likely to suffer.
You will have to completely disassemble the rail and look for what exactly makes you nervous while driving. In this case, it can only be repaired if two boundary conditions are met:
the bearing rack and pinion shaft is not deformed or bent;
the same shaft is not corroded.In any case, to such an extent that anti-rust cannot cope with the converted layer. Scientifically speaking, the corroded surface is no more than 30 percent and the depth of the lesion is no more than 1 mm.
If the shaft is bent or heavily rusted (all the more so when both indicators are combined), the only way out is to completely replace the rail. The starting price of the issue is 30,000 rubles, and very few people manage to keep within it;
With the likelihood of avoiding such global costs, the algorithm of actions is as follows;
The machine is lifted by a lift or driven into a pit. Jacking up will not work;
Focus steering rack repair has a number of specific points. Let's start with the fact that generations of Focuses replaced each other along with the design of the steering rack.
Unites all generations steering rack focus one - problems with a biscuit.

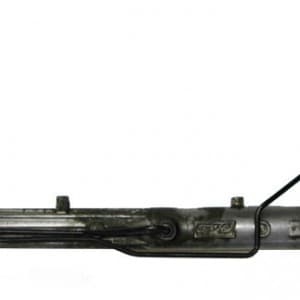

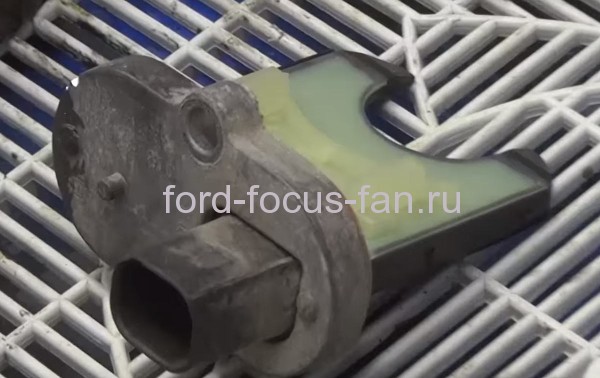

Rusk in steering rack focus it is needed to stabilize the rack-shaft against vertical movements and simultaneously press the teeth. The shaft-rack in an ideal rack should only move along its axis (to the left or to the right along the direction of the car), but not otherwise. A malfunction in which the shaft-rack begins to dangle up and down is caused by wear of the crankcase of the cracker and the cracker itself, or squeezing out the plastic plug of the cracker.
