In detail: do-it-yourself repair of rowenta brush activ 1000 from a real master for the site my.housecope.com.

In everyday life, a large number of electrical appliances are used to make life easier for the layman. But any technique tends to fail over time. Repairing a hair dryer can be easily done with your own hands at home, without asking for help from a service center.

A hair dryer is a device that is used to dry and style hair. It consists of the following structural elements:

Engine;
TEN - heating element;
Fan;
Thermal protection;
Power cable;
Regulators (fan speed, temperature, etc.).

The principle of operation of the household hair dryer is based on a low-voltage DC collector motor. In order for the device to turn on, a special lowering coil is used in its design, which helps to drop the voltage to the required level. It is installed inside the heating element. With the help of a diode bridge, the voltage is rectified. The engine has a steel shaft on which a fan is mounted (in most cases, it is made of plastic, although there are now professional models with metal blades). The fan can have two, three or even four blades.

Photo - hair dryer design

The heating element of an electric hair dryer is presented in the form of a spiral with a nichrome wire. It is wound on a non-combustible base, which increases the safety when using the device. When plugged in, the coil begins to heat up, and the fan installed behind it blows warm air out of the hair dryer case. To protect against overheating, a temperature controller (adjustable during operation) and a thermostat are used. In addition, any hair dryer has a "cold wind" or "cool" button - when you press it, the spiral stops heating up, only the engine and the fan remain to work, respectively, cold air blows from the nozzle.

Video (click to play).

Photo - filter

It should be noted that not all equipment has a thermostat. It is designed to control the heating of a block with nichrome during long-term operation of the device. For example, it can be a stationary professional hairdryer (used in hairdressing salons). When the coil reaches its maximum allowable temperature, the thermostat cuts off the power. After cooling, the contacts are turned back on.

Photo - nichrome spiral

Typical malfunctions of the Bosch LCD hair dryer (Bosch), Valera, Skil, Vitek, Scarlett (Scarlet) and others:

Smells burnt. The smell can come from the coil, which has gotten the hair as a result of careless handling, or from burning of the internal parts of the circuit;
Hair dryer does not turn on. The reason may be a breakdown of the engine, a broken power cord, a lack of voltage in the network;
Decreased work efficiency. The power of the device depends on the cleanliness of the filter installed on the back of the case. If it gets clogged, then the device will start to work with less efficiency;
The fan rotates very slowly. Most likely, something just bothers him;
Hair dryer Braun (Brown), Philips (Philips) or Rowenta (Roventa) does not heat up. There are several reasons why this happens: the cold air button is blocked, the spiral is broken, the circuit is damaged, the thermostat does not work.

Photo - model for drying hair

Before starting repairs, you need to know how to disassemble a Parlux, Saturn, Moser or Jaguar hairdryer yourself. There is nothing complicated in this, you just need an instruction and a screwdriver:

There are two bolts on the back of the body. They need to be unscrewed and carefully removed. In some cases, there are more of them, make sure that all fasteners are removed;
In parallel, you can also remove the cover from the top panel - there is a fan under it.Most often it is simply pressed against the body, so it comes out without problems if you pry it with a screwdriver;
Under the top panel of the case there is a mode switch and a cold air button. Several wires are installed on the panel. Which are connected to the pins of the circuit. For further disassembly, they will need to be removed;
Now you can remove the coil from the hair dryer head. It is necessary to act carefully, otherwise it may break, remove only after making sure that all fasteners have been removed;
Under the spiral, respectively, there is a motor. Most often there is no need to get it, since almost all malfunctions will be noticeable immediately at the place where the motor is connected to the contacts of the heating element. An exception is the need to replace a part, then a major repair is made.

Consider how to make an independent repair of a hairdryer Babyliss, Rowenta Brush Activ, Bosh, Remington and others at home. First of all, you need to clean the fan and motor shaft from hair. There are a lot of them there, even after several months of intensive use. To do this, you need to remove the back top panel and cut the hair, then simply remove it with tweezers or fingers. In no case should you wipe the parts with a damp cloth - this will damage the contacts. This is done anyway, regardless of the problem.

Photo - fan

If it smells burnt, then you need to repair the spiral and filter. They can be cleaned with a dry soft brush. Just wipe the heater teeth and clean the filter. Be careful not to break the contacts during the cleaning process.

Photo - Cleaning

If the hair dryer does not turn on, then you need to check the power cable right away. Most often, it breaks at the base, because during operation, the hair dryer rotates many times in different directions along its axis. If everything is fine with him, then look at the contacts on the spiral. There may be 2, 3 or 4. When the device falls or is bumped, they are sometimes unsoldered, which causes the motor power to be cut off.

When the breakdown is related to the fan, it is as easy as shelling pears to repair the device. The first step is to check if the blades are intact. Of course, the efficiency of their work does not change too much from their state, but if cracks or notches are noticed, then it is better to immediately change the propeller. Then inspect the shaft. Sometimes small parts or other debris fall into the nozzle of the hair dryer, blocking the shaft, and it starts to spin slowly.

Now let's discuss the reasons why the spiral of dry warm air does not heat up with a professional Coifin, Steinel or Lukey hairdryer. As we said, there can be several reasons. For example, the cold air button is stuck. The principle of its operation is as follows: when you press the button, the contacts inside the case open, as a result of which the heating coil stops working. If it is open all the time, then the spiral simply cannot start heating. If the problem is not in the button itself, but in the contact, then you need to solder it yourself.

The cause of the breakdown may lie in the broken coil, its repair is a little more difficult to carry out than cleaning. In some models, it is made of low-quality material that breaks easily from impact. If some notches are missing on the base or mother-in-law is visible, it is replaced.

Video: how to repair a spiral in a hair dryer

A hair dryer consists of a motor, a fan, heating elements, an electrical circuit that makes the elements work in concert. Depending on the number of modes, the manufacturer, the element base, appearance, and the composition of the switches are different. But nothing more complicated than a semiconductor thyristor will not be inside. Therefore, we will carry out home repair of hair dryers with our own hands.

The body is held in place by screws. The heads are often of a non-standard design. This is a plus sign, an asterisk, a pitchfork. Therefore, first of all, before fixing the hair dryer, let's take care of a tool that can cope with such a task. Fortunately, a set of bits costs 600 rubles today.

Sometimes the case flaps are additionally fastened together with special latches.This is a separate problem: experienced craftsmen often break plastic, desperate to cope with civilized methods. There are no subtleties, they come up with hidden screws hidden under stickers, plastic inserts, removable regulator caps. The fasteners are fictitious. There are no useful functions.

The hair dryer motor is powered by direct current 12, 24, 36 V. To rectify the mains voltage, a diode bridge is used, in cheap models - a single diode. The filtering of power harmonics is carried out by a capacitor connected in parallel to the motor windings or as part of a more complex filter. Inductors are rarely used in hair dryers due to their exorbitant mass. Therefore, knowledge of the principles of smoothing pulsations with RC-chains is enough to cope with the construction of a schematic diagram of a hair dryer being repaired. Sometimes a single coil (inductance) is used by the filter element.

The hair dryer switch simultaneously closes the circuit through which the spirals will be powered, starts the motor. Further schematic of the intervention is determined by the complexity:

only the rotation speed or only the temperature is regulated;
the ability to select heating and air flow rate separately.

In most models of hair dryers, in parallel, there is protection against turning on the heaters when the motor is inactive. Protects the spiral.

Optionally available thermostat in the form of a special resistance or other sensitive element. Let's describe the breakdowns encountered by the faithful helpers of the beautiful half of humanity.

If the device is devoid of signs of life, it is unstable, the inspection begins with the power circuit. The repair of Rowenta hair dryers is schematically described below.

Attention! The described types of work require skills in handling electrical appliances. The authors disclaim responsibility for damage to health, property, arising from attempts to follow the recommendations given for repairing hair dryers.

Inspection of the power cord begins with a socket. There is a part of the malfunction: there is no voltage - the hair dryer does not work. If there is voltage in the outlet, the inspection of the cord begins with the entry point into the case, walk towards the plug. Work is performed on a de-energized device. A visual search for fractures and irregular formations - burners, insulation damage, fractures is carried out.

Then the case of the hair dryer is disassembled. Inside you have a chance to see the options for electrical resistance:

A pair of detachable contacts.
Soldering.
The wiring is sealed in plastic caps.

The last element of the list characterizes a non-separable connection, therefore, the case for testing is too complicated. Skillful hands, or rather, smart heads, Ukrainian brothers in mind are advised to use an ordinary needle to repair a hair dryer. Those who immediately grasp the train of thought will skip the next paragraph, start testing directly.

Do-it-yourself hair dryer repair begins with a continuity of the wiring. A Chinese tester, a light bulb, an indicator will do. A needle is attached to one terminal, which is then inserted into the power core in the area of the cap through the insulation to copper. The second terminal probes the legs of the plug. The call goes through for both cores. It is not worth doing more than 1 puncture per core when repairing a hair dryer (some will try to look for the breakage point as well), since the nature of the operation involves the ingress of moisture from wet hair.

Even a child can ring the wire, having visually distinguishable docking points in front of his eyes. If damage is found, it is recommended to buy a new cord fitted with a non-separable plug. The likelihood of moisture ingress imposes restrictions on the choice of insulation of conductive parts used to repair a hair dryer.

Cases are common: the first glance reveals the place of damage to the cord entrance into the case.Slabs, carbon deposits, black insulation indicate the location of the fault.

At the junction with the body of the hair dryer, there is a vulnerable point of the wiring. The hostess takes the delicate device by the cord, shakes it from side to side, winds the cable around the handle. A vein with a crack sparks, the insulation heats up, burns out, the copper melts. This is the mechanism of damage to copper conductors.

When updating, it is useful to short-circuit the switch, check: the hair dryer will change the behavior radically in response to an uncomplicated step. There are three-position switches, each position in a short-circuited state is checked separately. Remember, sketch out the original wire layout before you start fixing the hair dryer.

Checking the speed, temperature switches uses a similar circuit.

Examine the defective element identified during the restoration of the hair dryer. The carbon deposits are cleaned off with a file, sandpaper, eraser. The contacts are wiped with alcohol. Defective components are replaced with equivalents. A radical method is to short-circuit the power button while searching for suitable components.

Relatively often, the air duct is clogged with a hair dryer. It is necessary to remove the filter, if any, and clean it thoroughly. Remove dust from crevices with a soft brush.

Lack of blade rotation or low rpm is often observed when the hair is coiled around the motor shaft. The propeller must be carefully removed from the shaft, in every possible way avoiding unnecessary efforts and distortions. After that, foreign objects are removed.

A hair dryer usually has several heating elements. Visually, they should all look uniform. Make sure of this when fixing the hair dryer by opening the case. The detected breaks are eliminated by twisting the ends, soldering and tinning. You can also get some thin copper tubes and squeeze the ends of the broken spiral inward.

We observe defects in heating elements during repairs visually. A close inspection will tell you how to fix your hair dryer. Replacing spirals with similar purchased or home-made products made of nichrome wire is effective.

The electric motor of the hair dryer can be powered by both direct current and alternating current. If the diode bridge is burned out, the windings are damaged, normal functioning is impaired. A terrible crackle and sparks when turned on indicate a malfunction of the motor.

The motor windings are desoldered when the hair dryer is repaired from the electrical circuit. Find a pair for each wire that rings. The conclusions are connected in threes, none should hang in the air. Replacement of the winding when repairing a hair dryer is carried out only in a workshop. However, folk craftsmen shake not worse than machine tools. Those who wish will try.

If the windings are in good working order, the brushes are examined, the copper surface under them is cleaned, and the tightness is estimated.

The axis should rotate freely. When repairing a hair dryer, it will not hurt to lubricate the rubbing surfaces, to manually break in problem areas.

The getinax backing sometimes cracks, tearing the track. Tin the damaged area, lightly cover with solder.

Broken capacitors swell slightly. The top edge of the cylinder contains shallow slots, when the product breaks, the sidewall inflates, bending outward. Replace such a capacitor first if you find a characteristic defect.

Burnt-out resistors darken. Some remain operational, it is advisable to replace such a radio element.

Some hair dryers are self-regulating. The effect is achieved by using a resistive divider, one arm of which is an element that responds to temperature. Further actions are determined by the parameter control implementation scheme. We recommend:

eliminate the sensor altogether by breaking the circuit, try the device's reaction;
short-circuit the wires after that, turn on, see what happens.

There is a great chance of failure if the device is trained to respond only to a fixed resistance value. It remains to look for a schematic diagram on the Internet or draw it yourself.

Repairing professional hair dryers is more difficult. Structural elements are often complemented by smooth controls and additional options such as the Care button. The spirals are made of special alloys that create negative ions when heated, which have a beneficial effect on the hair. The technique remains the same:

cord;
switches and buttons;
dust removal;
spirals;
motor;
visual inspection of capacitors, resistors.

Before repairing it, it is advisable to get a schematic diagram.

Industrial models are not much different from household ones. But drying your hair is not recommended. Such products are distinguished by their increased resistance to dust, shock, vibration, humidity, and other climatic factors. Home restoration of industrial hair dryers will not end well.Electric radio products used in household models are not suitable for use in harsh environments. Requirements apply to wires, power cord, motor and coils.Today, all women, and often men, use a hairdryer to dry their hair quickly. There are many varieties of these products, but the principle of operation and design are the same, only sometimes there are small technical nuances. If you are thinking, for example, about how to disassemble the Rowenta Studio Dry 2000 hair dryer, then you should immediately warn that its design is no different from other analogues, with the exception of the Rowenta CF 9320 or 9000 models, which are considered hair dryers.Any model of Rovent hair dryer has basic elements in stock, without which it cannot function. These knots and parts work together to do the main job of drying hair of any length with excellent effect, and some, with badge ION - make air ionization for better styling.Each product has switches, the appearance and number of which is different, but the principle of operation is the same.According to experts, the most difficult part of the device is a thyristor, so it is not difficult for users to repair a hair dryer for drying hair with their own hands.The picture below shows the main components of any hair dryer:

fan;

Electrical engine;

protective grill of the air intake;

the basis of the hair dryer is a heating element;

heat-resistant base;

start button;

thermostat switch;

power supply cord;

handle end lock;

block of contacts.

Repairing a hair dryer of any complexity begins with a visual inspection of the product - there is not much difference here, whether it is done by a specialist or a user who dared to do everything with his own hands. We will tell you step by step how to diagnose the product.First, you should carefully inspect the outlet for burning contacts or their looseness. If malfunctions are found, clean or tighten the contacts, the plug should enter them with some effort and not dangle at the same time. Image - DIY repair rowenta brush activ 1000

It is necessary to inspect it from the place of entry into the handle of the product: it is located here contact block, and then the inspection continues until the plug itself - it is necessary to look for damage to the insulation, internal burns and a break.

As a rule, disassembling a hair dryer begins with dismantling the body, which consists of two halves that are connected with screws, and in the front part of the nozzle with special latches. These latches can be broken, so be careful and there are hidden screws that cover stickers, plastic inserts, and removable covers.

Models of Rowenta hair dryers are quite similar in appearance, for example, the Rowenta Pro 2300 model is disassembled in the same way as other standard hair dryers, but hair dryers-combs understand a little differently - they have their own design features. This must be taken into account when you are going to repair the product yourself - you need to carefully read the instructions and watch the video on disassembling your particular model.

They put in front of him protective grill and filterthat prevents hair and dust from getting inside.Quite often it clogs up and needs to be cleaned with a small brush. In budget versions, there is only a grill, so the fan can slow down due to the presence of hair and dust on the shaft. The blades of the device are cleaned with an old toothbrush, and the propeller must be carefully removed from the shaft and coiled hair removed.

If it does not work correctly, then the whole device jumps, which happens when the winding breaks down or the diode bridge burns out. In some cases, the brushes are to blame - their maximum development has occurred.

The axis of the engine should rotate without beating and in free mode, after any repair, all rubbing parts should be lubricated, and problem areas should be adjusted manually.

Many models have several spirals, with the help of which the operation of different modes of heating the air flow is carried out. Their integrity is restored by soldering, and all defects are easy to detect visually. Sometimes the spirals should be changed to similar products. from nichrome thread with identical parameters.

Let's analyze the typical types of malfunction:

the base of getinax can crack, while the tin track is torn, the repair is carried out according to the following technology - tint the damaged areas, cover with solder;
capacitors swell - they are evaporated and new ones are installed;
defective resistors immediately darken - they need to be replaced.

Here the skills of working with a soldering iron will come in handy, and for those users who do not know how to do this, we advise you to go to the masters, you should not disassemble the hairdryer yourself in this case.

We briefly tried to explain how you can disassemble some models of the hair dryer from the German company Rowenta, but we want to warn you that the repair of these products is difficult for uninitiated users. Lurking inside are such improvements as smooth-acting regulators such as the Care button, which means "Care"; spirals are made of special alloys, breaking them is difficult to connect reliably at home. In addition, manufacturers are introducing special air flow ionizers and other innovations.

Before you start disassembling the hair dryer, you need to find circuit diagram product, if it is not in the attached instructions, consult with familiar specialists. Remember - it is much easier to disassemble any household appliance than to assemble it and not disrupt the interaction of all the main units and parts.

In the internet I found that the hair dryer is not separable. Even under warranty, they do not repair, but change. Is it mandatory to fill out a profile on a technical forum? Locked topicBut I'm not proud, I filled out my profileIn the internet I found that the hair dryer is not separable. Even under warranty, they do not repair, but change. Is it mandatory to fill out a profile on a technical forum? Locked topicBut I'm not proud, I filled out my profileIf still relevant
The back is white, has a perimeter of 23- latches
you need to remove the switch (I II) (gently prying it, inside it is the letter "G")
We squeeze these same latches and remove the back cover.
We carry a pick or a plastic spatula along the body and you're done. Image - DIY repair rowenta brush activ 1000

This electrical appliance - a hair dryer - is very popular and is often indispensable in everyday life. Due to high consumer demand, the designs of most hair dryers have become very similar, and the workmanship and price have dropped. Today it is very difficult to buy a truly durable hair dryer. The practice of repairing hair dryers of various brands suggests that the breakdowns that occur are of the same type and, as a rule, are not fatal, but are easily removable without serious financial expenditures.

Any electric hair dryer in its design contains two main, large elements: a fan and a heater. The fan drives air through the heater (heating element), sucking it in behind the hair dryer and ejecting it from the front when heated.

Hair dryer device for drying hair.
1 - propeller; 2 - electric motor; 3 - heater; 4 - thermal protection; 5 - mode switch; 6 - power cable.

For household hair dryers, the fan is built on the basis of low-voltage (12-18 V) collector DC motors. Such a motor cannot be powered directly from the 220 V AC mains.To achieve the required voltage drop, a separate coil (let's call it a step-down coil) is used inside the heating element. To rectify the voltage, a full-wave rectifier (diode bridge) is used, mounted by a hinged mounting on the contacts of an electric motor. A plastic propeller is mounted on the metal shaft of the engine, which consists of three or more blades.

The heating element of the hair dryer is a frame made of fireproof material with several windings of nichrome wire (spiral). Depending on the number of operating modes of the hair dryer, there can be two or three windings, one of which is lowering.

Heating element with two windings.

The hot coils of the heating element must be constantly blasted with cold air, especially when operating at maximum power. If, for any reason, the air supply has become insufficient or has completely stopped (for example, the engine has failed), then, for fire safety reasons and in order to avoid burnout of the heating element, the hair dryer should automatically turn off. Such an emergency shutdown occurs due to the presence of two temperature-sensitive elements in the hair dryer device at once - two "protection lines" inside the heater.

The first "frontier" is the thermostat. It is a pair of closed contacts fixed on a bimetallic plate. Being close to the outlet of heated air, the contacts are intensively blown by it. When the outgoing air reaches a critical temperature, the contacts move away from each other, the power supply circuit of the hair dryer is opened. After a few minutes, when the bimetallic plate cools down, the contacts close again and the hair dryer turns on.

Bimetallic thermostats.

If the above protection for some reason did not work at the right time, then a few seconds later the "second line" of protection - a thermal fuse - is activated. This fuse is disposable and needs to be replaced after blown.

Fusible thermal fuse.

To see the internal structure of a household hair dryer, let's take a look at its typical representative - Rowenta CV 4030. This model is equipped with a fan based on a low-voltage motor, the heating element consists of one downward spiral and two heating ones. The hair dryer has three operating modes, in the first mode the fan speed is lower than in the other two. A schematic diagram of this hair dryer is presented below.

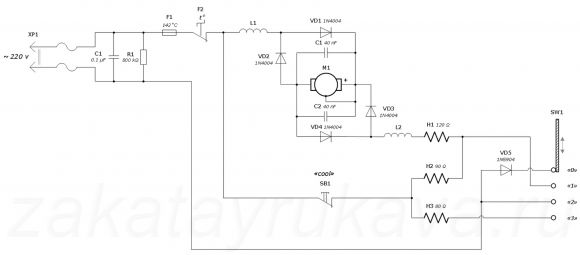

In the first position of the switch SW1 mains supply passed through the plug XP1, filter C1R1, protective elements F1, F2, diode VD5 (necessary to cut off one half-wave of the alternating voltage) goes to the downward spiral H1, through it the electric motor is powered M1... Diodes VD1-VD4 necessary for straightening a lowered spiral H1 alternating voltage. Inductors L1, L2 and capacitors C2, C3 serve to reduce interference arising from the operation of the brush motor. Through diode VD5 power is also supplied to the heating coil H2.

When flipping the switch SW2 to position "2", diode VD5 short-circuits and goes out of the game. The engine starts to run at maximum speed, the spiral H2 heats up more. Third position of the switch slider SW2 corresponds to the mode of maximum power consumption when parallel to the spiral H2 the spiral is connected H3... In this position, the outlet air temperature is at its highest. The "cool" button is included in the break of both heating coils, when it is pressed, only the electric motor remains on through the coil H1, helix H2 and H3 are de-energized.

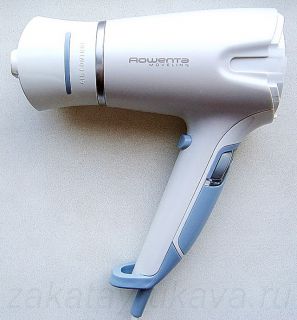

The process of opening the hair dryer Rowenta cv4030.

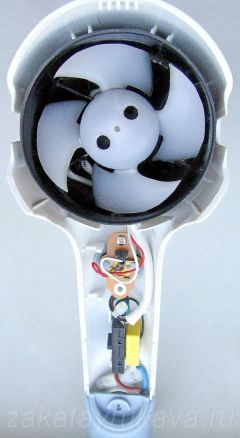

Hair dryer in semi-disassembled form.

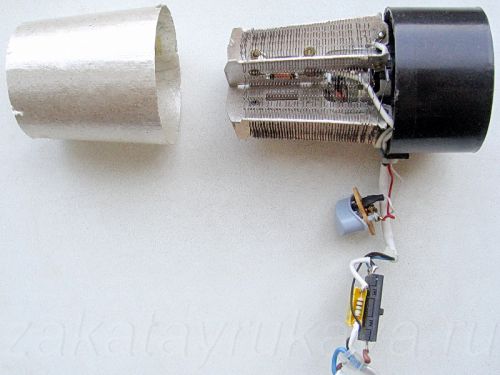

Hair dryer without housing.

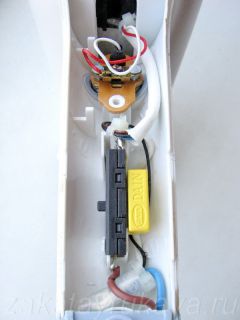

Bottom up: switch SW1, capacitor C1 with a resistor soldered to it R1, button SB1, heating element, propeller motor (in black casing).

Diode VD5 (photo on the left) and the inductors (photo on the right of one coil) of the Rowenta CV 4030 hair dryer are mounted inside the heating element.

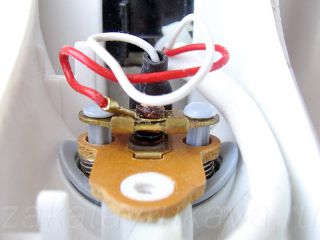

Thermostat (photo on the left).
Thermal fuse (photo on the right)

Do-it-yourself hair dryer repair can be done easily Repair of household appliances sometimes costs "a pretty penny", so many are ready to study this topic on their own in order to save family budget funds. And the quality will be guaranteed with a competent approach.

Despite the seeming complexity, it is quite possible to repair a household hair dryer without the help of professionals. You need to arm yourself with theoretical knowledge about the internal structure of the device and the necessary tools.

The device with which we dry our hair and make styling is simple.

The body consists of 2 plastic containers, fastened together with screws. In some models, instead of such fasteners, special latches are used. The trick lies in the fact that such elements are of no practical use and are most often a conditional attachment. The fan is one of the main components.

The function is:

Cooling of heated parts;
Closing the power supply circuit of the spirals in the device;
Starting the engine.

The hairdryer is simple enough

The electric motor is a low-voltage collector motor based on a single diode (as in Scarlett) or in more expensive models (like Remington or Babyliss) - a diode bridge that provides voltage rectification and attached to the motor contacts in the form of a hinged mount. With the help of a capacitor, the batteries are matched, or an inductive coil can cope with this.

It happens that when you try to turn on the hairdryer, the device does not start and the engine does not start. Or, after a short time of operation, the hairdryer turns off.

There are several options for malfunction:

The presence of breaks in the cable;
Defective electrical outlet;
Lack of electricity;
Damage to the motor.

There are several common hair dryer malfunctions.

Most often, when the hair dryer stops turning on or breaks down altogether, external changes occur in the operation of the device, such as the appearance of a burning smell. The reason may be that during the drying process, hair particles got stuck in the hair dryer net and wound around the heating element. Or the situation is somewhat more complicated - the wires of the microcircuit burned out.

Decrease in drying quality is possible. The hair dryer starts to blow weakly and overheats in case of critical contamination of the filters on the back of the device.

If they become clogged, then the power of revolutions will decrease. It is possible to reduce the rotation speed of the fan blades. The reason is most often in the ingress of a foreign body into the hair dryer. If the hair dryer works only in the "Cold air" mode and does not heat up, here we can talk about such breakdowns as the blocking of the "Cool" button or the burnout of the spiral, damage to the microcircuit or the failure of the thermostat.

To start looking for the cause of the malfunctioning hair dryer, you just need to stock up on 2 things, the first of which is an instruction to the device, and the second is a sacral impeller and a flat screwdriver. Before getting started, you need to remember that the device must be disconnected from the power supply.

The procedure for disassembling a hair dryer (such as Remington d3700 or Maestro) includes:

Disassembly of the case. For this, all bolts and fasteners are carefully unscrewed and removed from the back of the device.
Removing the cover from the upper part of the case, masking the fan blades. As a rule, the fastening is done by pressing or using clamps. In this case, carefully lift the part with a knife or the end of a flathead screwdriver.
Sequential extraction of switches and regulators with wires connected to the microcircuit.
Inspection of the hair dryer for the removal of all fasteners.
Removing the heating element from the front of the appliance. The heating element must be removed very carefully in order to avoid its breakage or damage to the spiral.

The hair dryer must be disassembled in stages.

Next is the inspection of the electric motor for faults. If there is a breakdown in the motor, this will be noticeable by the color and appearance of the contacts. Extraction is not required in this case. If the engine burns out completely, then we are already talking about the overhaul of the hair dryer and the replacement of the motor.

When starting to repair a household hair dryer, you should take into account the design features of a particular model and the specifics of the work of all its elements. The standard procedure for repairing such a device (suitable for all Bosch, Braun models, as well as Vitek, Bebilis and Brilliantcare with an ionizer) is to follow the steps.

First of all, it is necessary to clean the fan blades and the motor surface from the accumulated hairball:

Remove the top cover from the back;
We cut the hairs;
We remove them with tweezers or using a brush.

It is important to remember about the inadmissibility of wet processing of the hair dryer spare parts, because after that the contacts will stop working. Next, carefully clean the coil and filters in case of overheating and the presence of a burning smell. To troubleshoot the connection of the hair dryer (or if it turns off), we inspect the cord for broken wires, especially at the base of the device.

For this purpose, special testers or indicator screwdrivers are used by connecting to the network.

Repair in this case is not recommended, it is better to replace the cord with a new one. Since there is a high probability of moisture getting into the place of insulation and closing the device. If no damage is found, you need to open and inspect the heating element and its contacts. In the case when the latter have moved away from the circuit, you need to use a soldering iron. We also pay attention to how the position switch began to work. If carbon deposits are found on it, we remove it with emery. In the event of a loss of contacts (when the hairdryer does not turn on), we solder. If the elements cannot be repaired, we replace them with new ones.

The specificity of the device is such that in some models (for example, Brown or Bosch) there is a function of selecting the air flow rate and heating intensity, while others have only separate regulators of the speed of rotation or the degree of heating (in the inexpensive Vitek or Scarlett models). The number of plastic blades is also different - there can be 2-3 and (as in industrial hairdryers) even 4. The heater consists of such parts as a spiral of wire with nichrome and a heat-resistant base under it. The hair dryer begins to heat up precisely due to the spiral. The number of windings in the spiral affects the number of switch modes.

A clear diagram of the disassembly of such hair dryers is as follows:

Disconnection of body parts with preliminary removal of the retaining ring.
Removing the covers by releasing the latches on the inside of the case.
Unscrewing 8 fasteners - 2 on the handle of the hair dryer, 3 from the side of the removable head, and 3 from the top of the casing.

Thermal protection is provided in the form of a configurable regulator and thermostat. The principle of operation of the latter is that when the permissible temperature threshold is exceeded, the terminals of such an element begin to diverge, and the circuit is opened. When the hair dryer has cooled down, the terminals are connected again, and you can dry your hair again. Another boundary in the path of hot air is a special fuse. If it is triggered, such an element will need to be changed. Also on the outer panel of many hair dryers there is a button, thanks to which the device blows cold air. This function not only allows you to keep the hair healthy, but also stops the heating process of the coil.

The disassembly of the hair dryer must be started by disconnecting the parts of the case with the preliminary removal of the fastening ring

As a rule, for a household hair dryer to work, you need a constant electric current from 12-32 - 220V.

There are mode switches and regulators. Depending on the manufacturer, the number of speeds and the availability of additional options differs. The electrical circuit allows you to establish the relationship between all elements of the device.

Why is the fan and its blades inspected first - as it continues to work poorly after cleansing the hair, and involves looking for cracked parts in order to replace them. Also, inside the shaft there may be all sorts of small parts attracted by the hairdryer in the process of careless handling of the device.

Repairing a heating element includes repairing breaks in the coil by twisting the wire, using a soldering iron, or by tinning.

In the event of an engine breakdown, intense crackling will be heard from the hair dryer and even sparks will fly out in the area of the blades. Then you need to solder the windings from the microcircuit and reconnect using triplets. But, in this case, it is best to contact a workshop, it is not so expensive (for example, disassembling Philips hair dryers in Moscow will cost only $ 4). If everything is in order with the windings, pay attention to the brushes and whether they fit tightly enough to each other. In addition, it is best to lubricate the undercarriage and check that it is in good working order by rotating it manually.

Dismantling the Rowenta hair dryer should begin by removing the cover from the handle using a flat screwdriver

The following overview presents the process of disassembling Rovent hair dryers (including Beauty and YFA 223J models) and includes:

Removing the cover from the handle with a flat screwdriver.
Removal from the switch panel.
Removing the back cover from the case until the fan blades are found.
Extraction from the front of the spiral and the motor.

If the microcircuit cracks, you need to clean it and solder it. Next comes the inspection of the capacitors and replacing them with new ones in case of swelling. If the resistor parts have darkened, their condition indicates that the elements are burnt out. Defective parts must also be replaced.

Video (click to play).

If you need to repair a professional one yourself (such as Coifin classic or in the form of tongs, as well as electric hair dryers marked Pro) or a building hair dryer (for example, Interskol Ef 2000), you can easily use the proposed scheme, since such devices have a device similar to household hairdryers.
