Hello our dear priceless Dieselit - Dieselites!
Judging by the fact that the number of visitors who regularly visit us continues to grow steadily from month to month, we are moving in the right direction. On this difficult path, we refused the services of SEO companies - site promoters and focused on our good, competent and professionally informative, and most importantly, the articles people need. The main task of which is really to help people understand and answer questions of interest, and not throw in a bunch of keywords in a certain sequence for Googlebot or Yandex - a robot.
Now you are with us again and to you - our regular visitors, I want to convey a separate, as they say now, respect with respect. And now to the point! Judging by the letters that come to us by e-mail, it is necessary to understand the issue that has not yet been resolved, or not fully understood. So the topic of our conversation today will be as follows.

The thermostat is designed exactly for this temperature - a tablet, which is installed on the heating element of the steamer.

She opens her contacts, thus stopping the supply of electricity. And the heating element cools down to a temperature of 50 -60 degrees C (the lower threshold for the thermostat) and this is again a signal to turn it on again .. this happens until either the operator working with the steamer finally notices that there is no water and refills it or the thermostat tablet will not burn out from constant clicks (on and off).
This is how primitively you can describe the very first aground on which a novice repairman of steamers can get hooked, or rather the first protection system that saves the heating element from combustion. But this, as you have already understood, is not all the pitfalls that you may encounter when determining the malfunction of the device. The fact is that some models are those that are steeper, equipped with a float that detects the presence of water in the niche of the steamer itself. So this float is connected to the control unit and when the water in the device runs out, it closes the contacts and turns on the alarm circuit, which turns off the electricity supply to the heating element this time. Secondly, the sound notification circuit starts and the LED lights up. This happens in the Digital S / J 205 Silver, as we have it in the internal articulation.

Video (click to play).

Steamer Digital Steamer

Price RUB 13,400

But that's not all! Usually, good steamers for clothes equipped with another protection circuit that protects the heating element from burning out - a fuse, which in fact is an additional degree of safety and looks like an ordinary fuse, only hidden in the insulation of wires.
But the vicissitudes of our life lie in the fact that, in spite of all these protective measures, the heating element still burns out over time. What could be causing this? You ask. I answer! The question is not simple and there is no definite answer to it because:
- firstly, all heating elements have their own resource of work and sooner or later they burn out, as they say their selyavi.

- secondly, voltage is supplied to the heaters through the wires, and the wires with heating elements are connected using ordinary terminals, which over time begin to loosen or oxidize, and bad contact, any electrician knows this, with a high current strength, leads to arcing, overheating and sometimes burning connecting contact on the heating element itself or wire burnout.

  1. Throw away your steamer and buy a new one.
  2. To be consistent in repair - buy nichrome wire on the Moskvoretsky market, calculate the resistance and try to restore it in this way.

By the way, according to the model and likeness, you can continue to act with all the failed components of the apparatus.
On this optimistic note, we will end the conversation by giving you one last piece of advice - if something breaks down in the steamer, it is better to contact an accredited service center. Call the phones listed below. For the rest, we wish you only good luck in comprehending this difficult task. DIY steamer repair... I hope that we have opened the topic that interests you, if not completely, please call us to answer your questions!

The structure of most devices working with steam is similar. The portal VashTechnik posted a description of the functioning of the iron - the similarity of our today's objects of discussion with espresso coffee makers is striking. The devices are clearly relatives, repairing a garment steamer with their own hands in ease of those who carefully read the reviews. Today it was decided to collect bits of useful information in the specified context, avoiding unnecessary digressions. A steamer ... you need to iron on the weight, use to clean furniture - even if the packing box, according to the marketing department managers, prefers linen - there is a boiler inside. The loud name is incorrect - it was stressed many times: the device of a trivial water heater. For ironing purposes, let's call it a boiler - a device for generating steam.

The master faces the greatest difficulties when he tries to disassemble the case. Household appliance manufacturers protect products from self-taught craftsmen. It is assumed that when dismantling the internals, the case will receive irreparable damage, which can be easily detected by technical services.

The resemblance to a coffee maker comes through with a characteristic detail - the presence of a pump. It is customary to brew coffee at a pressure of 15 atm - clothes are content with three. A typical indicator of mobile models, resembling vacuum cleaners in appearance. With regard to manual techniques, the parameter is much lower. The volume of water is more modest. Inside a typical Shark Mop steam mop are:

  1. The power cord outlet is often devoid of a connector.
  2. Pump that pushes the piston. The portal discussed the device of a steam iron, where the steam shock uses an equivalent circuit, the drive is mainly mechanical, using the physical force of a finger. The technique discussed contains a servomotor that can be started by pressing the corresponding button. Electric auxiliary pump irons are rarely used.
  3. A separate branch of the electrical circuit serves the boiler. We clearly distinguish between similarities with a coffee maker. They started talking about Shark Mop, but a handheld steamer for clothes and furniture is similar in structure to a boiler. This is something, so let's dwell on the construction in more detail.

Firstly, the body contains a thermal fuse, traditional for most heating devices. Just find an element inside that is pulled by a bracket to the metal body of the boiler. The water does not heat up - feel free to call the wire on both sides (by pulling the plug out of the socket). The tester refuses to beep - the thermal fuse has blown. Despite this protection of the integrity of the system, a thermostat is installed inside. If, in the absence of water, the thermal fuse burns every time, buyers will quickly get tired of making a choice in favor of the product. The thermostat exploits the unique qualities of the bimetallic plate by forming a relay that cuts off the current flow when the temperature reaches a certain safe value.

Read also:  DIY lg air conditioner repair

What's the temperature inside? More than 100 degrees Celsius. Coffee makers, frothing milk (getting steam) use 135 degrees Celsius. We believe the same thing happens in our case. Limescale has become a recognized problem in steamers. The heating element is cleaned periodically. With a slight difference against the coffee maker. With drinks, the boiler structure is made up of two halves, identical and equivalent, through a silicone gasket with twisted bolts. The heating tank of the steamer contains a base, heating elements that form a single whole, and a steel cap is put on top.The assembly is secured with cross screws. There is a silicone gasket, body stiffeners. Read the section of steam irons, you will find a photo of the tank receiving steam. Surprisingly similar to a steamer.

The principle of operation of a garment steamer is limited to generating steam under pressure. The boiler is regulated by a bypass or non-return valve. Those who remember Soviet bicycles will be surprised: the design of the device exactly repeats the nipple of the Salyut wheel. The rubber tube has been replaced with a silicone one. The polymer resists high temperatures successfully. Threaded nipple cut by an axial bore opening into a hole in the side of a steel dipstick surrounded by a silicone tube. The pump pumps tirelessly, water flows inward when the pressure in the tank is below the limit. Allows you to relatively easily maintain the specified conditions.

The boiler outlet has no special differences. The tube is equipped with a spring that locks the passage against the fluid flow drawn by the force of gravity. In most garment steamers, the tank is grounded. If not, even a hand-held model can give a good shock, 230 volts inside (cordless steamers are safe). Tubes, wires, adjacent directly to the boiler of the garment steamer, are covered with thermal protection, which protects against high temperatures. Now let's see how to make repairs!

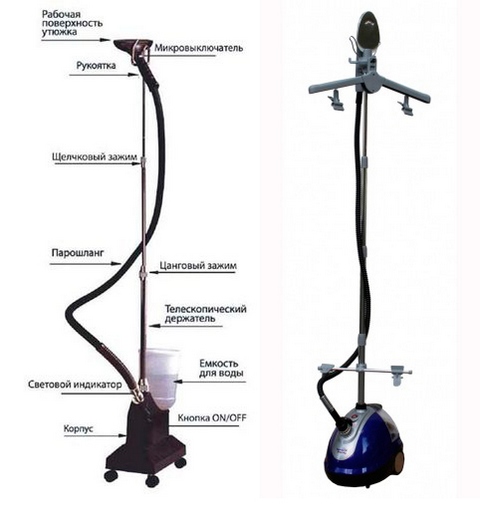

The device of the garment steamer leaves little room for imagination.

The boiler, pump can break down. Less often, the breakdown touches the switch.

Steam refuses to go, we open the case:

  • If the heating element burns out, there is no way to repair it. Either buy a new unit or order a spare part from your dealer (e-bay). That is why there are so many stages of protection, that is why the boiler is thoroughly cleaned periodically. The spiral will burn out - it is impossible to repair the steamer yourself.

In some steamers, the boiler is protected by a dielectric jacket to reduce heat loss. Feel free to carefully remove the resin to access the tank body. The main types of breakdowns are listed, we do not exclude that hoses will leak, or the pump will wear out. Seal with waterproof heat-resistant glue, build up the piston (in irons, for example, there are silicone gaskets, which the craftsmen make from the sealant themselves). Disassemble the pump, look at the place. There are quite a few designs, so it is impossible to give uniform instructions on how to repair a garment steamer with your own hands for all occasions. On this we have to say goodbye, until future reviews. The portal was the first in Runet to publish detailed descriptions of household appliances, read and tell others about steamers for clothes. Professional technologies at our home!

What is a garment steamer? This is a specialized tool designed for steaming (smoothing) clothes using the dry or wet steam it generates. Like any other appliance, your steamer can break. In this article, we will consider a possible repair of steamers with our own hands.

It should be noted that the principle of operation of the steamer is based on in steam production from the water filled into it, thanks to the heating element. This unit is most often prone to breakdowns. Usually the heating element turns off automatically if the liquid inside the device runs out. However, it often burns out by analogy with an empty electric kettle.

The heating element is usually made in the form of a tablet and is designed for a certain temperature regime.

In the case when the temperature exceeds 170 degrees Celsius, the thermostat must open the contacts and de-energize the entire device. The steamer is disconnected from the network until its temperature drops to 50-55 degrees and the cycle starts over. Multiple repetitions of these cycles are the cause of the burnout of the thermostat.

Tip: Checking and then replacing a defective safety device is the first step in repairing a garment steamer.

More modern devices have special floats that control the presence and level of liquid in the unit. Such steamers are equipped with additional audible and visible indication devices to attract the attention of a person in an emergency.

Additionally, a special device can be inserted into the device. fuse, which is another protective circuit and is able to open contacts if necessary.

In case of self-repair, you should check the serviceability of all protective circuits of the device.

The thermostat may burn out due to the following:

  1. The working life of the thermostat tablet has ended (difficult to calculate).
  2. Use of contaminated water (scale builds up on the fuse, resulting in poor contact).
  3. Poor quality garment steamer.
  4. Sudden voltage drops in the network.

In some cases, a breakdown of the garment steamer occurs due to poor sealing of the tank with liquid. In this situation, steam can gradually accumulate on the electronics boards, various buttons and displays. This trouble occurs due to a person's carelessness, because steam is lighter than water and all the time tends upward, bypassing the steam hose. In this case, it is necessary to disassemble the device and make sure that the electronic parts are functional. Otherwise, they need to be replaced.

Mechanical damage takes the lion's share of all steamer malfunctions. These include:

  1. Breakage of steam hoses and fittings.
  2. Fractures of the rack holders and irons.
  3. Cracks in the fluid tanks (and as a result, a violation of the seal).
  4. Worn out gaskets and other spare parts.

In this case, repairs are carried out after visual inspection of the steamer. All connections must be securely fastened, the system must be airtight, and cracked and broken parts must be replaced with new ones.
