Do-it-yourself electrolux washing machine repair

In detail: do-it-yourself electrolux washing machine repair from a real master for the site my.housecope.com.

Among the many brands of washing machines, Electrolux is in constant demand and popularity. Modern models are distinguished by wide functionality and convenient control. But, in any technique, sooner or later, various malfunctions and breakdowns occur. You have to contact warranty service centers or try to repair your Electrolux washing machine with your own hands. Self-diagnostic capabilities allow you to identify a breakdown and take timely measures to avoid more serious consequences.

A similar situation occurs quite often. First of all, this may be due to the lack of electricity. For various reasons, knocks out a circuit breaker, mainly due to a short circuit. Sometimes the residual current device is triggered when there is a current leakage to the washing machine. RCD tripping often occurs due to poor-quality wiring. Lack of power is often due to a faulty outlet.

Another reason is often a surge protector. For testing purposes, it is recommended to plug the washing machine directly into a power outlet. Sometimes the cord itself from the machine is faulty, constantly experiencing mechanical stress. A multimeter is used to detect a breakdown. If there is a break, it is recommended to completely replace the wire, since twisting will not provide reliable and stable operation.

Quite often the power button fails. In some Electrolux models, it is directly powered. When checking, the washing machine must be de-energized. The functionality of the button is checked using a multimeter turned on in buzzer mode. During the test, the button is alternately switched on and off. In the ON position, the multimeter will beep, which indicates its working condition. In the off position, the button will not be detected.

Video (click to play).

Sometimes the problem is a faulty noise filter. The filter dampens the electromagnetic waves generated by the washing machine. If it breaks down, the electric current stops flowing through the circuit and the washing machine does not turn on. The filter is checked by dialing. At its input there are three wires - phase, neutral and ground, at the output - only phase and zero. If there is voltage at the input, but not at the output, then the filter is faulty and needs to be replaced.

The most serious reason for not turning on the Electrolux washing machine is associated with a malfunction of the control module. Replacing the entire device is very expensive and the control unit can be repaired by yourself. However, it is far from always possible to do this at home, therefore it is in this case that it is recommended to use the services of a service center.

Most washing machines are installed in the bathroom, therefore, in accordance with the PUE, they must be protected from leakage currents using a separate RCD or differential machine. However, situations often arise when protective devices begin to operate constantly for no apparent reason. There are several most likely options for which such an unplanned actuation occurs.

First of all, triggering can occur as a result of incorrect connection of the differential machine. This occurs when attempts are made to a zeroing device, in the absence of a grounding wire. In another case, the phase is passed through the device, and the working zero is simply duplicated or connected directly to the common zero bus.According to the rules, the current of the phase and neutral conductors passes through the internal circuit of the protective equipment. Part of the current passing through the common zero bus is perceived by the RCD as a leak, so the power is immediately turned off.

Another reason is a defective protective device. Before checking the RCD, all outgoing wires are disconnected. After that, voltage is applied to the switched on RCD or differential machine and the TEST button is pressed. As a result, the protective equipment should be disabled. If this does not happen, then the RCD is faulty and must be replaced.

If the RCD is working properly, you should carefully inspect the washing machine itself and assess its condition. This applies to old units, since it is they who have damaged internal wiring, worn insulation of the electric motor windings, deformed housings of internal parts and other breakdowns that can cause current leakage. The check is done with a multimeter by checking the resistance between the machine body and the plug electrodes.

If all the previous checks did not reveal any faults, then the reason is most likely a faulty electrical wiring. It can be pierced with a nail or self-tapping screw, too tightly packed in the board or junction boxes. The ingress of moisture is quite often observed. These malfunctions are especially pronounced when the insulation is damaged or worn out. If no damage can be found, the entire cable line must be replaced.

A characteristic feature of modern Electrolux washing machines is the absence of dependence on the presence or absence of hot water in the water supply system. The unit heats it up to the required temperature by itself. Therefore, the situation becomes rather unpleasant when the collected water does not heat up and remains cold.

The fault can be detected approximately 30 minutes after the start of the wash. It is enough to put your hand on the glass of the sunroof, and if it is cold, then the water does not heat up.

The main cause of the malfunction is considered to be the incorrect installation of the washing machine, when the height of the pump and sewerage do not correlate with each other and do not provide a normal drain. In this case, water entering the tank immediately leaves the machine through the drain. The heating itself occurs, but due to the constant flow of cold water, it simply does not have time to warm up.
The wrong wash mode is selected. Some of the programs are not designed for strong water heating and the heat will not be felt through the sunroof.
Breakdown of the water heater - heating element, after which the machine simply stops heating the water. This is mainly due to the formation of scale, leading to overheating and burnout of the heating element. It often fails under the influence of voltage surges in the electrical network.
Sometimes the heating stops as a result of the failure of the temperature sensor. This leads to an automatic stop of water heating in order to avoid overheating of the heating element.

The greatest problems are created by a faulty control module that controls all processes, including water heating. In this case, independent actions can only aggravate the situation, therefore it is recommended to contact the service center.

If water is not collected, do not panic and immediately run to the service center. First of all, you need to try to figure it out on your own and check for the presence of certain reasons.

First of all, you should make sure that the water supply is working properly. Sometimes there is simply no necessary pressure in the urban network. In some cases, the owners forget to open the tap that supplies water to the washing machine, which was closed after the previous wash.

If the water supply system is working properly, then the reasons for the lack of water in the tank are related to the washing machine itself. This could be an inlet valve clogged due to poor quality water. The valve may burn out due to voltage surges and other electrical problems.If the heating element is broken, the washing program is not activated and water is not drawn. Another reason is a faulty control board. Not everyone can deal with complex electronics on their own, so most often the only correct way out is to contact a service center.

If the water is in the Electrolux washing machine, it does not drain. There are also certain reasons for this malfunction.

Most often, it's all about a clogged drain filter, pipes or sewer. Therefore, these elements require careful cleaning. These actions are not repairs and relate to maintenance work that you can perform yourself.

If there is no blockage, it is imperative to check the pump or drain pump, which is constantly in contact with water. If a malfunction is found, the device must be replaced. Often the pressure switch, that is, the sensor responsible for the water level, fails. An incorrect signal supplied by it leads to incorrect operation of the control module. Another reason may be a faulty board or a software failure, which are repaired in specialized service centers.

The Electrolux washing machine begins to emit extraneous sounds in the form of a creak, crackle, noise and others.

This can happen for the following reasons:

Loose drum pulley fastening, accompanied by a jerky whistle and crackling sound. Such fasteners are unscrewed and re-installed on the sealant. A pulled pulley must be replaced.
A foreign object has fallen between the drum and the washing tub, as evidenced by a hum and creak during operation.
Failed bearings are indicated by vibration and hum, like an airliner. At first, under the influence of moisture, the seals that seal the shaft wear out, and then the bearings themselves begin to rust and break. As a rule, bearings and seals are replaced at the same time.

In addition, springs and shock absorbers can be worn out, causing the entire unit to rumble. In this case, the reservoir is displaced and tilted, therefore, during operation, it knocks against the inner walls. The same happens when the counterweight fails. All defective elements are subject to mandatory replacement.

Electrolux washing machines are popular with customers. Modern models have wide functionality and convenient control, but at the same time they are in an affordable price segment.

Unfortunately, technology doesn't last forever. When a problem occurs, you have a choice: either contact the service center, or try to repair the Electrolux washing machine with your own hands.

To determine a malfunction, it is not always necessary to disassemble the Electrolux washing machine; it is enough to pay attention to the behavior of the CM during operation.

Let's look at the causes of breakdowns that are inherent in Electrolux Intuition washing machines (Electrolux Intuition), Electrolux Inspire and other models.

Have you decided to start washing, but the machine will not start? Don't panic. Let's understand the reasons:

Perhaps there is no voltage in the network, or it is not enough to start the CMA. How can I check this? It is enough to connect any household appliance to an outlet. If the device works, it means that the problem is not in the network. If not, then you can call an electrician or wait for the electricity to be supplied.
Defective power cord. Inspect the cable and plug carefully for damage. If any, the cord must be replaced.
Check the hatch door. It may not have closed before it clicks, so the process will not start.
The contacts of the start button are oxidized. To check, you will have to remove the control panel and do the repair yourself.
Problems with the main module. Failure of the control board is a serious matter. Sometimes a professional handyman may be required.

It happens that the Electrolux washing machine does not fill or drain water. For what reasons this happens:

Weak water pressure. The inlet valve is not open properly.
The water intake hose is bent.We need to inspect it and restore work.
The inlet valve, which is responsible for supplying water to the system, could have failed.
A mesh filter is installed in front of the inlet valve, which protects against the penetration of small particles from the water supply. You need to clean it up. This can be done under the pressure of water.
The washing machine pump is out of order. In this case, the water will not drain.
Drain pipe clogged. Water does not go away due to blockage. The drain system needs to be cleaned.

After pouring the powder into the dosing tray, the machine sends a stream of water through a special valve. The detergent is removed with the water. Over time, the CM may stop picking up powder.

What caused the malfunction of the Electrolux washing machine?

The most common cause of a problem is a clogged dispenser. To eliminate it, just remove the tray and rinse under the tap.

If everything is in order with the tray, the inlet valve is likely to wear. Then he needs to be replaced.

With a similar problem, you can try to fix the problem yourself.

To do this, open the hatch of the Electrolux washing machine and take out half of the laundry. Having reduced the load in this way, try to start the CM again. If there is no result, then:

There is probably a problem with the car engine. The drive belt may have worn out or weakened, or the electric brushes may have worn out. It happens that the engine burns out due to a short circuit.
Failure of elements of the main board can lead to failure of any part of the washer. Additionally, you can check the wiring between the module and the motor.

How can you tell if your SMA is not heating the water? After starting the wash, wait 15-20 minutes. Then place your palm against the glass of the sunroof. Warm surface - there is heat. And if the wash takes place in cold water, the reason for this is a malfunction of the heating element.

The thermostat or voltage regulator could also be damaged.

Did the Electrolusk top-loading washing machine wash as usual, but does not go into rinsing mode? Most likely, the heating element (TEN) has broken. Since the water does not reach the correct temperature, the rinse will not start.

The reason for such a breakdown could be the control module. If a system failure occurs, it is enough to reboot the CM within 15-20 minutes. If this happens all the time, you will have to replace the module.

When you turn on the washing machine, knocked out the automatic box? This means that there are problems in the power grid. Never turn on the Electrolux machine again. Better to call an electrician to find out what the problem is.

Because of what a closure can occur:

Breakdown on the heater body.
Oxidation of the contacts of the start button.
Defective electronic board.
Moisture entering the motor causing a short circuit.

What is the reason why the Electrolux washing machine does not spin the laundry?

The tachogenerator, which controls the number of engine revolutions, is out of order.
Motor malfunction.
The pump is broken and the water is not drained.
Malfunction of the electric motor, or wear of its brushes.
A breakdown of the pressure sensor also leads to a similar malfunction. Since the water level in the tank is not detected, the machine cannot switch to another mode.

Subsequently, the Electrolux washing machine does not start work.

Check the handle and door lock for proper operation.
Check the device UBL (electronic lock).

The self-diagnosis system allows the user to determine the cause of the malfunction. When the malfunction code is displayed on the display, you just have to find out its meaning. Then the troubleshooting will be quick.

Consider the main Electrolux error codes:

Washing machines Electrolux have their own characteristic malfunctions due to the technical features of their design (with vertical or horizontal loading). Therefore, do-it-yourself repair of these machines is possible only after thorough theoretical preparation and a detailed study of the device of a specific model.

Many modern washing machines have an error recognition system. When a malfunction is detected, they show an error code on the display, the decoding of which is given in the instructions:

Water is not being drawn into the tank.
Dirty water does not drain.
The machine skips the rinsing step.
The machine does not wring out.
The loaded detergent remains in the tray after washing.
The water in the tank does not heat up.
The machine is bad or does not turn on at all.

All of the above breakdowns occur with other brands of washing machines, but for Electrolux they are the most frequent, especially for top-loading machines.

If the washing machine does not draw water (although it is in the tap), then there can be only two reasons:

the filter in the inlet hose is clogged;

the filling (inlet) valve is faulty.

You can try to clean the filter yourself, but most often clogged filters do not provide for cleaning, but subject to replacement entirely... The same is with the filling valve - if it does not work (this can be checked with a multimeter), the faulty valve must be replaced. Image - Do-it-yourself electrolux washing machine repair

If the washing machine Electrolux is vice versa not drains waste water, then the reasons for this malfunction may be:

failure of the drain pump (pump);
the drain hose is blocked.

Replacing a faulty pump is quite simple according to the instructions, but cleaning the drain hose with your own hands, you need to disassemble in a little more detail:

First, drain the remaining water from the tank through the emergency hose located below, next to the drain filter.
Disconnect the drain hose from the machine.
Rinse or blow through the hose well. If it does not come out, use a special cleaning cable or stiff wire.
Reinstall the drain hose.
Fill the machine with water and check its drain.

If the machine skips the rinse step or spinning the laundry, this can only mean one thing - a malfunction of the control board! It is impossible to repair the board yourself, unless you understand electronics.If washing powder remains in the tray after washing, this indicates a malfunction of the tray valve, which is responsible for the short-term injection of water during its collection. Over time, this valve can become clogged or simply deteriorate. If it is broken, then it cannot be repaired - only replaced. But if it's just clogged, then you can try to clean it somehow or rinse it under a strong stream of hot water.Per heating the water in the tank the washing machine meets only one element - a tubular electric heater (TEN). Therefore, if the water in the machine does not heat up, you should start "dancing" with it:

We carefully inspect all the wires going to the heating element from the power supply unit for a break.

We take our multimeter and "ring" the heating element temperature sensor.

We check the contacts of the heating element itself.

If the heating element or its thermal sensor is faulty, we change them to new ones. If a wire break is detected, we eliminate the break, isolate, re-solder the contacts.In rare cases, when all three of these elements are in good order, but the water in the tank does not heat up, it is to blame control board... Unfortunately, only a specialist can fix it.In cases where the washing machine does not turn on at all, or even worse - it turns on every other time, the malfunction may be in the power button or network cable.In Electrolux washing machines, it is not uncommon for the network cable to loosen and the contacts at its base break. The easiest way to check the serviceability of the cable is with a multimeter (tester). If there is a malfunction in it, then you can make repairs with your own hands. Image - Do-it-yourself electrolux washing machine repair

But it is much more difficult to get to the contacts of the power button. Especially if it is not mechanical, but electronic - on the thyristors of the control board. The mechanical switch can be easily replaced and re-soldered, and electronics knowledge is required to fix the electronic button.

As you can see, in many cases, DIY repair of the Electrolux washing machine is quite possible and there is nothing special about it. There are only non-repairable units and parts that can only be replaced. And if you learn to do it yourself, you will save a lot of money on the services of specialists!

The Electrolux company is one of the most popular in Russia, thanks to the production of household appliances. If you wash clothes in a typewriter of this brand, you need to know how to repair the Electrolux washing machine at home. Start by finding the problem and end up fixing it. How to do it? Recommendations of specialists will help.

Washing machines Electrolux Inspire, Electrolux Intuition and other models are equipped with electronic control. Therefore, it is much easier for the user to find the place of failure, because the self-diagnosis system displays an error code on the display (E11, E13, E21, E23, E24,, E31, E32, E33, E34, E36, E37, E38, E39, E3A, E41, E42, E43, E44, E45, E51, E52, E53, E54, E55, E56, E58, E59, E5A, E5B, E5C, E5D, E5F, E61, E62, E66, E68, E71, E74, E82, E83, E84, E85, E91, E93, E94, E95, E96, E97, E98, E99, E9A, EA2, EA5, EA6, EB1, EB2, EB3, EA3, EA4, EBE, EBF, EC1, EC2, EF1, EF2, EH1, EH2, EH3, EHE, EHF, E35, E57, EF3, EF4, EF5, E92, EA1). Even if the equipment is not equipped with a display, indicators indicate a malfunction.

Let's consider the main error codes:

E11 - water is not poured into the system.
E21 - there is no drainage of water from the tank.
E39 - the pressure switch is out of order.
Е41 – Е45 - the hatch door does not close.
E5A - malfunctions of the electronic unit.
E66 - breakdown of the heating element, heating system.
E71 - thermistor does not work.
E85 - the drain pump has broken down.
EB1 – EB3 - voltage problems.

There are still a lot of codes in Electrolux washers. We have indicated those that are most common.

Not all faults are indicated by symbols on the display. Some can be identified by external signs.

Washing machine (CM) does not turn on... The reason may be a damaged socket, start button, electronics module.
RCD is constantly triggered... Breakdown on the case or short circuit of the heating element, engine.
Washer does not fill with water... There is a blockage in the intake system, filter, hose. Possible inlet valve malfunction.
Water does not leave the tank... If the equipment does not drain the water, there is a blockage in the drain pipe, pump, hose. Pump windings burned out.
The machine makes a lot of noise during operation... A foreign object is stuck between the drum and the tub, the bearings are worn out, and the laundry is knotted to one side.
No water heating... Problem with heating element, thermal sensor, triac control.
The hatch door does not close... The tongue is worn out, the handle or the sunroof locking device (UBL) is broken.
The drum does not rotate, the device does not spin the laundry... The brushes of the motor are worn out, the drive belt has come off the pulley, the engine is faulty.

Top loaders are more likely to suffer from wear on the drum mounts, which can be compared to installing a new bearing. We have to completely disassemble the unit. There are also such breakdowns:

Top cover corrosion. The problem is in the specifics of the water supply through the top. Initially, the liquid passes through the cover, so the metal rusts quickly, which requires a complete replacement of this part.
Rubbing the cuff of the hatch. Through the hole, water flows directly onto the electronic lock, which disables it.

It is better to entrust the repair of the Electrolux top-loading washing machine to a professional. Inside the case, the parts are very closely spaced, so repairs are carried out almost by touch. If you want to do the work yourself, a video will help you:

Have you decided on the place of breakage of the front model? Then start the repair yourself.

Observe safety precautions when disassembling and repairing.

Be sure to disconnect the machine from the mains and communications.

Now proceed to the inspection and diagnosis.

After loading the laundry, the wash cycle does not start, the indicators do not light up? Check:

Power cord and plug. Did you notice the damage? Do not try to isolate them, the parts must be completely replaced.

An outlet. Connect another device to it to test the functionality.
Control Panel. Detergent, rinse aid often gets on the keys. So contacts are oxidized or buttons stick. Remove the control panel for inspection (see below for how to disassemble).
Network filter. Perhaps its contacts or the element itself have burned out.

How to check the filter and buttons:

Remove the top cover by unscrewing the screws at the back.

There is a filter near the wall. Are burns and swellings visible? Replace part.

Disconnect the wiring, unscrew the mount.
Remove the tray to inspect the keys.
Remove the panel fixing screws.
There are buttons behind the module. Replacing them is easy: press from the outside, take out the element and install a new one.

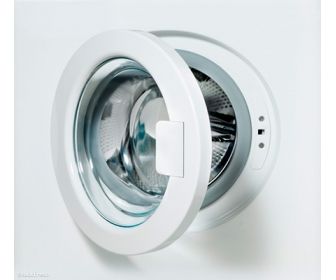

The door must be tightly closed during washing. Therefore, there are two types of locks: mechanical and electronic. The first is the tongue and hole where the fixation takes place. The second is blocked at the electronic level (UBL), while a click is heard.

Inspect the door handle for damage. If the tongue does not reach the hole, tighten the hinge bolts. To diagnose UBL, it is necessary to inspect its contacts for damage and burns:

Fold back the sealing rubber.
Pry the clamp with a screwdriver, remove it from the place.
Remove the two screws.
Reach your hand and remove the blocker.

Disconnect the contacts if there is a problem.

Replace in reverse order.

During one wash cycle, the machine picks up and drains the liquid several times. After loading, you can't hear the noise of the fence, but the error code is lit on the board? You can clean the tract with your own hands:

Close the shut-off valve.
Disconnect the hose from the CMA body.

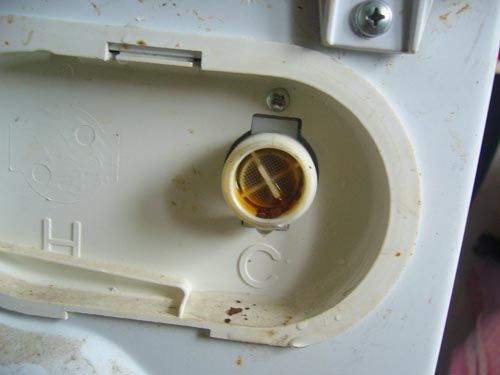

There is a mesh filter behind it.

Remove it with pliers.
Rinse under the tap.
Also clean the inlet hose.
Remove the top cover.
An inlet valve is installed at the rear wall.

Call his contacts with a multimeter. Normally, it will show 2-4 ohms.
In the event of a breakdown, unscrew the fasteners, unfasten the wiring and install a serviceable valve.

If the equipment stops with water in the tank, the drain will need to be cleaned.

Below, under the loading door, there is a door. It can be solid and fastened with latches or bolts.
Open the door, unscrew the filter counterclockwise.

Remove debris, rinse the part.
On Electrolux Intuition and other models, the pump can be accessed through a rear door.

Remove the screws around the perimeter of the cover.
A branch pipe and a hose are connected to the pump. Loosen their clamps, remove from their place and clean.
Disconnect the other part of the hose from the drain and the siphon and also clean it.

The pump is checked last. Examine the impeller. Often threads and hair are wound around it. In the event of a mechanical failure, the pump must be replaced.

During operation, the drive belt wears out and stretches. In "Electrolux" typewriters, it is located behind the rear panel. Replace the belt if it falls off. Install it first on the motor pulley and then on the tank pulley. When worn, the part must be replaced.

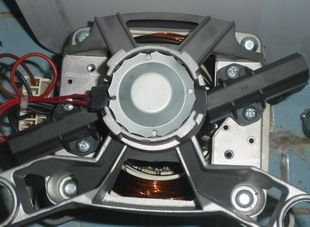

Inspect the engine and its brushes. It is the brushes that are used to transfer current to the motor rotor. Their graphite rods wear out over time. Pull the brushes out of the housing by removing the contacts. If the wear is more than half, install new elements. It is not difficult to buy them in the store.

If the motor malfunctions, do it yourself. How to do this is shown in the video:

It is not difficult to determine the problem, because the wash takes place in cold water. In this case, things are poorly washed, an unpleasant odor appears. In the article you will find information "How to clean the washing machine from odor, dirt and scale".

It is necessary to check the entire circuit: heating element - temperature sensor - main board. Electrolux units hide the heater behind the back wall, so repairs can be done by yourself.

After dismantling the back wall, you will see the terminals of the heating element at the bottom.

Disconnect his wires.
Remove the thermal sensor from the case.
Unscrew the center nut (not all the way) and push the bolt inward.

The main enemy of the heater is scale. Remove plaque from the part. In case of breakdown, install a similar option. The thermistor cannot be repaired in the event of a malfunction. For installation, install the replacement in the heating element housing.

As soon as you turn on the equipment, how does the protective machine knock out? This is a serious problem and you should not try to start the clipper again. The matter may be in the breakdown of the heating element to the case or in the short circuit of the engine. With such a problem, it is better to consult a specialist. For this time, disconnect the equipment from the network.

If the CMA housing vibrates and rattles, make sure it is properly installed. The washer must be on a firm, level surface. Level the feet of the machine.

Look into the loading door. Is the laundry strayed to one side? This problem is called "imbalance" - the drum begins to beat against the walls of the housing. Distribute items evenly inside.

A common cause of noise is a foreign object between the tub and drum.

How did he get there? Items forgotten in pockets, items of clothing penetrate the cuff or pass into the hole of the drum. It is possible to remove the part through the opening of the heating element. Disassembly steps are described above. When the heater is dismantled, stick your hand through the hole, scrolling the tank, find the object.

Is the work accompanied by a strong hum and rattle? Bearing worn out. For replacement, you will need to completely disassemble the washing machine. Details are shown in the video:

The reason for absolutely all technical problems can be the control module. He manages the nodes and parts. Therefore, if you have ruled out the rest of the options, and the work has not been restored, inspect the board. For repairs, contact the master.

SMA "Electrolux" works for 10-15 years, not because it does not break, but because it can be repaired. There are enough service centers in cities, stores have replacement parts. It's up to you to follow the recommendations for self-repair or call the workshop.

In fact, the name of the company "Electrolux" is known to everyone, but few are familiar with the technology of this company. In this article, let's talk about the technique of this company in more detail. More specifically, let's talk about the Electrolux washing machine - malfunctions, do-it-yourself repairs. Each owner of a washing machine of this brand is strongly recommended to read the instructions for use. This is necessary in order to restore the performance of the equipment in case of failures.

External manifestations of malfunctions in the washing machine are the symptoms. They can even be such trifles as working a little longer than usual or slightly altered sound. All this indicates that something is not working properly in the washer. It is thanks to such things that we detect a breakdown and have time to restore the equipment.

Important! The big problem is that some malfunctions appear before such symptoms appear, and the worst thing is that they do not manifest themselves for a long time.

The most common symptoms are:

Cold wash. The water does not heat up even if the program is set otherwise.
Water is not poured.
Water does not drain.
The rinsing is not performed in two versions: either it does not go to it at all, or it skips and performs the subsequent actions.
No spinning occurs.
Powder is not taken from the cuvette, and washing takes place without it.
Does not turn on or turns on every other time.
When the machine is turned on, the machine knocks out.

Important! Hard water is a common cause of machine breakdowns. The negative result of contact of such water with machine mechanisms is scale, mold, unpleasant odor, etc. This can and should be fought. Read more in our articles:

Now that we have figured out in what situations it is worthwhile to be wary, and, possibly, to repair the Electrolux washing machine with our own hands, let's talk about in what situations it is necessary to do certain actions.

The wash cycle in any washing machine - “Electrolux” is no exception, it assumes that the water will drain and fill. At least twice - when washing and when rinsing. Also, the water is drained after spinning and drying.

This is where an obstacle arises.If she cannot fill in water, then the program freezes and the wash stops.

Important! In this situation, the manufacturer has provided for a system of errors that are highlighted on the display in the form of a special code. You can decipher it by looking at the instructions. In particular, if the situation we are discussing arises, the machine displays the E11 code.

If your device issued the E11 code, there may be 3 reasons:

No water supply.
Filler valve does not work.
The filter in the inlet hose is clogged.

What to do in such a case? Since there are several reasons, you need to start from the most obvious. In our case, the first thing to do is to check for the presence of water in the tap, because if there is no water, then we can make the obvious conclusion that the breakdown is not in the car.

Second, check for clogging of the filter. You need to do it like this:

Check if this filter exists in your washing machine.
If it exists, then shut off the water on the risers, carefully remove this filter.
Assess the degree of soiling and find out if the filters of your model of washing machine can be cleaned.
If the filter is cleaned, remove the blockages and put back.
Otherwise, you will have to buy a new filter.

Important! Do not forget that in all washing machines, sooner or later, such a filter needs to be replaced. Otherwise, it will clog up so that it will stop the water supply.

If you find out that the reason is not in the absence of water and not in the filter, then you will have to deal with the inlet valve. To check it, you will need to use a multimeter. If you still haven't found the problem, you will need to contact the service center.

Important! Sooner or later, all equipment physically wears out. In the event of a major breakdown, repairs can be very expensive. It often happens that spare parts are no longer available for your washing machine model. It's time to think about buying new equipment! For you, we have prepared ratings of the best washing machines:

In a situation where water is poured, but not drained, the washing program is activated, but rinsing does not occur due to the fact that water does not leave the tank. The problem may be due to the following reasons:

Drain pump malfunction.
Drain hose clogged.

Replacing the drain pump is easy - just follow the instructions. The situation is the same with the hose. Let's start by checking the hose. For this:

Drain the water tank through the emergency drain hose. In most models, it is located at the drain filter in the lower right corner of the washer.
Next, disconnect the drain hose from the product drain pipe or siphon.
Clear the blockage with a hard wire Kursk or a special cable.
Rinse it with running water.
Put the hose back in place, check the functionality of the device.

Let's move on to another malfunction of the Electrolux washing machine and its DIY repair. The main symptom of such a problem is the deterioration of the quality of the wash over the years. As it turns out later, the whole problem is that the washing machine does not pick up the powder from the cuvette. Washing comes out practically without powder, and therefore the quality of washing leaves much to be desired. What is the reason for this situation? Let's take a closer look.

During normal operation of the washing machine, a stream of water must pass through the powder compartment, which takes away all the contents. This water passes through the valve, which should open at the beginning of the set mode. But when it is already worn out, clogged with water stone and mud, it may not open. This is the reason for such a malfunction.

To fix the Electrolux washing machine with your own hands:

Pull out the detergent drawer.
Remove the top of the washer.
At the base of the niche where the powder compartment was located, find the same valve, inspect it.
If it is damaged, it must be replaced. If you can just clean it, clean it.
Replace the cover, insert the powder compartment.
Check the functionality of the washing machine.

As you can see, sometimes due to a simple valve, such a small part, the whole system may not work well.

If your system does not spin and rinse the products even when a special program is set, most likely this is a problem with the control board. Its breakage cannot be eliminated by hand. Therefore, in order for you to repair the control board, you will need to contact the service.

If you cannot not only start the wash, but also simply turn on the equipment, the problem is probably in the power button or the network cable. There is also a possibility that there is simply no electrician in the house. So it's worth checking it out.

In order to check the versions of the causes of the breakdown, you need to use a multimeter, or more precisely, measure the resistance values at the button contacts and the wires of the network cable. In order for you to access the shutdown button, you must:

Take out the powder compartment.
In the niche that has opened on the right side, unscrew the fastener that holds the dashboard.
Do the same with the rest of the bolts and remove the panel.
Detach the plastic holders that secure the front part.
Find the contacts of the power button, measure the value.
If the problem is in the contacts, then they need to be cleaned and soldered, and then assemble the machine in the reverse order.

If the button is fine, then there is most likely a problem with the network cable. It is also possible to fix the Electrolux washing machine with your own hands. To do this, you need:

Remove the back cover of the washing machine.
Detach the protective pad from the base of the power cord.
Check the reliability of the connection of the wires of the mains cable with the contacts of the mains filter.
If the wires are securely attached, then disconnect the wire and check it with a multimeter for breakdown.
If you find a broken wire, then it must be replaced with an original new one.

At the end, reassemble the washing machine in reverse order, check its operation.

Important! When working with the power cord, do not plug it into an outlet to avoid electric shock.

If your assistant starts up, the washing program is set, and as soon as you start, the machine knocks it out, you must immediately contact the electricians. Problem. most likely, in an electrical circuit, and it is impossible to make repairs on your own.

Important! It is strictly forbidden to operate the washing machine in such conditions.

Such a malfunction can be found quite often in Electrolux washing machines. This effect is caused by the breakdown of the heating element - the heating element. It is very difficult to confuse this breakdown with another.

The solution here is one - to replace the heating element. Do-it-yourself repair of Electrolux washing machines is a completely difficult task, and replacing the heating element is one of the most difficult options. The main thing is to do everything carefully and in accordance with the manufacturer's instructions.

Important! Before changing the heating element, measure it with a multimeter. The problem may not be with him at all, but with the control board.

Let's talk about the main error codes. Among them:
