Repair of a washing machine indesit do-it-yourself bearing replacement

In detail: repairing a washing machine requires replacing a bearing with your own hands from a real master for the site my.housecope.com.

Frequent breakdowns in modern Indesit washing machines (WISL 102, WISL 105, WIUN 81, WISL 103 and IWSD 5085), as well as on other models, can be conditionally divided into two groups.

Image - Repair of a washing machine indesit do-it-yourself bearing replacement

First: breakdowns due to natural wear and tear of parts and mechanisms of washing equipment. Second: under the influence of external influences during its operation. Such as, mechanical damage from not careful handling of the device, violation of the rules for working with the electronic equipment of the typewriter, the ingress of foreign objects into the tank, blockages, and so on.

Data on any malfunction and violation in the functioning of the washing unit is displayed on the display in the form of an error code indicating a specific malfunction or its area of location. In turn, all breakdowns identified in this way are made to those that can be repaired by hand. And those for the elimination of which will require the participation of a professional master.

Dismantling and assembling any household appliances is not an easy and quick task. And therefore, if in doubt that it is precisely the repair and replacement of bearings in the Indesit washing machine that is required, it is best to double-check the presence of this malfunction. This can be done using the so-called method of blind diagnosis. That is, without first removing the case. Its essence lies in the following actions:

We turn on the device in the mode of spinning the linen at the maximum available drum rotation speed. A bearing in need of replacement will certainly give itself out with a knock.
To confirm, disconnect the IWSD 5085 washing machine itself from the power supply, drain the water from the tank and take out the things. By hand, carefully rotate the drum in different directions. A rattle of metal or knocks makes the alleged breakage proven.
The appearance of puddles from a leak under the bottom of your machine also indicates malfunctions of bearings and seals in the active (movable) drum mechanism and indicates that it is necessary to replace the bearing and drum in the Indesit washing machine.
Repair and replacement of a bearing in an automatic washing machine Indesit IWSD 5085 (WISL 102, WISL 105, WIUN 81, WISL 103)
Do-it-yourself replacement of the bearing of the Indesit washing machine is carried out after some preliminary preparation. Namely: the purchase of original, factory bearings and oil seals, as a guarantee of guaranteed high-quality repairs.
At the beginning, after removing the top cover, the front and back panels of the washing machine are carefully dismantled, without damaging the body seals (rubber bands). Removing the top and back of the appliance is easy. To do this, you only need to remove a few screws.

Video (click to play).

But the front wall will require more serious operations:

After assembly, as is often the case, we do not leave unnecessary parts.

Replacing the bearing on the Indesit washing machine is shown in the video.

A washing machine is an invariable attribute of comfort in the home. Without it, washing would turn into a whole complex of physical exercises that takes both strength and time. Therefore, its repair in the event of a breakdown is an urgent matter, which, moreover, does not tolerate superficial treatment at all. Only here's the bad luck: the services of a master are very expensive, and it is not so easy to find an intelligent professional.So isn't it better to take and carry out the repair yourself? Moreover, if you are quite familiar with the structure of your washing machine and have all the necessary tools at hand.

A washing machine is a rather complicated household appliance and it works under high loads. The most vulnerable point of this household worker is the drum bearing - the part thanks to which, in fact, the washing process in the machine takes place. It is very simple to understand that the time has come to change it: in the presence of a faulty bearing, the unit begins to emit extraneous sounds during operation, which, if nothing is done, amplify over time.

A large selection of high-quality bearing products is offered by the Termopolis company -

But this is not the most unpleasant thing. If the bearing fails, the drum stops working normally. And this means that very soon the washing machine will finally break down, and you will have to pay quite a lot of money for its overhaul.

The average service life of a quality drum bearing is 6-8 years. However, due to improper operation of the machine, destruction of the stuffing box, corrosion due to leakage, etc. it breaks down much faster. That is why the unit should not be overloaded: in most cases, the causes of bearing failure are increased friction and, as a result, excessive heating of the structural elements of the part.

If you decide to replace the drum bearing yourself, you will have to do this together with the oil seal. You can buy them in a store or on the market, carefully monitoring the quality of the parts and their compliance with the model of your washing machine.

The drum bearing replacement procedure involves almost complete disassembly. For this you will need:

pliers;
slotted and Phillips screwdrivers (preferably of various sizes);
a set of open-end and spanner wrenches;
blunt chisel;
hammer and rubber mallet;

It is better to repair the washing machine together: some parts of this household appliance are quite heavy. In this case, it is advisable to use a camera: having photographed the disassembly process, you will never make a mistake when reassembling it after replacing the bearing. In extreme cases, you can check the procedure for installing structural elements and connecting an electrician on the Internet or from your friends.

Before starting the repair, you need to disconnect all communications of the unit (electricity, water supply and drain), and install it itself so that free access is provided from all sides. The procedure for disassembling a washing machine is determined by its design features. It is optimal to carry out it, armed with detailed instructions from the manufacturer.

Take an ARDO washing machine about a dozen years old with a clearly old, creaking and knocking bearing. In order to replace it, you must perform the following steps:

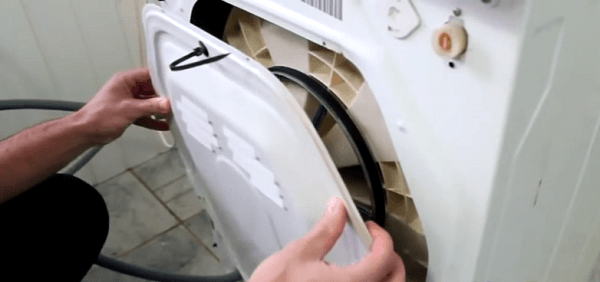

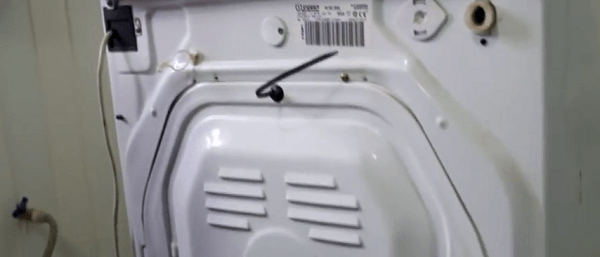

Remove the rear cover. To do this, unscrew the mounting bolts and remove the clips that hold the water hose.

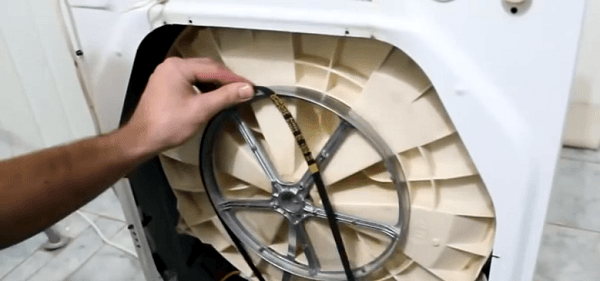

Remove the drive V-belt from the engine and drum pulleys.
Disconnect the electrical terminals, be sure to remember, or better take a photo of the order in which they are located.
Disconnect the water temperature sensor. It is located in a rubber grommet, the edges of which must be folded back with a screwdriver. The sensor is removed from the socket and gently swiveled to the side.
Loosen the heating element fastening nut to facilitate the removal of the tank cover.
Unscrew the drum rim clamping bolt and remove the latter.
Detach the cover from the drum and remove the rubber gasket.
Remove the cover with the drum from the body by pulling the tank down on a spring suspension.
Unscrew the pulley retaining nut and remove it from the transmission shaft.
Support the tank lid on the stand so that the drum is suspended.In order not to damage the thread, install a plate on the shaft shank and knock the drum axle out of the bearing with gentle hammer blows.

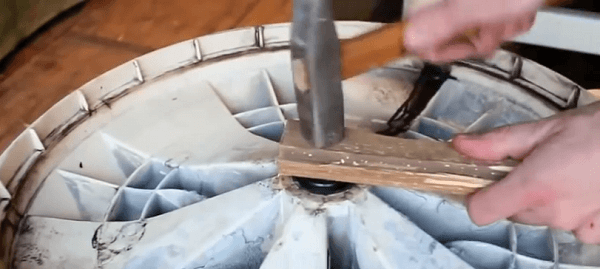

A rubber mallet works best for this job. Impacts should be applied in a measured manner to prevent flaring of the bearing housing.

Remove the oil seal with a screwdriver, and then the failed bearing. The latter is removed from the back of the cover using a blunt chisel and a hammer. While lightly hitting the bearing housing, care must be taken not to distort it.
In the same way, the second bearing from the side of the tail of the cover is removed.

New bearings are lubricated with lithol and, together with the oil seals, are pressed into their seats in the reverse order. After that, you need to put the tank cover on the drum shaft, put the pulley in place and install the cover with the drum on the body, not forgetting about the sealing gasket. Then the lid is fixed on the tank and the clamping rim is put on.

The tightening of the rim pinch bolt is performed by lightly tapping the rim along the perimeter in the direction of the lugs every 1.5-2 turns of the nut. This will ensure an even fit of this part.

Next, tighten the heating element fastening, not forgetting to put it in place. After that, the temperature sensor and electrical terminals are mounted, but the next step is to install the belt on the engine and drum pulleys. Next, you should start installing the back cover of the washing machine, upon completion of which the latter can be considered ready for use.

To replace a bearing in a washing machine of this brand, you must:

Open the back and top covers.
Remove the drive belt from the engine and drum pulley.
Block the pulley.

To do this, you need a wooden block that allows you to carefully unscrew the screw that holds the pulley and remove the last without damaging it.

Dismantle the counterweight and the spacer bar, which closes access to the clamp and the tank cover.
Disable heating element.
Remove the bearing assembly fasteners and the grounding bar, then loosen and remove the clamp.
Open the tank cap without throwing out the seal.

The screws that secure the bearing assembly are often too long from the manufacturer and are simply cut off. It is necessary to remove the tank lid so as not to damage the wire of the temperature sensor - unnecessary work and costs due to its breakage are not needed by anyone.

Remove tank and bearing assembly. To remove the latter, you need to get the oil seal. The bearing is removed with a hammer and chisel.

The seat of the bearing assembly should be carefully inspected. If there are traces of rust or debris, they must be removed, and if leaks are found, their sources must be eliminated. After that, you can start reassembling the washing machine.

The installation of a new bearing unit in washing machines of this brand is carried out in the order already familiar to us. Of course, after disconnecting it from all communications. So:

We unscrew the tension screw of the clamp holding the drain pipe, and disconnect the latter from the tank.
We open the contacts of the electric motor of the machine and remove the drive belt.
We loosen the screws securing the engine, then gently slide it off the runners and holding it remove it, having previously unscrewed the screws.
Disconnect the contacts from the TEN and the wiring from the tank.
Unscrew the screws securing the top cover and remove it from the case.
We take out the dispenser and unscrew the screws that fix the control panel.
Disconnect the second pair of fixing screws and remove the panel. Start from the side of the dispenser hopper, and then remove the lower part.
Remove the tension spring.

To do this, you need to find it by probing the cuff around the perimeter. The spring must be pry off with a screwdriver, gently pull on it and remove it together with a previously loosened clamp. After that, the cuff should be disconnected from the body and the hatch lock removed.

Disconnect the plinth panel with a screwdriver. This opens up access to the fasteners on the front wall of the washing machine. You need to unscrew its screws, and remove it itself.
We unscrew the front bolts of the lower counterweight and remove it, after which we proceed to remove the upper counterweight.
We remove the plastic clamp, and then move the dispenser hopper to the back of the machine.
We remove the tube of the pressure switch relay from the tank.
Disconnect the suspension system, which consists of shock absorbers and a spring.

You should start with shock absorbers, which are attached with the upper end to the tank, and the lower end to the bottom of the case. It is enough to remove only the upper one.

We remove the tank and disassemble it, starting with the pulley.
We remove the bearing block and replace them with new ones, while not forgetting about the lubrication and uniformity of the fit.

After pressing in the bearing assembly, you can proceed to reassemble the Ariston washing machine. If everything was done correctly, you will not have any "unnecessary" details, and the equipment itself will serve for a long time and properly.

Stretch ceilings made of PVC film are capable of withstanding from 70 to 120 liters of water per 1 m 2 of their area (depending on the size of the ceiling, the degree of its tension and the quality of the film). So you don't have to worry about leaks from the neighbors on top.

Fresh lemon is suitable not only for tea: clean the dirt from the surface of the acrylic bathtub by rubbing with half a cut citrus, or quickly wash the microwave by placing a container with water and lemon slices in it for 8-10 minutes at maximum power. The softened dirt will simply be wiped off with a sponge.

The easiest way to remove scale and carbon deposits from the soleplate is table salt. Place a thick layer of salt on the paper, heat the iron to maximum, and apply light pressure several times over the salt mat.

There are special traps to fight moths. The pheromones of females are added to the sticky layer with which they are covered, attracting males. Sticking to the trap, they drop out of the reproduction process, which leads to a decrease in the moth population.

Before removing various stains from clothes, you need to find out how safe the selected solvent is for the fabric itself. It is applied in a small amount to an inconspicuous area of the thing from the wrong side for 5-10 minutes. If the material retains its structure and color, you can move on to stains.

If the first signs of gestation appear on your favorite things in the form of untidy pellets, you can get rid of them using a special machine - a shaver.It quickly and efficiently shaves off clumped fabric fibers and makes things look worthy.

The dishwasher is not only good for dishes and cups. It can be loaded with plastic toys, glass shades of lamps and even dirty vegetables, such as potatoes, but only without the use of detergents.

Threads made of gold and silver, which in the old days were used to embroider clothes, are called gimp. To obtain them, the metal wire was pulled for a long time with pliers to the state of the necessary fineness. Hence the expression "pull (breed) gimmick" - "engage in long monotonous work" or "delay the execution of the case."

The habit of using the washing machine “sparingly” can lead to an unpleasant odor in it. Washing at temperatures below 60 ℃ and short rinses allow fungi and bacteria from dirty clothes to remain on the interior surfaces and actively multiply.

Sooner or later, many people have to ask themselves the question of how to change the bearing in the Indesit automatic washing machine, because this breakdown is considered quite serious and can lead to the machine breaking down completely. Communicating with the technique purely on "you", you should not undertake such work, nothing good will come of it. But if you had to carry out repairs of various equipment on your own, you should try to change the bearings with your own hands, strictly adhering to the instructions of the specialists.

The process of replacing the bearing in the Indesit automatic washing machine is preceded by some preparation. Primarily, you need to purchase original bearings and seals for the Indesit machine, because, firstly, when purchasing original spare parts for the washing machine, you have a guarantee that they will fit. Secondly, if you change bearings, you also need to change the oil seals, because in most cases the bearings break precisely because of faulty oil seals - one breakdown pulls another.

Continuing the process of preparing for the repair of the Indesit washing machine, you need to choose the right tool. By the way, nothing special, such tools can be found in the pantry of any good owner. We need:

two Phillips screwdrivers, one with a long shank, the other with a short shank;
small hammer;
wooden block;
a set of open-end wrenches and heads;
hex wrench;
liquid WD-40;
pliers.

Let's put aside the tools and accessories for now and start preparing the workplace. You should not work in a confined space, there should be enough free space to conveniently place the machine with all the parts removed from it. Lay out the removed parts so that nothing is lost, not a single fastener, not a single contact or wiring. Once the place is prepared, you can start repairing.

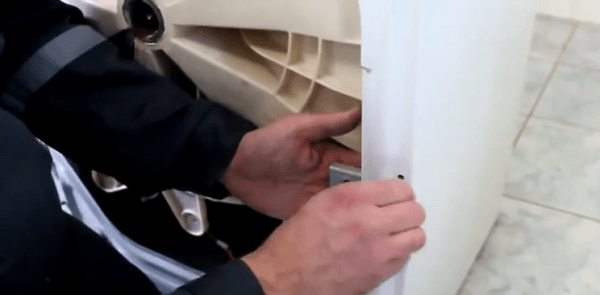

First, you need to properly remove the front and back walls of the Indesit washing machine, without damaging any of the sealing gum. First, remove the top cover of the Indesit washing machine by unscrewing a few bolts. After that, it will not be difficult to remove the back wall, it is enough to unscrew a few fasteners, but with the front wall the situation is more complicated. How to remove it correctly?

First, remove the dish for the washing machine powder, which must be pulled towards you as far as it will go, then lift it up and pull it out.
Find and unscrew the fasteners that hold the front panel.
Now we have gained access to all the screws holding the front wall of the washing machine, we unscrew them.
We remove the rubber cuff, then remove the bolts holding the hatch blocking element and dismantle the front wall of the washing machine.

So, we got access to the "insides" of the Indesit machine. Now the replacement of oil seals and bearings will be done freely.First of all, it is necessary to remove the belts from the drum pulley and motor drive. After that, you need to securely fix the pulley by thrusting a block of wood into it and unscrew the main fastener that holds this drum pulley.

The next step is very important, you need to carefully pull off the drum pulley. The fact is that it sits quite tightly on the axis along with the drum and if you try to rip it off with tools, you can easily harm it. If the drum pulley was successfully torn off, you can proceed to dismantle the spacer bar. Next, unscrew the fasteners of all counterweights and carefully pull them out.

We disconnect all the wires from the electrical elements of the washing machine, and then unscrew the fasteners of the moving drum unit. Most likely, the screws will be rusty and "stick" to the metal, so before unscrewing them you need to spray them with WD-40.

Important! If the screws are hard to unscrew even after lubricating, then do not use excessive force, otherwise the heads will rip off. Try it better to slightly heat them with a blowtorch, and then cool, only then you can unscrew.

We proceed to the next crucial stage - dismantling the drum and replacing damaged parts. Here you need to adhere to a strict order of actions.

We remove the clamps that hold the tank cap.
Carefully remove the seals and the lid covering the tank.
We take out the drum along with the movable unit where the bearings are located.
We check the gasket on which the movable unit lies, if the rubber has deteriorated, then it is necessary to discard the old gasket, replacing it with a new one.
We load the moving part with the remains of the drum into the car and take it to the nearest car service, where we ask the locksmiths to press out the bearings. It is possible to do this work on your own, but it is very risky, because this requires skills + equipment that we do not have.
We install new bearings and oil seals, and then assemble the Indesit washing machine in the reverse order.

Speaking of assembling and disassembling the washing machine, there are many good videos. And if you are interested in information about the features of replacing a bearing in washing machines of other brands, then this article will help you.

As part of this paragraph, we decided to state the warnings of specialists regarding all stages of repairing the Indesit washing machine. Some errors can be easily corrected, and some are too expensive and lead to the fact that you have to change entire units of the "washing machine" being repaired. What typical mistakes do our "homemade products" make and how to avoid them?

They break the pulley, trying to pull it off the drum axis. To remove the pulley, you need skill, you cannot help the cause by force, you can only do harm. Try to rock it from side to side and pull it at the same time. But in no case, do not hammer along the axis with a hammer.
Tear off the heads of the fasteners. If any of the bolts could not withstand your pressure and broke, this is not a fatal mistake on your part, but it will require additional fuss. You will need to drill out the torn off bolts, and then cut new threads in the seats.
They break the thermal sensor, including cutting off its wire. There is only one recipe for this problem - be careful with the tank lid. Otherwise, you will have to buy a new thermal sensor.
Damage to the movable unit during handicraft pressing. In this case, we have already advised you to contact a car service, because it is 10 times more difficult to do this work with improvised means.
Forgetting to replace the gasket on which the movable assembly is located. The carelessness of the master who has looked at the rubber gasket may result in a repeated repair of the moving unit.

Important! Before installing the back and front walls of the Indesit washing machine, do not forget to connect all sensors and electrical units. It will be a shame to disassemble the machine again because of one dangling wiring.

Disassembly and assembly of the Indesit washing machine is, after all, a rather time-consuming process. Therefore, without an urgent need, no one will do such work with their own hands. How can you make sure that the bearing of the machine is really time to replace without climbing into its housing? In this case, blind diagnostic techniques will help us. What should be done?

First, we need to get the drum to rotate at maximum speed. To do this, set the appropriate spin mode for things (for example, 1000 rpm) and carefully listen to the sounds emitted by the machine - the bearing will give itself out.
Next, you need to make sure that this is really a bearing, for this we disconnect the machine from the network, remove things from the drum and try to twist it with our finger, then in one direction, then in the other. Hear a knock or a metal grinding sound - another circumstantial evidence in favor of bearing failure.
Check the area under the bottom of your Indesit washer regularly for moisture. If puddles regularly appear there, it is possible that the problem is in the moving element of the drum.

In conclusion, we note that any person who is not alien to working with equipment can replace the bearing in the "washing machine" from Indesit. The main thing in this matter is to do without amateur performances and act strictly according to the instructions, then everything will surely work out. If you do not understand any stage of the work, you can watch a video on this topic, where the replacement of bearings is illustrated in more detail.

If your machine needs to be repaired, you probably have a question: how to replace a bearing in an Indesite washing machine? Seek the help of masters or do it yourself? If you have the minimum set of tools that every home has, and you have some experience in the field of repairing Indesit machines, then you can quite cope with replacing the bearing in the washing machine.

First of all, it is worth diagnosing the breakdown: is it really necessary to replace the bearings in the washing machine? Signs of wear and tear are:

increased noise during spinning;

drum beat when making manual turns.

It should be noted that noise during the operation of the machine can also occur for other reasons. First of all, you need to exclude the ingress of foreign objects into the device, check the drain and water collection system. If everything is in order, then worn bearings are most likely the source of the noise. Replacement does not require delay: a broken bearing can completely damage the washing unit. The cost of such repairs is quite high, since almost complete disassembly of the device is required. However, by following step-by-step recommendations, you can make expensive repairs yourself.So, the signs of bearing wear are obvious, let's start repairing. A step-by-step guide on how to change a bearing on an Indesit machine includes several steps.

Disconnect the machine from the electricity and turn off the water tap. After repairing, you can also clean the water mesh filter at the same time. Pull it out by removing the water hose.

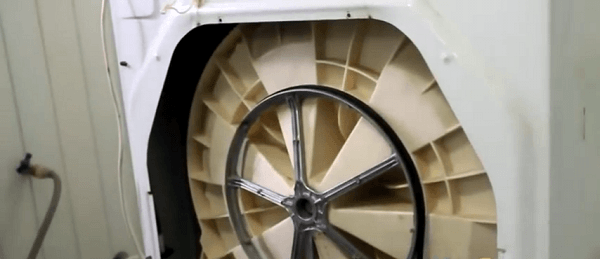

Turn the machine back towards you and loosen the screws in a circle to remove the back cover. As soon as you take it off, you will see plastic tankinside of which there is a drum, and you can also notice a pulley, a drive belt and an engine.

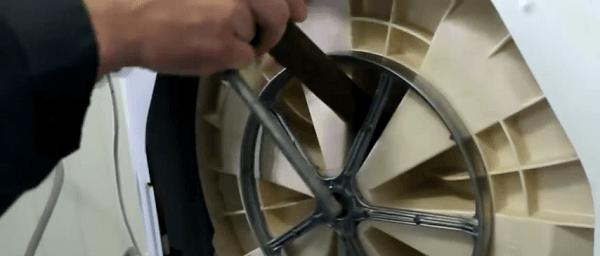

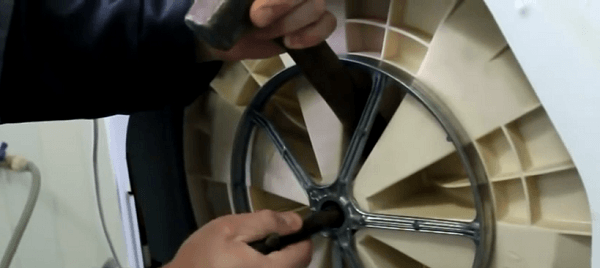

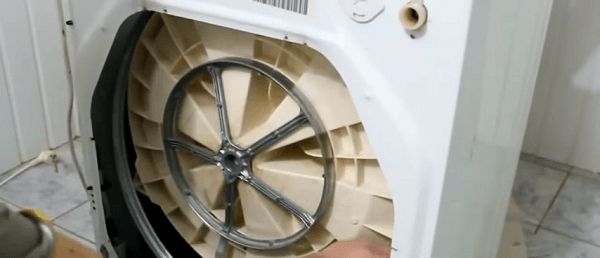

After removing the belt, unscrew pulley by jamming. To do this, attach to one of its axis, for example, the handle of a hammer.

Select the correct wrench and unscrew the center bolt.

Remove the pulley by rocking it slightly to free it from the splines on the shaft.

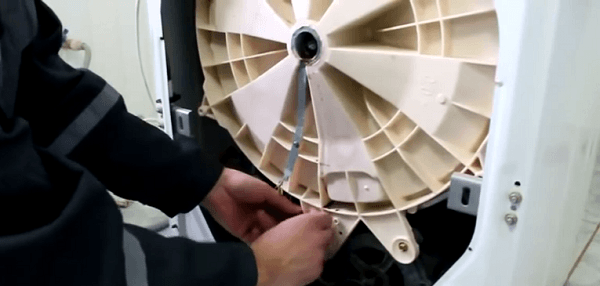

Then free the drum from all connected wiring, including from the ground terminal of the bearing assembly.

If you see rusty streaks on the plastic tank from the center to the bottom, this is another clear indication that the seal of the bearing assembly is broken.

We proceed to withdrawal engine... To do this, place a stand under it, you can use a thick book. Then start spinning the metal rim of the drum with the key.
When you remove the lag screw, the rim is completely relaxed. Then you can loosen the bolts holding the engine. As a result, it will remain on the stand.

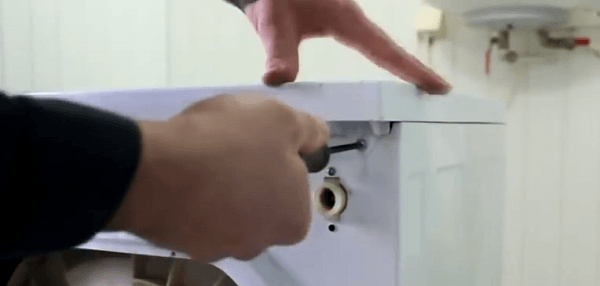

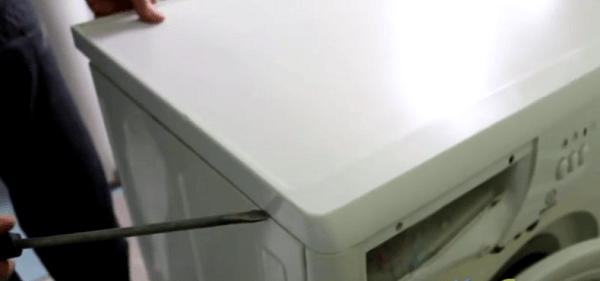

Proceed to remove the top cover of the washing machine. To do this, remove the fastening self-tapping screws.

Pry the cover slightly with a screwdriver and remove completely.

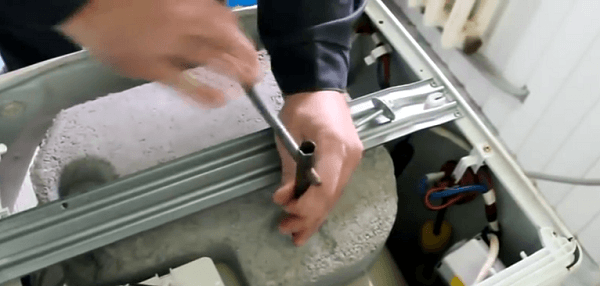

Use a suitable wrench to remove the upper counterweight mounting bolts.

Taking off counterweight, we have completely freed access to the tank lid. Start removing it by gently prying it off with a screwdriver.

Now you can slightly free the drum of the washing machine together with the lid.
After that, start dismantling transport stopsotherwise they will interfere with the removal of the drum.

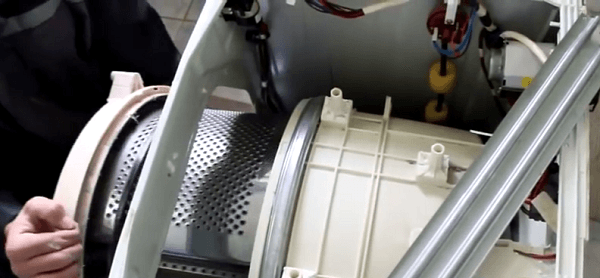

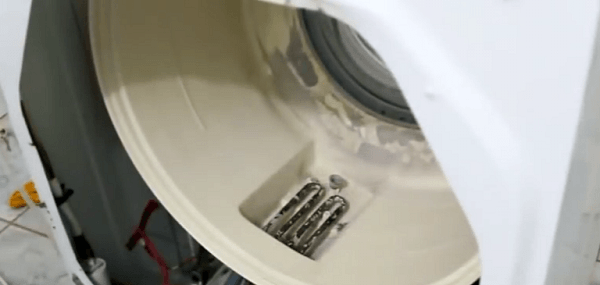

Then slowly pull the drum out of the tank. Examine carefully the inner surface of the tank for cracks, deep scratches. Notice how dirty Heating element.
Detach the cover from the drum and position it in front of you to work with the bearing assembly.

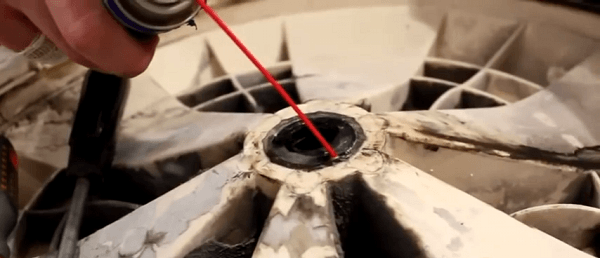

Apply some HP 40 liquid to the rubber collar and pry it off with a screwdriver.

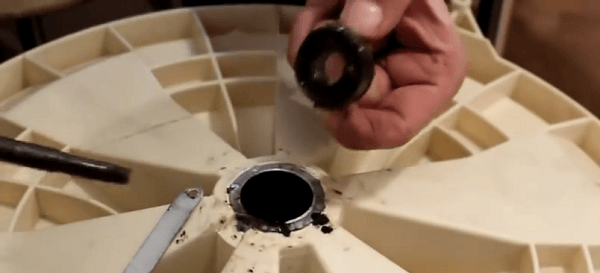

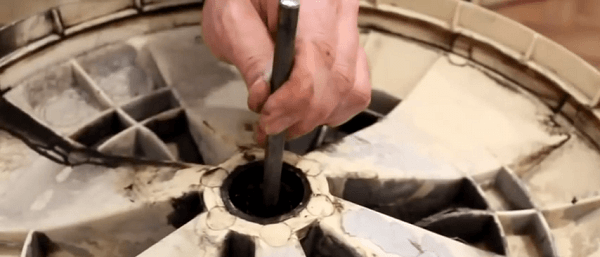

After cuff will be removed, begin to lightly knock out the bearings in a circle using a wrench or chisel.
After knocking out the bearing, you can read it marking for the correct selection of replacement.
The assembly usually has two bearings: a small outer and a large inner. You need to extract both of them in the indicated way. It should be noted that when washing wear and tear the most susceptible is just the big one, sometimes it is not even possible to determine its marking. But this is not scary, because their marking is usually consistent. That is, if the small one has the number 202, then the big one will be 203, and so on.

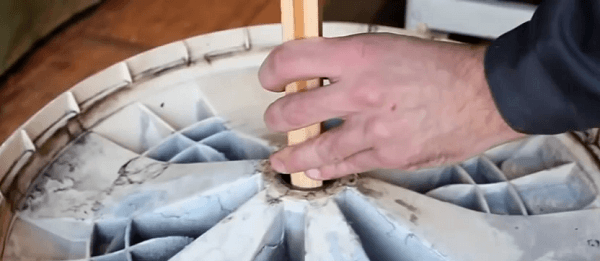

After that, you can start fitting new bearings to their seats. To do this, prepare two wooden blocks of a suitable diameter and a hammer.
Shoe diameter is selected in such a way that the impact falls on the edges of the bearings. Shrink the bearing by hitting it a few times.
Particular attention should be paid to fit cuff, it should fit snugly against the socket, but in no case should it be deformed. To do this, attach a wooden backing to it and tap on it, evenly setting it in place.
Do not stuff the bearings with grease such as lithol. And for ease of sliding, you can resort to a little trick: apply a couple of drops of dishwashing liquid to the inner surface of the cuff and distribute them evenly.

This is done just before installing the cover on the drum shaft.

1. Now you can put the cover with the new bearing assembly onto the drum shaft.
2. Before installing the drum in place, check that the heating element is installed correctly: it should not interfere with movement rotating parts... After that, you can clean the edge of the plastic tank so that the rubber gasket is sealed on it.
3. Install the pulley on the removed drum, and then carefully place it in the tank, turning slightly to set the desired position.
4. Fix the position of the tank with rim, tightening it with the removed screw.
5. You can now connect the motor, wiring, ground and replace the counterweight. To make it easier to install the counterweight, you should ask someone to push the tank from below.
6. Reinstall top cover cars.
7. Slide the drive belt over the pulley and motor, aligning it with the inner grooves.
8. Install the rear cover and water filter with hose.
