The simplest measuring sensors, including those that respond to temperature, consist of a measuring half-arm of two resistances, a reference one and an element that changes its resistance depending on the temperature applied to it. This is shown more clearly in the picture below.

As you can see from the diagram, R1 and R2 are the measuring element of a homemade thermostat, and R3 and R4 are the support arm of the device.

An element of the thermostat that responds to a change in the state of the measuring arm is an integrated amplifier in the comparator mode. This mode switches the output of the microcircuit abruptly from the off state to the operating position. The load of this microcircuit is the PC fan. When the temperature reaches a certain value in the arms of R1 and R2, a voltage shift occurs, the input of the microcircuit compares the value at pin 2 and 3, and the comparator switches. Thus, the temperature is maintained at a predetermined level and the operation of the fan is controlled.

The voltage of the difference from the measuring arm is fed to a paired transistor with a high gain; an electromagnetic relay acts as a comparator. When the coil reaches a voltage sufficient to pull in the core, it is triggered and connected through its contacts of the actuators. When the set temperature is reached, the signal on the transistors decreases, the voltage on the relay coil simultaneously drops, and at some point the contacts are disconnected.

A feature of this type of relay is the presence of hysteresis - this is a difference of several degrees between turning on and off a homemade thermostat, due to the presence of an electromechanical relay in the circuit. The assembly option provided below is virtually devoid of hysteresis.

Video (click to play).

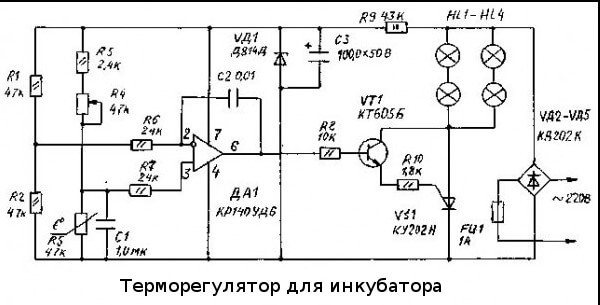

Schematic electronic diagram of an analog thermostat for an incubator:

Image - DIY temperature sensor repair

This scheme was very popular for repetition in 2000, but even now it has not lost its relevance and copes with the function assigned to it. If you have access to old parts, you can assemble a thermostat with your own hands for almost nothing.

The heart of the homemade product is the K140UD7 or K140UD8 integrated amplifier. In this case, it is connected with positive feedback and is a comparator. Thermosensitive element R5 is an MMT-4 type resistor with a negative TKE, this is when its resistance decreases when heated.

The remote sensor is connected via a shielded wire. To reduce interference and false triggering of the device, the wire length should not exceed 1 meter. The load is controlled through the VS1 thyristor and the heater power depends entirely on its rating. In this case, 150 watts, the electronic thyristor key must be installed on a small radiator to remove heat. The table below shows the ratings of radioelements for assembling a thermostat at home.

The device does not have a galvanic isolation from the 220 volt network, be careful when setting up, there is a mains voltage on the regulator elements. The video below shows how to assemble a transistor thermostat:
