DIY miter saw repair

A few minutes spent checking and adjusting your miter saw will help you get the precision you've dreamed of out of your machine. Considering that even the slightest deviation is multiplied by a factor of eight in the manufacture of a rectangular frame, the importance of correct adjustment becomes obvious. We will show you how accuracy is ensured.

If you are still using the standard blade that was installed on the saw from the moment of purchase, which, as a rule, is only suitable for cutting rough boards on the construction site, it is time to buy a better one, suitable for carpentry work. It is better to choose a blade with a negative rake angle, which eliminates the lifting of the workpiece during cutting. Look for a 250mm blade with 60-80 teeth, and a 300mm blade should have 80-100 teeth. Such discs leave almost no chips when cross-cutting and oblique cuts.

Make sure your new blade is exactly at right angles to the machine table. Using a checked square, place it with a block on the saw table and move the ruler to the plane of the disc without touching the teeth (photo at the beginning). The machine manual explains how to adjust the stops. Perform these operations, ensuring that there is not even the slightest gap between the square and the disc. Then set the pointer to zero division of the tilt scale. Repeat this procedure to fine tune the 45 ° tilt (Photo A).

After completing these adjustments, proceed with adjusting the rotation angles. First of all, set the disc at a 90 ° angle to the stop (photo B). The procedure for this operation depends on the type of stop installed on your machine.

If the stop consists of one piece (photo C), loosen the adjusting bolts, or screws on both sides, and slightly move the right or left end of the stop closer to the disc. In this case, it is enough to move only one end, since the other will automatically turn.

The strap clamp allows you to easily tighten all four corners of the frame. Don't you have one yet? Secure the parts in the corners with masking tape.

If the machine stop has a right and a left, then aligning each of them at right angles to the disc may result in them not being aligned with each other. The correct adjustment method is that only one part of the stop is set perpendicular to the disc, and this position is fixed by tightening the screws or bolts. Then the second part of the stop is aligned with the first (photo D). Finally, the scale pointer is set to 0 °. On some saw models, the stops are not adjustable (photo E), so it is necessary to install the blade and the saw unit at right angles to the stop. To do this, first set the rotation scale indicator to 0 °, and then loosen the screws securing the scale. Turning the table (and with it the scale), achieve the perpendicularity of the disc and the stop. Then tighten the screws to secure the settings. It is not necessary to adjust other angular values.

The surest way to test the accuracy of a miter saw is to make 45 ° bevels at each end of four pieces of the same section and length, and then dry the square frame by tightening the corners with a strap clamp. A loose joint at any of the corners means you need to check each setup step again and re-adjust the machine if necessary. Remember, mustache connections are attention-grabbing. With neat settings, you can make people around you admire your work.

A. Adjusting the angle of inclination.The plastic drawing square is great for controlling 45 ° angles. It has longer sides than a combination square block.

B. Set the stop at right angles to the disc. Pressing the square block against the stop, make sure that there is no gap between the square ruler and the plane of the disc.

C. Adjustment of the one-piece stop. In such a stop, consisting of one piece, the right and left sides are connected by an arcuate jumper. When one end is displaced, the other rotates too.

D. Adjustment of the split stop. First, adjust and fix the left side of the stop. Then press the long rule-ruler against it, laying it flat on the saw table, and align the right side of the stop with it.

E. Adjustment of the fixed stop. Loosen all screws securing the rotation scale and position the saw blade perpendicular to the stop.

You may have been looking for "repair circular (circular saws)"

There are many tools of similar categories that are in construction that cannot cope with all the work. Having one for all occasions does not work. If you need to cut a bar, pipe, profile and do it evenly, at an angle, then the main assistant in this is a miter or cutting saw. They are equipped with a powerful electric motor, the characteristics of which are sufficient to deal with even the largest materials. The repair of miter saws most often occurs due to incorrectly selected discs, inconsistency with the material, as well as the work of worn out equipment. There is plenty of power, but the main thing is to feed the tool correctly. Do not exert pressure and let him work under his own weight

The main malfunctions of the miter and cut-off saw. 1) Does not turn on / Turns on intermittently - no power, broken wire. 2) Sparks / Thunders / Smoke - replacement of motor bearings, engine is faulty. 3) No / The disc rotation disappears - wear of the belt drive or mechanical part. Keep the tools clean, work with dust extraction systems. Repair of miter saws occurs due to non-observance of these rules.

The availability of equipment plays an important role in the repair of miter saws. This is the key to fast and accurate diagnostics, which also makes it possible to restore faulty components to a new state. You reduce the cost of repairs without losing the resource of equipment. Often, the use of improvised and home-made tools, the lack of knowledge on their installation leads to injuries, not to mention the breakdown of expensive components

The miter saw is equipped with an electric brush motor. Its elements are a rotor and a stator.

Closing the circuit with a switch, mains voltage is supplied through the brushes, which rotates the motor. Rotation is transmitted through a gear that meshes with the armature worm, or through a belt drive

Purchase spare parts

If you suddenly think or decide to repair the miter saw with your own hands, we advise you to think a few more times by the efforts of your friends or neighbors. In practice, the interest of users, incorrect assessment of their knowledge and skills, the desire to save money only leads to big problems and costs, with all that it implies. Sometimes even professionals work for a long time on troubleshooting. Without equipment, you will not always be able to diagnose equipment, remove and service a specific unit

and we are not saying that you are absolutely powerless in this matter. We are just trying to protect you from even bigger problems that people create for themselves and want to help you!

We repair miter saws from all leading brands. If your manufacturer is not on this list, you can contact our specialists by phone or using the form below

Request a call back and leave a request

This is the question people ask us every day. And to be honest, it's rarely worth talking about it in advance. The prices of miter saws fluctuate depending on the characteristics and the manufacturer, the same goes for spare parts.Malfunctions and their causes are of a private nature. Design features, time and prices for assembling units differ. Therefore, the conversation about this is very controversial and requires an accurate assessment.

To estimate the cost of repairs, it is necessary to carry out diagnostics!

Prices are indicated for reference, excluding the cost of spare parts and may differ up / down depending on the complexity of the saw design and the time spent on work. The cost for complex repairs is less due to the dismantling of related units

Diagnostics is included in the cost of repairs!

In order to avoid unfounded reviews, as well as the tricks of unscrupulous competitors, we use only our resources. You can leave a review on the site by specifying the order details. Only in this way other clients and we can be sure of their reliability

Happy summer resident with working trimmer

When I came to the guys, I was very upset - I saw a huge amount of equipment waiting for repairs and got ready to hear that it would be necessary to wait for my turn for at least a month, BUT after 2 days I took an absolutely working trimmer.

When the renovation is perfect, then there is nothing special to say, except THANKS! for the return of life to our lovely pieces of iron

For several years now I have been repairing equipment from Husquarna for the guys. They always listen to my wishes and do everything to make the client satisfied.

Repeatedly repaired various equipment in the service center. Oleo-mac lawn mower, makita chainsaw, max cut trimmer. I am completely satisfied with the service. Everything is fine, everything is fine. The technique works to this day.

Hello.
My name is Mikhail Vinogradov.
We contacted the service center last year. We had problems with the operation of the gasoline cultivator. We were not only properly and inexpensively repaired equipment, but also given advice and recommendations on proper operation. This was important because this is what helped a lot. All summer we used the cultivator and remembered the masters with a kind word. The technique is now started with a half turn. The friendly attitude was especially pleasant, they even helped to convey the equipment (unload and load into the car) absolutely disinterestedly. This year the need arose to fix the petrol lawn mower. The question didn’t even arise "where to do it?" And again we were pleasantly struck by the politeness, willingness to help, advice and recommendations, but the main thing is the high professionalism and decency of the craftsmen. Missing parts have been ordered and installed. Prices for parts and repairs are negotiated with the client by phone. Everyone would work like that! Many thanks. We recommend everyone to contact here. You will not regret it.

customer with a working chainsaw

Repaired a chainsaw. Very skilled craftsmen, satisfied with the service. The saw helped out more than once.

summer resident with working trimmer

Good day. Your client Andrey Evgenievich Seregin. I have repaired a manual petrol trimmer (petrol cutter) FS-35 (1997 release) at your place and came in full confidence that I was going to an authorized STIHL dealer. We did everything right. Serviced, lubricated the shaft, replaced worn parts. SHTIL works as it should. Thank you.

1.Filin Alexander
2. Repaired Bosch Perforator.
Good impressions, everything is working properly, this is the main thing!
Thanks a lot,
I will not recommend it, but I have already recommended it!

In October 2017, I repaired an electric Makita saw, repaired with me. Additionally, I bought a chain and received a competent recommendation on the use of the tool. I was very pleased with everything. Then in November he brought a BOSCH trimmer for maintenance and again did everything quickly and well, and bought a coil and a housing for it there. I was satisfied. The workshop has a shop with a large selection of new gardening equipment. I recommended this workshop to my friends. Alexander Astakhov.

My name is Oksana Ivanovna. Last year I went to the service center. Bosch electric saw broke. It didn't turn on.Repaired in a day, it was also very inexpensive for the money. In my opinion, 500 rubles. I also liked how the route map is indicated on the site. Everything is clear, if you want, you won't get lost. Thank you. If anything, immediately to you.

Various equipment was repaired in the service center. Saw, and two trimmers. Repaired, everything works fine. I learned from the guys that I was buying spare parts in tridorogues in other places, received advice on the correct operation. Thank you.

My name is Alexey Shvedov. I am engaged in the manufacture of handmade furniture, so I have to work a lot with wood. Saw and machine. He repaired and serviced a stihl ms 661 chainsaw (not to be confused with a Chinese one), a makita planer, and other equipment: a viking gb 460 gasoline garden chopper, stihl trimmer, yanmar generator. Everything is still working. Thanks to work advice, I avoided a bunch of mistakes that would lead to breakdowns. The guys have spare parts, consumables, new equipment, sharpen chains, lawn mower knives. In general, an advanced profile. Thank you.

Have something to write about our services? Write to us and we will post a review on the site!

Husqvarna / Partner / Gardena / Poulan / Mcculouch / Jonsered

Oleo-mac / Efco / Honda / Caiman / Masteryard / Subaru / Mitsubishi / Mikasa / Monferme / Hozelock

If you find it cheaper, we will lower the cost!

We use only original parts for repairs

Repairs are carried out by highly qualified certified specialists

If you did not find the answer to your question, please contact us or leave a request. Our experts will definitely help you!

The vast majority of equipment is subject to repair, even in those cases when it is in terrible condition and many parts need to be replaced.

It makes sense to talk about the cost of repair in advance only if the malfunction has an obvious nature of damage
For instance:
Replacing a chain sprocket on a chainsaw due to wear is obvious. The malfunction is obvious - just change the asterisk and the problem is solved.
In this case, the amount of repair will be made up of the price of the spare part and its replacement - everything is simple.
The cost of replacing the same part may differ, since the time spent on work for a particular model may differ depending on the design feature.
Chainsaw won't start - not obvious. The malfunction cannot be seen and it is not obvious, since it can hide in itself a number of breakdowns that follow from each other, therefore, in this case, diagnostics are required, during which it is revealed what exactly is out of order.
Talking about exact or approximate prices, the same as talking about the average temperature in a hospital, does not make any sense. Even the doctor looks at you before speaking.

The repair time depends on:
- the nature of your malfunction
- whether you or a third party tried to repair itself and what were the consequences
- the availability of spare parts in the warehouse and the timing of their delivery if it is supplied from a warehouse or from abroad

We only use original spare parts. For equipment that is no longer produced and supported by the manufacturer, time-tested analogs are used

We accept the equipment for repair, after which we make diagnostics. At the end of the diagnosis, we will contact you to agree on the cost of the repair. After receiving a positive response from you, we make repairs and notify you of the readiness of the equipment. We demonstrate its correct operation, provide replacement parts, explain the mistakes made and give recommendations for further use.

After repair, a 3-month warranty is given. The warranty applies to the work performed

The technique is accepted for repair in its pure form. Disassembled equipment is not accepted (except in cases where there is no need and convenience to transport the entire equipment)
For example: if you have an electric trimmer and clearly have problems with the engine (and you are sure of this), then you can disconnect the engine from the boom and bring it separately. But it is better to bring the whole equipment, since people do not notice some malfunctions and take it for granted.
If you still have questions about how to act specifically in your case, you can check with our specialists.

Do you have a question regarding our services or equipment repair? Fill out the form and we will definitely answer!

Call us by phone or contact us in any convenient way - we will advise you on the availability of spare parts, the timing of receipt and cost.

You can also write to us in any convenient way - viber, whatsapp, telegram

Miter saws are made by many power tool companies. It is used in everyday life and by professionals. Therefore, the device has many varieties, differing in functionality, dimensions, power and price. When choosing a tool, each buyer is guided by his own needs and capabilities. Someone needs trimming for infrequent use. For example, for repairing an apartment or making doors and windows made of wood in the country. Others use a saw every day at work. Based on these requirements, a tool is selected for domestic or professional needs.

To manually cut the material at an angle, and even straight, you need to make a lot of effort and use special tools. To facilitate this process, electric miter saws were invented. They make it possible to cut workpieces exactly at the required angle and inclination. That is, you can change the angle both in the horizontal plane and in the vertical one. The tool has found application among assemblers, carpenters and finishers. Miter saws are used to make furniture, doors, skirting boards, windows, flooring and much more. The tool can cut not only wood, but also plastic and metal corners and pipes.

It is convenient, easy and fast to work with a miter saw.

The main elements of the miter saw:

1. Saw blade with protective cover.
2. Handle with start button.
3. Engine.
4. Longitudinal stop.
5. Stanina.
6. Ruler.

All miter saws are divided into two types:

ordinary. They only have the function of a miter saw;

• household. The materials from which they are made are not strong enough. Therefore, such devices are not suitable for everyday long-term use;
• professional. They have improved specifications and more functionality. They can work in an enhanced mode every day.

Before you go to the store and consult with sellers, read the parameters that you should rely on when buying a tool. And then you will be able to rationally make your choice.

• power. Affects performance and speed of work. With its increase, the weight and cost of the tool grows. Household trimmers consume less energy than professional ones;
• disk size. The depth and speed of the cut depends on it. Also find out if there are removable disks for the selected model of the instrument on the free sale;
• cutting parameters. Angle, width and depth. The saw should cut the workpieces at the angle required for your purposes, preferably in both directions. The manufacturer also indicates the maximum depth of cut when working at an angle of 45 and 90 degrees to the surface. The function of limiting the cutting depth is important. It is used when grooving and processing workpieces by thickness;

Miter saw Metabo KS 216 M Lasercut 1350 W

I chose between Makita. The Metaba has a more comfortable working handle and a laser. True, you need to get used to the laser, but it is tuned exactly. I put a clean disc on aluminum, a saw and pieces of wood.
Satisfied, I recommend.

Sergey Sakharov

Miter saw Makita LS0714 power 1010 W

the device is made with a very high quality there are no backlashes. did not spare a single ruble. transported without any problems in a car, you can carry it in one hand. I saw to her: laminate, door frames, lining, plastic, plinth, moldings copes with everything with a bang, if only a table on top

Popov Vasily

Miter Saw DeWALT DW713 1600 W

Decent saw for a cost of 12300r, took it at a discount. I chose between the boshes, but settled on this model. It's just that in boshes, the price often rises because of the accessories included in them (a clamp supporting long parts of the bar, a laser sight), I like the weight, it is average, I will not say that it is light, it seems to me that this device is light and should not be, it inspires confidence ... Made very soundly, I really liked the adjustment at the angles, easy and without any torsion there, like the competitors. Large work surface. I was chasing the backlit model, and I'll tell you it was worth it! The first day I worked late on the street, so I practically did not make additional lighting for myself, because the cutting line was always visible! I recommend XPS.
Just a wonderful native disc with large teeth! Immediately I bought myself a Bosch disc, for a clean cut of laminate rolled up in plastic, and so he lost to a clean one! (I had to use it only for cutting aluminum, which he did just fine).

Rozhkov Evgeniy

Miter saw Makita LS1018L power 1430 W

It smells very much of cheap Chinese, but I bought it at Makita-online with discounts for 26 tr (sanctions, damn it). Visually - low quality of manufacturing of the aluminum body of the broaching mechanism (cast, processed with a LARGE file and painted, the paint does not hold well, peels off on a new tool). The turntable is flat, milled, but where it is painted, the story is the same. Not exposed to 0 and angles, as well as the laser (I had to myself, lost 15 minutes). Corner setting scales are PRINTED AND ADAPTED as on the Riobe. some of the sticker is removed from the new, out of the box. Not compact - it takes up more than a meter (1080mm) in transportable condition.

Andrey Vladimirovich

Miter saw ZUBR ZPT-255-1800 PLR with a power of 1800 W

This is my first experience with such a tool.
I set the corners in 5 minutes using an ordinary square (on the forums they scare that you have to level the guides in inexpensive models with almost a file). And then work began.
I am quite satisfied with the purchase. If not for the laser, there would be 5 ...

Ivanov Oleg

Absolutely any saw needs preliminary adjustment, regardless of the company and model. This is like the first maintenance. The main thing that is required from the saw is the accuracy of the tilt and turn angle. Any saw can be modified, improved and increased its class. Remove all additions and extensions, such as clamps, from the tool. You will need a scalpel or small knife with a rigid blade. Casting is accompanied by the formation of flash, which must be cut off if it interferes with maintenance.

1. Raise the saw unit. Remove the side stand.
2. On some saws, it does not have a right angle to the bed. The stop touches the base at two points. The bases of these points should be vertical to the surface. If there is no right angle due to uneven paint coat or burr, sand the base surfaces. Cut off any flakes first, if any.

Miter saws have two types of dials. One ruler has a removable element. On the other, it is not dismantled, and the limb itself has slots for frequently used angles.

The fixing rod has a tapered sharpening and does not fully fit into the slots of the dial.

There are situations when you need to set an angle that differs by 1–2 degrees from the fixed value. When setting such an angle, a breakdown occurs and a value is fixed, which we do not need. To prevent this from happening, you need to turn the locking knob while pressing the key.

Most often, users apply a square to the disc and base.This is the wrong way for three reasons:

• during the installation of the equipment, debris could get in and the equipment was installed unevenly;
• the disc itself turned out to be deformed;
• when we apply the angle to the rig, a light load is enough to wobble the disc a little.

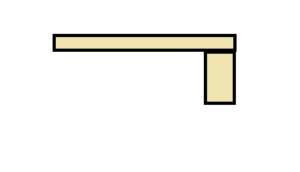

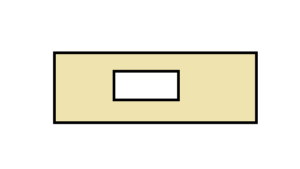

Prepare a piece of plywood, a thin strip, a 10mm strip and double-sided tape.

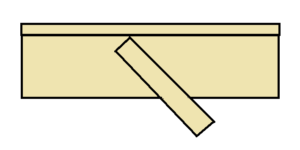

1. Take a piece of plywood and secure it to the base with double-sided tape at three points.

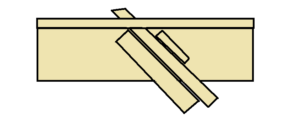

2. Place a thin strip between the plywood and the side fence. She creates a distance in order to then unlock the screws and move the stop in the desired direction.

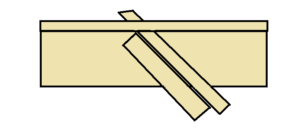

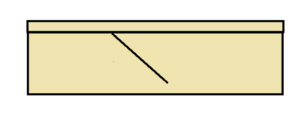

3. Make a control cut. From him you will set the angle.
4. Remove the rail and loosen the stop screws.

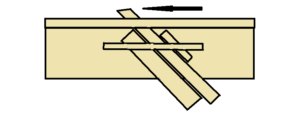

5. To position the square squarely in relation to the cutting line, use a strip that is about 10 mm thick.
6. Press it against the plywood, and then press the square against it.
