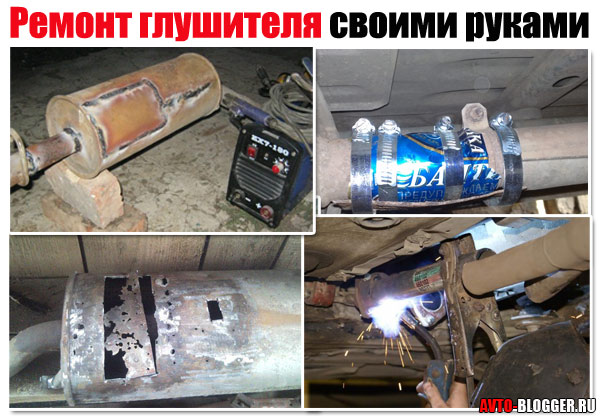

How to repair a muffler without welding is described in detail in this article. All of the listed methods of eliminating damage to this part are actually working, so the choice of method depends entirely on the owner of the car.
If you have free time and a desire to experience all the methods of eliminating such a breakdown, you can start repairing it with the help of cold welding.Which is inexpensive and you can buy such glue in any specialized online store.

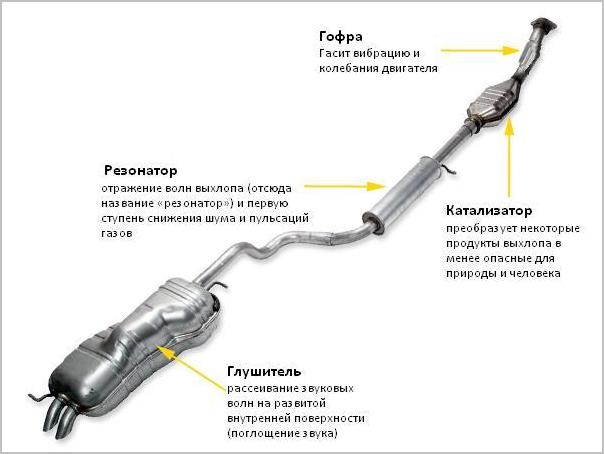

The exhaust system is a rather complex design, which includes several components. The most voluminous and creating the greatest number of problems, as practice shows, is the muffler. The malfunction of this element of the exhaust system is always heard from afar, and in the most literal sense: the muffler got its name for a reason.
The resulting malfunctions of the exhaust system are quite natural: each structural element is subjected to severe loads, which sooner or later lead to the manifestation of a malfunction. The muffler is no exception - on the contrary, it absorbs all the exhaust gases from the engine.
It is necessary to understand that it is quite difficult to deliberately damage the muffler - after all, it was originally designed for high loads, and this element has corresponding resistance to damage. A muffler malfunction usually occurs for the following reasons:
Any of these causes can lead to muffler malfunctions, down to through holes. The damaged part will immediately make itself felt with a characteristic roar, so you will have to troubleshoot in the very near future.
If the problem was only in the creepy sound, then some time with the repair could wait, but a damaged muffler significantly reduces the efficiency of the engine and increases fuel consumption ... That is why a good owner will try to fix the problem immediately after its detection, without waiting for the accompanying negative effects to appear.
With some skill, you can independently carry out work to eliminate problems in the muffler quickly enough if you follow a clear sequence of actions. The repair can be conditionally divided into several stages:
There should not be any complications during the work, and the elimination of problems is carried out in one of the ways described below.
Recently, the method of cold welding has become increasingly popular, which makes it possible to quickly and efficiently patch any hole. Cold welding is a versatile compound that cures very quickly and has excellent resistance to oil, gasoline and other corrosive substances.
For a high-quality repair of a muffler using cold welding, the following operation algorithm must be observed:
When it comes to repairing a muffler without welding, then various options for bands and patches that can be fixed with fasteners immediately come to mind.
One of the methods of restoring the muffler's performance looks like this. For repair, a special fiberglass bandage is taken, which is applied over the damaged area. This material is designed to work in high temperature conditions, so you can forget about the problem for a while. In addition to bandages and cold welding, regular metal patches can also be used. Reliable clamps are suitable for fixing them, firmly pressing the patch to the muffler.
However, regardless of the do-it-yourself muffler used for repairing the muffler without welding, you need to understand that such a solution will be temporary. And the sealant, and the bandage, and even the patch securely fastened with clamps - all these materials can eliminate only the problem, but not its cause.
The reason is the damage to the integral part, which cannot be restored to its original state even when using a welding machine. If serious burnouts or holes in the muffler are found, the best course of action would be to replace it. .
Sometimes it is simply impossible to solve the problem on your own and without the use of welding. For example, if the muffler bank is damaged, it is quite possible to use all the described means to create a temporary patch, but if the exhaust pipe burns out from the muffler, then it will be almost impossible to fix such a malfunction with your own hands.
In addition, the need to replace or repair a muffler rarely arises spontaneously - usually there are prerequisites for this. To prevent them, you need competent prevention: the use of suitable fuel, a balanced driving regime and timely car maintenance.
VIDEO
Repairing the muffler without welding is quite possible and can be done by hand without any problems. There are several ways to fix the problem, and they are not expensive or difficult to learn. At the same time, it is important to understand that any repair will only delay the inevitable replacement of the muffler - no patches will be able to return it to its original performance.
Many car enthusiasts do not even think that a muffler is one of the parts of a car that works in the harshest conditions. Sometimes, it is very, very difficult to repair a burnt-out muffler.
The content of the article:
Reasons for failure
Purpose of the muffler
Repair methods
How to prolong life
Video
Before proceeding with the consideration of elimination methods, we will figure out why the muffler fails, because if you know the reasons, you can prevent several problems at once.
Where there is no asphalt, most often stones flying from under the wheels of a car hit the muffler. It is heated by exhaust gases to a temperature higher than the engine itself, because it does not have a separate cooling system. Of course, during the passage through the exhaust tract, the gases cool down, but not by that much.
Another point is condensation. In the cold season, this problem is especially acute, because the muffler is cold before the engine starts, and then it gradually heats up, albeit to a low temperature.The water that condenses on the inner walls does not evaporate, and every day it becomes more and more. And only in summer, in hot weather, this phenomenon passes.
Constant moisture leads to the fact that the "jar" begins to rust and rot, which, in turn, leads to cracks and holes. In addition, the exhaust system is suspended on rubber mounts to avoid vibrations, which leads to cracks in the welded seams.
All these factors do not contribute to the long life of a car muffler. First, small foci of corrosion appear, then cracks and holes, and finally, the muffler may simply cease to perform its functions, and simply "fall off" along the way.
When designing the engine and other parts of the future car, a huge number of factors and indicators are taken into account. The main functions of the muffler are to reduce the noise level from a running engine, to maintain the working pressure of gases in the system. It's not just that they called it a muffler.
In case of cracks in the muffler, firstly, a decrease in exhaust gas pressure, loss of engine power, the car will "drive worse" is possible. Of course, this applies to old cars that are not equipped with a catalyst. And secondly, the noise increases sharply, up to a level that does not allow the operation of the car. The exhaust, as they say, is a secret, and this is even worse than without a muffler at all.
Why is it worth repairing and not changing right away? In many modern cars, a muffler is a rather expensive part. In addition to cost, the obvious disadvantage of this path is the replacement time. The part is not often changed, which means that the likelihood of its availability in a warehouse, in a store or in a service is rather low. In most cases, the muffler does not fail entirely, but only requires the repair of individual parts.
In addition, it makes sense to repair the muffler because modern parts do not differ in quality. In most cases, the new one lasts at best for one and a half to two years.
So, there are several ways to repair a faulty muffler. If only a small hole or crack appears in the muffler, it is usually repaired using high temperature “cold welding” or sealant.
This method often does not even require removing the part from the car. In addition, such products are usually sold in many car dealerships, that is, you do not have to waste time looking. Such compositions are able to withstand temperatures up to 1000 degrees, while maintaining their properties. Of course, this is a temporary method, since the welding will still fly off from the vibrations.
If you notice the damage in time and fix it with a sealant or "cold welding", you can avoid costly repairs and not think about replacing the muffler for a long time. Also, this method allows you to do without a visit to the service center and carry out repairs on your own. The only thing that needs to be paid attention to is that the repairs must be carried out in a warm room, because at negative temperatures, sealants and "cold welding" lose their adhesion qualities and a good connection at the place of damage simply cannot be done.
If the crack in the muffler already has serious dimensions, or the corrosion has made significant holes, then the method of wrapping the damaged area with a bandage with special impregnations - ceramic or silicate - is used. Such funds are also able to withstand temperatures up to 1000 degrees, and in addition, due to the winding in several layers, they have good strength characteristics. But in no case should you use epoxy resin with fiberglass. The fact is that the resin will crack under the influence of temperature and simply fall off.
Simply put, in this way it is quite possible to repair a "burnt out" muffler even in the field.This method may require removing the entire muffler or parts of it. This repair method will not work if the junction of the pipe and resonator, or, as it is also called, "banks", is damaged. In this case, it is necessary to use electric welding.
In no case should you use an electrode welding machine, since even the most experienced and skilled specialist will not be able to weld metal even with a 2 mm electrode, the thickness of which does not even reach 1 mm. Semi-automatic wire welding only. Of course, you can use argon as well, but it's expensive.
For welding, most likely, it will be necessary to dismantle the entire muffler or separate parts if only replacement of some parts is required. The damaged part, as a rule, is cut off entirely with a grinder or other cutting tool. And instead of it, a new, similar part is installed using welding.
An important point is the correct selection of replacement parts, because the parameters of the muffler directly affect the operation of the engine. Joining the parts by welding allows you to maintain the tightness of the muffler and its strength. In addition, such a connection is less susceptible to vibration. For repairs by welding, it is recommended to contact the service or to qualified technicians with the appropriate equipment.
Can breakage be avoided? Unfortunately, the possibility of a muffler failure cannot be completely ruled out. At the same time, the implementation of scheduled inspections and current repairs can significantly extend the life of this part. If you notice that the car has begun to respond worse to the gas pedal, and when driving there are extraneous noises, we advise you to inspect the muffler and, if damaged, make repairs using one of the recommended methods.
VIDEO
The car muffler is made of strong materials, since it is practically not protected from external influences. Despite this, a bad road, an unsuccessful crossing over an obstacle or a stone bouncing into the muffler can lead to its breakdown under unfortunate circumstances. But due to mechanical action, the muffler fails quite rarely, much more often chemical corrosion leads to its malfunction.
When the car is moving, the muffler, which is located on the bottom, works in an aggressive environment. Water constantly gets on it, if the road is wet, snow sticks in winter, and in large cities salt and other reagents can get on the muffler, which is sprinkled on the road to prevent ice formation. All of these factors lead to corrosion on the muffler. Simply put, the metal begins to rust, and the strength characteristics of the muffler deteriorate. Over time, rust itself will make a hole in the muffler or breakdown is formed due to mechanical impact on the weakened metal.
If the muffler is seriously rotten, it is customary to change it, but in case of local damage, the unit can be repaired in order to maintain its performance for some more time.
You can repair the muffler yourself, since the whole procedure for restoring a car part is reduced to patching up cracks and holes that have arisen due to corrosion or mechanical damage to the unit.Muffler repair can be done in three ways, and each has its own advantages and disadvantages.
The method of repairing a muffler by welding is not suitable for everyone. In addition, it is necessary to weld the muffler, like any other pipes, with a semiautomatic welding machine, which does not change the structure of the metal during the welding process. For welding a muffler, you need to find the appropriate room and equipment, as well as have certain knowledge to carry out the work. That is why it is impossible to call the method of repairing a muffler by welding "folk".
For self-repair of the muffler, a special sealant that is immune to high temperatures can be used. They can not only cover up minor damage to the muffler, but also seal the exhaust system when assembling or replacing one of the elements in it. Sealing the elements of the exhaust system with a sealant allows you to simplify the process of its disassembly in the future.
Clean the area of the element to which the sealant will be applied;
Slightly moisten the area of the exhaust system where the sealant will be applied;
Apply sealant directly to the damaged area of the muffler and wait 30 minutes;
Next, start the engine and let it run for about 10-15 minutes, so that the moisture contained in the sealant is completely out of it. After that, the engine must be turned off for 10-12 hours.
Manufacturers note that the product dries up completely in about 20-24 hours of engine operation, at which the exhaust system heats up, which allows the sealant to harden.
Unlike welding, repairing a car muffler with a sealant is a task that can be done in any hole or by jacking up the car. If you follow the instructions, everyone can handle the task of applying sealant to the muffler.
Ceramic tape is not suitable for replacing the entire muffler elements, and it should only be used in cases where it is necessary to close the resulting gap or hole. The method of using a ceramic tape is simple - it is moistened with water, and after that it is necessary to wrap the damaged area in 2 or more layers. If the muffler is rotten or punctured near welds or butt joints, it will be difficult to apply ceramic tape, and it is more advisable to use a sealant.
Many drivers, if the exhaust system of the car is damaged, do not make repairs, but completely change this unit. Almost always, this approach leads to new problems - you will have to buy a new part every 3-4 years! There is a less costly and more reliable way - use muffler cement. With its help, it will be possible, without much difficulty and with our own hands, to repair mechanical damage to the tank or resonator.
This part of your car works under heavy loads:
temperature up to 1300 ° С;
constant contact with an aggressive gas environment;
vibrations and vibrations;
mechanical damage from impacts.
If the exhaust is damaged, the following symptoms appear.
Loud roar , which comes from under the bottom or rear of the car while driving.This means that cracks have appeared in the parts, the corrugation no longer ensures tightness, the gaskets are worn out, and the fasteners are torn.Metal clang from under the hood or rear bumper when driving. This sign means that the integrity of the resonator or the reactive muffler has been violated.Knock from under the bottom ... Indicates worn muffler mounts.This material is used if it is necessary to restore the integrity of the exhaust system, to seal a groove in a rolling or welding seam. The paste is resistant to high temperatures - it only becomes harder from heat.
The sealant is used in the following cases.
For the installation of components of a new exhaust system. It is applied to the inner annular surfaces of all parts to be joined. It is also possible to seal joints with cement.
To eliminate the consequences of burnouts. A patch is applied to the damaged area with a layer of cement, which is then screwed on with self-tapping screws. The paste is also applied over the fasteners to increase the tightness.
To restore any parts of the exhaust system. The surface with cracks or holes is cleaned, after which the substance is applied to it. If there is major damage, patches are used.
In some cases, damage can be repaired by welding or seams, but cement is much more reliable.
Important! The sealant can only be used if the hole is relatively small and the damaged part remains rigid. If there are large cracks, it is better to take a thermal tape. Remember that damage to the connection between the tank and the pipe cannot be repaired by applying adhesives - you need to completely change the parts.
When the first signs of a breakdown appear, carry out a diagnosis, ideally in an inspection pit. Start the engine to more accurately determine the location of the fault. Examine the size of the damage, stop the engine and remove the muffler.
If you need to repair a crack or burnout in the connecting pipe, remove rust and dirt with a grinder with a brush, degrease the damaged area and apply a thick layer of cement to it.
In the event of a major burnout, you will need a pad. You can make it yourself, from sheet metal about 0.6 mm thick. The size of the overlay should be such that it overlaps not only the damaged area, but also some area around it. The area intended for sealing must be lubricated with a sealant for repairing the muffler, install a cover on it and fix it with clamps. Wait for the cement to harden (the time is indicated in the instructions) and apply over heat-resistant paint.
Muffler repair using Abro cement, video:
VIDEO To repair the front or rear muffler top cowl, you will also need 0.5-0.6 mm sheet metal and muffler cement. An outer casing must be made of metal, then a layer of paste must be applied to the surface of the muffler, the casing must be fixed with bolts and pads.
Install the part in place and start the engine - it should run for some time at idle (the exact date is in the instructions for the cement). After a few days, inspect the muffler and, if there are small cracks, cover them with paste and paint with heat-resistant paint after hardening.
Benefits of Abro Cement
Products of the American brand, widely distributed all over the world. Differs in affordable cost and positive reviews from motorists. The sealant is universal - it can be used not only to restore the integrity of machine parts, but also in everyday life, as an adhesive with high retention capacity. The substance helps to reduce the noise level during the operation of the system.
Abro products have the following advantages.
Resistant to high temperatures. The paste does not lose its properties when heated to 1100 degrees, so it can be used in new exhaust systems.Ease of use. A minimum of preliminary work - you only need to clean and degrease the surface to be treated, after which a layer of cement is applied to it.High setting speed. If you start the engine at idle speed, the sealant will harden after 20 minutes. Without heating, it hardens for about 12 hours.Profitability ... The substance is cheaper than a number of analogues, and one tube is enough for 3 overhauls and one replacement of the gasket. You don't have to spend a lot of money.With the help of Abro cement, you can quickly and easily repair the muffler or its individual parts. The shelf life of the sealant is not limited.
Jam repair with your own hands (video):
VIDEO
No matter how carefully we drive, over time our car wears out, all sorts of sores begin to appear. Some endure repairs, such as the stabilizer struts (knocking, of course, is unpleasant, but you can move around), but with some it is very uncomfortable to ride, I would even say unbearable - a burnt-out muffler can be attributed to such a breakdown. He roars notoriously! So what to do - change? Or you can somehow repair it, and preferably with your own hands ...
THE CONTENT OF THE ARTICLE
It should be noted that a car muffler is a unit that is constantly exposed to aggressive environments. On the one hand, it is salt, water, snow and road stones. On the other hand, it is high temperature and substances from engine exhaust. In general, this link is struggling with two unfavorable environments, which sooner or later destroy it.
Made from durable metals, often steel or its alloys, which can withstand high temperatures. Did you know that near the catalyst, when driving fast, part of the muffler can simply glow red. It is not homogeneous, that is, it consists of several tribes, often only three.
1) These are the so-called pants, come from the engine
Often, the middle and rear parts, or rather their resonators (where the sound is muffled), suffer the most. There water collects and begins to oxidize the walls, then rust - that's why the muffler burns out.
There are two solutions to the issue, this is actually a replacement (preferably with an original, or a spare part close to the original), or try to repair this failed link. Usually, it is simply removed and welded, previously they also used "cold welding", but its use is limited in time, after a thousand, and maybe several hundred kilometers, the sound will again appear.
In general, if they decided to repair it with their own hands, then it is advisable to weld the hole, then, under normal circumstances, this part of the muffler passes several tens of thousands of kilometers.
If you nevertheless decide to repair, for example, there is no money for a new one, then follow my instructions:
1) Remove the burnt-out part. The process is not complicated, except for removing the pants (the part of the muffler that connects directly to the engine), there you have to tinker a little with the mount. It is also worth looking at the bolts, from time to time they can stick very strongly, so it is advisable to use silicone lubricants that will help in dismantling.
2) After removal, we determine the essence of the problem, it may be a burned-out hole in the resonator! The pipes themselves, as a rule, rarely burn out. You also need to decide whether it is worth repairing this muffler link, often the walls that remain on the sides are also already thin, and if you weld on them, they will be the weak link.
3) It also happens that there are no holes on the surface, but the muffler still roars. Most likely, you replaced it with a similar one that fits your car, but made in a handicraft way, the resonator is not located correctly in it.Repair here will be complicated, because you need to open the upper part, cut it off with a grinder, and then remake the resonator! BUT - you need to know how to position it correctly, which is also not unimportant, otherwise all the repair work will come to naught.
4) We return to the burned-out holes. Of course, many put them on cold welding, but as I wrote above this is not for long, such repairs should be temporary in order, say, to get to the desired destination. Some cover the hole with fiberglass using epoxy resin, if you properly prepare the place and apply according to the instructions, then such a repair can last a long time. As practice shows, several thousand, and maybe tens of thousands of kilometers. The big plus of such a repair is that you can do everything yourself. We watch a small video - instruction without welding.
VIDEO 5) We clean the places for welding, it is imperative that the contact is as strong as possible. Then a sheet of steel is taken and welded over the holes, thus, we restore the tightness of the resonator or pipe.
As you can see, the muffler can be repaired in various ways. Some are actually do-it-yourself - cold welding, fiberglass + epoxy. They are sold in almost every construction supermarket. Also, repairs can be more serious - welding, thus, you can extend the life of the unit for many more kilometers.
Repair video by welding.
That's all, before throwing out this part, see if it is possible to restore it. That's all, read our AUTOBLOG.
It so happens that a strange unusually loud rumble is suddenly heard from under the car. And then even an ignorant driver understands - the problem with the "glushak"! Most often, burns appear, less often the elements of this node come off from each other.
But, fortunately, most of the breakdowns can be fixed by making a do-it-yourself muffler repair. The main thing is to understand which of the following reasons led to the malfunction:
hitting an obstacle that damaged the muffler;
corrosion, burnout of the unit due to the constant effects of harmful substances from exhaust gases, as well as their heat;
constant strong exhaust pressure;
large drops in ambient temperature.
VIDEO
If such a nuisance occurs, you should not postpone the repair of such an important assembly unit, so as not to deafen others and yourself with a nasty noise. In addition, the unit may simply fall apart. Next, we will consider how to make a do-it-yourself muffler repair using the example of different cars.
In many cases, a car enthusiast can do without a welder, electrodes and a car service. However, this option for eliminating the problem is most often not pleasing with the subsequent durability. It is of a temporary nature, for example, if there is no time to go to servicemen.
wrenches;
sandpaper;
set for cold welding;
a piece of tin;
clamp with threaded tie.
We begin to repair the muffler of the Tavria car with our own hands from the inspection pit.
First of all, we determine the place where gases break through. It's good if the hole is outside. Next, we describe how to close just such a hole.
First, we dismantle the entire assembly, for which we unscrew the fasteners.
So, the unit is in front of us. In Tavria, it is simple: there are two chambers inside, one of them with a diffuser. We clean the hole thoroughly with sandpaper. This must be done without fail, otherwise there will be no sense.
After mixing the components, apply cold welding with fingers in a glove.
We tighten this place with a clamp around.
We install the unit back.
In fact, the recommendations for many other cars also look like. After all, we specifically described these recommendations in general terms, which help to repair the muffler with our own hands, but only with cold welding.
Another thing is when the front pipe fails. Here it is unlikely that you can help with local repair of the exhaust pipe of the muffler with the help of some cunning means and with your own hands. There is only one way out - replacement. After all, these "pants" - receiving pipes - perceive the very first powerful blow of exhaust gases. The load is so great that local fittings will only help you get to the garage.
To replace "pants", for example, on a "classic" VAZ, you must have:
spanners;
penetrating lubricant.
Also read about replacing the propeller shaft cross and repairing the starter with your own hands.
VIDEO We dismantle the rear part of the muffler.
We detach the resonator.
We unscrew the clamp bolt that holds the front pipe.
We open the hood, then unscrew the nuts securing the intake pipe to the exhaust manifold.
We remove the defective part, as well as the gasket.
We install a new part together with a new gasket according to the reverse sequence.
The main thing here is not to forget to process threaded connections that cannot be loosened with a penetrating grease of the "vedashki" type. And after processing, wait a few minutes. Although it is possible that some nut will have to be carefully cut off with a "grinder", because all elements of the exhaust system work in extremely harmful conditions, so they quickly stick to it.
And now we will consider repairs on several more cars. Take Nissan, for example. If the gasket of the unit burns out, it is better to replace it. For Nissan Note, like other cars, do-it-yourself repair of the muffler gaskets does not make sense.
ceramic sealant;
tin tape;
scissors for metal;
pliers with fine ends;
hammer.
Be sure to clean the leaky place. The assembly does not need to be removed from the vehicle.
Apply a generous amount of ceramic sealant with your fingers (we use gloves to protect your hands) directly on the hole.
We wrap this part of the pipe with a tin tape. We cut off the protruding ends of the tape, leaving 2 centimeters from the pipe.
Bend the remaining ends with pliers.
We knock the bend with a hammer so that the clamp obtained in this way squeezes the pipe tightly.
With the result obtained, you can travel more than one hundred kilometers.
In addition, consider repairing a muffler at a Gazelle. Let's say the resonator is broken. This element of the system uses a tube with many holes. Due to them, low frequencies are extinguished - the gas, passing through many holes, rubs against itself.
You need to do some simple manipulations.
We carefully clean the gap that appears with sandpaper.
We hammer it abundantly with the composition, mixing the components. We also spread a large layer on top, gloves should be on the hands.
We give the squad time to grab.
Sand lightly with sandpaper.
With such a repair of the muffler with your own hands and without welding, you can also drive a decent number of kilometers.
However, if such a muffler repair turned out to be short-lived, it is better to call in for a service. There you will definitely have major welding works, this will allow you to travel hundreds of thousands of kilometers without thinking about the release. Moreover, everything will not cost so much.
Video (click to play).
The cost of welding, together with the removal of the element and its installation back from the car service masters, is indicated in the table, relative to different large cities of the Russian Federation. Here is the table.
