In detail: do-it-yourself fairy centrifuge repair from a real master for the site my.housecope.com.

The washing tank, the casing of the electric drive and the tank lid of the FEYA washing machine are made of impact-resistant plastic. To accommodate the activator, the washing tub has a special cutout in the bottom and marks on the inner wall, which indicate the required water level in the tub for washing and rinsing. To rotate the activator, a belt drive is intended that connects it to the electric motor. The electric drive of the machine consists of an electric motor, a time relay and capacitors. The control panel has a knob of a cyclic time relay RVTs-6-50, with the help of which the activator's electric drive is started and stopped. The time relay provides automatic control of the cyclic reversing, while the alternation of the phases of the reversing cycle occurs in the following order:

the working period corresponding to the rotation of the electric motor in one direction;
pause;
the working period corresponding to the rotation of the electric motor in the opposite direction.

Rice. one The device of the Fairy washing machine.

Then the cycle is repeated. The time relay regulates the duration of the wash, which can be 1.6 minutes. It should be borne in mind that the RVTs-6-50 time relay is not protected from moisture ingress. The drain connection with a drain hose attached to it is located at the bottom of the washing tub. The set of the machine includes a water inlet hose, a stand for installing the machine on the sides of the bathtub and tongs for clothes.

Mechanical malfunctions of the washing machine, such as abnormal noises, jamming, etc. read mechanical faults of washing machines. See also typical malfunctions of non-automatic washing machines and their elimination. In terms of its structure, the Feya washing machine is similar to the Mini-Vyatka washing machine, so the procedure for disassembling the CM see Repair of the Mini-Vyatka washing machine.

Video (click to play).

K - cyclic time relay RVTs-6-50;

M - electric motor AVE-071-4S

The time switch installed on the machines usually allows you to adjust the wash time from 0 to 6 minutes. For the best quality wash, the cycle of the machine should be as follows: 50 s - rotation in one direction, 10 s - break, 50 s - rotation in the other direction, 10 s - break, etc. The FEYA washing machine can operate in this mode - this is inherent in its design. But in the event of a failure of the cyclic time relay, see the modernization of the washing machine, where the CM motor reverse device is proposed.

Used “Information materials TSNIITEI. 1980-1990 "

All the best, write

Today it is quite difficult to do without a washing machine. If buyers cannot afford expensive imported equipment, they pay attention to domestic brands. It is not so easy to find quality equipment in this segment.

Fairy is a domestic brand on the household appliances market, presented in a low price segment. Washing machines of this brand are compact, easy to use, but you cannot call them the brainchild of technological progress. Small load, lack of electronics, the minimum number of modes are compensated by low cost and small dimensions. Oddly enough, economy class washers do not break down as often.

The service life of the Fairy washing machine depends on the quality of the repair. Self-intervention can lead to irreversible consequences. The technician must be repaired by a professional. Order the repair of the Feya washing machine from a qualified technician. It will identify the weak points of the washer and fix the malfunctions.The causes of breakdown can be a careless attitude to equipment, violation of operating rules, power drops and mechanical damage.

The complexity of the repair depends on the model of the Feya washing machine. Failures occur from wear of parts, damage and misuse, and it is the job of a specialist to determine why and in which nodes.

Semi-automatic models of the Feya washing machine are quite simple to operate and easily repaired. Due to the extended functionality, automatic cars junk more often: in addition to the main parts, electronics fail. This is greatly influenced by voltage drops in the network.

Breakdowns of the "Fairy" washing machine can appear for various reasons. They may not appear immediately. Here are some signs:

Damage to the cable and other parts can lead to breakdowns of the Feya washing machine. If the clipper does not turn on, the cause of the malfunction may be the lack of contact with the outlet. In case of a serious breakdown of the "Fairy" washing machine, immediately call the expert whom you trust.

It can be difficult to identify problems yourself. But if the process of washing, soaking, rinsing repeatedly goes wrong, perhaps some part has become unusable and requires replacement or debugging.

There are several reasons for the failure of the Fairy washing machine. If the water does not drain, you need to check the cord. If it is intact, the filter or drain hose is most likely clogged. You can clean it yourself (the process is described in the instructions for the machine). When the washing machine is leaking, the fault may be a breakdown of the activator or centrifugal pump. In case of severe damage, these parts are replaced. There is often noise during washing. Foreign objects in the body act as a catalyst for the breakdown of the Feya washing machine. Problems can arise with the centrifuge. Heavy loading can result in loud noise.

The error codes of the "Fairy" washing machine will help identify some breakdowns and malfunctions. Some of the problems can be solved by yourself. For example, remove foreign objects, add high-quality powder or reduce the amount of laundry. The error codes of the "Fairy" washing machine can inform not only the malfunction of the equipment. They will also indicate incorrect operation. Remember to follow the instructions and take good care of the machine. In models without a special display, damage can be detected by the sounds when turned on. In this case, it is rather difficult to identify the type of breakdown. However, a qualified specialist will certainly cope.

The activator-type washing machine Feya still remains in demand among a small part of the population, especially the Feya is liked by summer residents. Despite the simplicity of the design, the parts of such a machine are also subject to wear and tear, so the washing machine may break down and need to be repaired. What most often fails, and how to carry out repairs with your own hands? We will try to answer these questions.
Read also: DIY gur gazelle sable barguzin repair
Breakdown and malfunction of the washing machine can manifest itself in different ways, here are the symptoms that users describe most often:

the activator does not rotate, while the engine hums;

the engine overheats during washing;

a knock appeared during washing;

during intensive washing, the activator tears the laundry;

the centrifuge does not work;

water does not drain;

water flows under the machine.

Specialists of service centers also talk about these malfunctions, although people rarely turn to them with such problems. After all, the cost of an activator washing machine Feya 2 does not exceed several thousand rubles - this is such a cheap option to arrange “laundry” with relative comfort. The services of repair specialists are often equal to the cost of the Fairy 2 car, therefore, it is better to carry out repairs with your own hands, and if it does not work out, then throw it away and buy a new one. Let's try to disassemble these faults and decide how to fix them.

If the activator of the Fairy 2 washing machine tears the laundry or periodically refuses to rotate, this indicates a serious problem that will most likely lead you to the need to replace the activator with a new one. Follow this procedure:
Make sure that not too much laundry is loaded into the machine; if the items are bulky, remove some and try to wash them again.

Check the o-rings and rubber gaskets of the activator, if you find visible wear, replace them.

If it does not help, replace the activator itself.

If the activator refuses to rotate, but the engine makes a hum, and then the washing machine turns off, then these symptoms will require you to take other actions.

It will be necessary to remove the back wall of the Fairy 2 machine, take a multimeter and check the condition of the capacitor.

If the capacitor is OK, there may be a problem with the motor. Turn the rotor first in one direction, then in the other, if it rotates in both directions, most likely the engine will have to be changed.

At the same time, check and replace the oil seals.

For your information! Do not rush to disassemble the machine, first turn the activator with your hands, sometimes after such mechanical manipulations it "falls into place" and starts working.

If the electric motor works normally, without extraneous noise, but at the same time the activator is in place and refuses to rotate, you must do the following. Remove the back wall of the Fairy 2 machine and tighten the drive belt, if the drive belt is torn or worn out, it needs to be replaced.

If the centrifuge on the Fairy 2 washing machine does not turn on, start by checking the electrical, especially since it is primitive in this machine. Check the integrity of the power cord, it is better to use a multimeter for this, measuring the resistance and determining whether the wiring is broken or intact.
If the wiring is intact, remove the back of the machine and check the thermal relay. This element burns quite often, if you have the same problem, replace the thermal relay. If the thermal relay is also in order, then it will be necessary, according to the scheme outlined above, to check the capacitor, and then the centrifuge motor.

The centrifuge may be in good working order, but at the same time there is still no normal spinning, since water does not leave through the drain system. What is the reason for such an unpleasant phenomenon?

The most likely clogging of the filter or drain hose, take the instructions for the Fairy 2 washing machine and see how to clean - there is nothing complicated about it.

It is also possible that the centrifugal drain pump is clogged and needs to be removed and cleaned.

In rare cases, the drain pump will fail and must be replaced.

Important! A breakdown of a centrifugal pump often leads not to the impossibility of draining the water, but to leaks, which is also very unpleasant.

The Fairy 2 washing machine may suddenly start leaking. Perhaps this can be considered the most frequent and most unpleasant breakdown, although the reasons for it may be trifling. In the worst case, you will have to replace the activator or centrifugal pump. But this is required only in 5% of cases when you have to deal with such breakdowns, so do not rush to get upset. Better do the following:
Check how tight the activator is. If it dangles freely, then water flows through it. It must be tightened.

Check o-rings for wear.

Inspect the surface of the activator for nicks or other damage as water can seep through such damage. Replace activator if necessary.

To check the O-rings, oil seals and tighten the activator, it must be removed correctly. How to do it?

There is a plug on the side of the activator, take it out, unscrew the fasteners and remove the handle.

We remove the washer, the gasket, unscrew the fasteners of the casing, remove it.

We hold the engine impeller with one hand, and unscrew the activator with the other.

Note! Judging by the description - nothing complicated, but in fact there are nuances of disassembly. Until you try, you won't know.

The Fairy 2 washing machine may emit abnormal noises. In this case, she may need repairs, but first you need to understand the causes of the problem. The main reason is that the centrifuge is overloaded with linen. Usually, after washing several bookmarks of laundry, the user tries to squeeze everything out as quickly as possible by stuffing as many wet things as possible into the centrifuge. Due to the excessive load, the centrifuge, when rotating, due to the centrifugal force, begins to beat against the walls of the tank, making a very loud noise.

In this case, it is imperative to stop the spinning process in order to avoid the destruction of the centrifuge parts. Things need to be loaded not too much, but not too little, then the spinning process will be the most efficient. Extraneous noise also occurs due to foreign objects caught in the centrifuge. It's good if it's just a jacket lock, large metal buttons or a belt buckle, but a large coin, a nail, or even worse can easily end up in the centrifuge. Check your clothes before putting them in the washer.

In conclusion, we note that the Fey 2 washing machine, which is outdated, but still used by some people, often fails. Since it is not a reliable technique, it needs an independent repair, since you cannot carry such a “miracle of technology” to the service - it is too expensive, but it is not worth it. The only way out is to do it yourself, which is not always possible due to the lack of spare parts.

Read also: DIY network cable repair

Posted by admin in Repair of equipment 03.09.2018 0 64 Views

The activator-type washing machine Feya still remains in demand among a small part of the population, especially the Feya is liked by summer residents. Despite the simplicity of the design, the parts of such a machine are also subject to wear and tear, so the washing machine may break down and need to be repaired. What most often fails, and how to carry out repairs with your own hands? We will try to answer these questions.

Breakdown and malfunction of the washing machine can manifest itself in different ways, here are the symptoms that users describe most often:

the activator does not rotate, while the engine hums;

the engine overheats during washing;

a knock appeared during washing;

during intensive washing, the activator tears the laundry;

the centrifuge does not work;

water does not drain;

water flows under the machine.

Specialists of service centers also talk about these malfunctions, although people rarely turn to them with such problems. After all, the cost of an activator washing machine Feya 2 does not exceed several thousand rubles - this is such a cheap option to arrange “laundry” with relative comfort. The services of repair specialists are often equal to the cost of the Fairy 2 car, so it is better to do the repair yourself, and if it doesn’t work out, then throw it away and buy a new one. Let's try to disassemble these faults and decide how to fix them.

If the activator of the Fairy 2 washing machine tears the laundry or periodically refuses to rotate, this indicates a serious problem that will most likely lead you to the need to replace the activator with a new one. Follow this procedure:

Make sure that not too much laundry is loaded into the machine; if the items are bulky, remove some and try to wash them again.

Check the o-rings and rubber gaskets of the activator, if you find visible wear, replace them.

If it does not help, replace the activator itself.

If the activator refuses to rotate, but the engine makes a hum, and then the washing machine turns off, then these symptoms will require you to take other actions.

It will be necessary to remove the back wall of the Fairy 2 machine, take a multimeter and check the condition of the capacitor.

If the capacitor is OK, there may be a problem with the motor. Turn the rotor first in one direction, then in the other, if it rotates in both directions, most likely the engine will have to be changed.

At the same time, check and replace the oil seals.

For your information! Do not rush to disassemble the machine, first turn the activator with your hands, sometimes after such mechanical manipulations it "falls into place" and starts working.

If the electric motor works normally, without extraneous noise, but at the same time the activator is in place and refuses to rotate, you must do the following. Remove the back wall of the Fairy 2 machine and tighten the drive belt, if the drive belt is torn or worn out, it needs to be replaced.

If the centrifuge on the Fairy 2 washing machine does not turn on, start by checking the electrical, especially since it is primitive in this machine. Check the integrity of the power cord, it is better to use a multimeter for this, measuring the resistance and determining whether the wiring is broken or intact.

If the wiring is intact, remove the back of the machine and check the thermal relay. This element burns quite often, if you have the same problem, replace the thermal relay. If the thermal relay is also in order, then it will be necessary, according to the scheme outlined above, to check the capacitor, and then the centrifuge motor.

The centrifuge may be in good working order, but at the same time there is still no normal spinning, since water does not leave through the drain system. What is the reason for such an unpleasant phenomenon?

The most likely clogging of the filter or drain hose, take the instructions for the Fairy 2 washing machine and see how to clean - there is nothing complicated about it.

It is also possible that the centrifugal drain pump is clogged and needs to be removed and cleaned.

In rare cases, the drain pump will fail and must be replaced.
Important! A breakdown of a centrifugal pump often leads not to the impossibility of draining the water, but to leaks, which is also very unpleasant.

The Fairy 2 washing machine may suddenly start leaking. Perhaps this can be considered the most frequent and most unpleasant breakdown, although the reasons for it may be trifling. In the worst case, you will have to replace the activator or centrifugal pump. But this is required only in 5% of cases when you have to deal with such breakdowns, so do not rush to get upset. Better do the following:

Check how tight the activator is. If it dangles freely, then water flows through it. It must be tightened.

Check o-rings for wear.

Inspect the surface of the activator for nicks or other damage, as water can seep through such damage. Replace activator if necessary.

To check the O-rings, oil seals and tighten the activator, it must be removed correctly. How to do it?

There is a plug on the side of the activator, take it out, unscrew the fasteners and remove the handle.

We remove the washer, the gasket, unscrew the fasteners of the casing, remove it.

We hold the engine impeller with one hand, and unscrew the activator with the other.

Note! Judging by the description - nothing complicated, but in fact there are nuances of disassembly. Until you try, you won't know.

The Fairy 2 washing machine may emit abnormal noises. In this case, she may need repairs, but first you need to understand the causes of the problem. The main reason is that the centrifuge is overloaded with linen. Usually, after washing several bookmarks of laundry, the user tries to squeeze everything out as quickly as possible by stuffing as many wet things as possible into the centrifuge. Due to the excessive load, the centrifuge, when rotating, due to the centrifugal force, begins to beat against the walls of the tank, making a very loud noise.

In this case, it is imperative to stop the spinning process in order to avoid the destruction of the centrifuge parts. Things need to be loaded not too much, but not too little, then the spinning process will be the most efficient.Extraneous noise also occurs due to foreign objects caught in the centrifuge. It's good if it's just a jacket lock, large metal buttons or a belt buckle, but a large coin, a nail, or even worse can easily end up in the centrifuge. Check your clothes before putting them in the washer.

Read also: DIY galanz tm30mu01e microwave timer repair
In conclusion, we note that the Fey 2 washing machine, which is outdated, but still used by some people, often fails. Since it is not a reliable technique, it needs an independent repair, since you cannot carry such a “miracle of technology” to the service - it is too expensive, but it is not worth it. The only way out is to do it yourself, which is not always possible due to the lack of spare parts.

In the (Machine leaks) section, the image does not correspond to FEYA-2, in which the activator shaft is vertical, not horizontal. They were negligent and no help. It is necessary to indicate which oil seal or cuff according to GOST to find for replacement.

I received as a gift from my father-in-law 🙂 an electric motor from a washing machine, which had been in his garage for several years and was not adapted to anything. Actually, he lay in my garage for almost a year, but a week ago I found a use for it.

Since I started cutting foam, I have a lot of waste in my garage. I did not dare to throw away such an amount of polystyrene, especially since money was paid for it and this “garbage” can be used for construction purposes. So I decided to make a foam crusher, naturally I needed an electric motor. I took out a piece of iron, but I did not know how to connect it, since 4 wires come out of the motor. As it turned out, connecting the engine to the 220 network is very simple. Below is the original wiring diagram when installed on the FEYA washing machine.

The diagram has a lot of wires, switches and other parts. If there are no capacitors at hand to start the engine, then it is quite possible to do without them. See the diagram, the motor has 2 windings, one (above) working, the second (right) starting. While the engine is running, the working winding is connected to the 220 volt network all the time, and the starting winding is needed only for short-term operation, to start the motor (for half a second it will be connected to the network along with the working winding, when the motor starts, we immediately turn it off).

I started my motor without any problems, hung it on the crusher, but I haven't finished it yet, I am looking for effective designs. Later in the articles I will definitely show you how it all works.

Below is a photo of the motor in the FEYA washing machine, I found the photo on the Internet, my motor looks different, but the principle of switching on does not change from this.

You turned the switch and saw that the centrifuge in your washing machine is not working. There are several reasons for the problem:

malfunction of the protective sensor;

timer problem;

brake pads;

motor winding.

In some models, for example, Saturn or DAEWOO (Daewoo), a sensor is installed on the door covering the centrifuge tank. It is designed to disable the start of the device when the door is open. To access this sensor, you will have to remove the top panel of the washer.

Under it you will see a sensor with two contacts that you need to wipe cotton wool with alcohol... Do not scratch or sand the contacts with a knife. Check sensor operation. With the cover closed, the contacts should close.

The timer in most semiautomatic washing machines (SMP) is located under the top panel of the unit. You can repair it, cleaning the contacts.

There can be a lot of tips on how to remove the panel, due to the design features of machines from different companies.

After removing the top panel, you will see a device that resembles a clock with gears.Inside it you can see contacts that can burn out during long-term operation of the unit. Soot appears on them, which does not transmit current.

Disassemble the timer carefully. The mechanism cover also serves for attaching gears to it. After unscrewing the three screws, it must be removed so that the gear wheels do not fall out. If you are afraid that you may not remove the cover carefully, then it is better to photograph the mechanism. After opening the cover, you will see contacts. As with the sensor, they must be wiped clean with alcohol.

How does the braking system work in semi-automatic cars? The brake pads are installed under the centrifuge and provide braking when the door is opened. It is connected to the lid by means of a cable. When the cover is opened, the cable is stretched and the brake pads wrap around the rotating part of the engine - the centrifuge is braked.

Open the back wall of the SMP and check the tension of the cable, the lack of contact of the pads with the engine when the door is closed. It is the touch of the brake pads that sometimes prevents the electric motor from starting.

A common cause of centrifuge breakdown is burnout of one of the electric motor windings. You can check this with a tester (measuring device):

We find the ends of the wires coming out of the electric motor. Usually there are three of them: the first is common, the second is leading to the starting winding, and the third is leading to the working winding. The common wire is marked with the letter “N” (often blue).

We set the resistance test on the device, and measure it between the blue wire and one of the two, for example, the red one. If resistance readings are present on the device screen, then everything is in order with this winding.

We continue the same steps with the other pair, blue and white wires. We measure the resistance and look at the readings of the device. If there is no resistance, then the winding is burned out. And the reason that the centrifuge does not work in your washing machine lies in malfunction of the electric motor.

In such cases, the motor is rented either for rewinding, or a new one is bought and installed.

Read also: Do-it-yourself Renault car repair
It is difficult to list all the reasons for the breakdown of the spin system. Each model of machines may have its own nuances. Do-it-yourself repair of a semiautomatic washing machine will save you a lot of money. Here are the most common errors in the spin system:

The engine makes a humming noise, but the spin does not work. This means that it jumped off or belt brokeconnecting the pulleys of the motor and centrifuge.

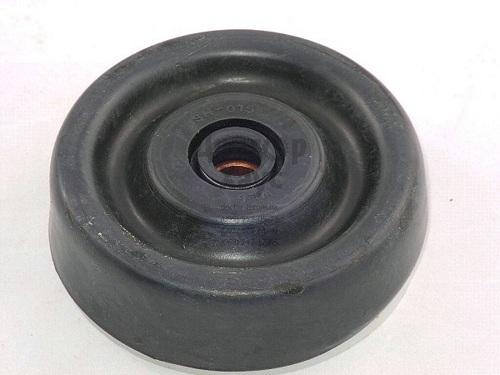

When the rubber bushing of the diaphragm is worn out, a large backlash prevents the spinning from starting. Required bushing replacement.

If, after checking the motor with the device, you are convinced that it is in good working order, then the reason may be faulty thermal relay, or a step-down transformer. These parts are replaced with new ones without repair.

Check for winding on the motor shaft small thingsthat could fly out during spinning and get inside the machine.

Unevenly laid laundry in the rotor causes the centrifuge to beat and prevent it from starting.

If the activator and spin motors do not work, check fuseinside the machine behind the rear wall. It will not be superfluous to disassemble the electrical plug and check the contacts.

The modern NSR cannot be called a simple device. Some malfunctions can only be repaired by a qualified technician - a master. But, carefully following the above tips, slowly and carefully performing the required actions, you can repair the washing machine with your own hands! Despite the fact that a semiautomatic machine is often bought for a summer residence or other places where there is no running water, for example, in the countryside, it also requires careful handling. Follow the rules of prevention, and the machine will serve you without breakdowns much longer!

To diagnose the condition of the winding, it is necessary to "ring" the wiring for resistance. Usually, three wires come out of the electric motor: common, for the starting winding and for the working winding. But in order to obtain more accurate information about the device of the unit, it is recommended that you familiarize yourself with the wiring diagram, which is usually located inside the washer body (on one of its walls). The tester probes are attached to two different wires. If the readings on the device fluctuate between 20 and 200 ohms, then everything is normal.When the value is less, it indicates a short circuit, and when it is higher, it indicates a wire break. In the latter case, you can rewind the component or purchase a new one.

In addition to the listed breakdowns, there are others that can disrupt the spinning operation. Often they can be eliminated on their own without resorting to disassembly. Among the most common causes of centrifuge malfunction are the following:

The belt that connects the centrifuge to the engine pulleys has broken or fell off. A breakdown can be recognized if the machine hums but does not spin the drum.

The laundry is unevenly distributed, which causes the centrifuge to wobble but cannot start.

Small objects falling on the motor shaft. This can happen during spinning. To make everything work again, it is enough to remove foreign objects from the surface of the part.

If the engine of the spin system is running, but things remain wet, then the reason may lie in the malfunction of the drain system. For example, an improperly installed hose can provoke the fact that the machine simply does not drain the water squeezed out of things.

During operation, the user of the NSR may also encounter other problems that are unusual for automatic counterparts due to the characteristics of the device. For example, during washing water can overflow from the washing tub into the spinning drum... This is due to a broken or clogged bypass valve. The problem is solved by cleaning it or completely replacing it.

Also while drying laundry from under the semiautomatic machine can weep out liquid... This indicates a leak in the tank, loose connections or fasteners of the hydraulic system (hose, exhaust valve, etc.), as well as worn cuffs, bushings, bearings or pipes. In such cases, the fasteners are tightened, the tightness of the parts is restored using cold welding, and the worn out components are replaced with new ones. Such problems of a mechanical nature are not uncommon and can be eliminated by hand.

Another nuisance that makes it difficult to work with semiautomatic devices is breakdown of the gearbox... This unit is responsible for the stable operation of the device (including spinning), reducing the number of revolutions transmitted from the engine to the drum. This allows you to reduce vibrations and protects the motor from wear and tear, and its breakdown is characterized by strong vibration of the washing machine and difficult movement of the drum, up to its complete blockage. At the same time, gearbox repair is most often associated with replacing worn out gears or lubricating them, as well as cleaning the part from scale, dried lubricant and small debris.

Important! Despite the fact that semi-automatic washing machines are more resistant to external factors, you should not neglect the basic principles of their operation. The further use of the semiautomatic device in case of any of the breakdowns described in the article is unacceptable.
