DIY turbo brush repair

Before talking about the repair of a vacuum cleaner turbo brush, you should first understand what it is about. The turbocharged suction system is one of the popular technologies. It assumes the presence of an additional brush. This system is ideal for picking up dust and dirt from carpets.

But no matter how good the vacuum cleaner is and no matter what modern technologies are at the heart of its work, sooner or later it breaks down. And often this happens due to the fact that a complex structure with many moving parts and assemblies is clogged with dust or simply wears out. But do not rush to carry the equipment to the service, perhaps the cause of the malfunction can be eliminated on your own and, in particular, you can repair the vacuum cleaner brush yourself.

The main signs, explicitly or indirectly indicating the need to repair a vacuum cleaner turbo brush, are:

• extraneous sounds appeared in the area of ​​the brush;
• the suction power is lost;
• the brush of the vacuum cleaner does not rotate.

The first step is to determine the cause of the malfunction. If it really lies in a turbocharged brush, then we stock up on the necessary tools.

To repair a vacuum cleaner brush, we need:

1. crosshead screwdriver
2. Flat screwdriver
3. Brush
4. Straight arms

First, unscrew the screws. There are 4 of them in total. In the picture they are marked in red.

Then you need to carefully snap off the latches. There are 6. Be careful. The latches are easy to break. They are marked in green in the picture.

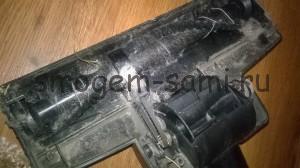

Next, carefully remove the lower part and examine the patient

As you can see from the photo, the brush has several faults:

1. the rotating brush is clogged;
2. the brush drive belt is loose;
3. the turbine is jammed.

After inspection, everything must be disassembled and thoroughly cleaned. We disassemble the node in the following sequence:

1. Removing the brush

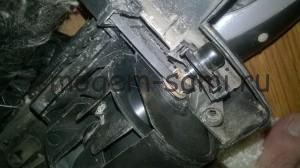

2. We remove the turbine

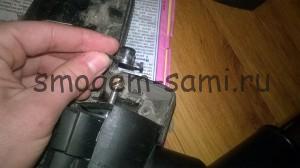

3. We take out the fasteners of the axes of the brush
4. We take out the fastening of the turbine axles

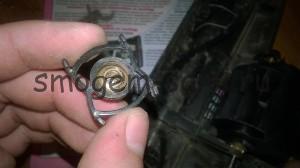

5. We disassemble the mountings of the turbine axles

Let's start with the turbine. The cause of the "wedge" is the drying out of the grease from the brass bushings. To eliminate the malfunction, it is necessary to lubricate the cage and the bearing itself with any thick grease (for example, lithol).

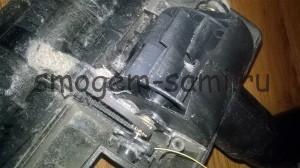

With the turbine sorted out. Now we find out the reasons for the weakening of the brush drive belt.

The reason was that the belt came off the driven gear. Gently rotate the belt counterclockwise and put it back on.

Putting everything together in reverse order. The repair of the turbo cleaner of the vacuum cleaner is completed!
