DIY CVT repair

CVTs are gaining more and more popularity among the varieties of gearboxes. So the carmaker Audi did not stand aside and installed variator gearboxes on the new A6 C6 models.

Each of the above listed elements can fail at any time. In today's article, we will analyze with you the main malfunctions of the Audi A6 variator, their causes of failure and methods of self-repair.

Earlier I already told you about how to replace the fuel filter Audi A6 with your own hands, so anyone interested can read this article by clicking on the link.

Most of the malfunctions in a CVT gearbox arise from improper operation, which I would refer to:

• Violation of the frequency of replacement of the working fluid
• Violation of the frequency of filter replacement
• Using poor quality fluid
• Aggressive driving style

In addition, there are other malfunctions that are determined using computer diagnostics. Each malfunction has its own diagnostic code. The codes determine:

• malfunctions of input sensors (working fluid temperature sensor, speed sensors of the driving and driven pulleys, pressure sensors in the main line, pressure in the driving and driven pulleys);
• malfunctions of the electronic control unit;
• malfunctions of actuators (stepper motor, solenoid valves of pressure in the main line and pressure in the driven pulley, lock-up valves of the torque converter and control of the planetary gearbox).

The most common cause of variator malfunction begins with wear on the bearings of the cones, while a characteristic hum becomes audible. Bearing noise occurs due to the ingress of wear products on their working surfaces, as a result of which they become unusable. Special oil filters retain metal suspension for the time being.

The next reason that can cause problems with the variator is jerking and jerking of the vehicle, which occurs due to the seizure of the oil pump pressure relief valve. The same harmful wear products interfere with the normal operation of this unit, disrupting the stable pressure in the system.

Timely contacting a specialized workshop will help to avoid higher repair costs. Minor damage to tapered pulleys is removed by grinding, while the belt will most likely have to be replaced.

The rather rare malfunctions that precede the breakdown of the variator include the failure of the torque converter, as well as failures in the electronics caused by breakdowns of some elements of the control unit. However, this kind of malfunction occurs quite rarely and is not a regularity, but rather a factor of bad luck.

As I already noticed earlier, the most common variator failure is considered to be worn out bearings for cones. A sign of this problem is a prolonged hum, which manifests itself already when driving 50 thousand km. To change all bearings and their parts, the motorist will have to pay over 34,000 rubles. Such a malfunction most often occurs in Audi A6 C5 cars.

Loud noise of bearings, and then their slow destruction occur for the following reasons. First, the destruction of the working surfaces is facilitated by the ingress of various foreign metal bodies, such as wear products, on them.

The installed oil filter and magnet collecting metal powder cannot block access to the working surfaces of the variator for heavy foreign bodies.In this case, the bearing life will extend the reduction of the engine oil change time to 25 thousand km.

But that doesn't always help. There are cases when some CVTs work quietly for 100 thousand km, while others, under the same operating conditions, buzz even when driving 50 thousand km. High bearing noise is often caused by poor quality bearings, low accuracy and low load ratings.

When it comes to shortening oil change intervals, not all manufacturers share the same point of view. For example. During the warranty period (100 thousand km), Renault advises only to carry out periodic checks of the oil level and condition. At the Audi concern, the oil change must be done once every 75 thousand km.

In addition to the usual machine oil, it makes sense to fill the variators with special oils marked “CVT”, original NS-2 or ELFMATIC CVT fluids. For Audi cars, DiaQueen type CVT-J1 can be used. It is not recommended to pour the oil used in the hydromechanical automatic into the variator, although some little-known manufacturers have adapted their variators for these substances.

Often, when the vehicle is moving, jerks and twitching appear. Reason - the pressure relief valve in the oil pump does not work.

Wear products falling on the contact surface wedge it in an intermediate state. As a result, the pressure level deviates from the norm, which impedes the operation of both pulleys and causes the belt to slip. In this situation, you need to make a visit to the service center as soon as possible.

With timely treatment, repair work will be cheaper: small defects in tapered surfaces are eliminated by grinding.

During diagnostics, specialists often consider problems with the front wheel bearings to be the cause of the noise of the variators, which are immediately replaced with new ones. Replacing these bearings can be costly, since on some machines it is one piece together with the hub, which costs between $ 300 and $ 400.

Many motorists who pull out a stalled vehicle by jogging by quickly moving the lever from position D to R and vice versa, are faced with the following situation - jerks when moving the lever from the parking position to R and D. with friction wheel. The wear of the splines is explained by the absence of a pause when moving from D to R and vice versa (you need to wait for the vehicle to stop). As a result, the gears of the planetary gear must be replaced.

Some drivers, when this problem occurs, immediately begin to check the valve body for malfunctions, which is actually reliable and problems with it rarely happen.

A lot of attention in a stepless unit is paid to the temperature regime. Often, problems in the operation of variators arise from an increase in temperature. In modern cars, a self-diagnosis device is provided, which includes special sensors. When the temperature value rises, they turn on the indicator on the dashboard indicating a malfunction, and the variator is put into emergency stop mode.

To maintain the normal temperature of oils in modern cars, in addition to a heat exchanger, another radiator is installed in the engine compartment near the climate system. Various dirt gets into the bumper through the air duct.

The first sign of a dirty radiator is overheating when the vehicle is moving at high speed. Therefore, once every 3 years (or more often) it is necessary to thoroughly flush the radiator. It would also be nice to install a special mesh in the air duct to protect the radiator from various objects flying out from under the wheels of the car in front.

Despite the mistrust of domestic motorists towards CVTs, Western motorists install this type of transmission with a greater degree of optimism. According to statistics, they break down much less often compared to hydromechanical gearboxes. That is why many car manufacturers, who initially doubted the durability of CVTs, are now being installed more and more every year.

For example, the manufacturer Audi installs variators on a new generation of crossovers with a two-liter engine. Subaru has CVTs for XV, Forester cars. By the way, most of the users of these cars cannot be classified as calm motorists.

These machines are used for high speed cross-country travel. But before, many thought that the variators in such conditions would immediately fail. This means they have become better quality.

Cars with CVT transmissions have recently become more popular among our compatriots. This type of gearbox is relatively new, so not every motorist knows about the device and the benefits of using such a unit. What is the Audi A4 variator, what are its design features and disadvantages, we will tell you in this article.

The first manufacturers to equip their vehicles with variable speed transmissions (CVTs) were Volkswagen and Audi. The company equips the Audi A4 and A6 models with Multitronic transmissions. This type of gearbox belongs to continuously variable transmissions. The consumer characteristics of the Multitronic are quite high. The model of the check point "01J" is installed in A4 and A6 cars.

Gearbox CVT Multitronics 01J

If we talk about the design, then the main constituent elements of CVTs on Audi are as follows:

Before buying a car with a CVT, many motorists are interested in the question of how much the CVT travels on average. The service life in vehicles Audi 2012 or other model year may be different. It happens that the box serves 40 thousand km, and sometimes it fulfills 200 thousand kilometers without any complaints. It all depends on the conditions of use and maintenance of the machine. Precisely because CVTs are very sensitive to misuse, many potential car owners bypass cars with a CVT side.

You can repair the CVT transmission from an authorized dealer or service station. Service from "officials" is relevant if the vehicle is still under warranty. The cost of repairs at a dealer is higher than at specialized service stations.

A common type of CVT breakdown is the failure of the electronic unit. You can try to fix the problem by flashing the device, but the dealer usually changes the ECU. Car owners are faced with the problem of breaking a metal chain. "Officials" in such cases change the entire gearbox assembly.

Carrying out computer diagnostics of the CVT transmission, you can get error codes that indicate the following problems:

• 17105 P0721 or 17106 P0722 - the output speed sensor has broken down, this leads to the absence or supply of an incorrect signal from the control device;
• 17114 P0730 - diagnostics show an incorrect ECU gear ratio;
• 17134 P0750 - the ABS / EDS unit is broken or does not work correctly;
• 17137 P0753 - problems in the operation of the transmission electrical circuit;
• 18201 P1793 or 18206 P1798 - the sensor for the number of output revolutions has broken down or is not functioning correctly, with such a problem the signal from the controller will be either incorrect or completely absent;
• 17090 P0706 - the transmission selector position sensor is out of order or not adjusted.

Why the emergency mode of the variator turns on and how to solve the problem - find out from the car owner's review on the video (the material was filmed and published by the Cars and Upgrade channel).

In emergency mode, the variator gearbox works when problems appear in the operation of the control unit, electrical circuit failure.If this mode is activated, the PRND scale on the dashboard will immediately light up. Other signs of malfunction:

• the driver presses the gas pedal, the car starts jerking;
• when switching speeds, the car jerks;
• in some cases, it is not possible to activate the reverse speed;
• when the gearbox goes into emergency mode, the car cannot be removed from the parking mode.

Mechanical faults include:

• damage to electrical wiring, open circuit;
• oxidation or damage to contacts on sensors or control unit;
• open metal circuit CVT;
• mechanical damage to controllers;
• failure of the control unit as a result of mechanical impact on it, in this case, flashing the device will not help.

An example of what failures can occur in the operation of a variator transmission is shown in the video (the material was filmed and published by the user Ilya Filyaev).

Replacing consumables begins with the purchase of an original oil.

For use in Audi CVT gearboxes, General Motors has released a special lubricant called ATF AUDI G052180A2.

If you are having difficulty finding an original oil, then you can replace it with Mobil1 LT71141. This liquid is no worse in quality, but its cost is on average 50% less. The oil should be changed every 60 thousand km. With such a run, the liquid usually loses its properties. In principle, you can use any other oil, as long as it meets API or SAE standards. When buying a lubricant, purchase:

• filtering device;
• sealant;
• rubber gasket for the pallet.

The volume of the purchased oil canister should be 5 liters.

As for the filters, there are two of them in CVT transmissions. One of them is mounted directly in the unit itself, therefore, to replace it, you will need to disassemble the unit. The second filter is the part of the tube connected to the radiator. This tube is only replaced if it becomes clogged or foreign particles are found in the lubricant.

In addition to the filter and the liquid itself, prepare:

• socket wrench -3357;
• hexagon;
• construction or medical syringe for filling with a special tube;
• clean rags.

Below is a detailed video instruction for self-changing the working fluid in a CVT gearbox (video filmed and published by the Artur Prokurov channel).

It is necessary to change the lubricant in a garage with a pit or on an overpass, if possible, use a lift. The vehicle must be positioned horizontally and secured. The replacement process is performed like this:

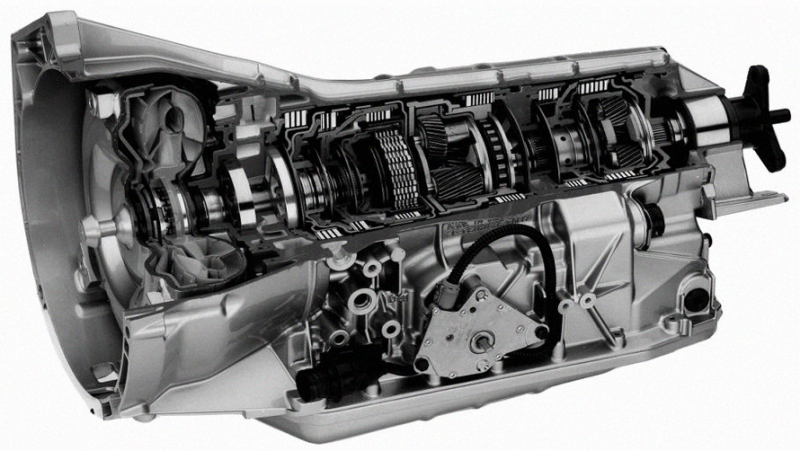

Let's try to figure it out by evaluating the pros and cons of each type of transmission.

1. Reliability of the device compared to CVT. Even if you violate the rules of operation, you are unlikely to be able to burn the clutch. In automatic transmissions, this function is performed by a torque converter, which is in principle more reliable.
2. Automatic transmissions wear less vehicle engine. The automatic transmission independently performs gear shifting, while not spinning the engine crankshaft to maximum speed. And this has a positive effect on its service life.

Now let's consider the disadvantages of "automatic machines":

1. Low dynamics. Cars with automatic transmission cannot show the dynamism that cars with a CVT demonstrate. Because of this, when overtaking a vehicle with an automatic transmission, it takes more time to maneuver. In this case, mechanical transmissions are inferior to variators.
2. Increased fuel consumption. Engines with automatic transmissions consume an order of magnitude more gasoline than the same car models with CVT or "mechanics". On average, the difference in consumption varies in the region of 1-2 liters per 100 km of run.
3. Automatic transmissions usually require more oil when changing fluid. For example, “automatic machines” need about 8-10 liters of consumables, while 5-6 liters are usually poured into variators.In addition, in automatic transmissions, the oil must be changed more frequently.

Below is a detailed video review of CVT and automatic transmissions. The author of the video talks in detail about which gearboxes are better and more reliable (the video was filmed and published by the Avto-Blogger channel).

1. Good car dynamics. A vehicle can accelerate an order of magnitude faster than a car with an automatic transmission.
2. Driving a vehicle with a CVT is generally smoother. Due to the lack of gears, there are no jerks when shifting them.
3. Profitability. CVT cars generally use less fuel than automatic cars.
4. Possibility of driving a vehicle both in automatic mode and in manual mode. If the driver gets tired of the automatic transmission, he can switch to manual control and independently change gears in accordance with his needs.

1. The reliability of the CVT is poor. If you are wondering if the variator is reliable, then as we said, this type of gearbox often fails. Moreover, it can break even after 40 thousand kilometers. The weak point of CVT gearboxes is the control unit.
2. A sophisticated and expensive service. CVT transmissions are not as widely used as automatic transmissions. Accordingly, they are not yet well understood by specialists at service stations. Therefore, only authorized dealers are usually engaged in the repair of such gearboxes.
3. One of the weak points of the variator is the chain. As a rule, its resource is about 100-150 thousand kilometers. But it happens that it wears out earlier. And its replacement is not a cheap pleasure.
4. CVT gearboxes require special lubrication. Moreover, for each car model with a CVT, a specific oil must be used. The cost of consumables is rather big, and it is impossible to use unsuitable liquids.

Detailed and visual instructions for disassembling a variator transmission are given below (the video was filmed and published by the Ambulance channel for your unit).

Variable speed drive 01J (CVT 0AN Multitronic or VL-300) released by Audi in collaboration with LuK GmbH & Co in 2002 for the popular all-wheel drive models A4, A6 and A8. With engines from 1.8 to 3 liters. Transmits up to 310 Nm of torque.

Audi made many names for different sub-modifications for each variant of the car and engine, modeled on the names of Honda's automatic transmissions, but these are all Multitronic variators with different letters of the FSA type. JFJ from 2000 to 2007 (below is a table) have the same design for hardware and electronics and are repaired with the same Repair Kits.

Pick up repair kits - press the button on the left.

Typical diseases of the 01J variator:

The main reason for coming to repair this fairly reliable variator in the early years is the oil change (G 052 180 A2).

A partial oil change requires approx. 4.5 liters. Complete replacement - by double partial replacement - 7.5 l. It is sensitive to the level and quality of the oil, the oil is checked against the overflow plug - at a temperature of +35 .. + 45 ° C, oil should start to flow. Change is recommended in 40-60 tkm, but the older the variator, the more often it needs to be checked and changed. Opaque oil is a marker for urgent oil change or overhaul.

Filters are available with 130010 tube (Original) and without 130010A tube (non-original). There are two types of the filter itself - with a rib (130010A - 01J-301-519N) and without rib (130010B - 01J-301-519L ). Interchangeable. The filter is inside the box and changes only when the variator is overhauled.

The design of the 01J variator is especially demanding on the purity of the oil and operation with a borderline state of oil and with a clogged filter kills the variator units with every kilometer of run.

A typical overhaul order for this variator is Gaskets and Seals Repair Kit # 130002. More often they order budgetary Overol ATOK-130002A less often - Prescription.

Rings, seals and seals are changing, aging rapidly from high temperatures.

In some repair kits, there are no Reluctors - speed indicators.They (Regulators, on the right in the diagram - yellow) sold separately - No. 130079, when the craftsmen find it necessary to replace them as well.

Also, clutches are often ordered in one Set - No. 130003.

Kits differ in the thickness of the Forward clutches. 2.7 mm (unified with 0AW) or 2.05 mm.

Winter driving with a cold transmission kills the friction clutches especially quickly. More details - here.

Also, only in a set (Forward and Reverse) order a set of steel discs. - No. 130004.

The kit also changes the piston Reverse 130966 during the bulkhead.

The next typical CVT consumable 01J : Ejection pump (No. 130501).

The ejection pump is made of plastic and works according to the principle of "atomizer", when one stream of liquid entrains (the other) a stream of air. Only in this variator, instead of air, another stream of the same oil is carried away by oil. And of course, like all atomizers, such a system is demanding on the cleanliness of the channels and the oil temperature. It is quickly clogged with suspension, the channels wear out, ceases to work normally and together with the rest of the “consumables” must be replaced.

Problems with this pump lead to problems with the cooling and lubrication of the clutches. He really does not like working with cold oil.

Another consumable is the oil pipe (No. 130992).

All three solenoids-electric regulator are changed after the resource is exhausted (normal resistance is 4.7 Ohm).

Solenoids are the same: 130420A - no spout, there are three solenoids on the plate: N88 - cooling and emergency shutdown solenoid, N215 - pressure regulator in clutch packs, N216 - pulley gear ratio control solenoid (see diagram on the left)

This variator uses a pull chain. From tensile loads and friction, such a chain develops its resource quite early (Drive chain variator - No. 130700), is replaced practically at every overhaul of the variator after runs over 100 tkm, since even a slight wear will lead to a noticeable disruption in the sliding of the chain along the cones, which immediately reduces the transmitted torque and quickly "ages" the cones themselves.

Empirically, a regularity was established that up to 2 liters it is reasonable to use a pushing chain, and over 2.5 liters - a pulling chain. But for powerful cars, the variator turns out to be even less reliable than preselective boxes, and in modern stepped automatic transmissions, the gearshifts have become no less smooth than in variators, with a significant superiority in reliability. Therefore, the direction of development of variators in the direction of the "pulling" chain can be considered unpromising.

Together with the chain, tension bars are often changed - 130701 and 130702.

The design of the variator does not allow the vehicle to be towed, which leads to fatal consequences for the cones and, as a result, for the transmission itself. The cone is the CVT unit that determines the resource and the bottleneck in the design.

The sore spot of an electrician is familiar to all variators and 6-mortars of the first generations: ECU - CVT control unit Multitronic VL-300 ... For repair press No. 130446A.

The reason for the early failure: the unit floats completely in oil, which heats up in these transmissions over 110 degrees. The material of the case and sensor components, especially of the first years of production, could not withstand prolonged overheating.

Therefore, for these variators, there is a recommendation after 3-5 years of operation - to install an additional oil cooling radiator. Or every summer to clean the existing cooling system inside and outside and change the oil more often than at a “young” age.

In 2003, the manufacturer refined the design of the control unit, using materials that are more resistant to temperatures and the VL300-7 Multitronics began to come for repairs later and less often.

The problem is usually expressed in the fact that the display "PRND" lights up and the computer gives various kinds of errors. And depending on these DTCs, the Multitronics are successfully repaired. (Suggestion from below).

- There is another serious (but more rare) problem - Differential.

During the overhaul, you should pay attention to the condition of the differential. If there are problems with him, then the box is not a tenant. Differential replacement 01J it is almost impossible work in a service environment.

Fighting Oil Leaks - Replacing Oil Seals:

- cuff (oil seal) of the pump (130070),

- cuff of the left and right axle shaft (130073, 130076).

The opinion of the masters on Multitronics is here and here. 01J device - here.

In general, on new cars this super-complicated and finely adjusted transmission works fine in German, but after 150-200 tkm driving with it is like playing “Russian roulette”.

Refurbished Multitronic VL-300 on ZF variator 01J.

Two variants of Multitronic are known to be repaired:

- Square connector (on right 130446 B).

- With K round connector (left 130446A).

Although the investment in a proprietary European CVT project was astronomical, this pull-belt CVT design could not compete with DSG and push-belt CVTs. Many designers and financiers consider such a design a dead-end branch of automatic transmission development and an unsuccessful investment of Audi.
