Washing machine does not drain water DIY repair

In detail: the washing machine does not drain water; do it yourself repairs from a real master for the site my.housecope.com.

It often happens that you strictly adhere to all the rules for operating a washing machine for washing things, but at some point a failure occurs and it ceases to function normally.

Don't get upset right away if the washing machine doesn't drain the water. What are the reasons for this and how to carry out repairs with your own hands, we will tell you in this article.

A completely fixable situation is when the machine does not drain the contaminated water after the first wash. But how can you be sure that this is the problem?

Pay attention to the main signs that the device is not draining water:

  1. The used water leaves slowly, which is why the work of the machine is completely disrupted and it cannot function further;
  2. The device does not drain water only when it is programmed for certain modes;
  3. The device works normally from the moment of starting, but water does not leave in the washing machine at that stage of washing when this should happen, therefore the machine does not wring out or rinse things, but stops and gives out a failure;
  4. If the washing machine does not drain the water after the rinsing stage following the wash;
  5. When the water does not leave at the final stage after twisting the laundry.

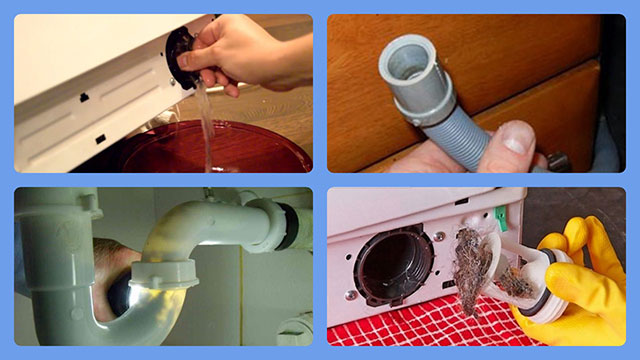

There can be many reasons why the washing machine does not drain. We will consider in detail how to identify and, if possible, eliminate them with our own hands. Why the washing machine does not drain the water, how to find ways to fix flaws and repair the machine.

Here are the most common:

When you are faced with the fact that the Samsung washing machine does not drain the water, but there is no apparent reason for this (the sleeve and filter are clean), try restarting the device.

Video (click to play).

After that, set the "Rinse Spin" mode on the control panel of the LG, Samsung, Indesit washing machine. It happens that indesite does not drain, and the lg washing machine does not drain the water and it becomes problematic to wash.

If everything continues to function without interruption, then the cause was fluctuations in the electrical voltage in the house. Otherwise, contact your machine repair technician for help.

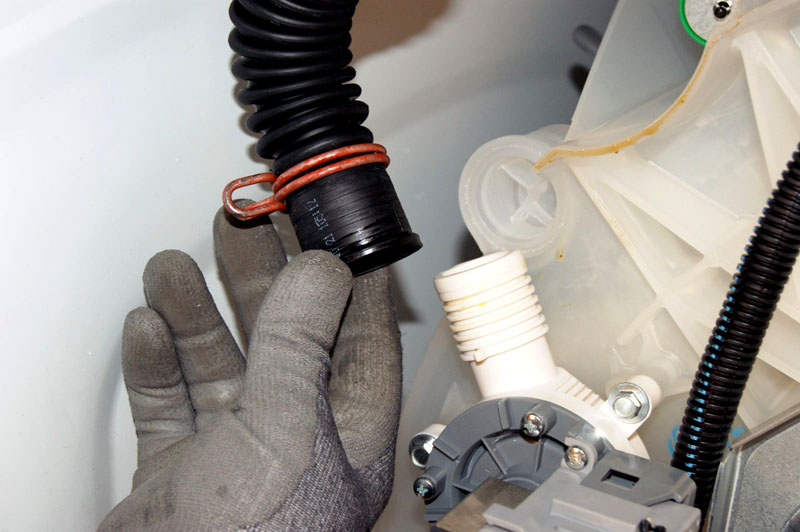

As we already mentioned, the cause of "stagnation" can be a clogged internal channel that connects the drum and pump. This important detail is called a spigot.

But in order to make sure that the machine has stopped draining the liquid due to a clogged pipe, you need to see it, having previously disassembled the machine.

For this you need:

  1. From the back of the machine, remove the holders that secure the drain structure;
  2. Take out the part in the form of a small plastic curved tube and rinse it well;
  3. Put the channel back in place.

If the device does not drain the dirty liquid, it is easy to check the hose for its removal with your own hands for clogging.:

  • Separate the element from the automatic machine;
  • Rinse it under strong pressure from the tap;
  • Put it back in place;
  • Restart the wash.

The washer may "refuse" to remove dirty water for another reason. Here the drainage system is clogged in the room where it stands. You can use special pipe chemicals to remove debris, or you can disassemble and clean them yourself.

If the "intermediary" between the machine and the sewer is a siphon, remove it and check for contamination.

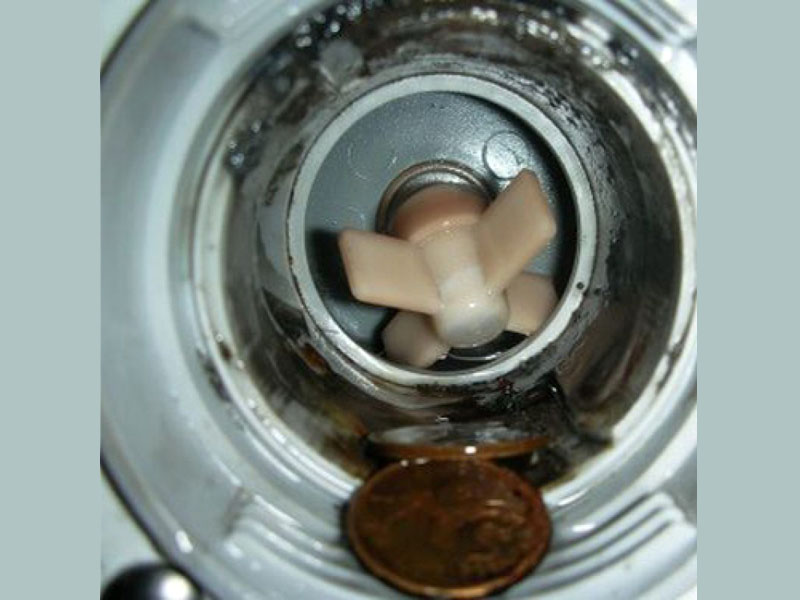

Was the washing machine not draining and humming? Look deeper into the problem. Perhaps we are talking about a malfunction of the rotating element of the impeller pump.Failure can occur even if the slightest object hits this part.

To fix this problem, you need:

  1. Open the filtration compartment and remove the filter - the impeller is located behind it;
  2. Twist the element to make sure it works properly;
  3. If nothing interferes with the movement of this part - the reason why the machine stopped in another;
  4. If the element does not rotate, remove all visible debris around it. It can be not only coins or pebbles, but also threads wound around it.

The reason why the machine does not drain water and does not wring out may be the wiring inside the device. But it's not worth checking it yourself without special tools, knowledge and skills. Entrust it to a technician.

You can tell about this problem after checking the drain hose, sewerage system, filter element and impeller. If they are not clogged, there may be a problem with the wiring.

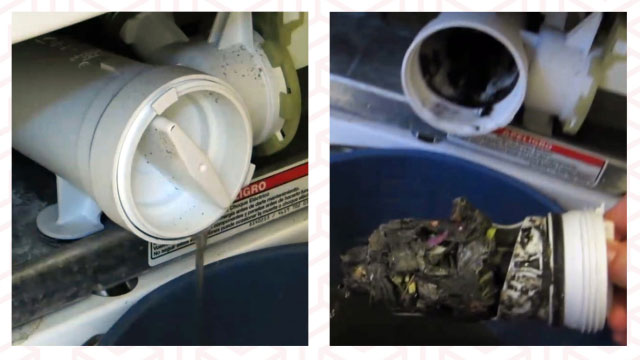

One of the most popular reasons why the washing machine does not drain water is trivial and easily fixable - it is a clogged filter compartment. Before ordering an expensive machine repair, check the filter.

You can do it yourself:

  1. Substitute a small container for water;
  2. Open the section with the filter (in the lower right corner of the device);
  3. Turn the special screw inside this compartment counterclockwise;
  4. Remove all debris and replace the element;
  5. Check how well the Indesit, Veko, Ariston, etc. washing machine works after these manipulations. If the washing machine is Atlant, how to drain the water for it.

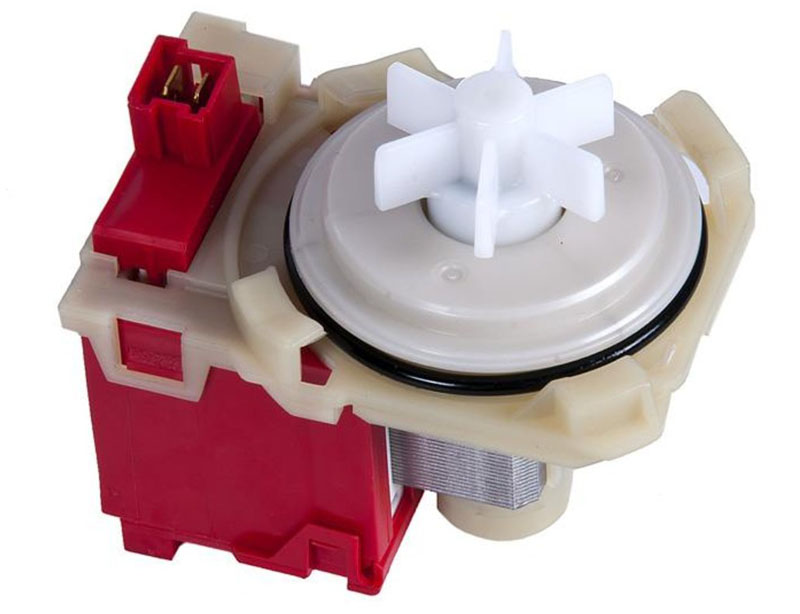

When your device does not squeeze and drain water, but you made sure that all the parts and wires that we have already talked about are not clogged or worn out. The pump may have broken.

Of course, it is better to entrust diagnostics and repairs to a certified specialist, but if you yourself want to fix the breakdown by replacing the main element in the washing machine, here are some tips on how to do it.:

  1. First you need to get to the pump. To do this, disconnect the drain unit where the pump is located from the device;
  2. Separate the pump from this assembly;
  3. Disconnect the power supply wires carefully;
  4. Install a new element and connect it to the wiring in the same order;
  5. Fix the drain unit in its original location;
  6. Plug the machine into a power outlet;
  7. To make sure that the water is drained, carry out a test wash;
  8. If all these actions did not solve the problem and the water does not drain out of the washing machine further, contact the service center, since you will hardly be able to diagnose the cause of the stagnation yourself.
Read also:  DIY washing machine repair samsung r1043

Of course, the information on what to do if the washing machine does not drain the water is useful and by putting it into practice you can save time and money for repairs. But we bring to your attention even more useful recommendations.

These are tips on how to prevent the above problems. What to do if the washing machine does not drain water and often starts to hum.

There are not many of them, but they are key:

  • Do not overload the clipper in excess of the rate indicated on it. Each appliance has a maximum permissible weight of laundry. If you do not adhere to this rule, all parts in the machine are worn out and become unusable faster;
  • Be sure to remove everything, even the smallest, items from your pockets. Check whether buttons and decorative elements (beads, beads, rhinestones, etc.) hold well on the products. If possible, peel them off before washing;
  • To avoid damage due to fluctuations in electricity, install a special fuse before operating;
  • Check the filter compartment regularly for clogging. As we said, you can do it yourself;
  • Use your clipper correctly. The mode you select should be suitable for the type of fabric.

Do not forget to clean the machine from scale and dirt.This should be done at least once a year.:

  • Pour a special agent or citric acid into the powder receptacle (ordinary table vinegar is also suitable);
  • Set the mode on the typewriter, which provides for the highest temperature for cleaning (95 ° C);
  • Start an empty wash.
  • Clean regularly the pipes that make up your drainage system with a special cleaner.
  • To do this, pour the powder into the sink, toilet and bathroom drain and pour a glass of warm water there.
  • Wait 20-30 minutes, then flush the pipes with plenty of cold water.

The cycle is over, and the washing machine does not drain the water, or does not want to go to spin - an unpleasant situation. This may be a mistress's mistake when choosing a washing mode or a malfunction of the appliance. Diagnostics of the rebellious technique can be carried out independently without calling the master.
Image - Washing machine does not drain water DIY repair

Persistent or intermittent problems with draining in the washing machine cycle indicate a malfunction. Using broken household appliances is not only undesirable - it is dangerous. The symptoms of a technical problem are as follows.

  • Too long wash - over and above the specified program.
  • The water is not drained at all, or the machine stops in the draining program after washing.
  • Periodic problems. Several washes go well, and then it fails.
  • The display indicates the end of washing and spinning, and the laundry is wet or the bottom of the drum is full of water. When washing without spinning, there may be too much water to open the machine.
  • The washing phase takes place precisely in time, and on rinsing the machine freezes, it can rinse for a very long time, the drum is idle for a long time.
  • The spin function does not work.

Problems can arise in isolated cases, combine or be present all the time - all this indicates unit breakdowns.

If you are dissatisfied with the work of household appliances, there are two ways out:

  • Call the master, leaving him to deal with the problem.
  • Diagnose and fix the breakdown yourself.

Each hostess will be able to partially diagnose the car. You will need it anyway. After all, a foreman who comes for repairs will ask what the problem is and how they found out about it.

  1. Check the settings of the washing machine, the correct combination of the selected mode and options. If no spin mode is selected, the laundry will be wet after opening the drum. When washing bulky items made from hard materials, they can roll into a lump and not wring out to the end. When you select an additional rinse, the phase is greatly prolonged. In the "wool" mode, the drum is idle for a long time, and it may seem that the machine is frozen. The way to fix it is to change the settings, remember the correct ones and no longer get scared - the machine is working properly.
  2. Check the network. The plug can be pulled out of the socket without the knowledge of the hostess. A power outage can cause the machine to stop. If the light blinked and the wash did not start again, the machine is full of water, does not drain, you need to press the "start" button again. Not all models have the ability to continue the operation after a short-term absence of light. Electricity can be disconnected from an overload of the circuit on which the outlet for the washing machine is located - you need to check the machines.

If there is food, the settings are correct (a small child can easily dig into them), which means that the malfunction is in the car, and not the owner.Image - Washing machine does not drain water DIY repair

  • The connecting pipe between the pump and the tank is clogged with debris or small change from the pockets and does not allow water to pass through well.
  • The pump has broken (or something is stuck in it). The unit hums a lot and water does not drain out of the washing machine.
  • The pump filter is clogged. This may be after washing very dirty things or an abundance of loose small parts in the bookmark.
  • The drain hose is pinched. If there is no direct discharge into the sewer, the hose is thrown into the bathroom manually, perhaps the "washing machine" was moved or something was put behind it. The hose can be pinched by a heavy object, and it is folded with kinks.It corrects instantly - you just need to straighten it.
  • The hose supplying water to the pump is clogged.
  • The siphon is clogged.
  • The sewer is clogged. With direct draining, this can affect the operation of the machine - there is nowhere for the water to go. They quickly stop washing and unclog the drain before additional water flows into the apartment.
  • Broken control module.
  • Overload. Washing machines are designed for a certain weight of laundry. If you put in a lot more, but tamp it well, she not only does not stretch clothes, but also faces problems with draining water. For normal operation, you will have to pull out some of the laundry, leaving it for the next bookmark.
Read also:  Refrigerator Westfrost DIY repair

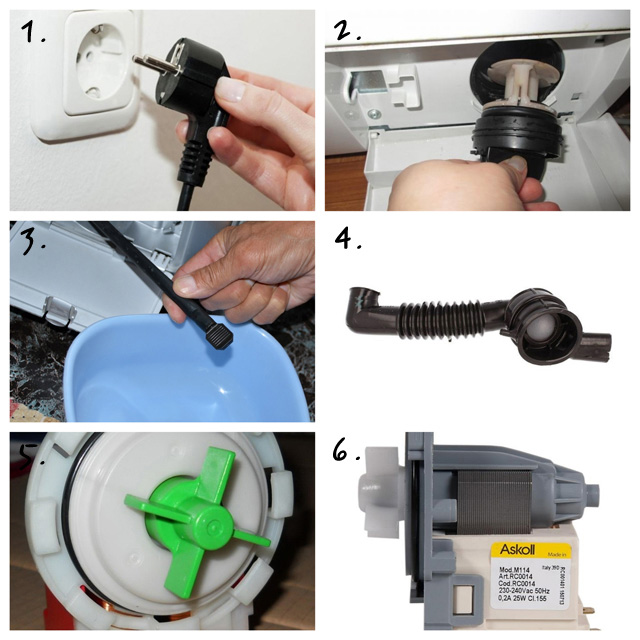

The algorithm for diagnosing problems is simple - you should not immediately disassemble the machine and, sorting out the parts, try to understand why the washing machine does not drain the water. It is more convenient to check for possible malfunctions as the complexity increases.

Image - Washing machine does not drain water DIY repair

If a malfunction is found at a certain stage, it should be eliminated and the unit's operability checked. It works - there is no point in continuing to disassemble the equipment. If the problem persists, go to the next item. The situation is quite real when one breakdown pulls another.

Some washing machines can diagnose themselves, display data on the display, you need to read the error code.

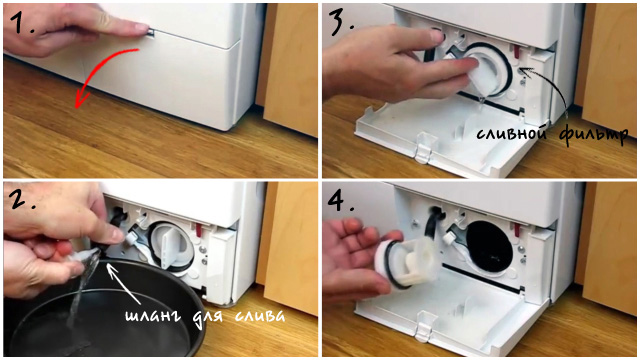

You can drain the water from the machine through the pump filter and drum. In both cases, if you do not substitute the container in advance, you can expect a mini-flood.

When draining through the drum, you need to firmly press the container against the front panel. Ideally, lay a dry cloth on the floor and use a square basin. After opening the door, water will flow over the front panel into the container. When the free flow stops, you need to remove the remaining water from the drum with a rag. It should be remembered that water remains in the system and may come out when disassembling and cleaning the drain mechanism.

Another option is to unscrew the pump filter and drain the water through it. Here you need a spacious container with low sides, because the filter door is low, and all the water will drain, forming a light pressure.Image - Washing machine does not drain water DIY repair

To eliminate light breakdowns and blockages of conductive parts, due to which the machine stopped draining water, you need to follow simple instructions.

Place a container with low sides under the drain filter door. It is usually found at the bottom of the front panel, in the corner below the drum. After opening the small door or removing the lower plastic panel, the filter handle becomes visible. This is the same "magic twist" that will help you find lost earrings, torn off buttons, change that disappeared from pockets during washing, and many other "treasures".

In front of the filter, all small objects that accidentally end up in the washing machine and get into the drain system accumulate. They interfere with the passage of water. To clean the filter, remove them and rinse the filter under running water.Image - Washing machine does not drain water DIY repair

The connection is located on the back of the washing machine. It is necessary to unscrew the screws on the drain unit, carefully loosen the clamp with which the branch pipe is attached to the snail, and remove it. Drain off water if it has accumulated inside. A blockage can form in the corrugation, which prevents the water from being drained. After removing the blockage, the parts are returned to their place. When cleaning the corrugation, you should not use sharp objects, they can arrange a leak and cause a breakdown of the machine later, a bottle brush or a strong pressure of water is quite suitable.

The pump filter is removed, the spin mode is started. Using a flashlight, you can see if there is a blockage on the impeller. If it is clean, but not spinning, then, most likely, the pump is broken, it's time to call the master or start replacing it.

It is checked simultaneously with the impeller. A clean impeller without blockages and the absence of characteristic sounds during the spin mode indicates a pump malfunction.

Replacing the pump requires removing the drain assembly, just like when checking the pipe, only you do not need to disconnect it from the volute.It is necessary to tilt the washing machine by the back wall, disconnect the "snail". Only after that the pump is disconnected from the power system and disconnected from the "snail".

The installation of a new pump is carried out upside-down. There is one caveat. The pump can only be faulty in a loaded machine. This happens when the mechanism has completely exhausted its resource. It regularly spins in an empty machine in the spin mode during testing and stops working when the system is filled with water. His efforts are simply not enough to pump the environment. In this case, the washing machine does not drain either; the pump needs to be replaced. This trouble can be determined only by excluding other possible causes.

Software modules are difficult to diagnose on their own, but some machines show an error code. Using the code on the Internet, you can find the essence of the breakdown without disassembling the unit and follow the instructions for elimination. Or call a wizard to replace parts or assemblies. Often the electronic unit is assembled, therefore it changes entirely.

If there is no automatic diagnostics, resetting the settings, restarting the machine with a complete power off or firmware of the module can help. It is better to entrust the latter to a professional, otherwise the “brains” of the “washing machine” will have to be changed or bought a new typewriter.

The drain mode may be affected by mechanical and electrical faults common to the system. Violations in the wiring provoke failures of various systems, malfunctions of the software module, pump, motor. They threaten with trouble not only the washing machine, but also the rest of the household appliances connected to the network, as well as the owners and their pets. The electric crackle, the smell of burnt insulation, a short circuit during the operation of the "washing machine" are most vividly signaled about a wiring malfunction.

Mechanical problems such as loose mounting bolts, leaks in hose connections can leak and increase from vibration during operation of the machine. In this case, it may not be necessary to drain the water for repairs; it will simply spill out onto the floor and flood the neighbors below.
Image - Washing machine does not drain water DIY repair

Read also:  Cherie tigo do it yourself steering rack repair

Modern technology is quite reliable, and most of the troubles can be avoided by observing the operating rules.

In the case of a washing machine, these are:

  • Clean pockets before washing. Cleaning up small items, documents, etc. is a very useful habit. It will save not only the "washing machine", but also many necessary little things.
  • Observe weight criteria when loading.
  • Fill the unit with the correct detergent. That is, if there is no liquid or dry powder, postpone washing or wash by hand. Incorrect household chemicals in the tray can adversely affect the integrity of the entire system, for example, corrode some connections.
  • If voltage drops occur, connect the washing machine through a stabilizer.
  • Regular - once a year - cleaning the filter from debris and the entire system from scale. This is enough for the excellent performance of the technique.

Any technique loves cleaning, prophylaxis, maintenance, this seriously affects its service life and the quality of the operations performed.

In fact, there are three solutions to the problem of not having a drain, not two. In addition to calling the master and self-diagnostics, you can instruct someone from the family to conduct an inspection and repair work. Suddenly there are technology lovers among them who have long dreamed of getting to know the device of the washing machine.
